Description

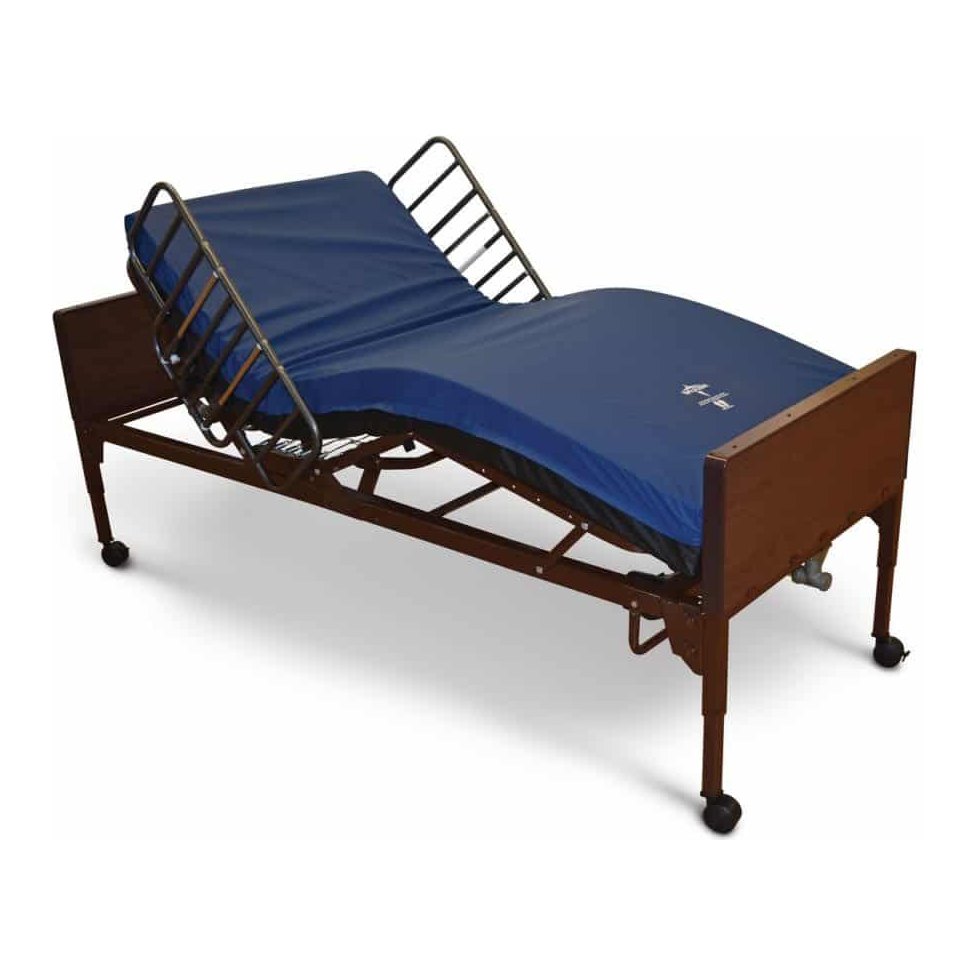

The MedLite MDR107003L is a frame-only full-electric homecare bed. It is not the low bed MDR107003LO, and it is not a rail or mattress package.
Who it suits, and who should choose another bed
- One adult at home, at or under 450 lb (204.12 kg).
- Not MDR107003LO. That low full-electric MedLite is a different item.
Will the deck, the boards and a mattress fit?
- Spring deck height is 15 in (38.1 cm) to 23 in (58.42 cm). Board height is separate: 26 in (66.04 cm) to 33.85 in (85.98 cm).
- The deck is 34.5 in (87.63 cm) wide and 80 in (203.2 cm) long. The spring overall is 35.75 in (90.8 cm) by 89 in (226.06 cm).
- No mattress is included. A standard 36 by 80 inch homecare mattress fits the deck; see our therapeutic mattresses.
- Two casters lock and two roll. Lock both before a transfer. On a slick floor the locks may not hold.
Rails, power and a Health Canada notice
- Rails are not included. See bed rails. Use only authorized Medline parts, and fit mattress retainers.
- Canada's recall and safety alerts database carries a notice dated 30 December 2025 that names MDR107003L. Read that notice and the Medline manual before you fit a rail or another accessory.
- In a power cut the crank changes the height. Take it off before the pendant runs, or it can spin with the motor.
- The battery box moves the head and foot only. It needs two 9V batteries you supply. Unplug it from the junction box after use.
How it compares
The Drive low height frame sits closer to the floor. Other choices are on full electric beds and homecare beds, including the Delta 1000.
Frequently asked questions
What if the pendant moves the wrong section?
The motor cables may be in the wrong sockets on the junction box. Stop and ask for service before you keep pressing buttons.
What if only one board rises when the height changes?
The pin in the centre drive shaft may have dropped out. Stop the hi-lo function and ask for a repair before you use it again.
Can I wash the spring sections at home?
Yes. Separate the head and foot springs, stand them on edge, wash with mild detergent, then rinse and towel them dry.
Funding, a short stay, and the warranty
Funding may help: see who may help pay.
For a short stay, a hospital bed can be rented instead of bought. See bed rental.
The Medline warranty runs 5 years on mechanics and electronics and life on the frame and welds.
Specifications
- Weight capacity
- 450 lb (204.12 kg)
- Product weight
- 180.7 lb (81.96 kg) shipping weight
- Assembly
- Two cartons. Lock the two locking casters while you assemble. Remove the crank before using the pendant.
- Caster locks
- 4 casters, 2 locking and 2 not
- Overall width
- 35.75 in (90.8 cm) spring overall
- Overall length
- 89 in (226.06 cm) spring overall
- Package contents
- Two cartons: boards, both springs, 4 casters, pendant, drive shaft, wrench, crank and battery box. No 9V batteries, rails or mattress.
- Compatible rails
- Not included. Use only authorized Medline parts, with mattress retainers.
- Motors
- 3 DC motors
- Battery backup
- Battery box included. Two 9V batteries are not. Head and foot only.
- Hand pendant
- Included. Adjusts head, knee and height.
- Bed width
- 34.5 in (87.63 cm) spring deck
- Bed length
- 80 in (203.2 cm)
- Minimum bed height
- 15 in (38.1 cm), floor to the spring deck
- Maximum bed height
- 23 in (58.42 cm), floor to the spring deck
- Deck sections
- Split spring: head section and foot section
- Bed positions
- Head, knee and bed height
- Section angles
- Head about 70 degrees. Knee about 35 degrees.
- Head and footboards
- Included. Board height 26 in (66.04 cm) to 33.85 in (85.98 cm). Colour is not named.
- Sold as
- Frame only, item MDR107003L
- Warranty
- 5 years mechanics and electronics; lifetime frame and welds; casters excluded
- Product type
- Full electric homecare bed frame, 3 motor
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Medline warrants the MedLite full electric home care bed (MDR107003L) to the original purchaser against defects in materials and workmanship, and repairs or replaces the bed at its option.
- Mechanics and electronics: 5 years.
- Welds and frame: life of the bed.
- Excludes failure from owner misuse or negligence, and normal wear and tear.
- Excludes non-durable parts that wear and need replacement, such as casters.
