Description

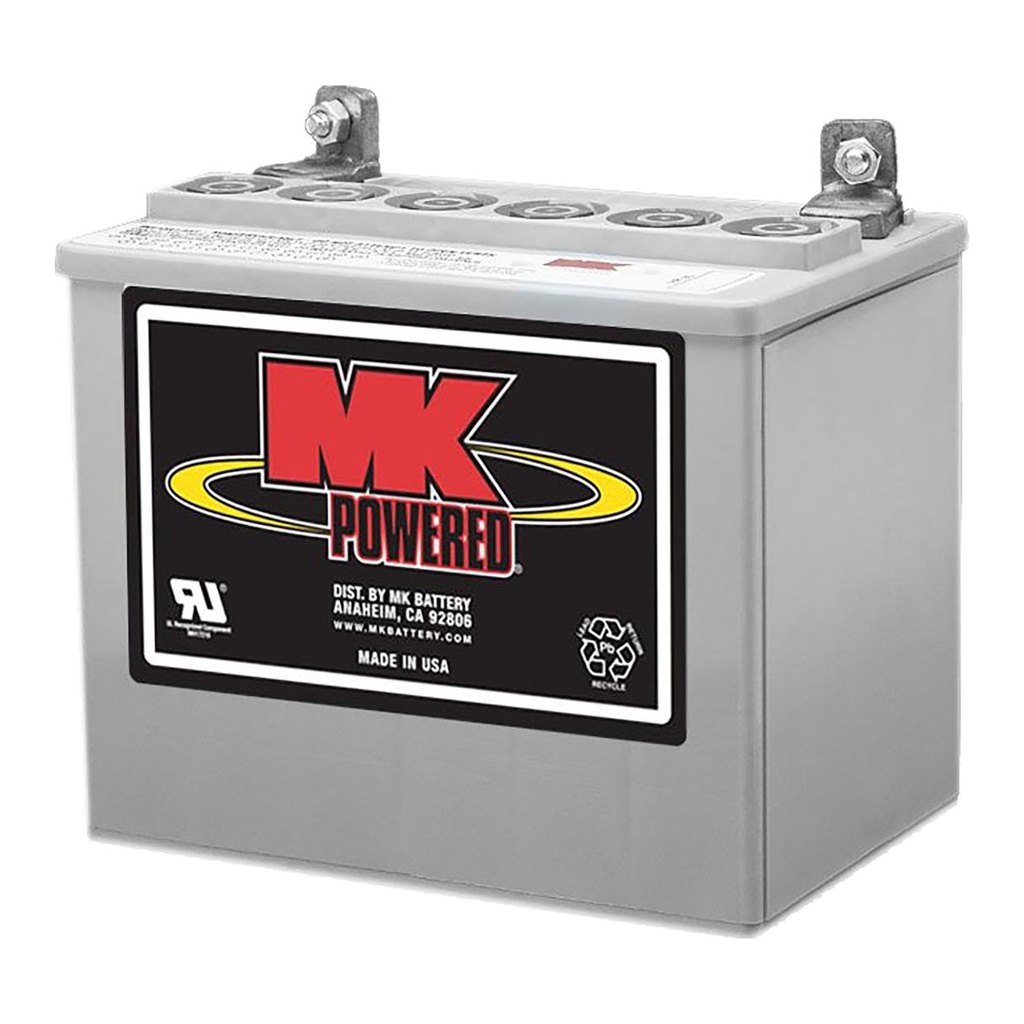

This is MK gel part 8GU1, alternate model MU-1 SLD G, and it has no lifting handle.
Who should choose this gel battery?
- Choose it when the battery coming out is marked 8GU1 or MU-1 SLD G.
- Choose the 8GU1H when the tray needs a handle. That part is 8.41 in (214 mm) long.
- Choose another case when the old battery is an 8G22NF. That gel part is larger and uses terminal G.
Will the 8GU1 fit the tray?
- Length 7.71 in (196 mm). Width 5.18 in (132 mm). Height 7.22 in (183 mm), including the terminal.
- Weight 23.5 lb (11 kg).
- Terminal Y (T873) is a small L with a 5/16 in hole. MK's offset post is terminal G, not this one.
How should the 8GU1 be charged?
- At 77 F (25 C), cycle charge is 13.8 to 14.6 V and float is 13.4 to 13.6 V, on a constant-potential charger.
- Do not charge it in a sealed container. The data sheet lists operation from -76 F to 140 F (-60 C to 60 C).
- MK rates it non-spillable by ICAO, IATA and DOT. The airline still decides.
- These sheets do not name a chair. Match the part number on the old battery.
How does the 8GU1 compare with other MK batteries?
- The MK 8AU1 AGM battery is a different chemistry, not this gel.
- The MK 8G22NF gel battery is the larger gel case on the same MK gel table.
- See the battery range when the old part number is neither of these.
Our technicians can fit and test this battery at home or in the shop. Start from battery replacement.
Frequently asked questions
Does terminal Y include a bolt?
The gel brochure describes Y as a small L terminal with a 5/16 in hole. It does not say a bolt is included.
Is the 8GU1 a 35 amp battery?
No. MK prints 31.6 Ah at 20 hours, 26.8 Ah at 5 hours, and 36 Ah at 100 hours. It does not print 35.
Can I charge the 8GU1 in a closed box?
No. MK says not to charge this gel battery in a sealed container.
Does MK call the 8GU1 a deep cycle battery?
The gel brochure marks this row as standard cycle life. It does not print the words deep cycle.
Funding may help: see who may help pay. Mobility Specialties is an ADP registered vendor. Never put the old battery in the garbage.
Specifications
- Product weight
- 23.5 lb (11 kg)
- Installation
- Our technicians can fit and test it at your home or in our shop
- Disposal
- Lead acid: never in household garbage. Take it to a Toronto drop-off depot or a Peel Community Recycling Centre
- Battery capacity
- 31.6 Ah at the 20-hour rate
- Battery voltage
- 12 V
- Battery group
- MU-1 (MK alternate model MU-1 SLD G)
- Battery terminal
- Y (T873): small L terminal with a 5/16 in hole
- Sold as
- One battery
- Deep cycle
- No. MK marks this row standard cycle life
- Air travel
- Rated non-spillable by ICAO, IATA and DOT; the airline must approve it
- Battery length
- 7.71 in (196 mm); the handle part 8GU1H is 8.41 in (214 mm)
- Battery width
- 5.18 in (132 mm)
- Battery height
- 7.22 in (183 mm) over the terminal
- Battery charger
- Cycle 13.8 to 14.6 V and float 13.4 to 13.6 V at 77 F, on a constant-potential charger
- Product type
- Power wheelchair and scooter battery
- Chemistry
- Sealed lead acid, gel electrolyte, valve regulated
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
