Description

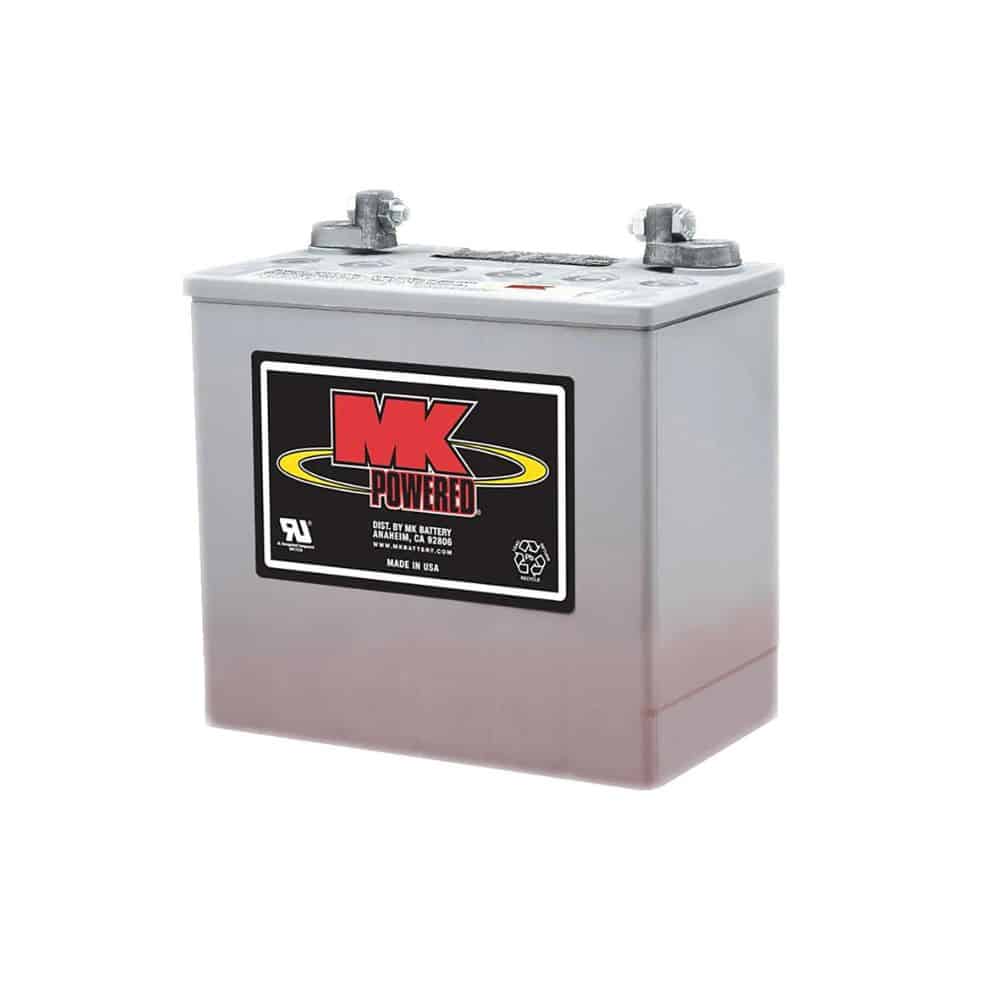

The MK 8G22NF, also marked M22NF SLD G, is one 12 V 51 Ah sealed gel battery in Group 22NF, with a G post terminal. It weighs 37.5 lbs (17 kg).
Which power chairs and scooters does it fit?
Use it when the old battery is gel, 12 V, Group 22NF, with a G post terminal.
- Pride Jazzy EVO 614: two 12 V NF-22 batteries, AGM or gel. This is the gel, with a G terminal.
- Quantum Q6 Edge 2.0 and Q6 Edge 3: two 12 V NF-22 batteries, AGM or gel; the terminal must match.
- Quantum Q6 Edge 3 Stretto: 40 Ah or 55 Ah NF-22. This gel is 51 Ah at the 20-hour rate, not 55 Ah.
- Fortress 1700 and the 4-wheel: Sunrise requires gel, but the box is 9.25 in high and this battery 9.26 in, so measure first.
The 8A22NF is the AGM version; never put AGM in a gel-only chair or mix the two.
What must match the old battery?
- Read the maker, part number, 12 V, amp-hours and chemistry; AGM is the wrong chemistry here.
- This is a G (T881) terminal; an M6 insert or a flag is a different battery.
- The case is 8.99 x 5.47 x 9.26 in, the last including the terminal. Measure the old battery before ordering.
How many, and how are they charged?
Most 24 V chairs take two 8G22NF; replace them together. Charge this 12 V gel to 13.8 V and no higher than 14.6 V at 77 F (25 C). Do not open the case.
Frequently asked questions
Can I use the AGM 8A22NF instead?
Only if the chair maker allows AGM and the battery you remove is AGM. Do not mix one gel and one AGM.
Will it fit a Fortress 1700?
Sunrise requires gel, which this is, but the box is 9.25 in high and this battery 9.26 in; measure first.
How is this different from the Interstate GEL0055?
Both are gel Group 22NF batteries. MK rates this one at 51 Ah at 20 h with a G terminal.
Warranty terms are in the Warranty tab.
Funding may help: see who may help pay.
Specifications
- Product weight
- 37.5 lbs (17 kg)
- Installation
- Our technicians can fit and test it at your home or in our shop
- Disposal
- Lead acid over 5 kg: never in household garbage. Take it to a Toronto drop-off depot or a Peel Community Recycling Centre
- Battery capacity
- 51 Ah at the 20-hour rate
- Battery voltage
- 12 V
- Battery group
- Group 22NF
- Battery terminal
- G (T881)
- Sold as
- One battery; most scooters and power chairs use two
- Deep cycle
- No, a sealed gel battery, not labelled deep cycle
- Air travel
- Rated non-spillable by ICAO, IATA and DOT; the airline must approve it
- Battery length
- 8.99 in (228 mm)
- Battery width
- 5.47 in (139 mm)
- Battery height
- 9.26 in (235 mm) including the terminal
- Compatible with
- Gel Group 22NF, G terminal. Measure before a Fortress 1700 (9.26 in tall). Jazzy EVO 614 and Q6 Edge if the label is gel.
- Battery charger
- 13.8 to 14.6 V at 77 F (25 C) on a voltage-regulated charger
- Warranty
- 3 months free replacement
- Product type
- Power wheelchair and scooter battery
- Chemistry
- Sealed lead acid, gel electrolyte, valve regulated
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
East Penn Manufacturing warrants the MK 8G22NF battery against failure from a defect in materials or workmanship from the date of sale, and replaces a failed battery with the same model free of charge during the free replacement period.
- Free replacement period: 3 months.
- Covers the original purchaser only; a replacement battery carries the rest of the original period.
- Keep the purchase invoice and bring it with the battery to the place of purchase.
- Excludes batteries that are only discharged, removal and installation labour, batteries that are opened, frozen, neglected or abused, wrong electrolyte or additives, failures caused by a faulty electrical system, and incorrect installation or charging.
Warranty manual
