Description
Which power chairs and scooters take a U1?
U1 is the small case used by many three and four wheel scooters and by lighter power chairs. Pride's own specifications list a pair of U1 batteries for the Jazzy Air 2, the Victory 10.2 and the Revo 2.0.
MK's wheelchair chart sets two U1 batteries for chairs from Drive, Golden, Bruno and others. Every one takes two 12 V batteries, so a chair needs a pair.
Some of those models list a 40 Ah option. That is a larger, heavier pack than this one; the U1 is the standard size unless your chair's own manual asks for the bigger battery.
AGM, and what it means for charging
This is an absorbed glass mat battery: the electrolyte sits in a glass mat and the case is sealed, so there is nothing to top up. MK prints 13.8 to 14.6 V for cycle charging and 13.4 to 13.6 V float, at 77 F. Charge it with your chair's own charger, never a car charger.
Gel or AGM: fit what your chair asks for
MK builds the same U1 case in gel as well, the 8GU1, and the two are not interchangeable: gel and AGM need different charge settings. Fit the chemistry your device maker specifies, and never pair a gel battery with an AGM one.
Fitting, testing and the old battery
Our technicians fit and test the pair at your home or in our shop in Toronto and the GTA, through battery replacement or our service team. Bring the old batteries in: a sealed lead acid battery never goes in household garbage.
Compare our other power chair batteries, the scooter batteries or the full battery range. A Group 22NF machine takes the MK 8A22NF. A Group 24 AGM machine takes a Group 24 case such as the Interstate DCM0075.
Frequently asked questions
How many U1 batteries does my chair need?
Nearly all of them take two, wired for 24 V. The page price is for one battery.
Does this battery come with a handle?

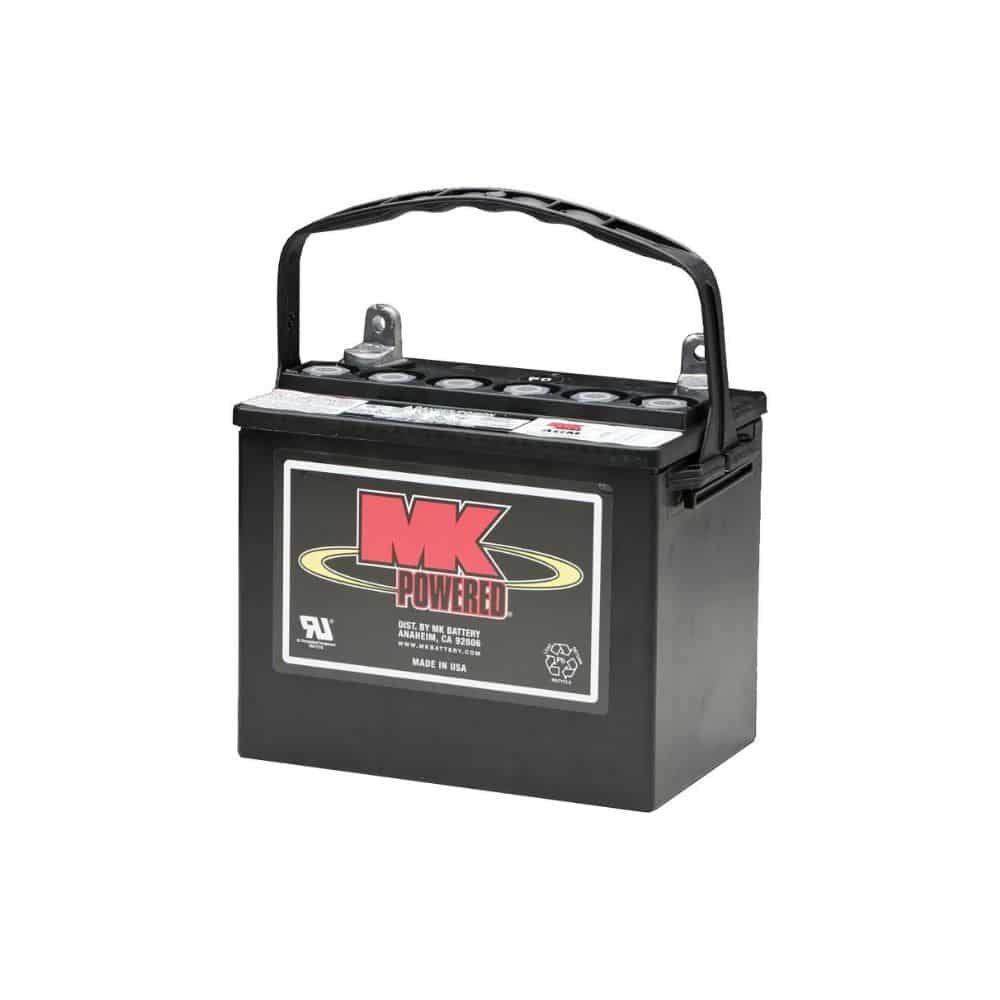

Yes. MK catalogues the handle build as 8AU1H, modelled MU-1 SLD A. The MU-1 SLD M is the shorter U1 without a handle.
Can I fit this in a chair that asked for a Group 22NF?
No. A 22NF is a wider case. The MK 8A22NF is the Group 22NF AGM.
Can I fly with it?
MK rates it non-spillable by ICAO, IATA and DOT. The airline decides whether it flies.
Warranty terms are in the Warranty tab.
Funding may help: see who may help pay. Mobility Specialties is an ADP registered vendor.
Specifications
- Product weight
- 23 lb (10 kg)
- Installation
- Our technicians fit and test a pair at your home or in our shop
- Disposal
- Never in household garbage; take a spent sealed lead acid battery to a battery take-back point
- Battery capacity
- 32 Ah at the 20-hour rate; 37 Ah at 100 hours, 27.5 Ah at 5 hours
- Battery voltage
- 12 V
- Battery group
- U1 (BCI U1 case; MK writes the size as U1/MU-1)
- Battery terminal
- Y (T873) forged offset post
- Sold as
- One battery
- Deep cycle
- MK AGM line
- Air travel
- MK rates it non-spillable by ICAO, IATA and DOT; the airline makes the final decision
- Battery length
- 8.41 in (214 mm)
- Battery width
- 5.18 in (132 mm)
- Battery height
- 7.22 in (183 mm) over the terminals
- Compatible with
- U1 power chairs and scooters, most of them taking two batteries; a Group 22NF or Group 24 machine needs that size instead
- Handle
- Included (MK's H suffix means includes handles)
- Plate alloy
- Lead calcium
- Container
- Polypropylene
- Charging
- 13.8 to 14.6 V cycle and 13.4 to 13.6 V float at 77 F (MK's figures); use the charger supplied with your chair
- Operating temperature
- -40 F to 140 F (-40 C to 60 C)
- Vent
- Self-sealing
- Made in
- United States, by East Penn Manufacturing
- Warranty
- 3 months free replacement
- Product type
- AGM battery for a power chair or scooter, U1 case
- Chemistry
- Valve-regulated absorbed glass mat (AGM, sealed lead acid)
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
- Brochure MK 8AU1H data sheet, current sheet, (c)2020 MK Battery
- User Manual MK 8A and 8G battery installation and operating instructions, E.P.M. Form 1833 8/25
- Warranty Manual East Penn limited battery warranty, Form 1858
- Other MK Battery wheelchair application chart, chart dated 1-28-22
- Other MK transportation policy for lead acid batteries used in power wheelchairs, 12 February 2025
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
East Penn Manufacturing warrants the MK 8AU1 battery against failure from a defect in materials or workmanship from the date of sale, and replaces a failed battery with the same model free of charge during the free replacement period.
- Free replacement period: 3 months.
- Covers the original purchaser only; a replacement battery carries the rest of the original period.
- Keep the purchase invoice and bring it with the battery to the place of purchase.
- Excludes batteries that are only discharged, removal and installation labour, batteries that are opened, frozen, neglected or abused, wrong electrolyte or additives, failures caused by a faulty electrical system, and incorrect installation or charging.
Warranty manual
