Description

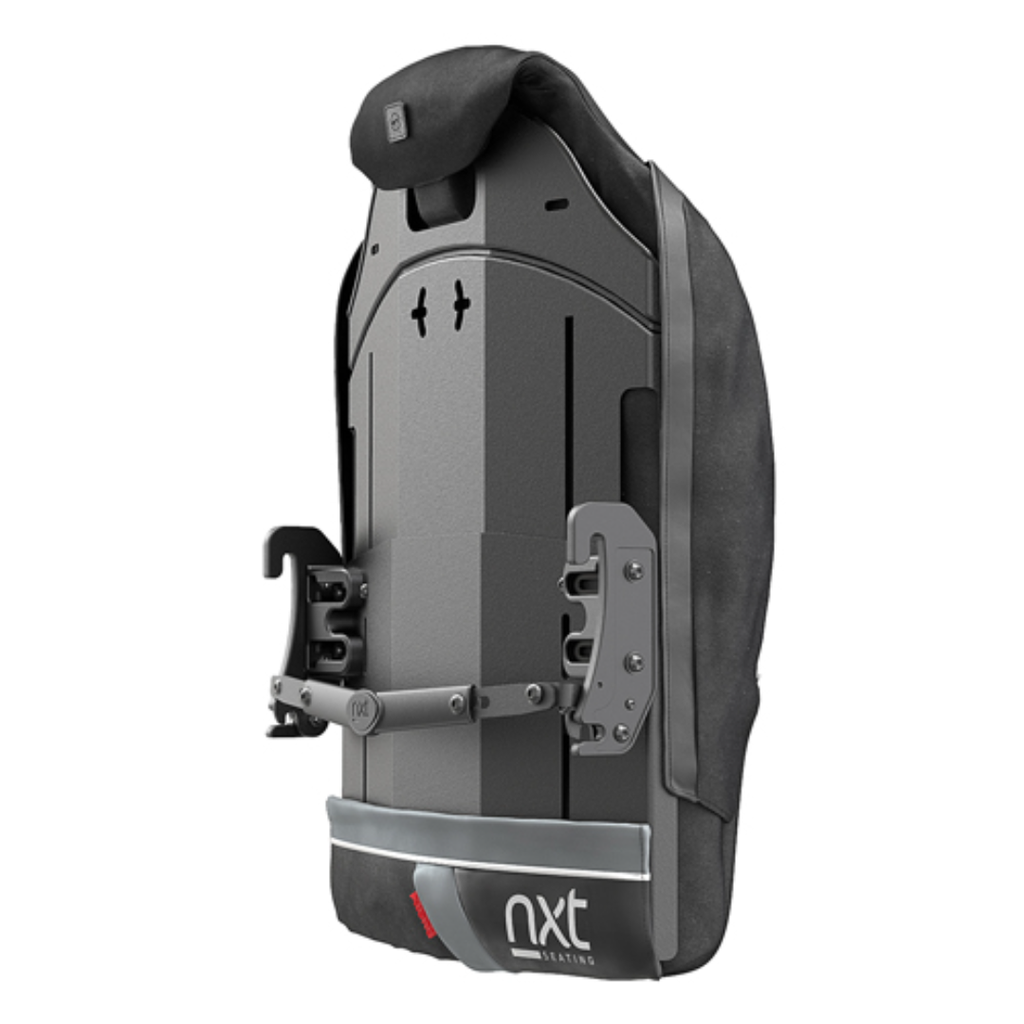

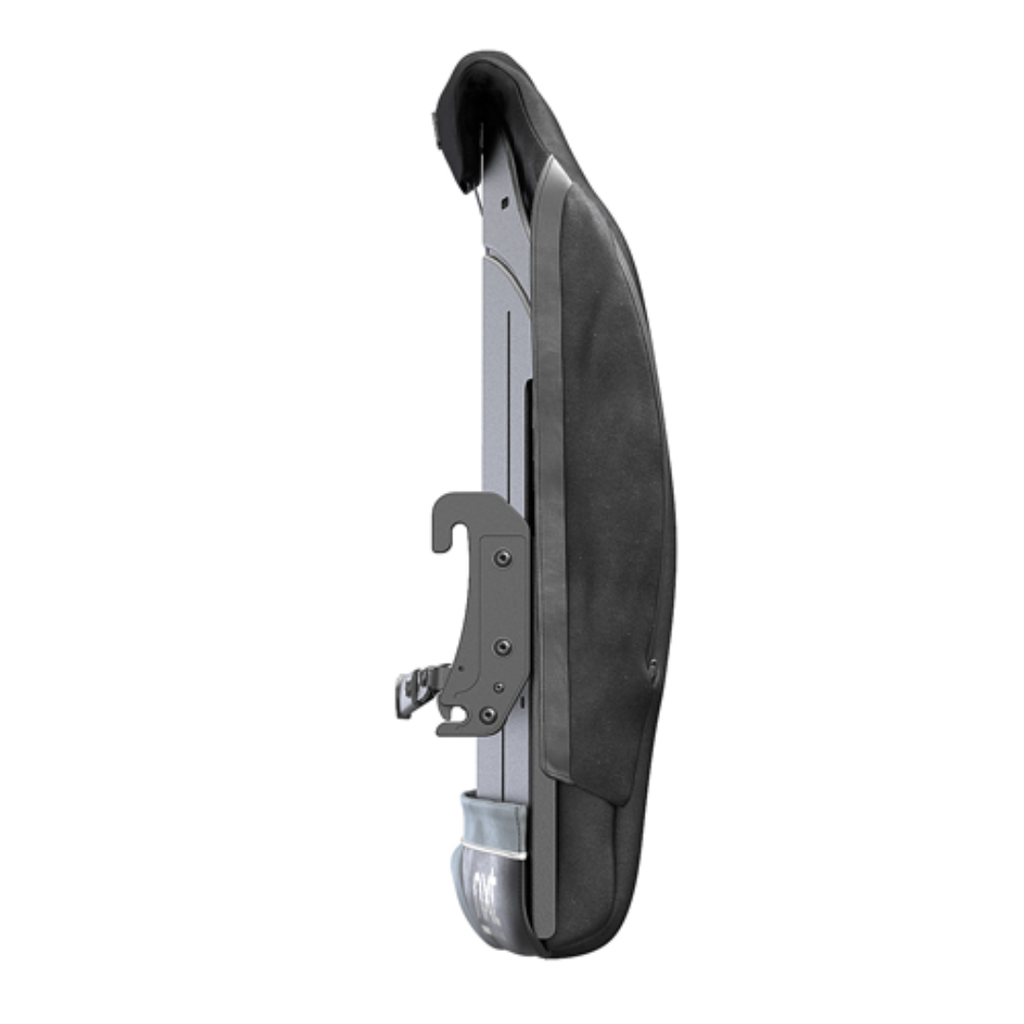

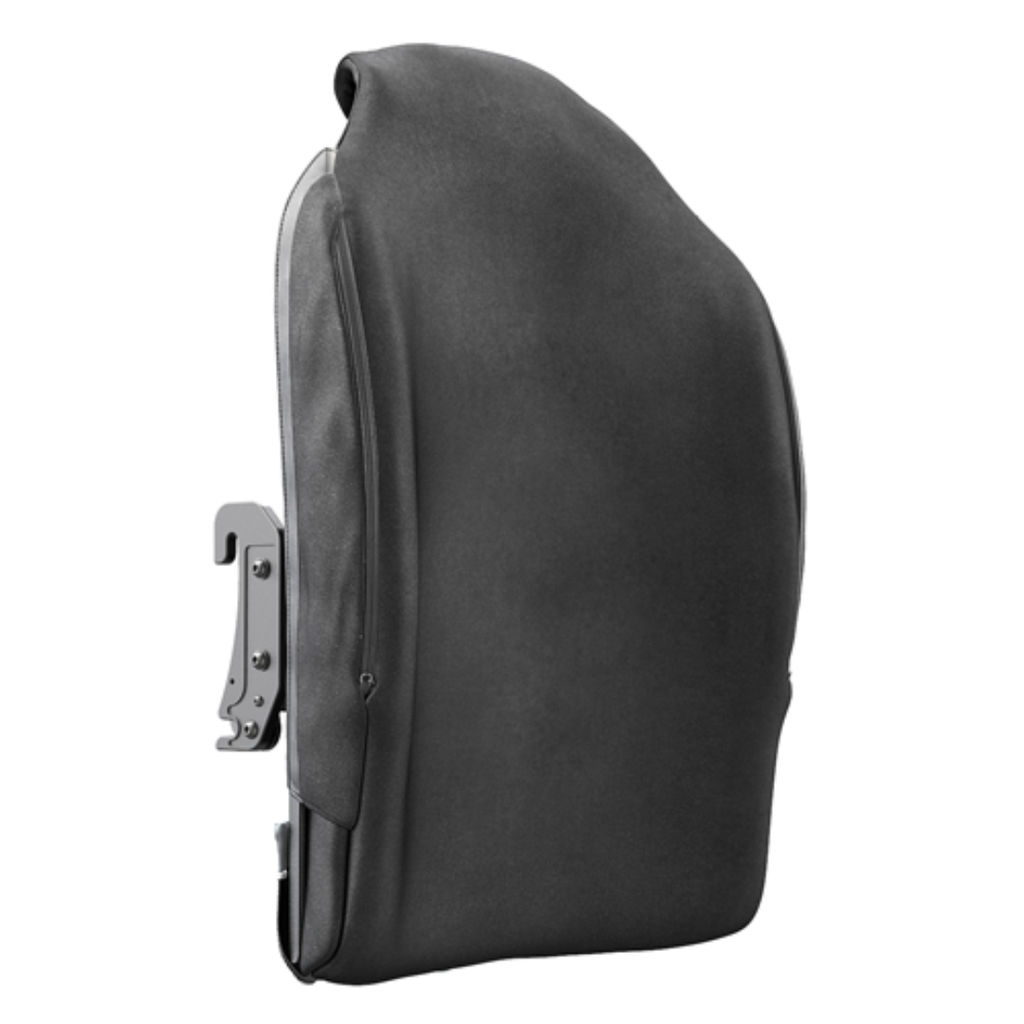

The NXT Xtend is a height-adjustable thoracic wheelchair back with a 3.5 in contour, built in two pieces so the upper support moves while the lower section stays at the pelvis.
What does it do and how does it work?
- Height adjustment: the upper shell moves steplessly through 4 in (102 mm), covering 16 to 20 in (406 to 508 mm) of height, set with the person seated.
- Shell: a two-piece aluminium shell with a scapula cut-out and a fixed lower section at the pelvis, with a pelvic cut-out for a natural seated position.
- Contour: 3.5 in (89 mm) thoracic contour; the Deep version adjusts from 5.5 to 7 in.
- Foam and cover: dual-density foam with smartGEL-infused visco, pelvic and lumbar pads, and a washable smartx3D four-way stretch cover.
Who is it for, and who should choose something else?
- Thoracic support: for a seating plan that needs a mild thoracic contour with the height set precisely.
- Deeper contour: for a deeper mid-line contour, the Xtend Deep adjusts from 5.5 to 7 in.
- Assessment first: an occupational therapist or physiotherapist sets the width, height and angle.
Will it fit?
- Widths: 16, 18, 20, 22 or 24 in (406 to 610 mm).
- Chair width: each shell covers a 2 in range, from a 16 in back on a 16 to 18 in chair through a 24 in back on a 24 to 26 in chair.
- Capacity: 300 lbs (136 kg) through 20 in wide, and 400 lbs (181 kg) at 22 and 24 in.
- Weight: 4.1 lbs (1.86 kg) on the 16 in shell.
- Back canes: QuickFit fits 0.75 to 1 in (19 to 25 mm) tubing, metric or imperial, without shims.
Using it day to day
- QuickFit hardware: 5 in (127 mm) of depth, 25 degrees of fore/aft angle, and pelvic or trunk rotation; reversible for more depth.
- Wider chairs: the hardware expands to fit a chair up to 2 in wider than the back.
- Head support and laterals: lateral supports, head supports and replacement covers and foam are accessories ordered separately.
- Care: remove the foam before washing the cover, wipe for light cleaning, and follow the cover's laundering instructions.
- Warranty: 24 months on the back and 90 days on the cover, from delivery to the original purchaser.
What does it work with, and what are its limits?
- Included: the shell, dual-density foam with smartGEL visco, pads, smartx3D cover and QuickFit.
- Covers: incontinent and infection-control inner and outer covers are available separately.
- Quote build: the width, cover and accessories are settled on the quote; custom and specially ordered backs are non-returnable, so read the return policy.
How does it compare?
The Xtend Deep has the deeper contour, the Prism Basic is a fixed foam back, and the Matrx E2 a rigid 3 in contour; see all wheelchair backrests.
Frequently asked questions
How far does the upper back move?
Four inches of stepless adjustment, giving a 16 to 20 in height range, and it is set with the user seated.
Which back cane diameters fit?
QuickFit fits 0.75 to 1 in tubing, metric or imperial, without shims.
Is this the Xtend Deep?
No. The standard Xtend has a 3.5 in thoracic contour; the Deep is a separate back with a 5.5 to 7 in adjustable contour.
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Specifications
- Weight capacity
- 300 lbs (136 kg) through 20 in; 400 lbs (181 kg) at 22-24 in
- Product weight
- 4.1 lbs (1.86 kg), 16 in shell
- Construction
- Aluminum shell, dual-density foam, smartGEL visco
- Cover
- smartx3D 4-way stretch cover
- Adjustments
- 4 in height; 5 in depth; 25 degrees fore/aft angle
- Back width
- 16, 18, 20, 22 or 24 in (406-610 mm)
- Back height
- 16 to 20 in (406 to 508 mm), adjustable
- Contour depth
- 3.5 in (89 mm), standard Xtend
- Mounting hardware
- QuickFit, 3/4 to 1 in back canes, no shims
- Fits wheelchair widths
- Up to 2 in wider than selected shell
- Warranty
- 24 months back; 90 days cover
- Product type
- Two-piece height-adjustable wheelchair back with foam
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure NXT Xtend Height Adjustable Thoracic Back Support brochure
- Brochure NXT Xtend standard and Deep specification sheet
- User Manual NXT Xtend Height Adjustable Thoracic Back Support user manual
- User Manual NXT Xtend Height Adjustable Thoracic Back Support hardware manual
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
NXT Seating gives the NXT Xtend back support a limited warranty of 24 months from the date of delivery to the original purchaser.
- Back support: 24 months. A defective component is repaired or replaced at the maker's discretion.
- Cover: 90 days.
- Excludes daily wear and tear, mishandling, misuse, neglect and not following the care instructions.
- Excludes cigarette burns, tears from sharp objects and cover damage from not following the washing instructions.
- Claims and repairs go through the nearest authorized dealer; a copy of the purchase invoice may be required.
