Description

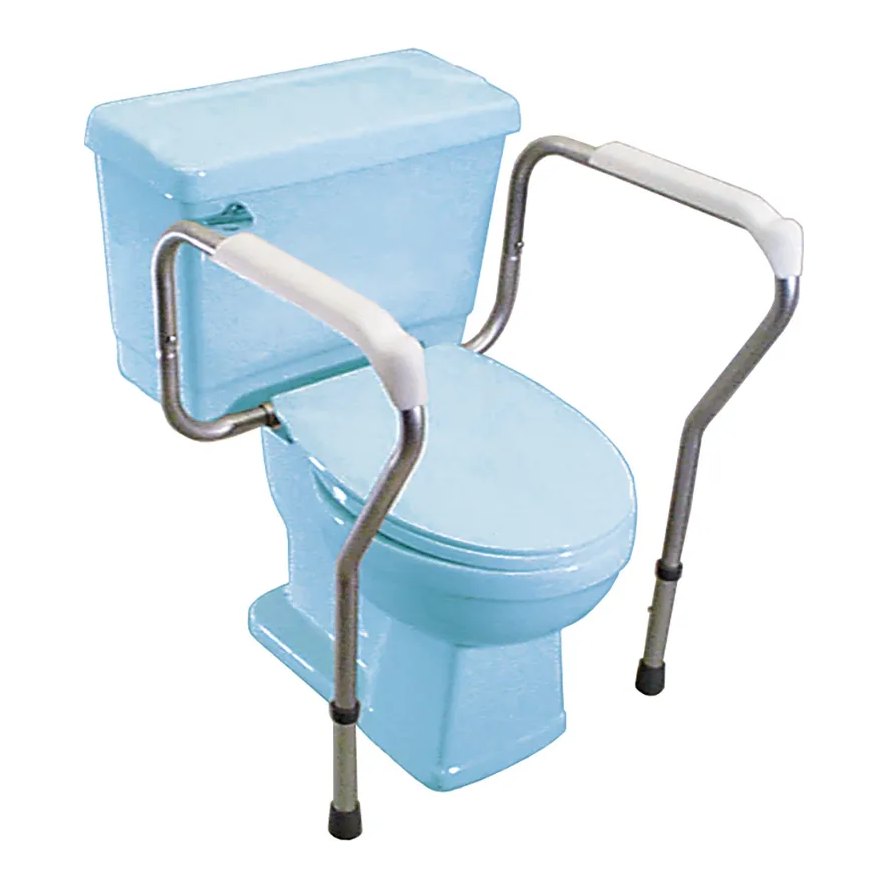

The Parsons 16B242A is a bolt-on toilet safety rail: an anodized aluminum frame with a moulded plastic arm rest at each side of the toilet. It fits under the seat on the hardware already on the bowl and is rated 250 lb (114 kg).
What does it do and how does it work?
- Frame: anodized aluminum with an extruded aluminum Arm Bracket.
- Height: adjusts from 25.5 to 29.5 in (65 to 75 cm).
- Arm width: the inside width adjusts from 18 to 22 in (46 to 56 cm).
- Arms: moulded plastic rests, not padded; they push into the bracket and lift out for storage or travel.
- Mounting: bolts under the toilet seat with the hardware already on the toilet.
- Capacity: 250 lb (114 kg).
Who is it for, and who should choose something else?
- It suits someone who wants a handhold at each side of the toilet they already have.
- Choose the Drive RTL12079 if the seat bolts cannot be used; it stands around the bowl.
- Choose the Drive RTL12000 for padded arms.
- Choose a grab bar for a handhold on the wall.
Will it fit?
- The seat bolts must be sound and reachable, because the frame fastens there.
- Height sets from 25.5 to 29.5 in (65 to 75 cm) and the inside arm width from 18 to 22 in (46 to 56 cm).
- For an elongated bowl or a raised toilet seat, tell us the combination and we check it before you order.
- A free home assessment can measure the space.
Using it day to day
- Fit the frame under the seat on the existing hardware.
- Push each arm into the Arm Bracket until its button clicks, and check it before each use.
- The arms lift out when the rail is stored or taken on a trip.
What does it work with, and what are its limits?
- It is a handhold, not a seat or a step; do not sit or stand on the frame.
- The 250 lb (114 kg) rating depends on the seat hardware holding the frame.
- Check that the bracket stays tight on the seat bolts before each use.
- Bathroom safety items are non-returnable once used, so measure first.
How does it compare?
- The Drive RTL12000 also bolts on and has padded arms.
- The Drive RTL12079 stands on the floor and needs no seat bolts.
- The AquaSense 770-665 reaches the floor and adjusts in height.
More toilet safety frames.
Frequently asked questions
Do I need to drill new holes?
No. The frame fastens with the seat hardware already on the toilet.
Can I take the arms off?
Yes. Press the buttons and lift the arms out of the Arm Bracket.
Can it stay on the toilet between uses?
Yes. The frame stays on the seat hardware; the arms come out when you want them out of the way.
Warranty terms are in the Warranty tab.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 250 lbs (114 kg), with sound seat hardware
- Assembly
- Arms push into the aluminum Arm Bracket and lift out
- Armrests
- Moulded plastic, not padded
- Height adjustment
- 25.5" to 29.5" (65-75 cm)
- Width between arms
- 18" to 22" (46-56 cm)
- Material
- Anodized aluminum frame with an extruded aluminum Arm Bracket
- Mounting
- Bolted under the seat with the toilet's existing hardware
- Finish
- Anodized aluminum
- Warranty
- One year against defects in materials or workmanship, original purchaser
- Product type
- Toilet Safety Rail
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Parsons ADL Inc. warrants this toilet safety rail against defects in materials and workmanship for one year from the original purchase date, and decides whether a repair or a replacement is authorized.
- Frame and arms: 1 year.
- Foam or rubber handgrips and rubber pads: wear items, not covered.
- Covers the original purchaser only; not transferable.
- Void if the rail is not used, inspected or maintained as the user manual directs, is improperly installed, repaired or altered, is damaged by neglect, accident or misuse, or is fitted with parts Parsons did not supply.
