Description

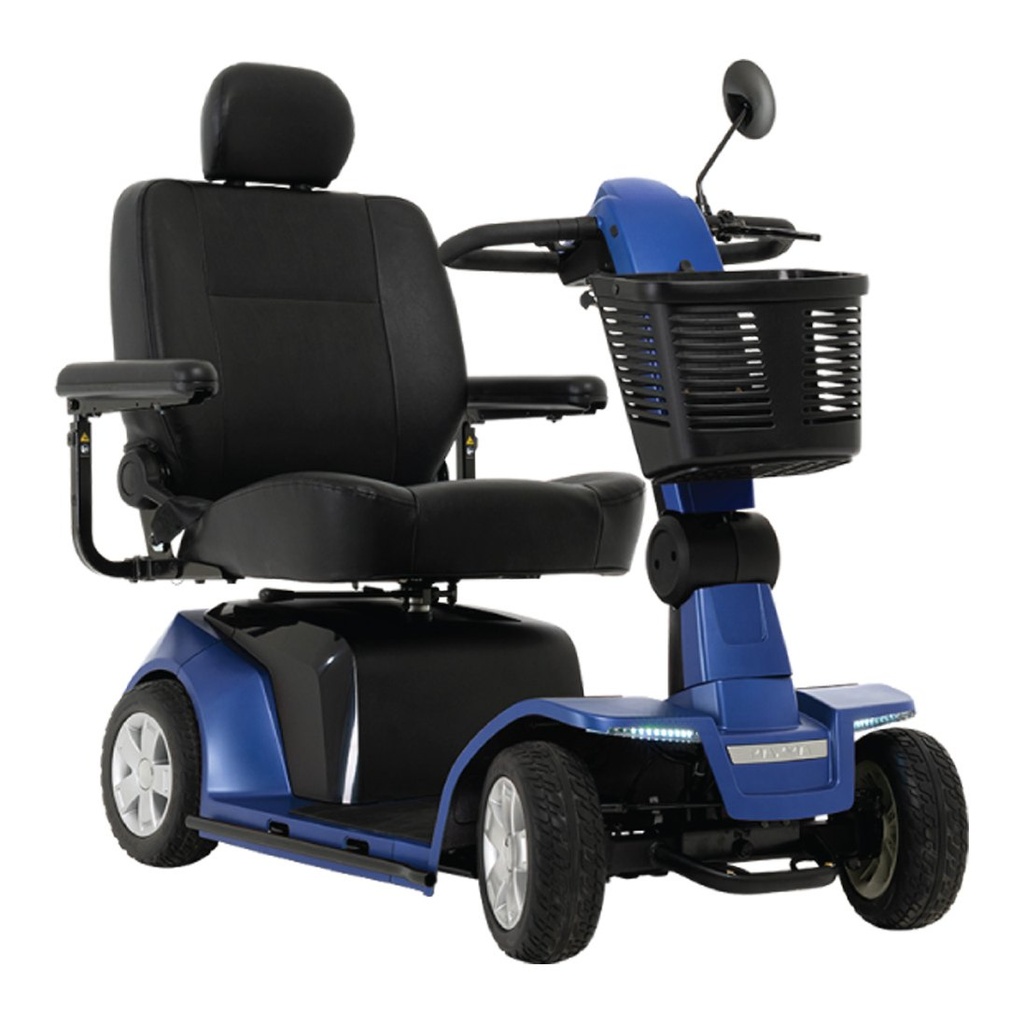

The Maxima SC941 from Pride Mobility is a four-wheel heavy-duty scooter rated 500 lb (226.75 kg), with a 53 in (1346 mm) turn.
What does it do and how does it work?
- A 24-volt rear-wheel transaxle gives up to 9.3 km/h (5.8 mph) and climbs 7.5 degrees (13 percent).
- Two 58 Ah gel batteries give up to 31.4 km (19.5 mi) per charge at maximum capacity.
- The delta tiller has an infinite-position lever, USB charger, XLR port and full LED lights.
- The high-back seat is 22 in wide with 18 to 20 in of depth, reclines 106 degrees, swivels four ways and has a 7 in (178 mm) headrest.
- The 5 A off-board charger fills the pack in 8 to 14 hours.
- Solid tires (10 in front, 10.75 in rear) need no air.
- A power elevating seat is an option and adds 6.25 in (159 mm) of height.
Who is it for, and who should choose something else?
- A rider up to 500 lb (226.75 kg) who wants four wheels for stability.
- It suits doorways, elevators, ramps and moderate outdoor terrain.
- The three-wheel SC901 turns tighter at 49 in (1245 mm) if maneuverability matters more.
- For postural support, ask your therapist about a power wheelchair.
Will it fit?
- 47.5 in (1206 mm) long, 28.75 to 33.5 in (730 to 988 mm) wide and 38 to 40 in (968 to 1018 mm) tall.
- The deck is 27 in (686 mm) wide; measure the narrowest doorway.
- The seat is 22 in (559 mm) wide and 18 to 20 in (457 to 508 mm) deep, set 22.1 to 24.1 in (561 to 612 mm) high.
- Ground clearance is 2.25 in (57 mm); the reversing width is 65 in (1651 mm).
- It separates into five parts without tools; the frame alone is 143.6 lb (65.1 kg).
Using it day to day
- Charge 8 to 14 hours after each day of use; give the batteries 48 continuous hours monthly.
- Never charge with an extension cord, near flames or while someone is sitting on it.
- The freewheel lever lets you push it on level ground; return it to drive before riding.
- The seat swivels for getting on and off, and the tiller lever locks at the angle you set.
What does it work with, and what are its limits?
- The 500 lb (226.75 kg) capacity includes the rider and everything carried.
- The maximum slope is 7.5 degrees (13 percent); the obstacle limit is 2 in (50 mm).
- Use only the supplied off-board charger, never a car charger.
How does it compare?

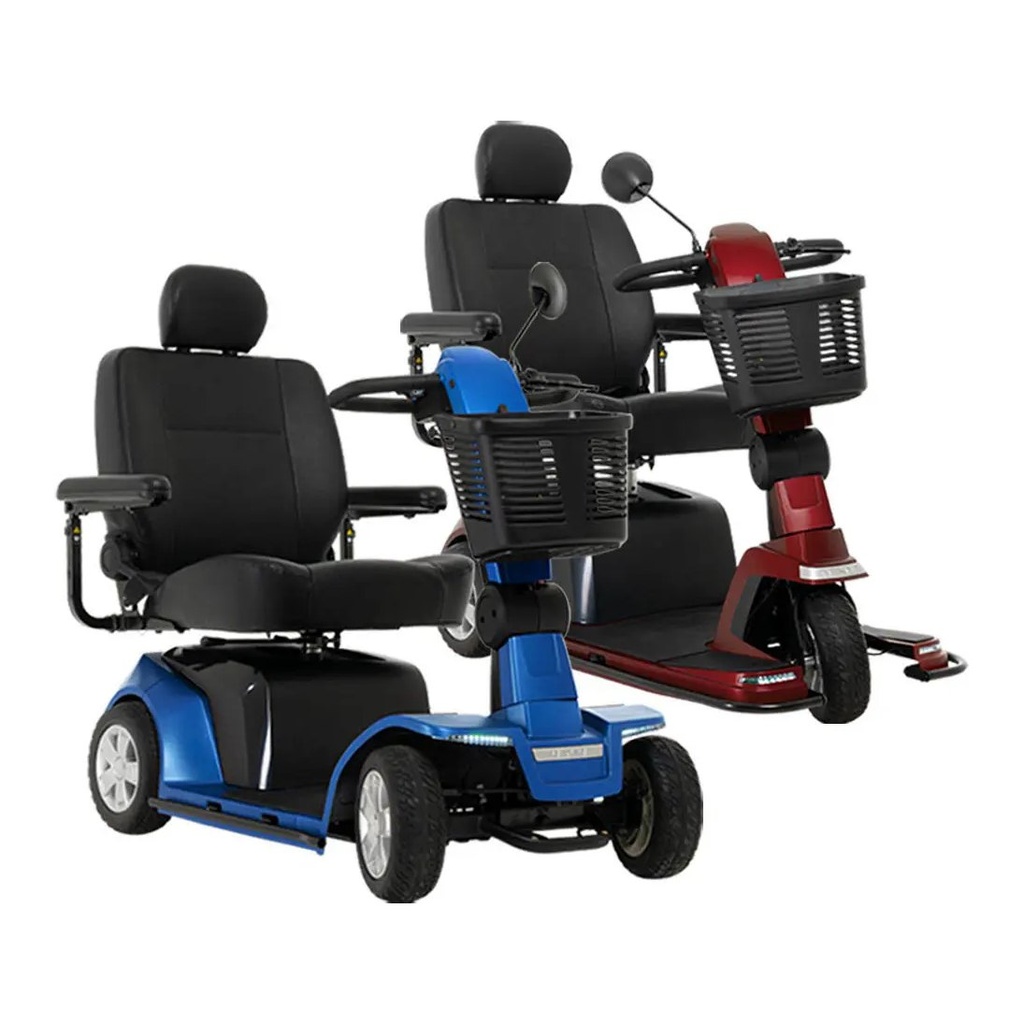

- The three-wheel Maxima SC901 turns in 49 in with less outdoor stability.
- The Pride Pursuit 2 is a full-size four-wheeler with a 400 lb (181 kg) limit.
- The heavy-duty scooter range lists the other models for larger riders.
Frequently asked questions
Does the power elevating seat come fitted?
It is ordered with the scooter and adds 6.25 in (159 mm); check the raised height against your doorways.
Can I charge it overnight?
Yes. The charger stops when full; if charging is not done within 24 hours, unplug it and call us.
Can I ride it in cold weather?
Store it between -25 C and 50 C (-13 F and 122 F); cold slows a battery.
Can I use a different charger?
No. A car charger, or one that charges the batteries separately, can damage them.
Pride's Canadian warranty covers the frame for life, electronics and drivetrain for two years, and batteries for 13 months: see the Warranty tab.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 500 lb (226.75 kg)
- Product weight
- 196.75 lb (89.25 kg) without batteries; 269.8 lb (122.4 kg) with batteries
- Folding or disassembly
- Disassembles without tools into seat, frame, basket, batteries and battery shroud
- Heaviest piece
- Frame without seat and batteries, 143.6 lb (65.1 kg)
- Seat width
- 22 in (559 mm)
- Seat depth
- 18 to 20 in (457 to 508 mm), depth adjustable
- Seat height
- 22.1 to 24.1 in (561 to 612 mm) from the ground; 17.13 to 19.13 in (435 to 486 mm) from the deck
- Seat type
- High-back black vinyl, 106 degree limited recline, 4-point swivel, 7 in (178 mm) headrest
- Tiller
- Delta tiller, infinite-position adjustment lever, USB charger, XLR charging port
- Tires
- Solid: 10 x 3.6 in front (254 x 91 mm), 10.75 x 3.6 in rear (273 x 91 mm)
- Suspension
- None
- Overall width
- 28.75 to 33.5 in (730 to 988 mm) including armrests; deck 27 in (686 mm)
- Overall height
- 38 to 40 in (968 to 1018 mm)
- Overall length
- 47.5 in (1206 mm)
- Ground clearance
- 2.25 in (57 mm) at the motor
- Turning radius
- 53 in (1346 mm)
- Maximum slope
- 7.5 degrees (13 percent)
- Driving range
- Up to 31.4 km (19.5 mi) per charge at maximum weight capacity
- Top speed
- Up to 9.3 km/h (5.8 mph)
- Brakes
- Regenerative and electromechanical
- Lights
- Full LED package: headlights, turn signals and rear taillights
- Motor
- Rear-wheel drive, sealed transaxle, 24-volt DC
- Batteries
- Two 12-volt gel, 58 Ah, NF22, 36.5 lb (16.5 kg) each
- Available colours
- Viper Blue, Candy Apple Red
- Charging time
- 8 to 14 hours
- Battery charger
- Off-board, 5 amp, 24-volt
- Maximum obstacle
- 2 in (50 mm)
- Warranty
- Lifetime limited frame; 2-year drivetrain; 2-year electronics; 13-month batteries
- Product type
- Heavy Duty
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Pride Mobility warrants the Maxima 4-wheel sold in Canada to the original purchaser against defects in material and workmanship.
- Structural frame (main frame, fork, seat post, tiller frame): limited lifetime.
- Transaxle, motor brake (electronic function), brake, bearings and bushings: 2 years.
- Controller, charger, harnesses and other electrical parts: 2 years.
- Pride batteries: 13 months from purchase.
- Excludes wear items (shrouds, motor brushes, upholstery and seating, brake pads, tires and tubes, fuses and bulbs), abuse, misuse and non-Pride parts.
- Labour, service calls and shipping are not covered unless Pride authorizes them in advance. Service is by an authorized Pride provider.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
