Description
The Quickie Nitrum is a rigid ultralight wheelchair in 7020 aluminium, hand built in California to the order form for an active adult who self-propels.
What does it do and how does it work?
- Two frames: the open frame and the Hybrid dual-tube frame, each also offered as an Active Rigid version with a fixed welded backrest and axle stems.
- Product weight: 18.3 lb (8.3 kg) open frame, 20.3 lb (9.2 kg) Hybrid, before options.
- Transport weight: 10.8 lb (4.9 kg) open frame, 12.8 lb (5.8 kg) Hybrid with the rear wheels off; 9.7 and 11.7 lb without the locks.

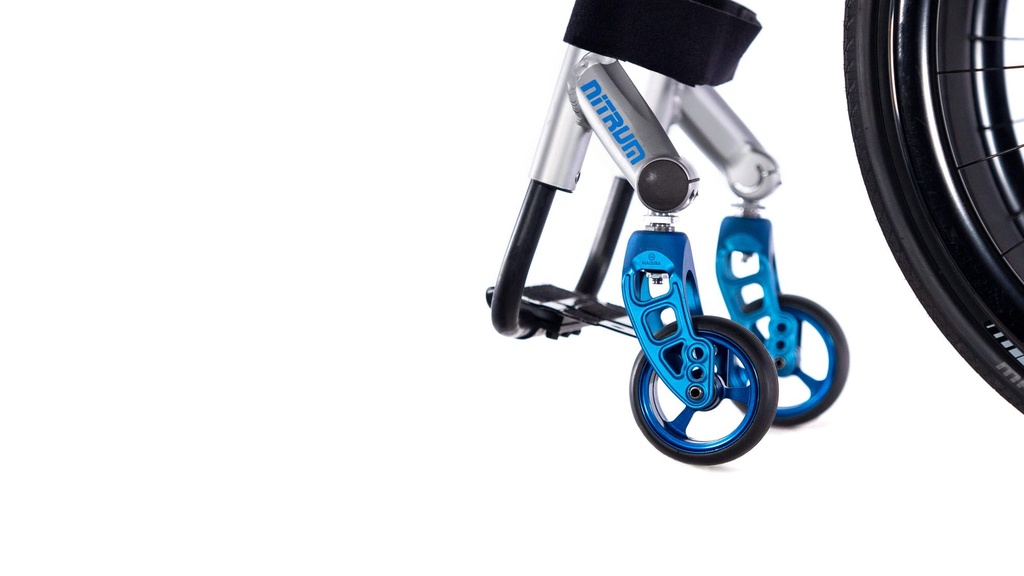

- 7020 ovalized, heat-treated aluminium frame with a patented single hollow-forged caster mechanism and adjustable caster spacing.

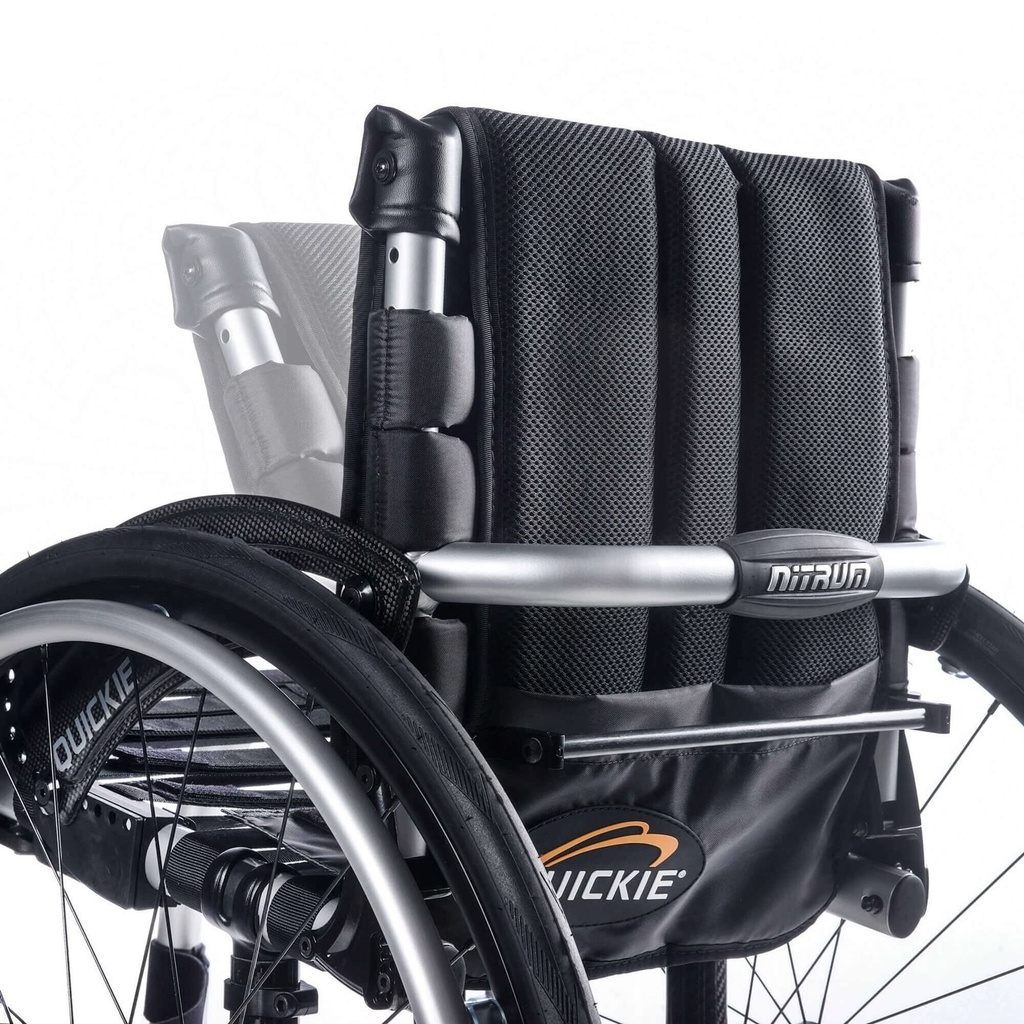

- The back folds with a one-handed release bar, with a Twist-Lock bar optional; the rear wheels are quick release.
- A direct-mount compact wheel lock saves 6 oz over the standard lock.
Who is it for, and who should choose something else?
- An active rider who propels all day and lifts the chair into a car; the open frame carries 275 lb (125 kg) and the Hybrid 300 lb (136 kg).
- A chair that folds across the seat: a folding wheelchair. Over 300 lb: bariatric wheelchairs.
Will it fit?
- Seat width and depth each run 12 to 20 in (30.5 to 50.8 cm), giving 89 combinations.
- Front seat-to-floor height 16 to 21 in (40.6 to 53.3 cm); rear 13 to 20 in (33 to 50.8 cm).
- Back height 10 to 20 in adjustable or 8 to 19 in fixed; back angle -18 to +10 degrees.
- Frame angle 75, 80 or 85 degrees; inset 0, 1 or 2 in; camber 0, 3 or 6 degrees; centre of gravity 0 to 4 degrees.
- Measure hip width, hips to knee, and knee to heel in shoes.
Using it day to day
- Pull the release bar up to unlock and fold the back; the rear wheels release without tools.
- Set the caster position narrower or wider for the rider's balance.
- Use the wheel lock only to hold a parked chair.
What does it work with, and what are its limits?
- The rider and anything carried must stay within 275 lb (125 kg) on the open frame or 300 lb (136 kg) on the Hybrid.
- The transit option conforms to ANSI/RESNA WC-19 and ISO 7176, and is not available with Active Rigid.
- The base weights are before options; a configured chair weighs more.
Which version should I choose?
- Frame: open, Hybrid or Active Rigid.
- 24 colours, including four patterned finishes.
- Rear wheels 20 to 26 in; casters 4 to 6 in or Frog Legs suspension.
How does it compare?
- Ki Ethos: another rigid chair.
- Rogue-2: a rigid chair with a different frame.
- Rigid wheelchairs: the full range.
Frequently asked questions
Does the back fold for a car?
Yes, one hand pulls the release bar, and the rear wheels are quick release.
Can the rider stay in the chair in a vehicle?
Only with the transit option, which conforms to WC-19 and is not offered on Active Rigid.
How much does it weigh without the wheels?
10.8 lb open frame and 12.8 lb Hybrid, or 9.7 and 11.7 lb without locks.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 275 lbs (125 kg) open frame, 300 lbs (136 kg) Hybrid frame
- Product weight
- 18.3 lbs (8.3 kg) open frame, 20.3 lbs (9.2 kg) Hybrid
- Transport weight
- Open frame 10.8 lbs (4.9 kg) with the rear wheels off, 9.7 lbs (4.4 kg) without the wheel locks; Hybrid 12.8 lbs (5.8 kg)
- Seat width
- 12" to 20" (30.5-50.8 cm)
- Seat depth
- 12" to 20" (30.5-50.8 cm); 89 seat width and depth combinations
- Back height
- 10" to 20" (25.4-50.8 cm) height adjustable, or 8" to 19" (20.3-48.3 cm) fixed
- Back angle
- Fore (-)18 degrees to aft (+)10 degrees
- Armrests
- Padded swing away, or height adjustable
- Legrests
- Fixed front frame with an aluminium tubular, angle adjustable flip back, platform or carbon fibre footrest
- Seat height
- Front seat to floor 16" to 21" (40.6-53.3 cm); rear 13" to 20" (33-50.8 cm)
- Rear wheel size
- 20" to 26": mag, spoke, Spinergy SPOX, Spinergy LX or Spinergy CLX carbon
- Caster size
- 4" semi pneumatic or Spinergy CX6 carbon, 5" soft roll or semi pneumatic, 6" pneumatic, or Frog Legs suspension
- Brakes
- Push, ergo scissor, knee lever, compact or Eagle wheel locks, or a direct mount compact lock
- Folding
- Rigid frame; the back folds down with a one handed release bar (Twist-Lock optional) and the rear wheels are quick release
- Frame material
- 7020 ovalized aluminium, heat treated (ShapeLoc)
- Available colours
- The maker's frame colour palette, four personalized finishes (desert camouflage, Mossy Oak, stars and stripes, zebra) and anodized component packages
- Positioning support
- Tension adjustable seat sling; JAY cushions and backs fit the frame
- Compatible with
- JAY J3 back, JAY cushions, Freestyle backrest, Empulse R90 power assist and twin LED lights
- Product type
- Rigid ultralight manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
