Description

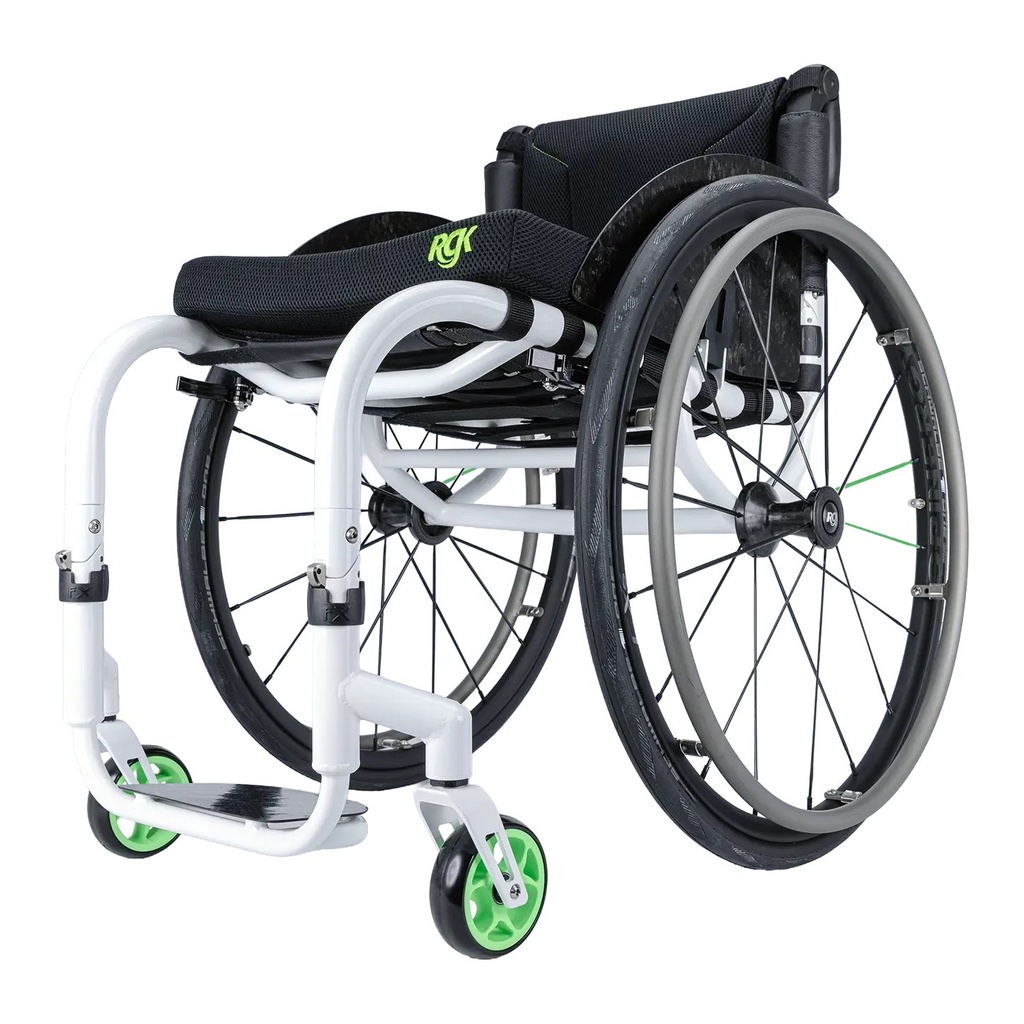

The RGK Octane FX (model FXT) is a made-to-measure rigid daily wheelchair in grade 9 titanium, with a Q-Lock fold at the front.
What does it do and how does it work?
- Grade 9 titanium frame with a Q-Lock front tube that folds under the chair, and a backrest that folds down.
- Twistlock collars must be locked in use; check the Q-Lock joint has no free play.
- Seat width and depth 250 to 460 mm (about 9.8 to 18.1 in) in 5 mm steps.
- Front seat height 480 to 550 mm (about 18.9 to 21.7 in); rear seat height 360 to 550 mm (about 14.2 to 21.7 in).
- Back height 203 to 431 mm (about 8.0 to 17.0 in); back angle 10 degrees forward and 10 degrees back from 90.
- Centre of gravity adjusts 0 to 178 mm; camber 0 to 5 degrees; the frame angle is set to the rider.
- Under 5.5 kg (12 lb) without wheels and cushion, on a 400 mm rear seat width.
Who is it for, and who should choose something else?
- A rider who wants a made-to-measure chair that stays rigid and folds for a car or trip.
- It is not a cross-brace chair. The RGK HiLite is another made-to-measure rigid daily chair without this front fold.
- It is not the Octane Sub4; they are separate chairs.
Will it fit?
- Seat and back measurements are chosen from the ranges on the order, so a therapist or our free home assessment measures before the chair is built.
- Sunrise lists transit as no: a tied-down chair is not a vehicle seat.
Using it day to day

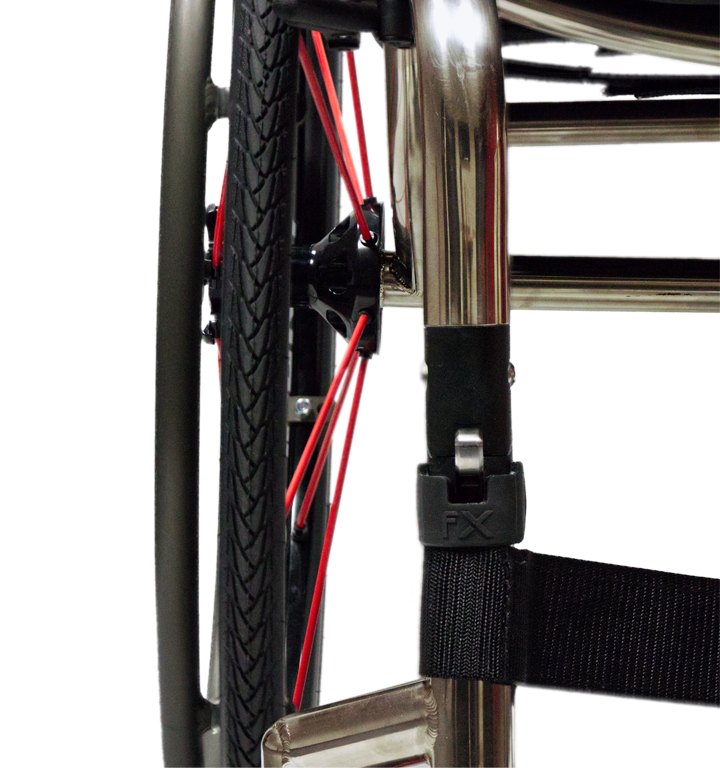

- To fold the front, remove the rear wheels, rotate the twistlock collars open and press both Q-Lock levers down; the front tube folds under the chair.
- To set it up, pull the front section forward until the levers click, then rotate the collars into the locked position.
- To fold the back, rotate its twistlock open, press the catch and push the backrest down; pull it up to engage and lock it.
What does it work with, and what are its limits?
- Never exceed 242 lb (110 kg), or 187 lb (85 kg) with a handbike.
- Do not use it on slopes steeper than 6 degrees.
- Wheel locks hold the chair still, not slow it.
- Warranty: 12 months on parts, 5 years on the frame and cross-braces. See the Warranty tab.
Which version should I choose?
- Cerakote colour, chosen from the RGK palette.
- Camber 0 to 5 degrees, centre of gravity 0 to 178 mm, and the footrest set to the rider on the order.
- Fold-flat sideguards and an Airtech tension-adjustable backrest.
How does it compare?
- RGK HiLite: a made-to-measure rigid chair without the front fold.
- Ki Ethos: another brand's rigid chair.
- Rigid wheelchairs: the full range.
Frequently asked questions
Is the Octane FX the same as the Octane Sub4?
No. The Octane FX is its own chair with the Q-Lock front fold.
Does the frame fold like a cross-brace chair?
No. The Q-Lock folds the front tube under the chair, and the backrest folds down.
Will it fit an overhead locker?
The folded chair fits most overhead lockers and compact car trunks, not every airline bin.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 242 lbs (110 kg); 187 lbs (85 kg) with a handbike
- Transport weight
- Under 5.5 kg (12 lbs) without wheels and cushion, on a 400 mm (15.75 in) rear seat width
- Seat width
- 250 to 460 mm in 5 mm steps (about 9.8 to 18.1 in)
- Seat depth
- 250 to 460 mm in 5 mm steps (about 9.8 to 18.1 in)
- Back height
- 203 to 431 mm in 5 mm steps (about 8.0 to 17.0 in)
- Back angle
- 10 degrees forward to 10 degrees rearward from 90
- Legrests
- Footrest, set to the rider on the order
- Seat height
- Front 480 to 550 mm (about 18.9 to 21.7 in). Rear 360 to 550 mm (about 14.2 to 21.7 in)
- Brakes
- Wheel locks, to hold the chair still, not to slow it down
- Folding
- Q-Lock front fold. Rigid while riding. Not a cross-brace fold
- Frame material
- Grade 9 titanium
- Available colours
- Cerakote colours
- Positioning support
- Airtech tension-adjustable backrest and centre pad, with mesh cover panels
- Warranty
- 12 months on parts. Frame and cross-braces: 5 years
- Product type
- Made-to-measure rigid wheelchair with a front fold
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the RGK Octane FX against manufacturing and material faults from the date it is delivered to you. Claims go through the dealer who sold the chair.
- Frame and cross-braces: 5 years.
- Other parts: 12 months.
- Parts repaired or exchanged under warranty are covered for the rest of the original term.
- Pads, tires, inner tubes and similar wear parts are excluded unless they wear early from a manufacturing fault.
- Excludes damage from neglect, accident or improper use, service not done as the manual directs, non-original accessories, modifications, and repairs made before Sunrise Medical is told.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
