Description

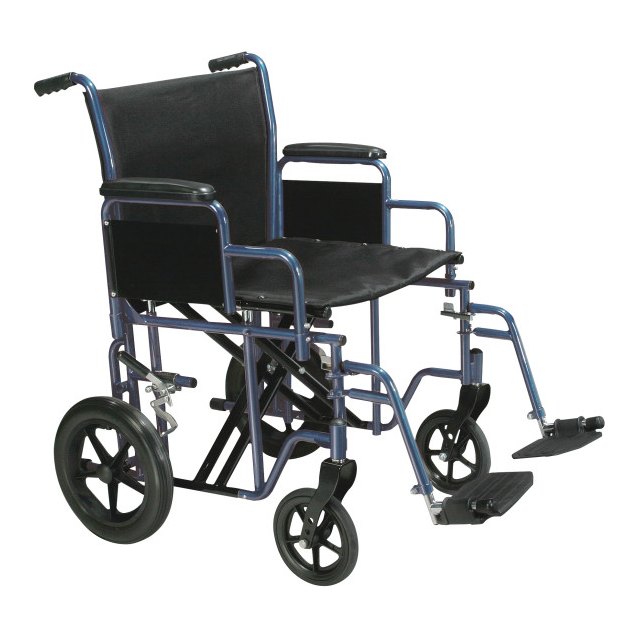

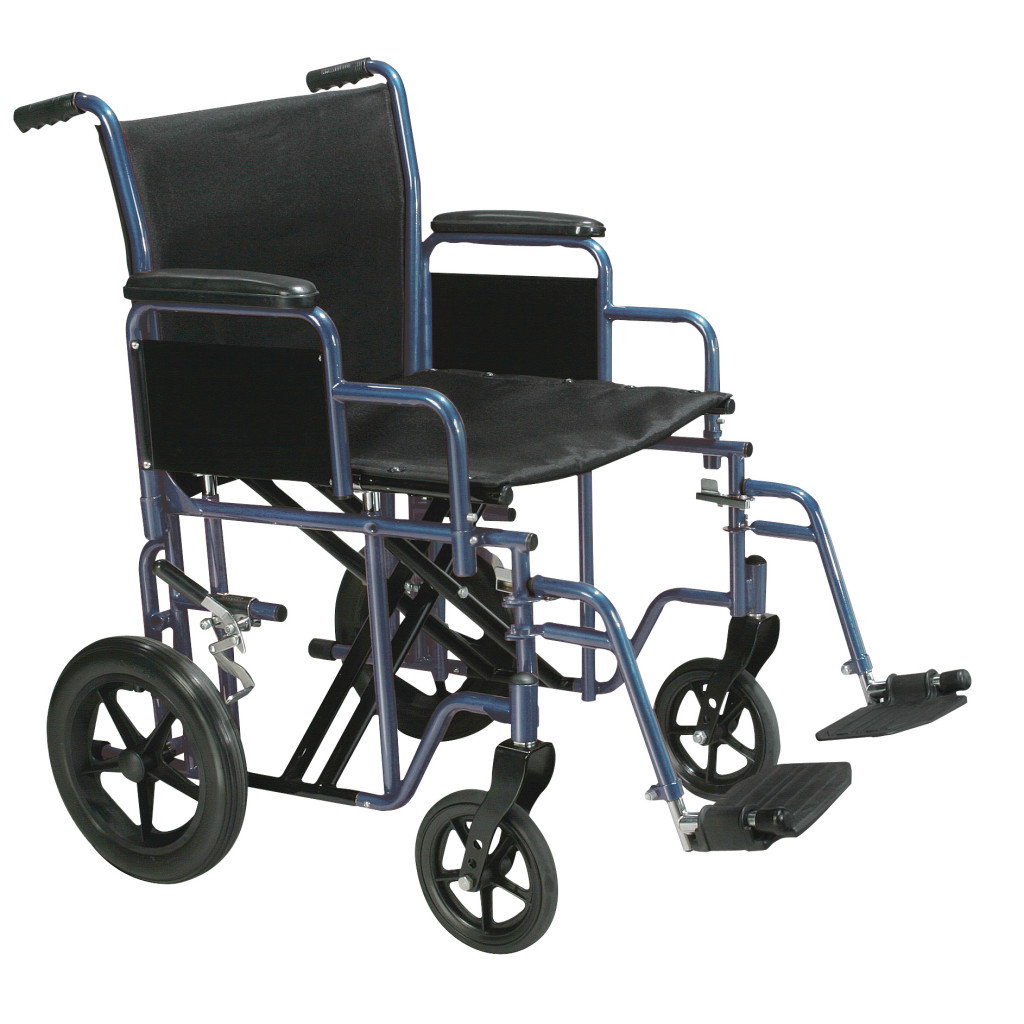

The Drive BTR20-B is a 20 inch blue steel transport chair that a companion pushes, for riders up to 450 lb (204 kg).
Who it suits, and who should choose something else
- A companion pushes this transport chair. The rider does not propel it.
- The limit is 450 lb (204 kg), including what is carried. It is not a 700 lb wheelchair.
- The rider needs to push: see the Drive Sentra heavy-duty wheelchair, which is self-propelled, not this transport.
- A 22 inch steel seat: the 22 inch steel transport, which has a red frame.
Check the fit
- Measure hip width at the widest point, back of the hips to back of the knee, and back of the knee to the heel with shoes on. A therapist or our free home assessment checks the fit.
- Seat is 20" (51 cm) wide and 18" (46 cm) deep. Seat to floor is 19.5" (50 cm). Back height is 16" (41 cm).
- Open width is 24.5" (62 cm). It folds side to side to 9" (23 cm) wide.
- Length is 38" (97 cm) with the footrests. Overall height is 37" (94 cm). Rear wheels are 12" (30 cm) and flat-free.
- It weighs 45 lb (20.4 kg). The 53 lb carton figure is the box, not the chair.
Safe use
- The chair must not be used without an attendant. Companion wheel locks are on both rear wheels, and both should be on before a transfer.
- It is not an automobile seat.
- Swing-away footrests are included and mount on the frame pegs. The lowest footrest must stay at least 2.5" (6 cm) off the ground.
- Open it by tilting it and pushing the seat rails. The frame is reinforced steel with dual cross braces.
- Desk-length arms are padded, removable and reversible. Upholstery is black nylon with a back pouch.
- This transport chair is not offered as a rental.
How does it compare?
The aluminium bariatric transport is a different frame. See bariatric wheelchairs.
Frequently asked questions
Is a seat belt included?
No seat belt comes with the chair, so order one separately if the rider needs it.
Can the rider push it?
No. The rear wheels are 12 inches with no handrims, so a companion pushes this chair.
Does it fit in a car?
It folds side to side to 9 inches wide and weighs 45 lb. It is not a car seat, so the rider moves to a vehicle seat for the trip.
Funding
Funding may help: see who may help pay.
The limited lifetime warranty covers the original purchaser against defects in materials and workmanship, and excludes misuse, wear, casters, grips and rubber parts. See the Warranty tab.
Specifications
- Weight capacity
- 450 lb (204 kg)
- Product weight
- 45 lb (20.4 kg)
- Seat width
- 20" (51 cm)
- Seat depth
- 18" (46 cm)
- Back height
- 16" (41 cm)
- Armrests
- Removable, reversible, desk-length, padded
- Legrests
- Swing-away footrests, included
- Seat height
- 19.5" (50 cm) from the floor
- Rear wheel size
- 12" (30 cm) flat-free
- Caster size
- 8"
- Overall width
- 24.5" (62 cm) open, 20" seat
- Overall length
- 38" (97 cm) with footrests
- Brakes
- Companion wheel locks on both rear wheels
- Folding
- Folds side to side to 9" (23 cm) wide
- Frame material
- Reinforced steel, dual cross braces
- Available colours
- Blue frame (BTR20-B)
- Warranty
- Limited lifetime on the chair for the original buyer
- Product type
- Bariatric transport chair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the 20 inch Bariatric Steel Transport Chair (BTR20-B) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
Compare similar products
Other models worth a look before you decide.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
