Description

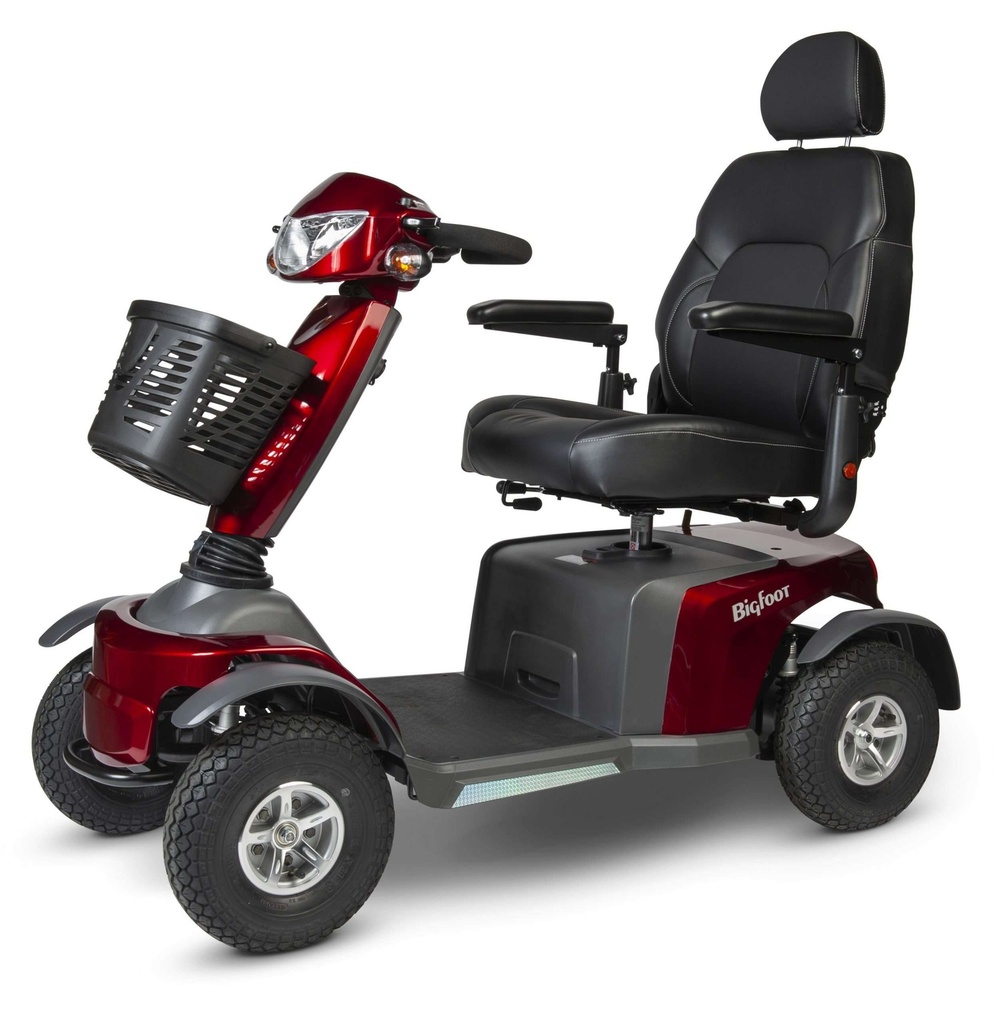

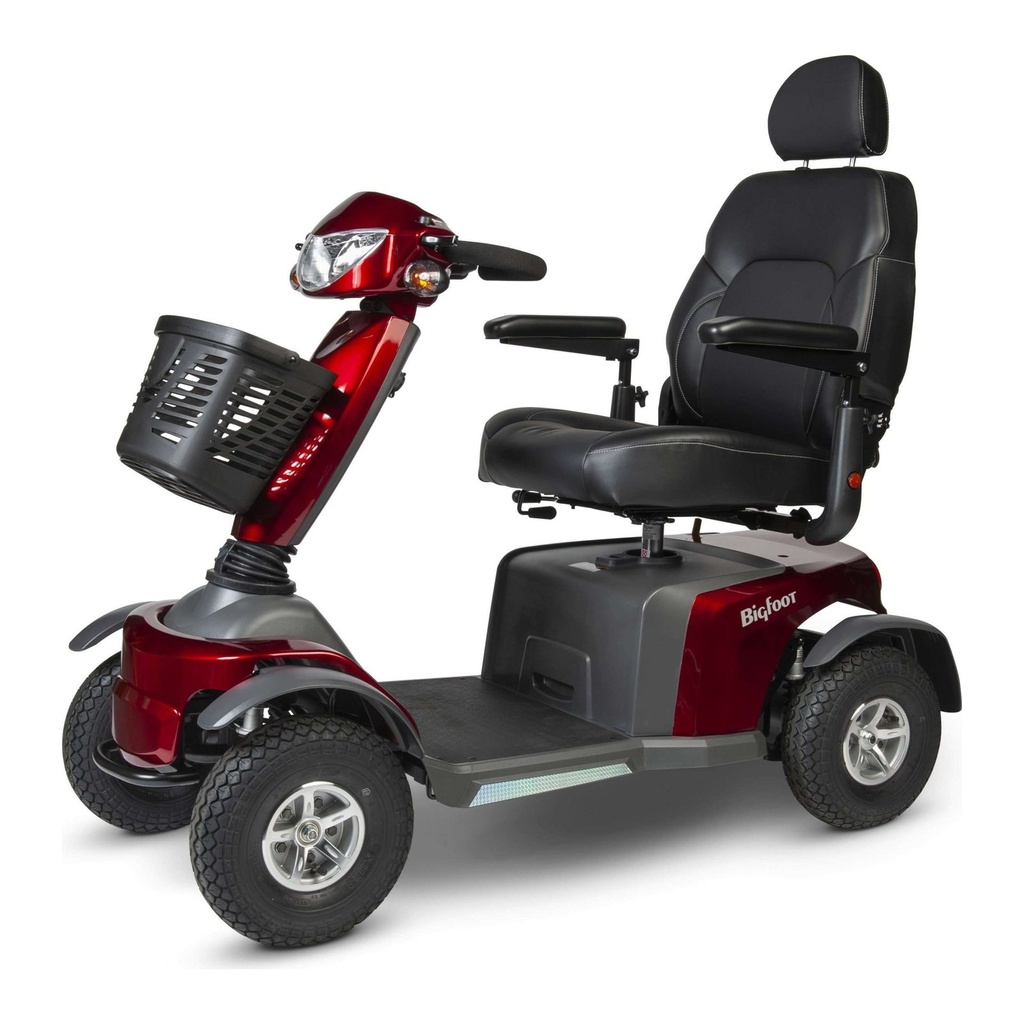

The Eclipse Bigfoot S846 is a full-size, four-wheel mobility scooter from Eclipse Medical's Trailmaster series. It carries one rider up to 400 lbs (182 kg), has a 2.3 hp (1.7 kW) motor and runs on two 75 Ah batteries.
What does it do and how does it work?
- A 2.3 hp (1.7 kW) motor gives a top speed of up to 15 km/h (9.5 mph).
- Two 75 Ah batteries give up to 50 km (32 mi) per charge, and the 6 A charger is included.
- Front and rear suspension and 12 in (305 mm) tires front and rear soften sidewalk seams.

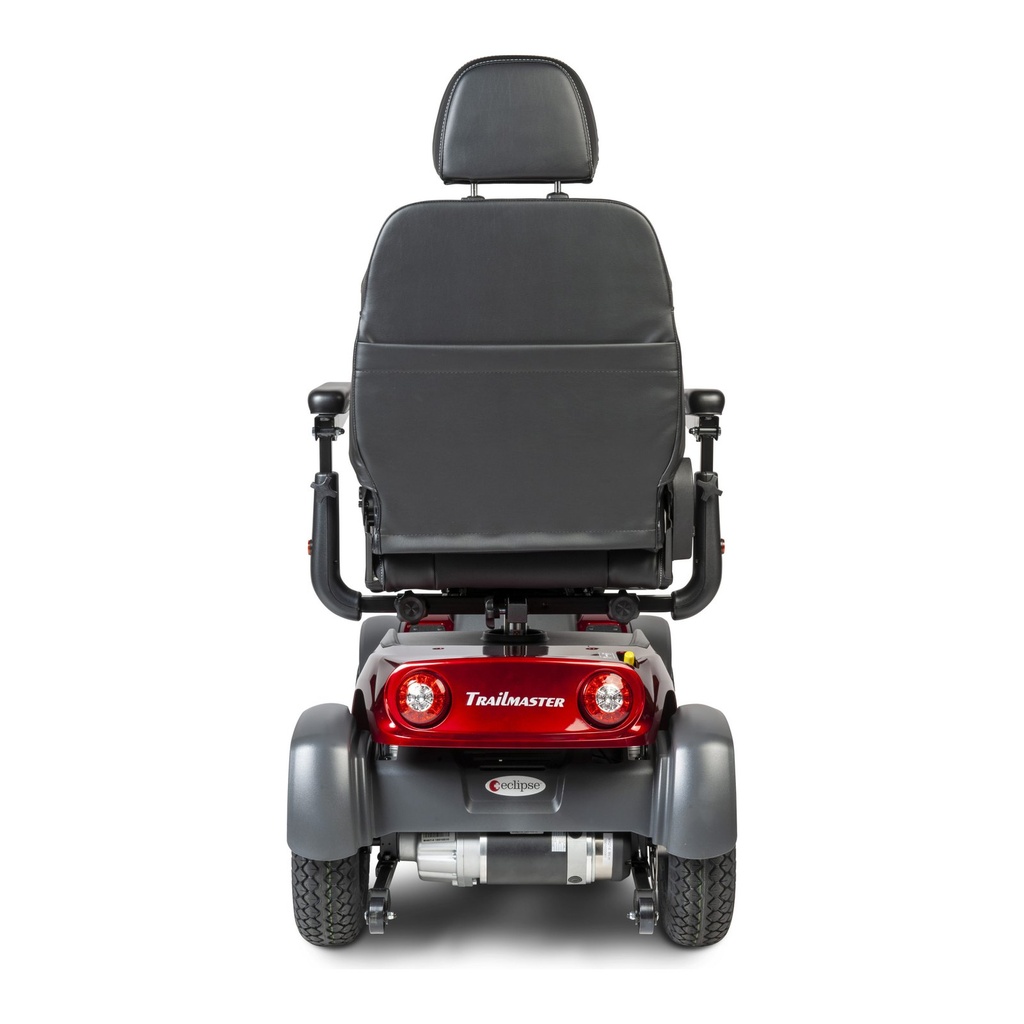

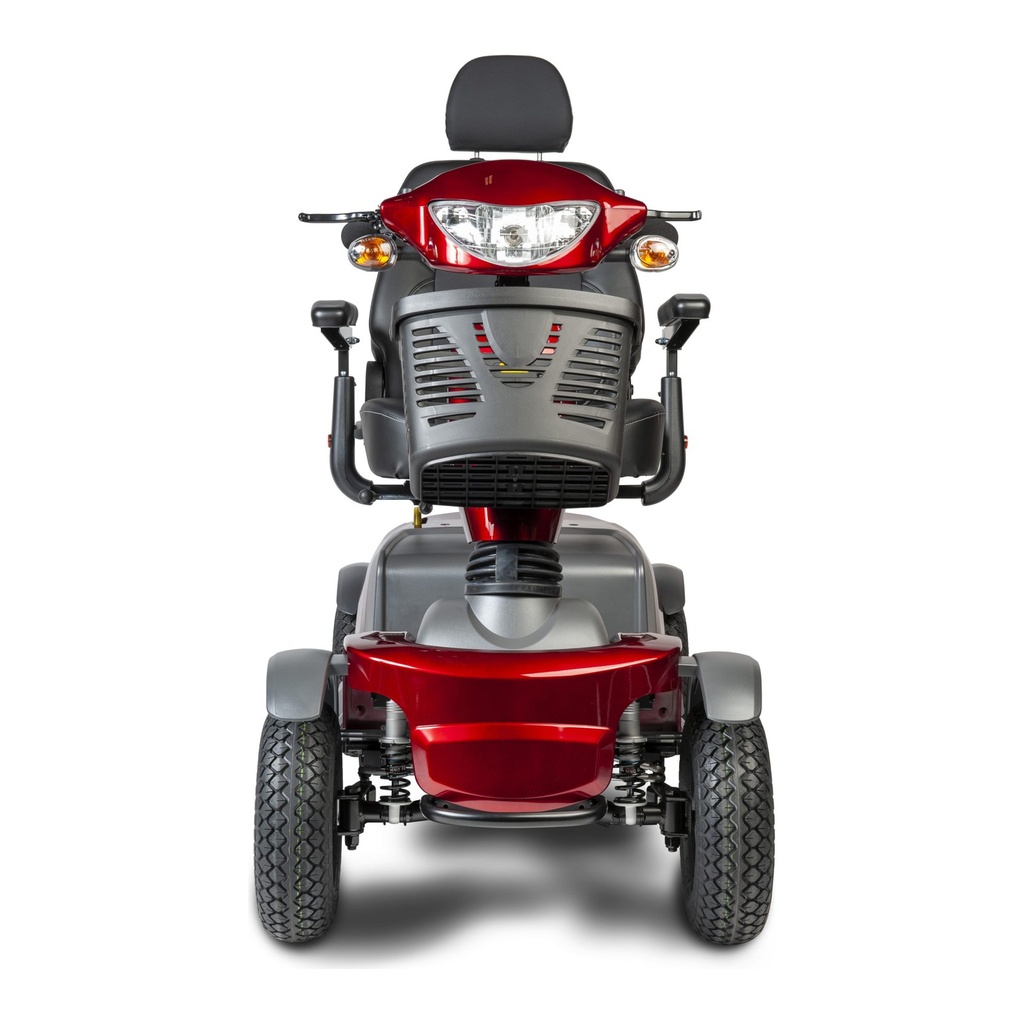

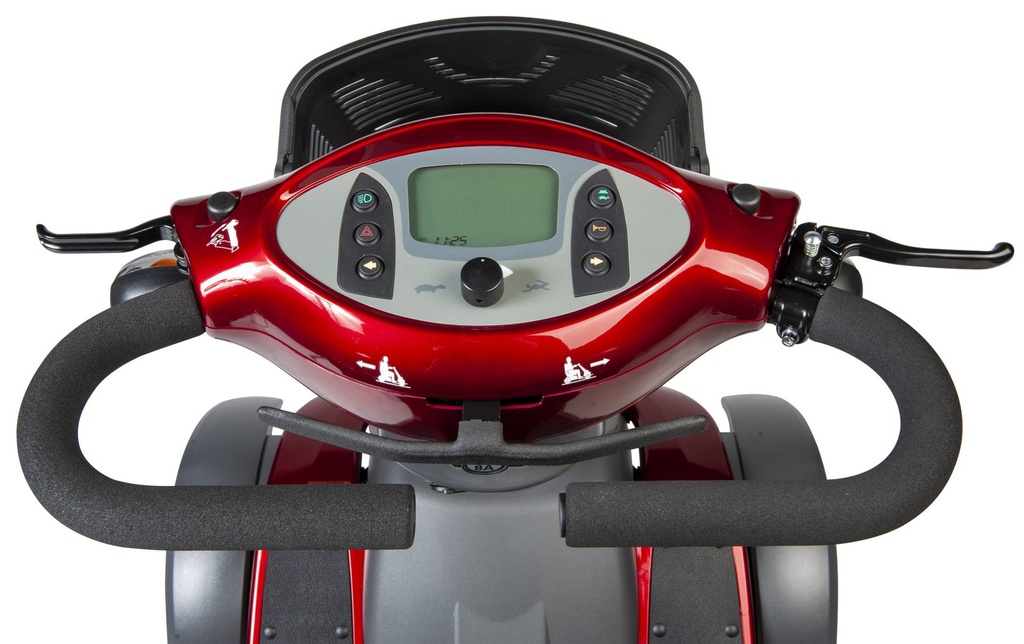

- The tiller has a digital LCD dashboard, and the light package adds headlights, tail lights and turn signals.
- It climbs up to 10 degrees (16%) and comes with two mirrors.
Who is it for, and who should choose something else?
- A rider up to 400 lbs (182 kg) who wants a stable four-wheeler for long trips on pavement and paths.
- Choose a travel scooter if it must go into a car boot, because this one does not fold and weighs 286 lbs (130 kg) with batteries.
- Choose a power wheelchair if you need postural support or pressure relief; ask your therapist.
- Choose a narrower scooter if tight hallways or small rooms are part of your day.
Will it fit?
- Overall size is 56 x 26 x 49 in (142 x 66 x 124 cm), and at 26 in (66 cm) wide it needs doorway clearance on each side.
- The 63 in (161 cm) turning radius sets the clear space needed to turn it around.
- At 286 lbs (130 kg) with batteries it needs a ramp or lift rated for that weight.
- Sit on the seat before you rely on it for a transfer; call us and we will measure the unit.
Using it day to day
- Charge the batteries after every use, and once a week when the scooter sits unused.
- Recycle a worn pair at a municipal battery depot or through our battery service.
- Moving it without riding takes a ramp, a lift or a second person.
What does it work with, and what are its limits?
- The 400 lbs (182 kg) limit covers the rider and anything carried.
- It is built for pavement and paths; stairs, soft ground and slopes over 10 degrees (16%) are beyond it.
- It accepts a rear tote, a walker holder, a cane holder and an oxygen holder.
- The 75 Ah batteries are not in the price shown; we confirm that pair is added before you order.
How does it compare?
- The Eclipse Interceptor S940 GTX is the other Eclipse four-wheeler, with a 450 lbs (204 kg) limit and a heavier 363 lbs (165 kg) build.
- The Pride Pursuit 2 carries the same 400 lbs (181 kg) and weighs less, but it does not fold either.
- The Invacare Comet Pro 4 has a lower 350 lbs (160 kg) limit.
Frequently asked questions
Where can I ride it in Ontario?
Ontario treats a medical scooter as a pedestrian, so it belongs on sidewalks and paths rather than the road. Check your municipality's bylaw for local rules.
Is the three-wheel Bigfoot a different scooter?
Yes. The Bigfoot S836 is the three-wheel model in the same Trailmaster line; the S846 is four-wheel only.
Can two people ride it?
No. The seat carries one rider, and the 400 lbs (182 kg) capacity covers that rider and anything carried.
Funding may help: see who may help pay. Eclipse's terms are in the Warranty tab.
Specifications
- Weight capacity
- 400 lbs (182 kg)
- Product weight
- 286 lbs (130 kg) with the two batteries
- Folding or disassembly
- Does not fold and does not come apart
- Tiller
- Digital LCD dashboard on the tiller
- Tires
- 12" (305 mm) front and rear
- Suspension
- Front and rear
- Overall width
- 26" (66 cm)
- Overall length
- 56" (142 cm)
- Turning radius
- 63" (161 cm)
- Maximum slope
- 10 degrees (16%)
- Driving range
- Up to 50 km (32 mi) per charge on the two 75 Ah batteries
- Top speed
- Up to 15 km/h (9.5 mph)
- Lights
- Full light package
- Motor
- 2.3 hp (1.7 kW)
- Batteries
- Two 12 V deep-cycle batteries, a Group 24 55 Ah or 75 Ah pair, sold separately
- Available colours
- Red, blue, orange or green
- Battery charger
- 6 amp charger
- Warranty
- 3 years frame and seat post; 2 years motor, transaxle and brake; 1 year electronics and charger; parts only
- Product type
- Heavy Duty Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Eclipse Medical warrants the Bigfoot S846 against defects in materials or workmanship in normal use, for the original purchaser and for scooters bought in Canada.
- Frame and seat post: 3 years.
- Motor, transaxle and brake: 2 years.
- Wiring harnesses, controller, electronics, suspension and charger: 1 year.
- Parts only: labour and return shipping are not included. Keep your receipt as proof of purchase.
- Excludes wear items (tires and tubes, upholstery and seats, fuses and bulbs), misuse, commercial use and exceeding the weight limit.
- Void if the serial number tag is removed or altered.
