Description

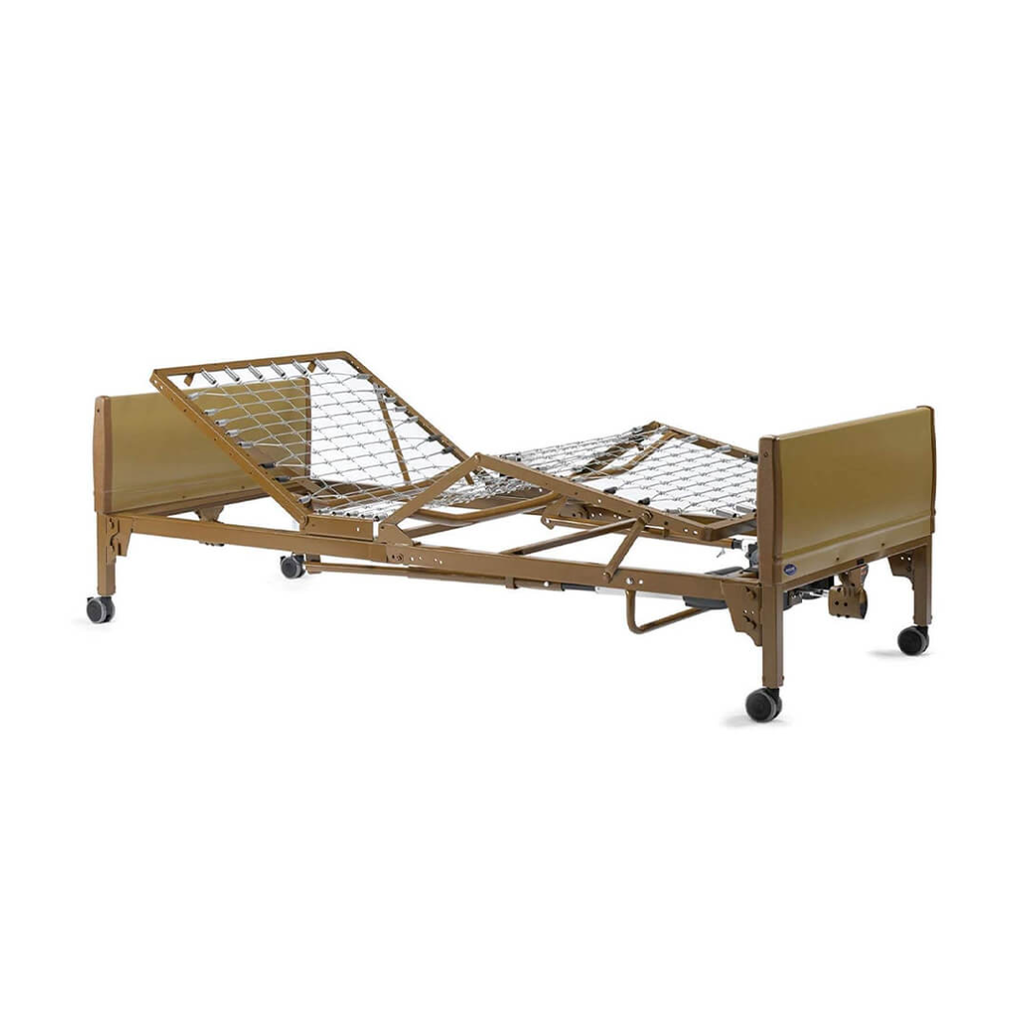

The Invacare 5410IVC is a full-electric homecare bed with the deck 15 to 23 inches (38 to 58 cm) off the floor.
Who is it for?
- One adult at home who needs the head, the foot and the height to move, plus a caregiver.
- Occupant limit 350 lbs (159 kg). Total load 450 lbs (204 kg), including the mattress and rails.
- Not a low bed, and not for more than one person. Over that limit, see bariatric beds.
Will it fit the room?
- Overall it is 88 inches (223 cm) long and 36 inches (91 cm) wide. The deck is 36 by 80 inches.
- Deck height is 15 to 23 inches, plus or minus 2 inches, without the mattress.
- Three cartons: ends 54 lbs, foot spring 77 lbs, head spring 43 lbs. Two people should carry them.
- The three cartons add to 174 lbs.
- It does not fold. Some set-up steps are marked for a qualified technician.

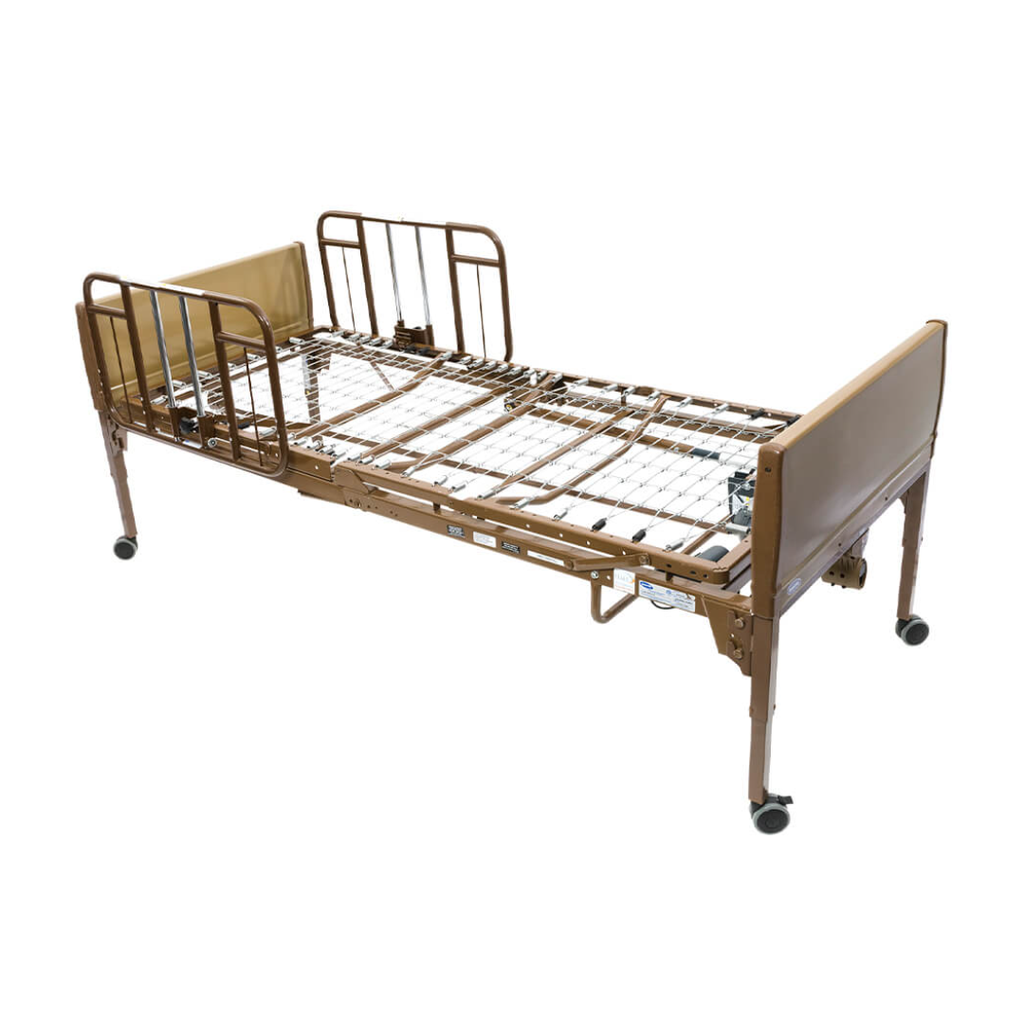

- The three cartons hold the frame, bed ends, casters, pendant and crank. Rails and a mattress are sold separately.
Which mattress and rails are safe on it?
- Use an Invacare 36 by 80 inch mattress: 5180, 5184, 5185, 5185XL, Solace, Softform or microAir, plus mattress keepers.
- The wrong size or thickness changes the gaps at the rail, where entrapment happens.

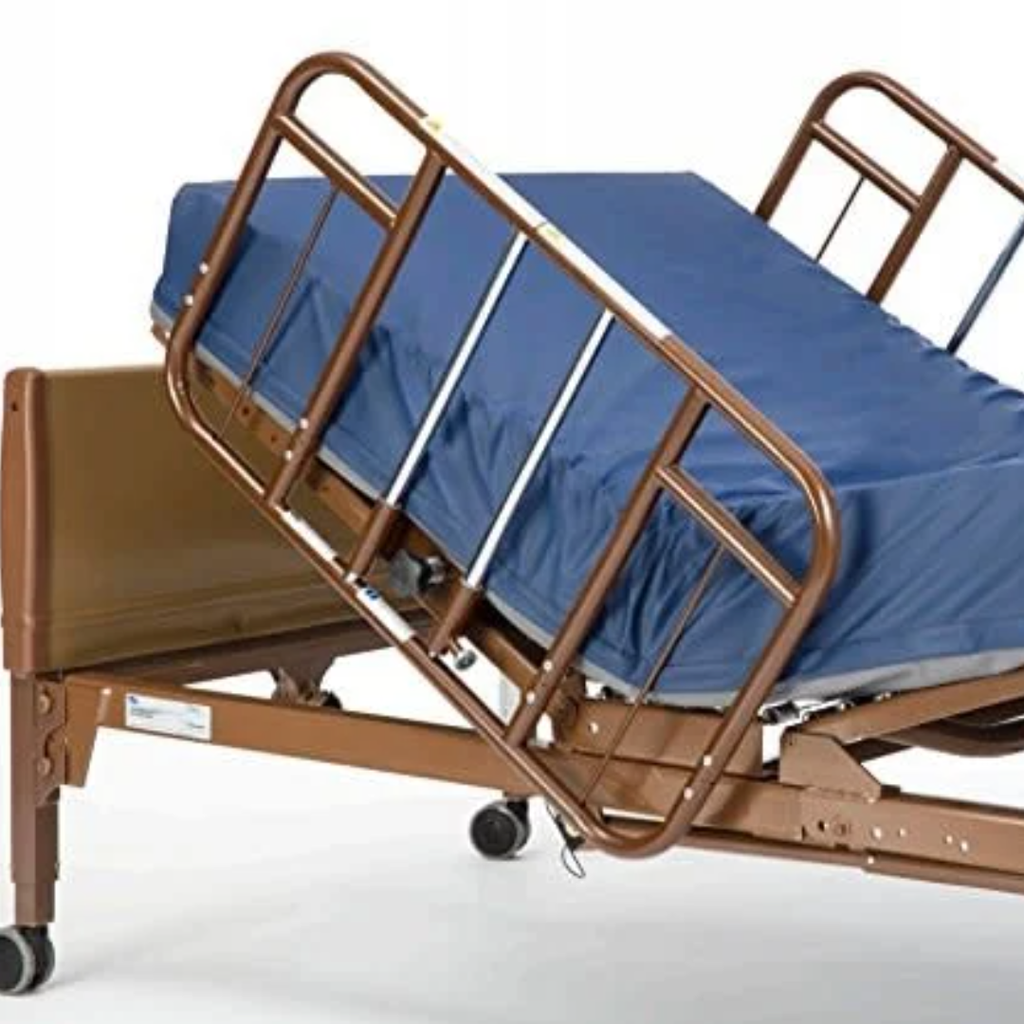

- Use only Invacare rails: full-length 6629 and 6629P, half-length 6630DS, and assist rail 6632.
- Drive rails are not approved on this frame.
- A care team decides whether rails are used. See hospital bed safety, bed rails and the mattress size guide.
Compare
See full-electric hospital beds.
- Drive 15005LP: the same 350 and 450 lb limits, but the deck starts at 9.25 inches.
- Drive Solite Pro: sections under 55 lbs, with its own rails.
- Drive Delta hi-low: another full-electric frame, on its own rails.
Frequently asked questions
What happens if the power goes out?
A crank lowers the bed only, and it must come off before you use the pendant. There is no battery on this model.
What does package IVC-PKG include?
The cartons hold the frame, bed ends, casters, pendant and crank. Rails and a mattress are sold separately from the 5410IVC frame.
Should I buy or rent?
Buy for a long need, or see hospital bed rental for a short recovery at home.
Funding and warranty
Funding may help: see who may help pay.
Under the warranty, mechanical and electrical parts are covered for 2 years, and welds for 5 years. Cover starts at purchase, needs the invoice, and does not transfer.
Specifications
- Weight capacity
- 450 lbs (204 kg) safe working load, including the occupant, mattress, rails and anything else on the bed
- Maximum user weight
- 350 lbs (159 kg) occupant limit
- Assembly
- Three cartons (bed ends, foot spring, head spring); Invacare recommends two people; some set-up steps are marked for a qualified technician
- Heaviest section
- Foot spring carton, 77 lbs (35 kg)
- Caster locks
- Four casters, two locking and two non-locking
- Overall width
- 36 in (91.4 cm) with the bed ends
- Overall length
- 88 in (223.4 cm) with the bed ends
- Mattress fit
- 36 in by 80 in mattress; the maker recommends mattress keepers
- Package contents
- Head spring, foot spring with three motors, two universal bed ends, four casters, drive shaft, hand pendant and emergency crank; mattress and rails not included
- Compatible rails
- Invacare full-length 6629 or 6629P, half-length 6630DS, assist rail 6632; non-Invacare rails are not recommended
- Motors
- Three motors: head, foot and height
- Battery backup
- None; an emergency hand crank lowers the bed during a power outage
- Hand pendant
- Wired six-function pendant with head, foot and height buttons
- Bed width
- 36 in (91 cm) sleep deck
- Bed length
- 80 in (203 cm) sleep deck
- Size options
- One deck size, 36 in by 80 in; no other width or length
- Minimum bed height
- 15 in (38 cm) floor to deck, plus or minus 2 in
- Maximum bed height
- 23 in (58 cm) floor to deck, plus or minus 2 in
- Deck sections
- Split spring deck, head section 43 in (109 cm) and foot section 45 in (114 cm)
- Bed positions
- Head up and down, foot up and down, and the whole frame up and down
- Bed accessories
- Invacare trapeze 7740A or 7714P, centre bed extender 5143, head end bed extender 5143A
- Head and footboards
- Two universal bed ends, interchangeable at the head or the foot, brown steel panels
- Available colours
- Brown
- Warranty
- Two years on mechanical and electrical parts, five years on welds, from the date of purchase
- Product type
- Full-Electric Bed, Home Care Bed
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Invacare warrants the IVC full electric hospital bed, bought new and unused from Invacare or a dealer, against defects in materials and workmanship from the date of purchase. Invacare repairs or replaces a defective product at its option.
- Mechanical and electrical components: 2 years.
- Welds: 5 years.
- Labour and shipping for repairs or part installation are not covered.
- Covers the original purchaser only; not transferable. A copy of the seller's invoice is required.
- Excludes normal wear and tear, negligence, accident, improper operation, maintenance or storage, unapproved modifications or repairs, removed serial numbers, and not following the instructions.
