Description

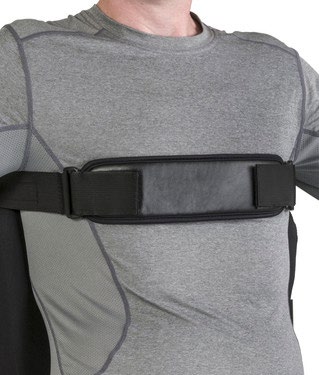

The Jay padded anterior trunk strap (ATS4050 to ATS4300S) is a short neoprene pad for someone who needs to reach and turn the shoulders.
What does it do and how does it work?
A horizontal pad across the chest allows more shoulder rotation and reach than a full chest panel.
- Neoprene is the surface on the chest.
- It is one strap, not a dynamic and structured pair.
- It is not offered as a JAY Your Way modification.
Who is it for, and who should choose something else?
It is for someone who still needs anterior support and also needs to reach.
- Choose the classic panel when you want one broad pad and maximum stability.
- Choose the backpack style when the shoulders need to be drawn back.
- Choose the Y-style when one arm needs more reach than the other.
Will it fit?
Width runs across the chest. Depth is the short measure of the pad.
- Extra small, ATS4050: 8 by 3 in (20.3 by 7.6 cm).
- Small, ATS4000S: 10 by 3 in (25.4 by 7.6 cm).
- Medium, ATS4100S: 12 by 3 in (30.5 by 7.6 cm).
- Large, ATS4200S: 14 by 4 in (35.6 by 10.2 cm).
- Extra large, ATS4300S: 16 by 4 in (40.6 by 10.2 cm).
We confirm the size and the chair's back hardware before you order.
Using it day to day
A seating specialist sets the first fit so the pad stays put while the shoulders turn to reach.
- There is no second construction to switch to. Order the size in the chart.
- The pad is horizontal. It is not a centre-opening harness.
What does it work with, and what are its limits?
It straps to the wheelchair back it was fitted to. The chair, cushion, and back are separate.
- It positions the trunk. It is not a vehicle seatbelt. In a vehicle, use it only if it carries the ISO 16840-4 marking.
- The straps have to reach that back. Not every back accepts them.
- No user weight is set for the strap alone. The therapist matches it to the person.
How does it compare?
- Jay Classic: one broad chest panel when you need more stability than a short strap.
- Jay Backpack Style: shoulder retraction, in a 12 in or 18 in pad.
- Jay Y-style: more reach for one arm, with the other side supported.
Browse anterior trunk supports or book a free home assessment.
Frequently asked questions
Is the padded strap sold as dynamic and structured?
No. It is one strap, ATS4050 to ATS4300S. Dynamic and structured are not separate part series for this shape.
How wide and deep is the pad?
Width is 8 to 16 in (20.3 to 40.6 cm). Depth is 3 in (7.6 cm) through medium, and 4 in (10.2 cm) for large and extra large.
Can it be used as a seatbelt in a vehicle?
Only one carrying the ISO 16840-4 marking is rated for use as a vehicle restraint. Otherwise it positions the trunk and is not a vehicle restraint.
What does not come in the box?
The wheelchair, the cushion, and the back. You receive one padded strap in the size ordered.
Funding may help: see who may help pay.
Specifications
- Positioning support
- Short horizontal pad for shoulder rotation and reach
- Size
- Extra small to extra large
- Compatible with
- Straps to the wheelchair back it is fitted to
- Pad width
- 8 to 16 in (20.3 to 40.6 cm)
- Contact surface
- Neoprene
- Pad depth
- 3 to 4 in (7.6 to 10.2 cm)
- Modifications
- Not offered as a JAY Your Way modification
- Product type
- Anterior trunk support
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
