Description

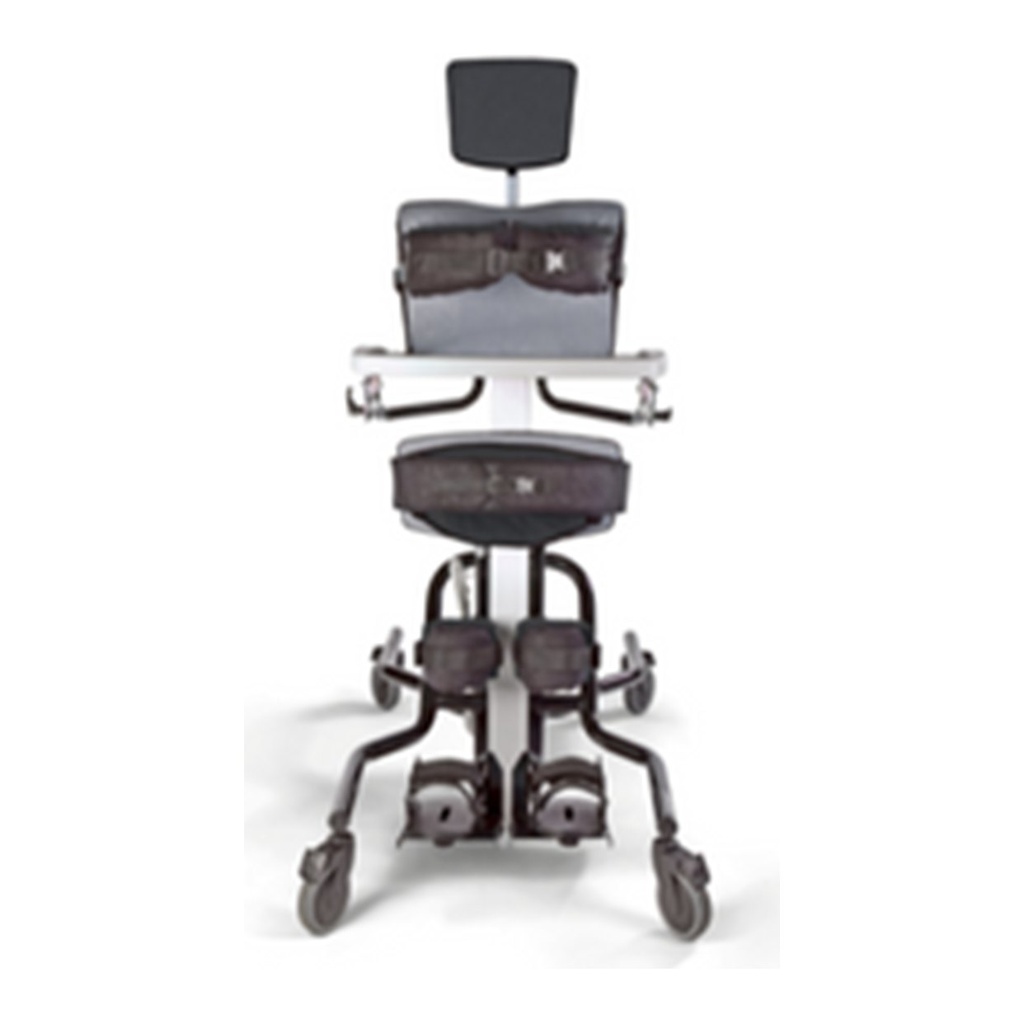

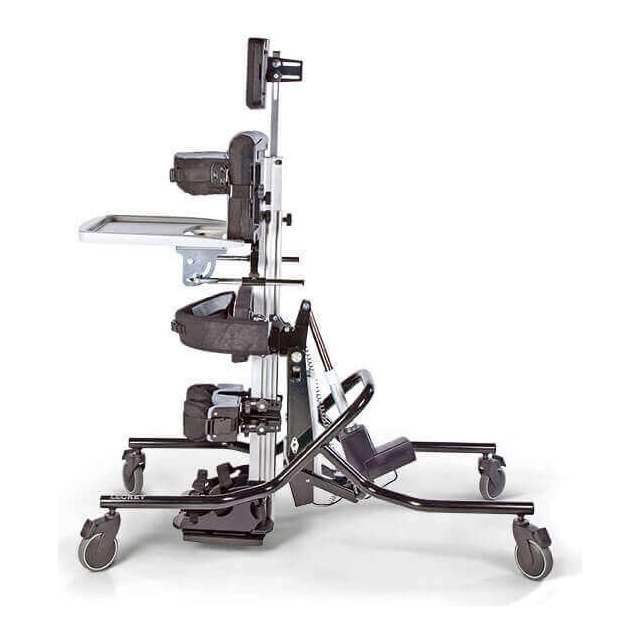

The Leckey Horizon (LHZ/1, LHZ/2, LHZ/3) is a powered standing frame for prone, upright and supine use, for someone aged about 4 to adult who cannot stand independently.
What does it do and how does it work?
- Angle: a handset moves the frame from 0 to 90 degrees, prone or supine.
- Pads: chest, hip and knee supports each move on their own.
- Feet: split footplates set height and plus or minus 10 degrees.
- Base: lock the castors facing out at 45 degrees. It is not a mobility device.
Who is it for, and who should choose something else?
- Choose it for prone, upright and supine in one frame.
- Choose an upright frame if no tilt is needed.
- Choose something else if pain, or a hip or knee contracture, is more than the pads can settle.
Will it fit?
Measure standing height, weight, hip width and chest width.
- Size 1, about 4-10 years: height 39.4-55.1 in (1000-1400 mm), to 110 lbs (50 kg), shoulder pad 32.3-45.3 in (820-1150 mm), hip pad 17.7-29.5 in (450-750 mm) high and 6.9-10.6 in (175-270 mm) wide, chest laterals 7.9-11.8 in (200-300 mm), base 44.7 x 22.8 in (1135 x 580 mm).
- Size 2, about 9-18 years: height 55.1-70.9 in (1400-1800 mm), to 176 lbs (80 kg), shoulder pad 39.4-57 in (1000-1450 mm), hip pad 29.5-37.4 in (750-950 mm) high and 8.3-15.3 in (210-390 mm) wide, chest laterals 9.4-14.9 in (240-380 mm), base 50.4 x 25.2 in (1280 x 640 mm).
- Size 3, about 14-adult: height 61-70.9 in (1550-1800 mm), to 220 lbs (100 kg), shoulder pad 39.4-57 in (1000-1450 mm), hip pad 29.5-45.3 in (750-1150 mm) high and 12.2-18.5 in (310-470 mm) wide, chest laterals 13.4-18.1 in (340-460 mm), base 50.4 x 25.2 in (1280 x 640 mm).
We confirm the size before you order. Laid flat, size 1 is 30.7 in (780 mm) high and sizes 2 and 3 are 31.7 in (805 mm) high.
Using it day to day
- It arrives on a pallet with a multi-tool. Wait 2 hours, then charge 12 hours before the first use.
- On a hoist transfer, fasten the pelvic band first to de-rotate the hips, then the chest strap, sandals, and hip and knee straps. In supine, fasten the knee supports.
- Do not change back-pad height while the frame is vertical and in use. Stay with the person.
What does it work with, and what are its limits?
- Indoors, from 5 C to 40 C, on a slope of 5 degrees or less. Latex free. Nothing hot goes on the tray.
- The actuator runs 2 minutes, then rests 18 minutes. A low battery beeps. Charge about 1 hour a day.
- Use Leckey parts only. Warranty is 3 years, or 1 year on electrical parts. See the warranty. Covers are grey, green, blue or grey vinyl. Trays, sandals and a head support are extra.
Which version should I choose?
LHZ/1, LHZ/2 or LHZ/3.
How does it compare?
- Leckey Freestander is upright and does not tilt.
- Leckey Pronestander is for prone standing.
- Leckey Mygo Stander is a modular frame. See other standers.
Frequently asked questions
Can I change the angle while someone is in the frame?
Yes. Use the handset and keep clear of furniture. Keep hands out from behind the knee supports.
Does the tray come with the frame?
No. Order a prone tray, a supine tray, or both.
What happens when the battery runs low?
A beep sounds and the handset shows battery low. The charger LED is orange while charging and green when full.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 110 lbs (50 kg) size 1; 176 lbs (80 kg) size 2; 220 lbs (100 kg) size 3
- Product weight
- 97 lbs (44 kg) size 1; 110.6 lbs (50 kg) size 2; 130 lbs (59 kg) size 3
- Product dimensions
- Length 44.7 in (1135 mm) size 1; 50.4 in (1280 mm) sizes 2 and 3. Width without tray 22.8 in (580 mm) size 1; 25.2 in (640 mm) sizes 2 and 3
- For use with
- Supported standing indoors, from about 4 years to adult
- Assembly
- Boxed on a pallet; multi-tool included; set the angle with the handset before daily use
- Height adjustment range
- Shoulder pad 32.3-45.3 in (820-1150 mm) size 1; 39.4-57 in (1000-1450 mm) sizes 2 and 3
- Table size
- Tray 16.5 x 17.3 in (420 x 440 mm) size 1; 20.5 x 23.2 in (520 x 590 mm) sizes 2 and 3. Prone tray angle 0 to 40 degrees
- Casters
- Locking castors; lock them facing out at 45 degrees. Not a mobility device
- Space needed
- Laid flat, 30.7 in (780 mm) high size 1; 31.7 in (805 mm) sizes 2 and 3. Ski clearance 6.1 in (155 mm) size 1; 7 in (180 mm) sizes 2 and 3
- Power supply
- Mains charger 100-240 V; 24 V 2.9 Ah lead-acid gel battery in the control box
- Battery life
- Charge 12 hours before first use, then about 1 hour a day. Actuator runs 2 minutes, then rests 18 minutes
- Available colours
- Grey, green, blue, or grey vinyl
- Material
- Frame with padded chest, hip and knee supports. Upholstery is latex free
- Positioning
- 0 to 90 degrees prone or supine, by handset or control box. Upright is inside that range
- User height
- 39.4-55.1 in (1000-1400 mm) size 1; 55.1-70.9 in (1400-1800 mm) size 2; 61-70.9 in (1550-1800 mm) size 3
- Chest width
- 7.9-11.8 in (200-300 mm) size 1; 9.4-14.9 in (240-380 mm) size 2; 13.4-18.1 in (340-460 mm) size 3
- Hip pad height
- 17.7-29.5 in (450-750 mm) size 1; 29.5-37.4 in (750-950 mm) size 2; 29.5-45.3 in (750-1150 mm) size 3
- Hip pad width
- 6.9-10.6 in (175-270 mm) size 1; 8.3-15.3 in (210-390 mm) size 2; 12.2-18.5 in (310-470 mm) size 3
- Knee height
- 9.8-17.7 in (250-450 mm) size 1; 15.7-21.6 in (400-550 mm) size 2; 15.7-25.6 in (400-650 mm) size 3
- Warranty
- 3 years on Leckey manufactured products and components; 1 year on electrical parts
- Product type
- Powered standing frame for prone, upright and supine positioning
- Part number
- LHZ/1, LHZ/2, LHZ/3; cover codes GRB, GB, BB or VIN
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Leckey gives the Horizon stander a three year warranty (one year on electrical parts) on all Leckey manufactured products and components.
- Leckey manufactured products and components: 3 years.
- Electrical parts: 1 year.
- The warranty applies only when the product is used under the specified conditions, for its intended purpose, and following all of Leckey's recommendations.
- Use only Leckey approved components and never modify the product; not following the instructions invalidates the warranty.
