Description

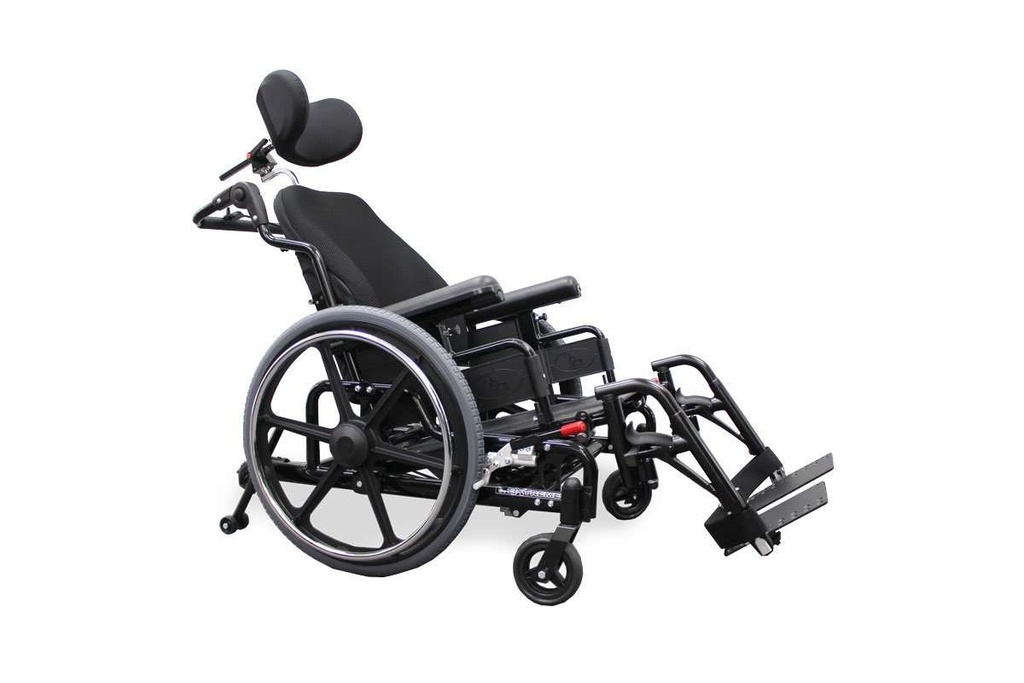

The Power Plus Mobility Extreme is a manual tilt-in-space wheelchair made in Guelph, Ontario, for an adult who sits most of the day with a caregiver. It is on ADP's product list as an Adult Manual Dynamic Tilt Wheelchair (WM0001041).
What does it do, and how does it work?
- One trigger on the push handle releases two gas cylinders through a split cable, tilting 0 to 25 degrees.
- The front seat-to-floor height holds through the tilt, so the feet stay on the floor.
- The lower frame is recessed for foot propulsion; front seat height starts at 12.25 in (31 cm).
- Standard: swing-away footrests, ABS seat pan, angle-adjustable push handle, removable T-arms and 20, 22 or 24 in rear wheels with handrims.
Who is it for, and who should choose something else?
- Adults who sit most of the day with a caregiver.
- More than 25 degrees of tilt: the Power Plus Super Tilt Plus.
- No tilt needed: a folding wheelchair. Over 600 lbs (272 kg): bariatric wheelchairs.
Will it fit?
- Seat 16 to 20 in (41 to 51 cm) wide and deep in 1 in steps; custom to 24 in (61 cm).
- Front seat height 12.25 to 18.25 in (31 to 46 cm), set by wheel and caster; 29 in (74 cm) wide with an 18 in seat.
- At front heights of 16 in (41 cm) and below, tilt stops at 15 degrees; higher settings reach 25. We confirm the setting before you order.
- About 60 lbs (27 kg) and does not fold; plan for a ramp or lift.
- Measure hip width, hip to knee and knee to heel in usual shoes, or book a free home assessment.
Using it day to day
- Squeeze the trigger and release it at the angle you want; the struts lock again.
- Lock both wheels and swing the footrests aside for a transfer.
- Wipe painted parts with a mild cleaner; wash arms and upholstery with soapy water.
- Stairs need two attendants; never use an escalator.
What does it work with, and what are its limits?
- Standard 250 lbs (113 kg); heavy-duty builds for riders over 250, 350 or 400 lbs reach 600 lbs (272 kg).
- Rear anti-tippers must stay fitted, at most 2 in (5 cm) off the ground, and reset after any wheel change.
- An angle-adjustable back needs T-arms; pin-style elevating legrests are not used at 14 in seat height or lower.
- Tie-downs are optional and the chair carries no crash-test rating, so transfer to a vehicle seat for travel.
Which version should I choose?
- Weight tier, seat size, footrests and arms are chosen on the order form; heavy-duty builds add a steel frame, back, caster journals, struts and seat pan.
How does it compare?

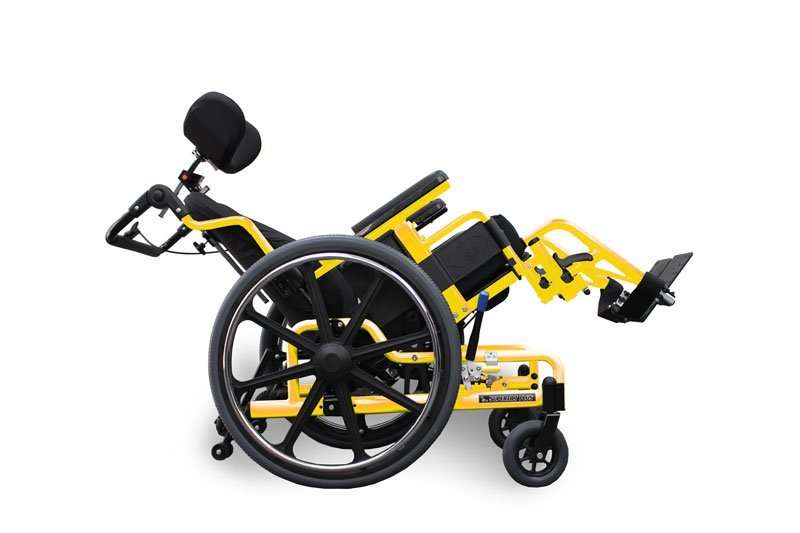

- The Power Plus Super Tilt Plus tilts to 50 degrees and offers power tilt; this chair does not.
- The Ki Mobility CR45 tilts to 45 degrees, takes 300 lbs and comes apart to 38 lbs (17.2 kg).
Frequently asked questions
Can the rider tilt it alone?
No. The trigger is on the push handle and a caregiver works it; the Ontario build has no power tilt.
Can the rider self-propel it?
Yes with 20, 22 or 24 in wheels and handrims; on 12 or 16 in wheels a companion pushes.
Does it come with a cushion?
No. The ABS seat pan is the seat; choose a cushion and back support on the order form.
Funding
Mobility Specialties is an ADP registered vendor; see how ADP works with us. Warranty terms are in the Warranty tab.
Specifications
- Weight capacity
- 250 lbs (113 kg) standard; heavy-duty builds to 600 lbs (272 kg)
- Product weight
- About 60 lbs (27 kg)
- Seat width
- 16" to 20" (41 to 51 cm) in 1" steps; custom and heavy-duty widths to order
- Seat depth
- 16" to 20" (41 to 51 cm) in 1" steps; custom depths to 24" (61 cm); depth-adjustable frame
- Back angle
- Preset at 0, 5, 10 or 15 degrees back (angle-adjustable back, T-arms required); recline kit optional
- Armrests
- Removable T-style arms, height adjustable: regular 10" to 14" or short 7" to 10"
- Legrests
- Swing-away footrests on 60, 70 or 80 degree hangers; offset receivers; elevating or articulating legrests optional
- Tilt range
- 0 to 25 degrees, caregiver trigger on the push handle; front seat height stays the same in tilt
- Seat height
- 12.25" to 18.25" (31 to 46 cm) front seat to floor, set by rear wheel, caster and fork
- Rear wheel size
- 20", 22" or 24" with handrims and solid tires; 12" or 16" solid; air tires and quick-release axles optional
- Caster size
- 5", 6" or 8" x 1.25"; 1.75" wide, or 2" wide on steel forks, optional
- Overall width
- 29" (74 cm) with an 18" seat
- Brakes
- Aluminum or steel wheel locks, push or pull to lock; attendant brakes or one-hand brake optional
- Available colours
- Black, Silver, Blue or Burgundy frame; custom colours to order
- Warranty
- 2 years on parts; 5 years on frame and cross-braces (original purchaser); wear items excluded
- Product type
- Tilt-in-space manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Power Plus Mobility warrants the Extreme tilt wheelchair against defects in workmanship and materials, from the date of purchase. Power Plus repairs or replaces defective parts under a return authorization.
- Frame and cross braces: 5 years, original purchaser.
- All other parts: 2 years.
- Not covered: tires, tubes, arm pads and upholstery.
- Labour and freight for repairs or replacements are paid by the owner.
- Void after accident, misuse, neglect, improper application, unauthorized repair or non-factory accessories.
Funding may help pay for this
Mobility Specialties is an ADP registered vendor. Funding may help: see who may help pay.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
