Barcode:
822383140223
Description

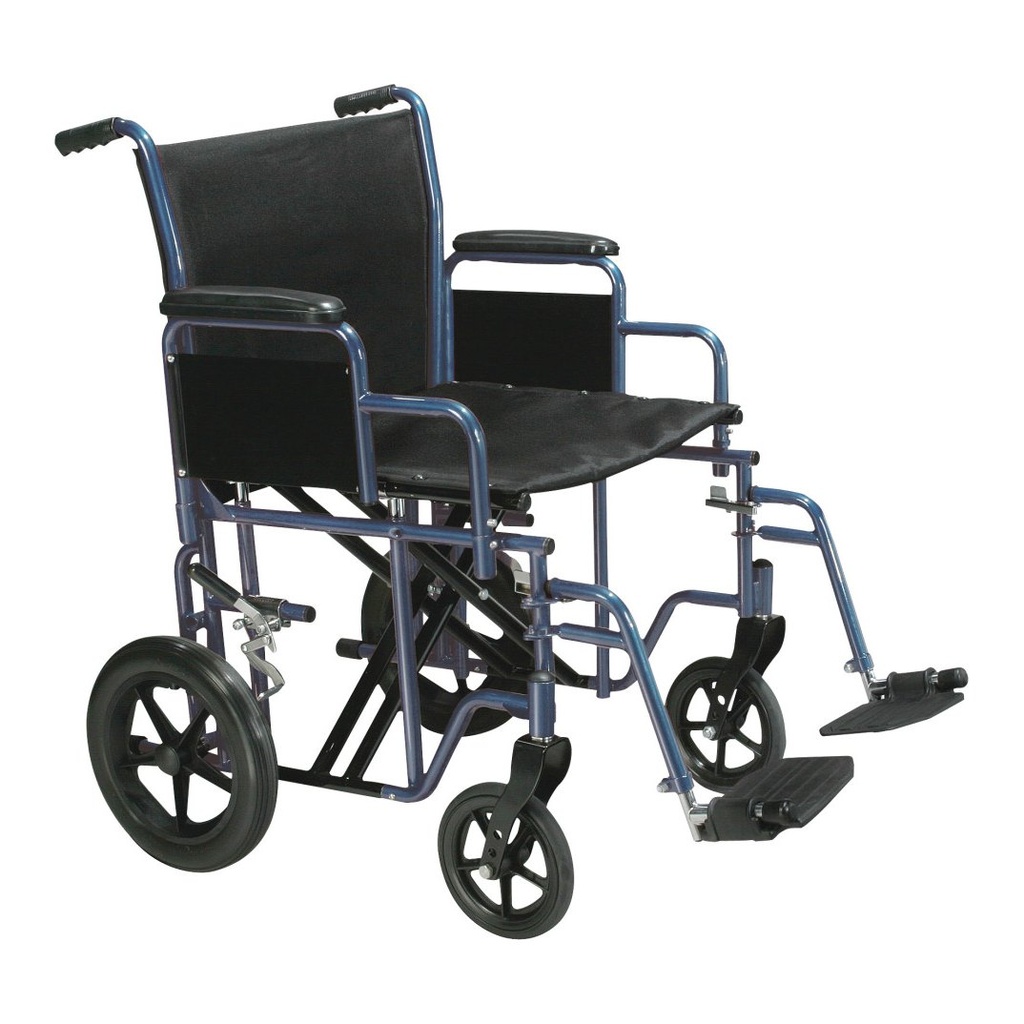

The Drive BTR22-B Bariatric Steel Transport Chair is a 22 in (56 cm) blue transport chair for a heavier rider, pushed by a companion.
What does it do, and how does it work?
- Reinforced steel frame with dual cross braces, rated to 450 lbs (204 kg).
- Seat 22 in (56 cm) wide by 18 in (46 cm) deep, 19.5 in (50 cm) from the floor, with a 16 in (41 cm) back.
- 12 in (30 cm) flat-free rear wheels and companion-activated wheel locks on both rear wheels.
- Removable, reversible desk-length arms, and swing-away footrests included.
- Folds side to side to 11.5 in (29 cm) wide; 49 lbs (22.2 kg).
Who is it for, and who should choose something else?
- A companion pushing a heavier rider on outings and to appointments, with a chair that folds for the car.
- The rider cannot wheel it: there are no hand rims and the wheel locks sit at the back for the person pushing. For self-propelling, see the Drive Sentra heavy duty.
- A lighter lift: the aluminum ATC22-R. Over 450 lbs (204 kg): ask about a wider chair.
Will it fit?
- Seat 22 in wide by 18 in deep; the chair is 26.5 in (67 cm) wide open, so measure the doorways first.
- 38 in (97 cm) long with the footrests; 11.5 in wide folded.
- The 20 in version is the BTR20-B.
- A free home assessment settles the width against the doorways and the seat against the rider.
Using it day to day
- The companion pushes and works the wheel locks at the back.
- Fold it side to side; the footrests swing away and the arms lift off for a transfer.
- It is not an automobile seat, so transfer to a vehicle seat for travel.
- We deliver across Toronto and the GTA.
What does it work with, and what are its limits?
- 450 lbs (204 kg) is the maximum, and the rider cannot self-propel.
- No cushion and no seat belt are included; ask us for a belt that fits the 22 in seat.
- It folds for storage and transport but is not a vehicle seat.
Which version should I choose?
How does it compare?
- The BTR22-R is the same chair in red.
- The ATC22-R is aluminium, so it is lighter to lift.
- The Sentra heavy duty lets the rider self-propel.
Frequently asked questions
Can the rider wheel this chair?
No; a companion pushes it and works the wheel locks at the back.
Does it come with a cushion or a seat belt?
Neither is included; ask us for a cushion and a belt that fit the 22 in seat, and we quote them.
What does it weigh and what does it hold?
Drive rates it to 450 lbs (204 kg) and lists the chair at 49 lbs (22.2 kg).
How long is the warranty?
Drive gives a limited lifetime warranty for the original buyer on materials and workmanship; see the Warranty tab.
Funding
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 450 lb (204 kg)
- Product weight
- 49 lb (22.2 kg)
- Seat width
- 22" (56 cm)
- Seat depth
- 18" (46 cm)
- Back height
- 16" (41 cm)
- Armrests
- Removable, reversible, desk length, padded
- Legrests
- Swing-away footrests, included
- Seat height
- 19.5" (50 cm) from the floor
- Rear wheel size
- 12" (30 cm) flat free
- Overall width
- 26.5" (67 cm) open with the 22" seat
- Overall length
- 38" (97 cm) with footrests
- Brakes
- Companion activated wheel locks on both rear wheels
- Folding
- Folds side to side, 11.5" (29 cm) wide closed
- Frame material
- Reinforced steel with dual reinforced steel cross braces
- Available colours
- Blue frame on this item; the maker also lists a red frame (BTR22-R)
- Warranty
- Limited lifetime for the original buyer
- Product type
- Bariatric transport chair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the Bariatric Steel Transport Chair (BTR20 and BTR22) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
- Frame and durable parts: limited lifetime, original purchaser only.
- Not covered: non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.
- Excludes failure from misuse, negligence or normal wear and tear.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
