Description
This item number is the half-rail package. The bare frame is 15005LP, without rails or a mattress.
Who it suits, and who should look at another bed
- One person at home, at or under 350 lb (158 kg), who needs the deck near the floor.
- Not for wheeling someone between rooms. Drive says the wheels only move the bed inside the room.
Will it fit the person, the mattress and the room?
- Low-roll casters: deck 9.25 in (235 mm) to 23 in (585 mm). Roll at any height: deck 14.81 in (376 mm) to 23 in (585 mm). No mattress in those figures.
- Mattress 15019 is 36 in by 80 in by 6 in (91 cm by 203 cm by 15 cm). Drive allows 5.5 in to 7 in thick.
- Width is 36.22 in (92 cm) without rails and 38.58 in (98 cm) with them. Overall length is 87.99 in (223 cm).

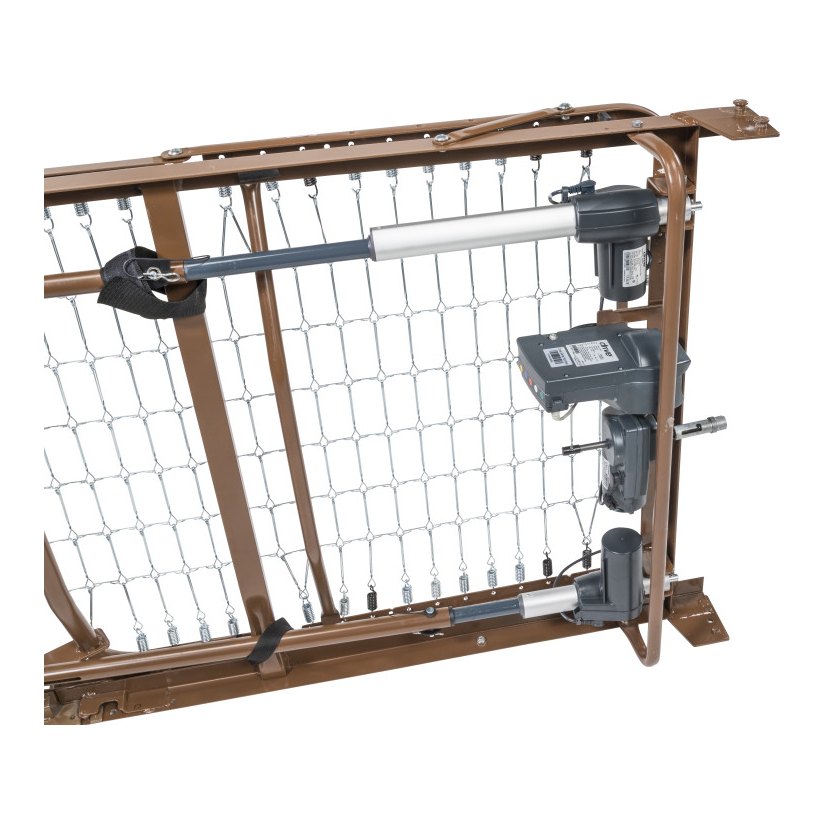

- The package ships in two cartons and the three motors are pre-installed on the foot section. The foot carton is 101 lb (46 kg).
Rails, power and day-to-day limits
- Half rails 15201BV are included. Full rails 15001ABV are another package. Drive says to use its own rails.
- The gaps between a rail and the mattress decide safe use, not the rail model. Health Canada publishes home-bed rail guidance, and whether rails suit this person is a care-team decision.
- Drive says auto-contour, which raises the head and foot together, may help prevent sacral shearing.

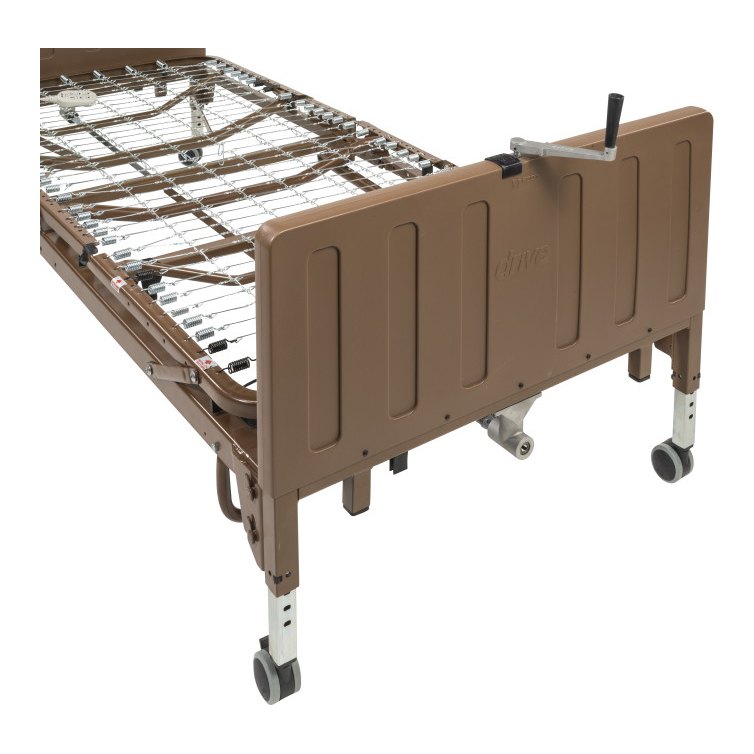

- No battery. In a power cut, use the hi/lo crank and the sleep-surface crank, then take the hi/lo crank off before use.
- Drive says leave the bed at its lowest except during care, to reduce the risk of injury from a fall.
Which package code is this?
- 15005LP is the frame only. 15005LP-HR is half rails and no mattress.
How it compares
The Delta 1000 (15033) is the other full-electric frame, with a 9 volt pendant backup instead of a crank.
Frequently asked questions
Can a child use the hand pendant?
No. Drive says children should not operate this bed, nor anyone who cannot follow the manual.
What if a pendant button sticks?
Unplug the bed and leave it unused. Drive says a stuck button will not stop that motor.
Which caster setting does the bed ship in?
The caster setting is chosen at delivery. Tell us whether you need roll-at-low-height or roll-at-any-height.
Funding, a short stay, and the warranty
Funding may help: see who may help pay. For a short stay, a hospital bed can be rented instead of bought. See bed rental.
A mattress from this package that has touched skin cannot come back. See the return policy. Under the warranty, welds are limited lifetime. The frame, motor and pendant are 5 years. Other parts are 1 year.
Specifications
- Weight capacity
- 450 lb (204 kg) total, including the person, mattress, rails and accessories
- Maximum user weight
- 350 lb (158 kg)
- Product weight
- 169 lb (77 kg)
- Assembly
- Two cartons. Motors pre-installed on the foot section. Remove the hi/lo crank before use.
- Safety standard
- UL approved motor. Built in an ISO 9001 facility.
- Heaviest section
- 101 lb (46 kg), the foot carton
- Caster locks
- 4 casters, 2 locking and 2 not. Low-roll or roll at any height
- Overall width
- 36.22 in (92 cm) without rails; 38.58 in (98 cm) with rails
- Overall length
- 87.99 in (223 cm)
- Mattress fit
- 36 in (91 cm) wide, 5.5 in to 7 in (14 cm to 18 cm) thick
- Package contents
- Frame 15005LP, half rails 15201BV, mattress 15019. Two cartons.
- Compatible rails
- Half rails 15201BV in this package. Full rails 15001ABV are a different package.
- Motors
- 3, for head, foot and height, pre-installed on the foot section
- Battery backup
- None. Hi/lo crank and a manual crank for the sleep surface
- Hand pendant
- Controls head, foot and bed height
- Bed width
- 36 in (91 cm) mattress width
- Bed length
- 80 in (203 cm) sleep length
- Size options
- 80 in sleep length; 84 in with kit 15005EXTKIT-L, sold separately
- Minimum bed height
- 9.25 in (235 mm) deck, low-roll casters, no mattress
- Maximum bed height
- 23 in (585 mm) deck, no mattress
- Deck sections
- Head and foot spring sections, zinc coated
- Bed positions
- Head, foot, head and foot together, and bed height
- Section angles
- Head 0 to 70 degrees, foot 0 to 46 degrees
- Bed accessories
- Length kit 15005EXTKIT-L, not included
- Head and footboards
- Low boards with moulded polyethylene covers. Headboard is taller.
- Sold as
- One package, item 15005LP-HRPKG-TS
- Warranty
- Limited lifetime on welds. 5 years on frame, motor and pendant. 1 year on other parts.
- Product type
- Full electric low height homecare bed package
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the full electric low height bed (15005LP) in this package to the original purchaser. During the warranty period, Drive repairs or replaces defective items at its option at no charge.
- Welds: limited lifetime.
- Frame: 5 years.
- Motor and pendant: 5 years.
- All other parts and components: 1 year.
- Void after unauthorized service or modification, work by unqualified people, or use of parts or accessories other than authorized Drive Medical replacements.
