Description
The Drive 15302LW is a 48 inch full-electric bariatric bed. See bariatric beds.
Who is it for?
- An adult who needs a 48 inch deck, not a 36 inch frame (15033, 15235, 15005LP or 15006LP).
- The 48 inch safe working load is 750 lbs (340 kg), including person, mattress and accessories. No separate patient weight is published.
- Not the 54 inch 15303LW if you need more than 750 lbs.
Will it fit the room?
- Sleep deck: 48 by 80 in (122 by 203 cm). Measure the doorway for the deck before the bed ends go on.
- Ground clearance is 16 to 24 inches under the frame, not a deck height and not a sleep height.
- We confirm the deck height with the casters on before you order.
- Three cartons, 294 lbs, assembled in the room by one person, with no tools.
- It is a homecare support, not a bed for patient transport.
Which mattress and rails are safe on it?
- Use a 48 by 80 inch mattress at least 5.5 inches thick. A 36 inch mattress leaves side gaps, where entrapment happens.
- One match is the Med Aire Plus 48. See bariatric mattresses.
- Rails: half rail 15021BV-LW, one pair, also for the 42 and 54 inch beds. Not homecare rail 15201BV.
- Use only Drive rails, and only if the care team agrees. See bed rails and Health Canada's hospital bed safety page.
Compare
- Drive 15303LW: 54 inches and 1000 lbs, when 750 lbs is not enough.
- Solite Pro 15006LP: a 36 inch bed, catalogue rating 450 lbs, if you do not need a bariatric frame.
- Drive 15005LP: a lower bed when transfers, not weight, are the issue.
Frequently asked questions
What happens in a power cut?
The bed stays put unless you add the separate 15302LWB battery pack, and there is no crank. The pack fits the 48 and 54 inch beds only.
What is not in the cartons?
No mattress, rails or battery pack. Add a 48 by 80 inch mattress, and rails 15021BV-LW only if the care team agrees.
Should I buy or rent?
Buy for a long stay at home, or rent for a short recovery: see hospital bed rental. We do not claim this model is in the rental fleet.
Funding may help: see who may help pay.
Warranty: 5 years on the motor and hand control, a limited lifetime on the welds and frame, and 1 year on other parts.
Specifications
- Weight capacity
- 750 lbs (340 kg) safe working load, including the occupant, mattress and accessories
- Assembly
- 3 cartons, 294 lbs (133 kg) total; one person can set the frame up, with no tools required
- Safety standard
- IEC 60601-2-52; 60601-1; 60601-1-2; 60601-1-11
- Caster size
- 5 inches (13 cm)
- Caster locks
- 2 locking and 2 unlocking casters
- Mattress fit
- 48 by 80 inch mattress, at least 5-1/2 inches (14 cm) thick; Drive recommends its matching mattress and rails
- Package contents

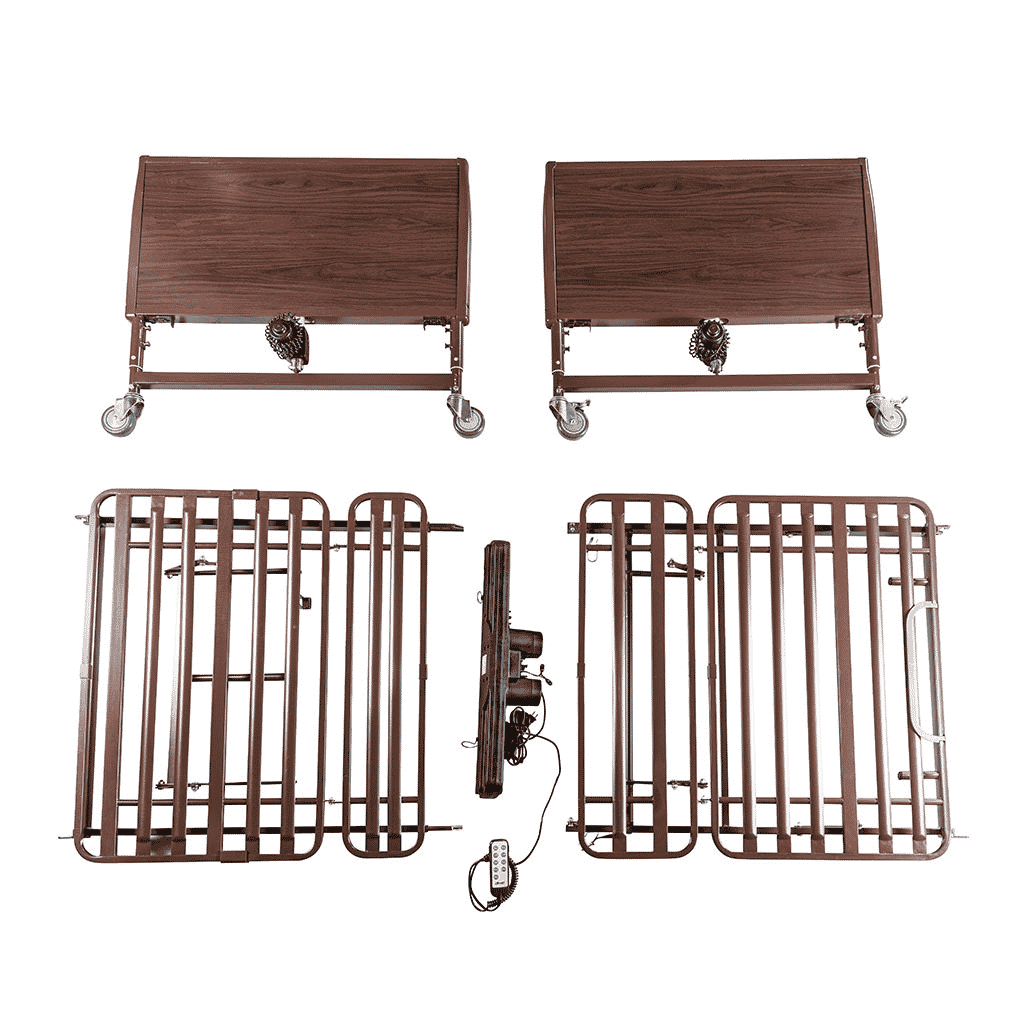

- Dual motor frame, 2 bed ends with hi lo motors, slat sleep deck, hand pendant and power cord, in 3 cartons
- Compatible rails
- Drive 15021BV-LW half side rails, sold as one pair, for the 42, 48 and 54 inch beds
- Motors
- Dual motor for the head and foot sections; separate hi lo motors in the bed ends
- Battery backup
- Optional 15302LWB battery pack, sold separately and not included
- Hand pendant
- Large glow in the dark hand pendant with power and lockout indicator lights
- Bed width
- 48 inches (122 cm) sleep deck
- Bed length
- 80 inches (203 cm) sleep deck
- Size options
- 42 inch (15300LW), 48 inch (15302LW), 54 inch (15303LW)
- Bed positions
- Head, foot and full bed height, all from the hand pendant
- Bed accessories
- Battery pack 15302LWB and half side rails 15021BV-LW
- Head and footboards
- Scratch resistant Brown wood grain panel bed ends with hi lo motors
- Available colours
- Brown
- Warranty
- 5 years motor and hand control; limited lifetime welds and frame; 1 year all other parts
- Product type
- Bariatric Bed, Full-Electric Bed
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Drive Medical warrants the full electric lightweight bariatric bed, 48 inch (15302LW), to the original purchaser. During the warranty period, Drive repairs or replaces defective items at its option at no charge.
- Welds and frame: lifetime.
- Motor and hand control: 5 years.
- All other parts and components: 1 year.
- Drive may ask for broken parts back for evaluation before a credit is issued; parts shipped next day air are at the customer's expense.
- Void if parts or accessories other than authorized Drive Medical replacements are used.
