Motion Composites Move Folding Wheelchair

Parts finder

Replacement parts for the Motion Composites Move Folding Wheelchair

The exploded view is numbered. Select a number on the drawing to jump to that part, or search the list. Prices shown are current online prices; anything without a price is quoted for you.

Ask about a part Product page 920 parts listed

Showing all 920 parts

1 of 154

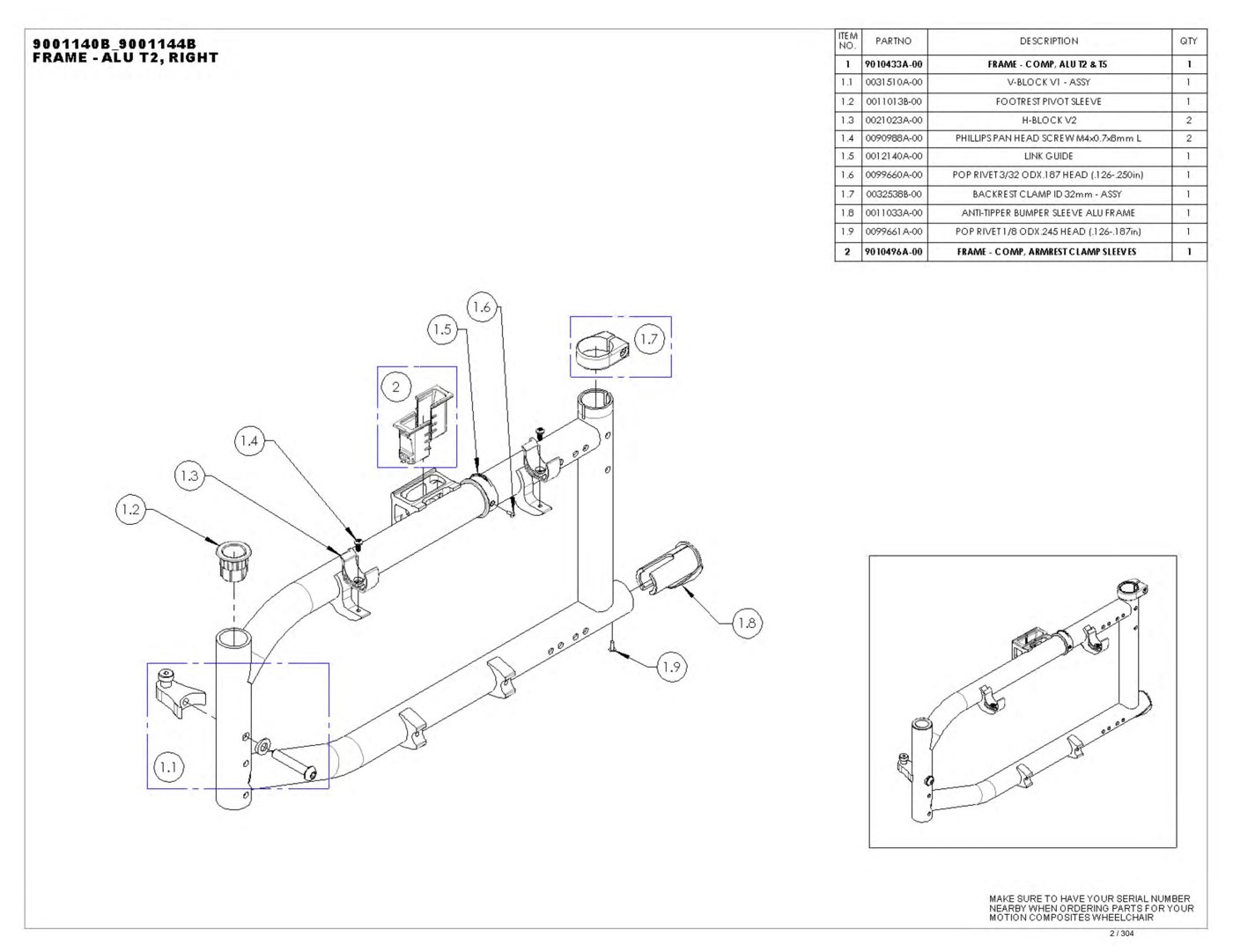

Exploded view of the Frame - Alu T2, Right
Frame - Alu T2, Right. Numbers match the list.
Frame - Alu T2, Left. Numbers match the list.
X-Brace - Aluminium, Square Tube, Type 2 (Specify Seat Depth). Numbers match the list.
X-Brace HD - Alu Hydro. Numbers match the list.
Plug - Alu Seat Tube. Numbers match the list.
X-Brace HD - Alu, Hydro. Numbers match the list.
Front Caster Wheels. Numbers match the list.
Assembly - Large Fork & Caster. Numbers match the list.
Assembly - Large Fork & Caster (page 14). Numbers match the list.
Frog Legs Suspension Forks. Numbers match the list.
Fork - Frog Legs, Phase-Two, SAAF (Pair). Numbers match the list.
Caster Housing - Right, With Stem Bolt. Numbers match the list.
Caster Housing - Left, With Stem Bolt. Numbers match the list.
Caster Housing - Multi AF, Right & Stem Bolt. Numbers match the list.
Caster Housing - Anti-Flutter, MP, Right. Numbers match the list.
Caster Housing - Anti-Flutter, MP, Left. Numbers match the list.
Footrest - Swing-Out, Right, Short Extension (Specify Color). Numbers match the list.
Footrest - Swing-Out, Left, Short Extension (Specify Color). Numbers match the list.
Footrest - Swing-Out, Right, Long Extension (Specify Color). Numbers match the list.
Footrest - Swing-Out, Left, Long Extension (Specify Color). Numbers match the list.
Pivot Extension Kit. Numbers match the list.
Footrest - Pivot Extension Kit. Numbers match the list.
Calf Straps - Padded. Numbers match the list.
ELR - V1, Right & STD Footplate. Numbers match the list.
ELR - V1, Left & STD Footplate. Numbers match the list.
Elevating Legrest + Calf Pad - Swing-Out, Right. Numbers match the list.
Elevating Legrest - Swing-Out, Left. Numbers match the list.
Footplates. Numbers match the list.
Adj Newton Alu Footplate 8in - Assy. Numbers match the list.
Adj Newton Carbon Footplate 8in - Assy. Numbers match the list.
Heel Loop - Length Adjustable. Numbers match the list.
Roller Bumper. Numbers match the list.
Footrest - High Mount, Extension With Clamps. Numbers match the list.
Resid Limb Sup Flat Swing-Out Right. Numbers match the list.
Resid Limb Sup Flat Swing-Out Left. Numbers match the list.
Resid Limb Sup Contour Swing-Out Right. Numbers match the list.
Resid Limb Sup Contour Swing-Out Left. Numbers match the list.
Residual Limb Supp - Swing-Out, Right, 8x11in. Numbers match the list.
Residual Limb Supp - Swing-Out, Left, 8x11in. Numbers match the list.
Residual Limb Supp - Swing-Out, Right, 7x9in. Numbers match the list.
Residual Limb Supp - Swing-Out, Left, 7x9in. Numbers match the list.
Back Cane - Carbon Fiber, Angle Adjustable, Straight. Numbers match the list.
Back Cane - Carbon Fiber, Angle Adjustable, 8° Bend. Numbers match the list.
Back Cane - Carbon, Straight, Fixed 9in. Numbers match the list.
Back Cane - Carbon Fiber, Straight, Fixed Height. Numbers match the list.
Back Cane - Carbon Fiber, 8° Bend, Fixed Height. Numbers match the list.
Back Cane - Carbon Fiber, Angle Adjustable, Fixed Height. Numbers match the list.
Aluminum Back Canes. Numbers match the list.
Back Cane - Alu, Angle Adj, Straight. Numbers match the list.
Back Cane - Alu, Angle Adj, 8° Bend. Numbers match the list.
Push Handles & Straight Extension. Numbers match the list.
Straight Adj Extension. Numbers match the list.
Standard & HD Push Handle - Adjustable. Numbers match the list.
Push Handle - Fold Down. Numbers match the list.
Clamp On Height Adjustable Push Handles. Numbers match the list.
Push Handle - Clamp On Height Adjustable. Numbers match the list.
Back Cane - Aluminium, Straight + Integrated Push Handle. Numbers match the list.
Back Cane - Aluminum, Angle Adjustable, 8° Bend + Integrated Push Handle. Numbers match the list.
Back Cane Hardware (Aluminum Frame). Numbers match the list.
Back Cane Hardware (L Type Armrest). Numbers match the list.
Back Cane Hardware (Depth Adj. Back Cane). Numbers match the list.
Head Rests. Numbers match the list.
Stabilizer Bar - Non-Folding, With Anchor Plate & Swivel Mount Kit. Numbers match the list.
Stabilizer Bar - Non-Folding, With Anchor Plate Kit. Numbers match the list.
Push Handles For Head Rests. Numbers match the list.
HD Push Handle - Adjustable With Tube Connector. Numbers match the list.
Back Cane - Alu, Straight + Fixed Push Handle, With Tube Connect. Numbers match the list.
Back Cane - Alu, Angle Adj, 8° Bend + Fixed Push Handle, With Tube Connect. Numbers match the list.
Back Cane - Alu, IPH, TC, Straight, 21-24in. Numbers match the list.
Back Cane - Alu, IPH, TC, 8° Bend, 21-24in. Numbers match the list.
Rear Wheel - Mag. Numbers match the list.
Oblique Projection Handrims. Numbers match the list.
Flat Free Inserts For Pneumatics 1 3/8 in. Numbers match the list.
Spoke Guards (page 154). Numbers match the list.
Rear Wheel Mounting Plate T2. Numbers match the list.
Rear Wheel - Axle Bushing + Hardware. Numbers match the list.
OAD - T2, Newton One 24in. Numbers match the list.
OAD - T2, Newton One 24in, Anodized HR. Numbers match the list.
OAD - T2, Newton One 24in, Plastified HR. Numbers match the list.
Wheel Lock - Push & Pull. Numbers match the list.
Wheel Lock - Newton Spring Loaded Push To Lock. Numbers match the list.
Wheel Lock - Pull To Lock. Numbers match the list.
Wheel Lock - Push & Pull With Extended Rail. Numbers match the list.
V2 Newton PTL Wheel Lock & Ext. Handle. Numbers match the list.
Wheel Lock - Scissor. Numbers match the list.
Wheel Lock - Newton Grade Aid, Push To Lock, 6 in Removable Extension Handle. Numbers match the list.
Wheel Lock - Grade Aid With Extended Rail. Numbers match the list.
Grade Aid - Newton, Long Rail. Numbers match the list.
Grade Aid - Newton, LR, 6in Handle. Numbers match the list.
Unilateral Pull-To-Lock Wheel Lock. Numbers match the list.
Wheel Lock - Clamps. Numbers match the list.
Unilateral Wheel Lock Adaptor Kit. Numbers match the list.
Kit - Unilateral Wheel Lock Adaptor. Numbers match the list.
Footrest Stopper. Numbers match the list.
Wheel Lock - Footrest Stopper. Numbers match the list.
U & T Armrests. Numbers match the list.
Armrest - U & T Type, Right, 8-12in. Numbers match the list.
Armrest - U & T Type, Right, 10-14in. Numbers match the list.
Armrest - U & T Type, Left, 8-12in. Numbers match the list.
Armrest - U & T Type, Left, 10-14in. Numbers match the list.
Armrest Pad - STD, Right. Numbers match the list.
Armrest Pad - STD, Left. Numbers match the list.
T Armrests. Numbers match the list.
Armrest - T Type, Right, 8-12 in. Numbers match the list.
Armrest - T Type, Right, 10-14 in. Numbers match the list.
Armrest - T Type, Left, 8-12 in. Numbers match the list.
Armrest - T Type, Left, 10-14 in. Numbers match the list.
Armrest - T Type, Right, 6-10in. Numbers match the list.
Armrest Pad - STD, Right (page 211). Numbers match the list.
Armrest Pad - STD, Left (page 212). Numbers match the list.
Swing Away Armrests. Numbers match the list.
Armrest - Swing Away, Right, Desk Length. Numbers match the list.
Armrest - Swing Away, Left, Desk Length. Numbers match the list.
Armrest - Swing Away, Right, Full Length. Numbers match the list.
Armrest - Swing Away, Left, Full Length. Numbers match the list.
Armrest - Swing Away, Right, Tubular, Short. Numbers match the list.
Armrest - Swing Away, Left, Tubular, Short. Numbers match the list.
Armrest - Swing Away, Right, Tubular, Long. Numbers match the list.
Flip Up I Armrest - Assy. Numbers match the list.
Armrest Pad - Waterfall, Full Length, Right. Numbers match the list.
Armrest Pad - Waterfall, Full Length, Left. Numbers match the list.
Armrest Pad - Gel, Full Length. Numbers match the list.
Armrest Pad - Gel, Full Length, Right. Numbers match the list.
Armrest Pad - Gel, Full Length, Left. Numbers match the list.
Rear Pivot - U & T Type, Right. Numbers match the list.
Correction Kit - Rear Pivot, Flip Back, Type 2, Right. Numbers match the list.
Correction Kit - Rear Pivot, Flip Back, Type 2, Left. Numbers match the list.
Sideguards. Numbers match the list.
Side Guard - Plastic, Removable, Right. Numbers match the list.
Side Guard - Plastic, Removable, Left. Numbers match the list.
Side Guard - Carbon Fiber, Removable, Right. Numbers match the list.
Side Guard - Carbon Fiber, Removable, Left. Numbers match the list.
Side Guard - Carbon Fiber, Fixed, Right. Numbers match the list.
Side Guard - Carbon Fiber, Fixed, Left. Numbers match the list.
Fender Sideguards. Numbers match the list.
Fender Sideguard - Plastic, Right. Numbers match the list.
Fender Sideguard - Plastic, Offset, Right. Numbers match the list.
Fender Sideguard - Plastic, Offset, Left. Numbers match the list.
Fender Sideguard - Carbon Fiber, Right. Numbers match the list.
Plastic Insert For V2 Receiver. Numbers match the list.
Mud Guard & Plastic Side Guard - Plastic Insert For V2 Receiver. Numbers match the list.
Side Guards Clip. Numbers match the list.
Positioning Seatbelts. Numbers match the list.
Hip Belt - Bodypoint Evoflex. Numbers match the list.
WC-19 Kit - Alu Frame. Numbers match the list.
WC-19 Kit - Alu Frame, Without Belt. Numbers match the list.
Swing Away Anti-Tipper. Numbers match the list.
Swing Away Anti-Tipper & Instruction. Numbers match the list.
Clamp-On Cup Holder. Numbers match the list.
Cane Holders. Numbers match the list.
Cane Holders (page 280). Numbers match the list.
Oxygen Tank Holder. Numbers match the list.
Color Touch-Up. Numbers match the list.
Link & Hardware. Numbers match the list.

Frame - Alu T2, Right

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001140B and 9001144B.

Parts in Frame - Alu T2, Right
No.PartQtyPriceAction
1 Frame - Comp, Alu T2 & T5Manufacturer no. 9010433A-00 1Quote Ask us about this part
1.1 V-Block V1 - AssyManufacturer no. 0031510A-00 1Quote Ask us about this part
1.2 Motion Composites Footrest Pivot Sleeve 0011013B-000011013B-00 1$5.45 Add to cart
1.3 Motion Composites H-Block V2, part 0021023A-000021023A-00 2$10.91 Add to cart
1.4 Phillips Pan Head Screw M4x0.7x8mm LManufacturer no. 0090988A-00 2Quote Ask us about this part
1.5 Motion Composites link guide, part 0012140A-000012140A-00 1$5.45 Add to cart
1.6 Pop Rivet 3/32 ODX.187 Head (.126-.250in)Manufacturer no. 0099660A-00 1Quote Ask us about this part
1.7 Motion Composites rounded backrest clamp, 32 mm (0032538B-00)0032538B-00 1$10.91 Add to cart
1.8 Motion Composites Anti-Tipper Bumper Sleeve, Aluminium Frame 0011033A-000011033A-00 1$5.45 Add to cart
1.9 Pop Rivet ⅛ ODX.245 Head (.126-.187in)Manufacturer no. 0099661A-00 1Quote Ask us about this part
2 Frame - Comp, Armrest Clamp SleevesManufacturer no. 9010496A-00 1Quote Ask us about this part

Frame - Alu T2, Left

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001147B and 9011518.

Parts in Frame - Alu T2, Left
No.PartQtyPriceAction
1 Frame - Comp, Alu T2 & T5Manufacturer no. 9010433A-00 1Quote Ask us about this part
1.1 V-Block V1 - AssyManufacturer no. 0031510A-00 1Quote Ask us about this part
1.2 Motion Composites Footrest Pivot Sleeve 0011013B-000011013B-00 1$5.45 Add to cart
1.3 Motion Composites H-Block V2, part 0021023A-000021023A-00 2$10.91 Add to cart
1.4 Phillips Pan Head Screw M4x0.7x8mm LManufacturer no. 0090988A-00 2Quote Ask us about this part
1.5 Motion Composites link guide, part 0012140A-000012140A-00 1$5.45 Add to cart
1.6 Pop Rivet 3/32 ODX.187 Head (.126-.250in)Manufacturer no. 0099660A-00 1Quote Ask us about this part
1.7 Motion Composites rounded backrest clamp, 32 mm (0032538B-00)0032538B-00 1$10.91 Add to cart
1.8 Motion Composites Anti-Tipper Bumper Sleeve, Aluminium Frame 0011033A-000011033A-00 1$5.45 Add to cart
1.9 Pop Rivet ⅛ ODX.245 Head (.126-.187in)Manufacturer no. 0099661A-00 1Quote Ask us about this part
2 Frame - Comp, Armrest Clamp SleevesManufacturer no. 9010496A-00 1Quote Ask us about this part

X-Brace - Aluminium, Square Tube, Type 2 (Specify Seat Depth)

18 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002357, 9002358, 9002352, 9002360, 9002361, 9002362 and 9002363.

Parts in X-Brace - Aluminium, Square Tube, Type 2 (Specify Seat Depth)
No.PartQtyPriceAction
1 Square Tube Xbrace 14inManufacturer no. 0010544B-00 1Quote Ask us about this part
2 Square Tube Xbrace 15inManufacturer no. 0010545B-00 1Quote Ask us about this part
3 Square Tube Xbrace 16inManufacturer no. 0010546B-00 1Quote Ask us about this part
4 Square Tube Xbrace 17inManufacturer no. 0010547B-00 1Quote Ask us about this part
5 Square Tube Xbrace 18inManufacturer no. 0010548B-00 1Quote Ask us about this part
6 Square Tube Xbrace 19inManufacturer no. 0010549B-00 5Quote Ask us about this part
7 Square Tube Xbrace 20inManufacturer no. 0010550B-00 1Quote Ask us about this part
8 Link 14inManufacturer no. 0012154C-00 2Quote Ask us about this part
9 Link 15inManufacturer no. 0012155C-00 2Quote Ask us about this part
10 Link 16inManufacturer no. 0012156C-00 2Quote Ask us about this part
11 Link 17inManufacturer no. 0012157C-00 2Quote Ask us about this part
12 Link 18inManufacturer no. 0012158C-00 2Quote Ask us about this part
13 Link 19inManufacturer no. 0012159C-00 2Quote Ask us about this part
14 Link 20inManufacturer no. 0012160C-00 2Quote Ask us about this part
15 Socket Cap Screw M5x0.8x18mm LManufacturer no. 0090748A-00 4Quote Ask us about this part
16 Motion Composites Aluminum Slotted Seat Tube Plug 0012009A-000012009A-00 2$5.45 Add to cart
18 Flange Button Screw M5x0.8x8mm LManufacturer no. 0091009A-00 2Quote Ask us about this part
19 Phillips Thread-Form Screw #6-32x1/2in LManufacturer no. 0099000A-00 2Quote Ask us about this part

X-Brace HD - Alu Hydro

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002373, 9002374, 9002375, 9002376 and 9002377.

Parts in X-Brace HD - Alu Hydro
No.PartQtyPriceAction
1 Motion Composites X-Brace HD, aluminium hydroformed, 18 in to 22 in width 1Price on request Request a quote
2 X-Brace HD - Alu, Hydro, 19in WidthManufacturer no. 9010292A-00 1Quote Ask us about this part
3 X-Brace HD - Alu, Hydro, 20in WidthManufacturer no. 9010293A-00 1Quote Ask us about this part
4 X-Brace HD - Alu, Hydro, 21in WidthManufacturer no. 9010294A-00 1Quote Ask us about this part
5 X-Brace HD - Alu, Hydro, 22in WidthManufacturer no. 9010295A-00 1Quote Ask us about this part
6 Motion Composites aluminium seat tube plug, part 9010315A-009010315A-00 2$5.45 Add to cart

Plug - Alu Seat Tube

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010315A-00.

Parts in Plug - Alu Seat Tube
No.PartQtyPriceAction
1 Motion Composites Aluminum Slotted Seat Tube Plug 0012009A-000012009A-00 1$5.45 Add to cart
2 Phillips Oval Head Scre V¥ #6-32xlI In LManufacturer no. 007101GA-00 1Quote Ask us about this part

X-Brace HD - Alu, Hydro

15 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010291A-00, 9010292A-00, 9010273A-00, 9010294A-00 and 9010295A-00.

Parts in X-Brace HD - Alu, Hydro
No.PartQtyPriceAction
1 Hydroformed HD Xbrace 18inManufacturer no. 0010523B-00 1Quote Ask us about this part
2 Hydroformed HD Xbrace 19inManufacturer no. 0010524B-00 1Quote Ask us about this part
3 Hydroformed HD Xbrace 20inManufacturer no. 0010525B-00 1Quote Ask us about this part
4 Hydroformed HD Xbrace 21inManufacturer no. 0010526B-00 1Quote Ask us about this part
5 Hydroformed HD Xbrace 22inManufacturer no. 0010527B-00 1Quote Ask us about this part
6 Link 18inManufacturer no. 0012158C-00 2Quote Ask us about this part
7 Link 719inManufacturer no. 0012]39C-00 2Quote Ask us about this part
8 Link 20inManufacturer no. 0012160C-00 2Quote Ask us about this part
9 Link 21inManufacturer no. 0012161C-00 2Quote Ask us about this part
10 Link 22inManufacturer no. 0012162C-00 2Quote Ask us about this part
11 Flange Button Screw M5x0.8x8mm LManufacturer no. 0091009A-00 2Quote Ask us about this part
12 Phillips Thread-Form Screw #6-32x1/2in LManufacturer no. 0099000A-00 2Quote Ask us about this part
13 Motion Composites X-Brace Base Pivot Shaft Aluminium Plug 0012150A-000012150A-00 4$5.45 Add to cart
14 Socket Cap Screw M5x0.8x12mm LManufacturer no. 0090744A-00 4Quote Ask us about this part
15 Motion Composites X-Brace Base Pivot Shaft Plastic Cap 0012149A-000012149A-00 4$5.45 Add to cart

Front Caster Wheels

14 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Front Caster Wheels
No.PartQtyPriceAction
1 Standard Caster 3x1inManufacturer no. 0022016A-00 1Quote Ask us about this part
2 Standard Caster 4x1inManufacturer no. 0022017A-00 1Quote Ask us about this part
3 Standard Caster 3x1inManufacturer no. 0022016A-00 1Quote Ask us about this part
4 Standard Caster 6x1inManufacturer no. 0022019A-00 1Quote Ask us about this part
5 Standard Caster 7x1inManufacturer no. 0022020A-00 1Quote Ask us about this part
6 Standard Caster 8x1inManufacturer no. 0022021A-00 1Quote Ask us about this part
7 Motion Composites pneumatic caster, 6 x 1 1/4 in (0022025A-00)0022025A-00 1$102.55 Add to cart
8 Motion Composites pneumatic caster, 8 x 1 1/4 in (0022027A-00)0022027A-00 1$102.55 Add to cart
9 Motion Composites Newton Ultracaster composite wheel 4 x 1.5 in, part 0022514A-000022514A-00 1$62.18 Add to cart
10 Motion Composites Newton Ultracaster composite wheel 5 x 1.5 in, part 0022515A-000022515A-00 1$79.64 Add to cart
11 Motion Composites Newton Ultracaster composite wheel 6 x 1.5 in, part 0022516A-000022516A-00 1$90.55 Add to cart
12 Newton Ultracaster Alu Wheel 4x1½inManufacturer no. 0022517A-00 1Quote Ask us about this part
13 Newton Ultracaster Alu Wheel 5x1½inManufacturer no. 0022518A-00 1Quote Ask us about this part
14 Newton Ultracaster Alu Wheel 6x1½inManufacturer no. 0022519A-00 1Quote Ask us about this part

Assembly - Large Fork & Caster

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Assembly - Large Fork & Caster
No.PartQtyPriceAction
1 7 x 2 in Standard Caster Fork and Wheel Assembly 9007915A-009007915A-00 1$216.00 Add to cart
2 8 x 2 in Pneumatic Caster Fork and Wheel Assembly 9007916A-009007916A-00 1$283.64 Add to cart

Assembly - Large Fork & Caster (page 14)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007915A and 9007916A.

Parts in Assembly - Large Fork & Caster (page 14)
No.PartQtyPriceAction
1 Motion Composites large front fork 7 x 2 in, part 0022176A-000022176A-00 1$74.18 Add to cart
2 Motion Composites Standard Caster 7 x 2 in 0022174A-000022174A-00 1$130.91 Add to cart
3 Motion Composites Pneumatic Caster 8 x 2 in 0022175A-000022175A-00 1$198.55 Add to cart
4 Button Cap Screw M8x1.25x70mm LManufacturer no. 0091022A-00 1Quote Ask us about this part
5 Thin Locknut M8x1.25Manufacturer no. 0090990A-00 1Quote Ask us about this part

Frog Legs Suspension Forks

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Frog Legs Suspension Forks
No.PartQtyPriceAction
1 Frog Legs Phase-Two suspension fork for Motion Composites wheelchairs, 0022172A-000022172A-00 1$1,191.27 Add to cart
2 Fork - Frog Legs, Phase-Two, SAAF STD (Pair)Manufacturer no. 9010362A-00 1Quote Ask us about this part
3 Fork - Frog Legs, Phase-Two, SAAF +1in (Pair)Manufacturer no. 9010363A-00 1Quote Ask us about this part
4 Fork - Frog Legs, Phase-Two, SAAF +2in (Pair)Manufacturer no. 9010364A-00 1Quote Ask us about this part

Fork - Frog Legs, Phase-Two, SAAF (Pair)

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010362A and 9010364A.

Parts in Fork - Frog Legs, Phase-Two, SAAF (Pair)
No.PartQtyPriceAction
1 Frog Legs Phase-Two suspension fork for Motion Composites wheelchairs, 0022172A-000022172A-00 1$1,191.27 Add to cart
2 SAAF Stem Bolt STDManufacturer no. 0022153A-00 2Quote Ask us about this part
3 Stem Bolt Cover +1 InManufacturer no. 0022149A-00 2Quote Ask us about this part
4 Stem Bolt COVER_49mmManufacturer no. 0022150A-00 2Quote Ask us about this part
5 SAAF Stem Bolt +1Manufacturer no. 0022154A-00 2Quote Ask us about this part
6 SAAF Stem Bolt +2Manufacturer no. 0022155A-00 2Quote Ask us about this part

Caster Housing - Right, With Stem Bolt

12 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001477, 9001478 and 9001479. The manufacturer marks this assembly as no longer supplied, replaced by 9002418, 9002419 and 9002420.

Parts in Caster Housing - Right, With Stem Bolt
No.PartQtyPriceAction
1 Standard Stem BoltManufacturer no. 0022031B-00 1Quote Ask us about this part
2 +1 Stem BoltManufacturer no. 0022032B-00 1Quote Ask us about this part
3 +2 Stem BoltManufacturer no. 0022033B-00 1Quote Ask us about this part
4 Flathead Cap Screw M4X0.7 X Gmm LManufacturer no. O090835A-00 1Quote Ask us about this part
5 Motion Composites T2 caster housing cap, part 0022079A-000022079A-00 1$5.45 Add to cart
6 Cantilever 4.5 Deg Angled Housing AssemblyManufacturer no. 0022508A-00 1Quote Ask us about this part
7 Motion Composites T2 eccentric caster housing insert, part 0022080C-000022080C-00 2$5.45 Add to cart
8 Button Cap Screw M6x1x40mm, 12mm ThreadManufacturer no. 0091019A-00 2Quote Ask us about this part
9 Motion Composites T2 caster housing double coved spacer, part 0022082B-000022082B-00 1$6.55 Add to cart
10 Motion Composites T2 caster housing plug (0022081A-00)0022081A-00 1$10.91 Add to cart
11 Thin Locknut M12x1.75Manufacturer no. 0090992A-00 2Quote Ask us about this part
12 Flat Washer 12mm IDX22 ODX1 THKManufacturer no. 0099595A-00 1Quote Ask us about this part

Caster Housing - Left, With Stem Bolt

12 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001480, 9001451 and 9001462. The manufacturer marks this assembly as no longer supplied, replaced by 9002421, 9002422 and 9002423.

Parts in Caster Housing - Left, With Stem Bolt
No.PartQtyPriceAction
1 Standard Stem BoltManufacturer no. 0022031B-00 1Quote Ask us about this part
2 +1 Stem BoltManufacturer no. 0022032B-00 1Quote Ask us about this part
3 +2 Stem BoltManufacturer no. 0022033B-00 1Quote Ask us about this part
4 Flat Head Cap Screw M4X0.7 KX 8mm LManufacturer no. 0070535A-00 1Quote Ask us about this part
5 Motion Composites T2 caster housing cap, part 0022079A-000022079A-00 1$5.45 Add to cart
6 Cantilever 4.5 Deg Angled Housing AssemblyManufacturer no. 0022508A-00 1Quote Ask us about this part
7 Motion Composites T2 eccentric caster housing insert, part 0022080C-000022080C-00 2$5.45 Add to cart
8 Button Cap Screw M6x1x40mm, 12mm ThreadManufacturer no. 0091019A-00 2Quote Ask us about this part
9 Motion Composites T2 caster housing double coved spacer, part 0022082B-000022082B-00 1$6.55 Add to cart
10 Motion Composites T2 caster housing plug (0022081A-00)0022081A-00 1$10.91 Add to cart
11 Thin Locknut M12x1.75Manufacturer no. 0090992A-00 2Quote Ask us about this part
12 Flat Washer I 2mm IDA22 ODX1 TRKManufacturer no. O079O75A-00 1Quote Ask us about this part

Caster Housing - Multi AF, Right & Stem Bolt

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9024188 and 9002420B.

Parts in Caster Housing - Multi AF, Right & Stem Bolt
No.PartQtyPriceAction
1 Motion Composites Anti-Flutter Caster Housing, Helio A6, Right or Left 1$108.00 Request a quote
2 Stem Bolt - AF, STDManufacturer no. 9010318A-00 1Quote Ask us about this part
3 Stem Bolt - AF, +1inManufacturer no. 9010319A-00 1Quote Ask us about this part
4 Stem Bolt - AF +2 InManufacturer no. FOLOS2ZOA-00 1Quote Ask us about this part

Caster Housing - Anti-Flutter, MP, Right

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010345B-00.

Parts in Caster Housing - Anti-Flutter, MP, Right
No.PartQtyPriceAction
1 T2 Anti-Flutter Caster Housing, RightManufacturer no. 0022524B-00 1Quote Ask us about this part
2 Motion Composites T2 eccentric caster housing insert, part 0022080C-000022080C-00 2$5.45 Add to cart
3 Shoulder Screw M6x1, 6x25mm Shoulder LengthManufacturer no. 0004427C-00 2Quote Ask us about this part
4 Motion Composites T2 caster housing plug (0022081A-00)0022081A-00 1$10.91 Add to cart
5 Button Cap Screw M6x1x10mm LManufacturer no. 0004426B-00 1Quote Ask us about this part
6 Motion Composites T2 caster housing double coved spacer, part 0022082B-000022082B-00 1$6.55 Add to cart
7 Spring Washer For Anti-Flutter CapManufacturer no. 0022095A-00 1Quote Ask us about this part
8 Machined Socket Cap Screw M5x0.8x12mm LManufacturer no. 0091038A-00 1Quote Ask us about this part

Caster Housing - Anti-Flutter, MP, Left

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010346B-00.

Parts in Caster Housing - Anti-Flutter, MP, Left
No.PartQtyPriceAction
1 T2 Anti-Flutter Caster Housing, LeftManufacturer no. 0022525B-00 1Quote Ask us about this part
2 Motion Composites T2 eccentric caster housing insert, part 0022080C-000022080C-00 2$5.45 Add to cart
3 Shoulder Screw M6x1, 6x25mm Shoulder LengthManufacturer no. 0004427C-00 2Quote Ask us about this part
4 Motion Composites T2 caster housing plug (0022081A-00)0022081A-00 1$10.91 Add to cart
5 Button Cap Screw M6x1x10mm LManufacturer no. 0004426B-00 1Quote Ask us about this part
6 Motion Composites T2 caster housing double coved spacer, part 0022082B-000022082B-00 1$6.55 Add to cart
7 Spring Washer For Anti-Flutter CapManufacturer no. 0022095A-00 1Quote Ask us about this part
8 Machined Socket Cap Screw M5x0.8x12mm LManufacturer no. 0091038A-00 1Quote Ask us about this part

Footrest - Swing-Out, Right, Short Extension (Specify Color)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002198 and 9002199.

Parts in Footrest - Swing-Out, Right, Short Extension (Specify Color)
No.PartQtyPriceAction
1 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
2 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part
3 Machined Button Cap Screw M6x1x25mm LManufacturer no. 0091042A-00 1Quote Ask us about this part
4 Motion Composites Footrest Extension Sleeve 0031021A-000031021A-00 1$5.45 Add to cart
5 Footrest Extension ShortManufacturer no. 0031020B-00 1Quote Ask us about this part

Footrest - Swing-Out, Left, Short Extension (Specify Color)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002200 and 9002201.

Parts in Footrest - Swing-Out, Left, Short Extension (Specify Color)
No.PartQtyPriceAction
1 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
2 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part
3 Machined Button Cap Screw M6x1x25mm LManufacturer no. 0091042A-00 1Quote Ask us about this part
4 Motion Composites Footrest Extension Sleeve 0031021A-000031021A-00 1$5.45 Add to cart
5 Footrest Extension ShortManufacturer no. 0031020B-00 1Quote Ask us about this part

Footrest - Swing-Out, Right, Long Extension (Specify Color)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003290 and 9003291.

Parts in Footrest - Swing-Out, Right, Long Extension (Specify Color)
No.PartQtyPriceAction
1 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
2 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part
3 Machined Button Cap Screw M6x1x25mm LManufacturer no. 0091042A-00 1Quote Ask us about this part
4 Motion Composites Footrest Extension Sleeve 0031021A-000031021A-00 1$5.45 Add to cart
5 Footrest Extension LongManufacturer no. 0031059B-00 1Quote Ask us about this part

Footrest - Swing-Out, Left, Long Extension (Specify Color)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003292 and 9003293.

Parts in Footrest - Swing-Out, Left, Long Extension (Specify Color)
No.PartQtyPriceAction
1 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
2 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part
3 Machined Button Cap Screw M6x1x25mm LManufacturer no. 0091042A-00 1Quote Ask us about this part
4 Motion Composites Footrest Extension Sleeve 0031021A-000031021A-00 1$5.45 Add to cart
5 Footrest Extension LongManufacturer no. 0031059B-00 1Quote Ask us about this part

Pivot Extension Kit

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Pivot Extension Kit
No.PartQtyPriceAction
1 Motion Composites Footrest Pivot Extension Kit 9003079A-009003079A-00 1$17.45 Add to cart

Footrest - Pivot Extension Kit

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003079.

Parts in Footrest - Pivot Extension Kit
No.PartQtyPriceAction
1 Motion Composites Footrest Pivot Extension 0031247A-000031247A-00 1$10.91 Add to cart
2 Button Cap Screw M6x1x35mm L, 24mm ThreadManufacturer no. 0090665A-00 1Quote Ask us about this part

Calf Straps - Padded

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001414A and 9001415A.

Parts in Calf Straps - Padded
No.PartQtyPriceAction
1 Simple Calf Strap 15-17 InManufacturer no. 0031046A-00 1Quote Ask us about this part
2 Simple Calf Strap 18-22 InManufacturer no. 0031047A-00 1Quote Ask us about this part
3 Motion Composites Calf Pad 0031061A-000031061A-00 1$67.64 Add to cart

ELR - V1, Right & STD Footplate

9 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007918A and 9007920A.

Parts in ELR - V1, Right & STD Footplate
No.PartQtyPriceAction
1 V1 Elevating Legrest RightManufacturer no. 0031583B-00 1Quote Ask us about this part
2 Motion Composites elevating legrest calf pad, 14-16 in or 17-22 in, right or left 1$85.09 Request a quote
3 17-22in Right Elevating Legrest Calf PadManufacturer no. 0031142A-00 1Quote Ask us about this part
4 Motion Composites Composite Footplate 6 by 6 Inch Assembly 0031025A-000031025A-00 1$51.27 Add to cart
5 Motion Composites Composite Footplate 7 by 6 Inch Assembly 0031026A-000031026A-00 1$51.27 Add to cart
6 Motion Composites Composite Footplate 8 by 6 Inch Assembly 0031027A-000031027A-00 1$51.27 Add to cart
7 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part
8 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
9 Motion Composites Elevating Legrest Calf Pad Support 0031158A-000031158A-00 1$10.91 Add to cart

ELR - V1, Left & STD Footplate

9 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007921A and 9007923A.

Parts in ELR - V1, Left & STD Footplate
No.PartQtyPriceAction
1 V1 Elevating Legrest LeftManufacturer no. 0031584B-00 1Quote Ask us about this part
2 14-16in Left Elevating Legrest Calf PadManufacturer no. 0031141A-00 1Quote Ask us about this part
3 17-22in Left Elevating Legrest Calf PadManufacturer no. 0031143A-00 1Quote Ask us about this part
4 Motion Composites Composite Footplate 6 by 6 Inch Assembly 0031025A-000031025A-00 1$51.27 Add to cart
5 Motion Composites Composite Footplate 7 by 6 Inch Assembly 0031026A-000031026A-00 1$51.27 Add to cart
6 Motion Composites Composite Footplate 8 by 6 Inch Assembly 0031027A-000031027A-00 1$51.27 Add to cart
7 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part
8 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
9 Motion Composites Elevating Legrest Calf Pad Support 0031158A-000031158A-00 1$10.91 Add to cart

Elevating Legrest + Calf Pad - Swing-Out, Right

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001213A and 9001214A.

Parts in Elevating Legrest + Calf Pad - Swing-Out, Right
No.PartQtyPriceAction
1 V1 Elevating Legrest RightManufacturer no. 0031583B-00 1Quote Ask us about this part
2 Motion Composites elevating legrest calf pad, 14-16 in or 17-22 in, right or left 1$85.09 Request a quote
3 17-22in Right Elevating Legrest Calf PadManufacturer no. 0031142A-00 1Quote Ask us about this part
4 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part
5 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
6 Motion Composites Elevating Legrest Calf Pad Support 0031158A-000031158A-00 1$10.91 Add to cart

Elevating Legrest - Swing-Out, Left

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001215A and 9001216A.

Parts in Elevating Legrest - Swing-Out, Left
No.PartQtyPriceAction
1 V1 Elevating Legrest LeftManufacturer no. 0031584B-00 1Quote Ask us about this part
2 14-16in Left Elevating Legrest Calf PadManufacturer no. 0031141A-00 1Quote Ask us about this part
3 17-22in Left Elevating Legrest Calf PadManufacturer no. 0031143A-00 1Quote Ask us about this part
4 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part
5 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
6 Motion Composites Elevating Legrest Calf Pad Support 0031158A-000031158A-00 1$10.91 Add to cart

Footplates

32 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footplates
No.PartQtyPriceAction
1 Motion Composites Composite Footplate 6 by 6 Inch Assembly 0031025A-000031025A-00 1$51.27 Add to cart
2 Motion Composites Composite Footplate 7 by 6 Inch Assembly 0031026A-000031026A-00 1$51.27 Add to cart
3 Motion Composites Composite Footplate 8 by 6 Inch Assembly 0031027A-000031027A-00 1$51.27 Add to cart
4 Adj Newton Comp Footplate 5.5x8in, Right - AssyManufacturer no. 0031589A-00 1Quote Ask us about this part
5 Adj Newton Comp Footplate 5.5x8in, Left - AssyManufacturer no. 0031590A-00 1Quote Ask us about this part
6 Adj Newton Comp Footplate 6.5x8in, Right - AssyManufacturer no. 0031591A-00 1Quote Ask us about this part
7 Adj Newton Comp Footplate 6.5x8in, Left - AssyManufacturer no. 0031592A-00 1Quote Ask us about this part
8 Adj Newton Comp Footplate 7.5x8in, Right - AssyManufacturer no. 0031593A-00 1Quote Ask us about this part
9 Adj Newton Comp Footplate 7.5x8in, Left - AssyManufacturer no. 0031594A-00 1Quote Ask us about this part
10 Motion Composites Newton aluminium footplate 4.5 x 8 in, right hand, part 0031595A-00 1$124.36 Request a quote
11 Adj Newton Alu Footplate 4.5x8in, Left - AssyManufacturer no. 0031596A-00 1Quote Ask us about this part
12 Motion Composites Newton aluminium footplate 5.5 x 8 in, right hand, part 0031597A-000031597A-00 1$124.36 Add to cart
13 Adj Newton Alu Footplate 4.5x8in, Left - AssyManufacturer no. 0031596A-00 1Quote Ask us about this part
14 Adj Newton Alu Footplate 6.5x8in, Right - AssyManufacturer no. 0031599A-00 1Quote Ask us about this part
15 Motion Composites Newton aluminium footplate 6.5 x 8 in, left hand, part 0031600A-00 1$124.36 Request a quote
16 Adj Newton Alu Footplate 7.5x8in, Right - AssyManufacturer no. 0031601A-00 1Quote Ask us about this part
17 Adj Newton Alu Footplate 7.5x8in, Left - AssyManufacturer no. 0031602A-00 1Quote Ask us about this part
18 Motion Composites Newton aluminium footplate 4.5 x 10 in, right hand, part 0031603B-00 1$130.91 Request a quote
19 Adj Newton Alu Footplate 4.5x10in, Left - AssyManufacturer no. 0031604B-00 1Quote Ask us about this part
20 Motion Composites Newton aluminium footplate 5.5 x 10 in, right hand, part 0031605B-00 1$130.91 Request a quote
21 Adj Newton Alu Footplate 5.5x10in, Left - AssyManufacturer no. 0031606B-00 1Quote Ask us about this part
22 Motion Composites Newton aluminium footplate 6.5 x 10 in, right hand, part 0031630B-00 1$130.91 Request a quote
23 Adj Newton Alu Footplate 6.5x10in, Left - AssyManufacturer no. 0031631B-00 1Quote Ask us about this part
24 Adj Newton Alu Footplate 7.5x10in, Right - AssyManufacturer no. 0031632B-00 1Quote Ask us about this part
25 Adj Newton Alu Footplate 7.5x10in, Left - AssyManufacturer no. 0031633B-00 1Quote Ask us about this part
26 Adj Newton Carbon Footplate 5.5x8in, Right - AssyManufacturer no. 0031607A-00 1Quote Ask us about this part
27 Adj Newton Carbon Footplate 5.5x8in, Left - AssyManufacturer no. 0031608A-00 1Quote Ask us about this part
28 Adj Newton Carbon Footplate 6.5x8in, Right - AssyManufacturer no. 0031609A-00 1Quote Ask us about this part
29 Adj Newton Carbon Footplate 6.5x8in, Left - AssyManufacturer no. 0031610A-00 1Quote Ask us about this part
30 Adj Newton Carbon Footplate 7.5x8in, Right - AssyManufacturer no. 0031611A-00 1Quote Ask us about this part
31 Adj Newton Carbon Footplate 7.5x8in, Left - AssyManufacturer no. 0031612A-00 1Quote Ask us about this part
32 Motion Composites length adjustable heel loop, part 9001411A-009001411A-00 1$33.82 Add to cart

Adj Newton Alu Footplate 8in - Assy

15 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9031575, 9031576, 0031597, 0031592, 0031600, 0031601 and 9037602.

Parts in Adj Newton Alu Footplate 8in - Assy
No.PartQtyPriceAction
1 Adj Newton Alu Footplate 4.5x8in, RightManufacturer no. 0031124A-00 1Quote Ask us about this part
2 Motion Composites adjustable Newton aluminium footplate, 4.5 by 8 in, left or right, parts 0031123A-00 and 0031124A-00 1$96.00 Request a quote
3 Adj Newton Alu Footplate 5.5x8in, RightManufacturer no. 0031118A-00 1Quote Ask us about this part
4 Motion Composites adjustable Newton aluminium footplate, 5.5 by 8 in, left or right, parts 0031117A-00 and 0031118A-00 1$96.00 Request a quote
5 Adj Newton Alu Footplate 6.5x8in, RightManufacturer no. 0031120A-00 1Quote Ask us about this part
6 Motion Composites adjustable Newton aluminium footplate, 6.5 by 8 in, left or right, parts 0031119A-00 and 0031120A-00 1$96.00 Request a quote
7 Adj Newton Alu Footplate 7.5x8in, RightManufacturer no. 0031122A-00 1Quote Ask us about this part
8 Motion Composites adjustable Newton aluminium footplate, 7.5 by 8 in, left or right, parts 0031121A-00 and 0031122A-00 1$96.00 Request a quote
9 Angle Adjustable Footplate PivotManufacturer no. 0031115A-00 1Quote Ask us about this part
10 Motion Composites angle adjustable footplate clamp, part 0031116A-000031116A-00 2$10.91 Add to cart
11 Button Cap Screw M6x1x40mm L, 24mm ThreadManufacturer no. 0090666A-00 1Quote Ask us about this part
12 Locknut M6x1Manufacturer no. 0099512A-00 1Quote Ask us about this part
13 Coved Washer 1/4 PlasticManufacturer no. 0031052A-00 2Quote Ask us about this part
14 Flat Head Cap Screw M6x1x20mm LManufacturer no. 0090868A-00 2Quote Ask us about this part
15 Set Scre V¥ M6éxi x6mm LManufacturer no. 0020960A-00 1Quote Ask us about this part

Adj Newton Carbon Footplate 8in - Assy

13 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 0031607, 0031606, 0031609, 0031610, 0031611 and 0031612.

Parts in Adj Newton Carbon Footplate 8in - Assy
No.PartQtyPriceAction
1 Adj Newton Carbon Footplate 5.5x8in, RightManufacturer no. 0031106A-00 1Quote Ask us about this part
2 Adj Newton Carbon Footplate 5.5x8in, LeftManufacturer no. 0031107A-00 1Quote Ask us about this part
3 Adj Newton Carbon Footplate 6.5x8in, RightManufacturer no. 0031108A-00 1Quote Ask us about this part
4 Adj Newton Carbon Footplate 6.5x8in, LeftManufacturer no. 0031109A-00 1Quote Ask us about this part
5 Adj Newton Carbon Footplate 7.5x8in, RightManufacturer no. 0031110A-00 1Quote Ask us about this part
6 Adj Newton Carbon Footplate 7.5x8in, LeftManufacturer no. 0031111A-00 1Quote Ask us about this part
7 Angle Adjustable Footplate PivotManufacturer no. 0031115A-00 1Quote Ask us about this part
8 Motion Composites angle adjustable footplate clamp, part 0031116A-000031116A-00 2$10.91 Add to cart
9 Button Cap Screw M6x1x40mm L, 24mm ThreadManufacturer no. 0090666A-00 1Quote Ask us about this part
10 Locknut M6x1Manufacturer no. 0099512A-00 1Quote Ask us about this part
11 Coved Washer 1/4 PlasticManufacturer no. 0031052A-00 2Quote Ask us about this part
12 Flat Head Cap Screw M6x1x12mm LManufacturer no. 0090864A-00 2Quote Ask us about this part
13 Set Screw M6x1x6mm LManufacturer no. 0090960A-00 1Quote Ask us about this part

Heel Loop - Length Adjustable

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001411.

Parts in Heel Loop - Length Adjustable
No.PartQtyPriceAction
1 Heel Loop PinManufacturer no. 0031016A-00 1Quote Ask us about this part
2 Motion Composites length-adjustable heel loop strap, part 0031045B-000031045B-00 1$17.45 Add to cart
3 Collar Lockwasher 1_4Manufacturer no. P9339 1Quote Ask us about this part
4 Low Head Plastic Cap Screw M6x2.54x25mm LManufacturer no. 0091024A-00 1Quote Ask us about this part

Roller Bumper

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Roller Bumper
No.PartQtyPriceAction
1 Motion Composites Roller Bumper for Composite Footplates 9001752A-009001752A-00 1$90.55 Add to cart
2 Motion Composites Roller Bumper for Aluminium and Carbon Footplates 9001753A-009001753A-00 1$90.55 Add to cart

Footrest - High Mount, Extension With Clamps

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001318.

Parts in Footrest - High Mount, Extension With Clamps
No.PartQtyPriceAction
1 Motion Composites high mount straight extension assembly, part 0031638A-000031638A-00 1$51.27 Add to cart
2 0.75-1 In Clamp - AssyManufacturer no. 0041703B-00 2Quote Ask us about this part

Resid Limb Sup Flat Swing-Out Right

13 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9008295A.

Parts in Resid Limb Sup Flat Swing-Out Right
No.PartQtyPriceAction
1 Motion Composites Flat Residual Limb Support Pad 6 x 8 in0001585B-00 1$363.27 Add to cart
2 Motion Composites Flat Residual Limb Support Pad 8 x 10 in0001585B-01 1$363.27 Add to cart
3 Motion Composites Flat Residual Limb Support Pad 10 x 10 in0001585B-02 1$363.27 Add to cart
4 Motion Composites Flat Residual Limb Support Pad 10 x 14 in0001585B-03 1$363.27 Add to cart
5 V1 Universal Legrest Hanger Right - AssyManufacturer no. 0031613B-00 1Quote Ask us about this part
6 Motion Composites Weld T-Tube Assembly 0000899A-000000899A-00 1$39.27 Add to cart
7 Double Hinge Clamp - AssyManufacturer no. 0000870A-00 1Quote Ask us about this part
8 Flat Washer M5Manufacturer no. 0099564A-00 4Quote Ask us about this part
9 Motion Composites limb support top clamp, part 0000883A-000000883A-00 1$90.55 Add to cart
10 Socket Cap Screw M5x0.8x14mm LManufacturer no. 0090745A-00 2Quote Ask us about this part
11 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 4Quote Ask us about this part
12 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
13 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part

Resid Limb Sup Flat Swing-Out Left

13 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9008300A and 9008304A.

Parts in Resid Limb Sup Flat Swing-Out Left
No.PartQtyPriceAction
1 Motion Composites Flat Residual Limb Support Pad 6 x 8 in0001585B-00 1$363.27 Add to cart
2 Motion Composites Flat Residual Limb Support Pad 8 x 10 in0001585B-01 1$363.27 Add to cart
3 Motion Composites Flat Residual Limb Support Pad 10 x 10 in0001585B-02 1$363.27 Add to cart
4 Motion Composites Flat Residual Limb Support Pad 10 x 14 in0001585B-03 1$363.27 Add to cart
5 V1 Universal Legrest Hanger Left - AssyManufacturer no. 0031614B-00 1Quote Ask us about this part
6 Motion Composites Weld T-Tube Assembly 0000899A-000000899A-00 1$39.27 Add to cart
7 Double Hinge Clamp - AssyManufacturer no. 0000870A-00 1Quote Ask us about this part
8 Flat Washer M5Manufacturer no. 0099564A-00 4Quote Ask us about this part
9 Motion Composites limb support top clamp, part 0000883A-000000883A-00 1$90.55 Add to cart
10 Socket Cap Screw M5x0.8x14mm LManufacturer no. 0090745A-00 2Quote Ask us about this part
11 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 4Quote Ask us about this part
12 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
13 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part

Resid Limb Sup Contour Swing-Out Right

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9083154 and 9008316A.

Parts in Resid Limb Sup Contour Swing-Out Right
No.PartQtyPriceAction
1 Motion Composites Contoured Residual Limb Support Pad 6 x 8 in0001032B-00 1$363.27 Add to cart
2 Motion Composites Contoured Residual Limb Support Pad 8 x 10 in0001032B-01 1$363.27 Add to cart
3 V1 Universal Legrest Hanger Right - AssyManufacturer no. 0031613B-00 1Quote Ask us about this part
4 Motion Composites Weld T-Tube Assembly 0000899A-000000899A-00 1$39.27 Add to cart
5 Double Hinge Clamp - AssyManufacturer no. 0000870A-00 1Quote Ask us about this part
6 Flat Washer M5Manufacturer no. 0099564A-00 4Quote Ask us about this part
7 Motion Composites limb support top clamp, part 0000883A-000000883A-00 1$90.55 Add to cart
8 Socket Cap Screw M5x0.8x14mm LManufacturer no. 0090745A-00 2Quote Ask us about this part
9 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 4Quote Ask us about this part
10 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
11 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part

Resid Limb Sup Contour Swing-Out Left

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9008317A.

Parts in Resid Limb Sup Contour Swing-Out Left
No.PartQtyPriceAction
1 Motion Composites Contoured Residual Limb Support Pad 6 x 8 in0001032B-00 1$363.27 Add to cart
2 Motion Composites Contoured Residual Limb Support Pad 8 x 10 in0001032B-01 1$363.27 Add to cart
3 V1 Universal Legrest Hanger Left - AssyManufacturer no. 0031614B-00 1Quote Ask us about this part
4 Motion Composites Weld T-Tube Assembly 0000899A-000000899A-00 1$39.27 Add to cart
5 Double Hinge Clamp - AssyManufacturer no. 0000870A-00 1Quote Ask us about this part
6 Flat Washer M5Manufacturer no. 0099564A-00 4Quote Ask us about this part
7 Motion Composites limb support top clamp, part 0000883A-000000883A-00 1$90.55 Add to cart
8 Socket Cap Screw M5x0.8x14mm LManufacturer no. 0090745A-00 2Quote Ask us about this part
9 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 4Quote Ask us about this part
10 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
11 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part

Residual Limb Supp - Swing-Out, Right, 8x11in

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001287A-00.

Parts in Residual Limb Supp - Swing-Out, Right, 8x11in
No.PartQtyPriceAction
1 V1 Universal Legrest Hanger Right - AssyManufacturer no. 0031613B-00 1Quote Ask us about this part
2 Residual Limb Supp Pad & Base Plate 8x11in - AssyManufacturer no. 0031153A-00 1Quote Ask us about this part
3 0.75-1 In Clamp - AssyManufacturer no. 0041703B-00 2Quote Ask us about this part
4 Residual Limb Support Structure TubeManufacturer no. 003)3224-00 1Quote Ask us about this part
5 Residual Limb Support Structure ClampManufacturer no. 00318234-00 1Quote Ask us about this part
6 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 2$5.45 Add to cart
7 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part
8 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part

Residual Limb Supp - Swing-Out, Left, 8x11in

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001288A-00.

Parts in Residual Limb Supp - Swing-Out, Left, 8x11in
No.PartQtyPriceAction
1 V1 Universal Legrest Hanger Left - AssyManufacturer no. 0031614B-00 1Quote Ask us about this part
2 Residual Limb Supp Pad & Base Plate 8x11in - AssyManufacturer no. 0031153A-00 1Quote Ask us about this part
3 0.75-1 In Clamp - AssyManufacturer no. 0041703B-00 2Quote Ask us about this part
4 Residual Limb Support Structure TubeManufacturer no. 0031322A-00 1Quote Ask us about this part
5 Residual Limb Support Structure ClampManufacturer no. 0031323A-00 1Quote Ask us about this part
6 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 2$5.45 Add to cart
7 C1 Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 0031519A-00 1Quote Ask us about this part
8 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part

Residual Limb Supp - Swing-Out, Right, 7x9in

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002144A-00.

Parts in Residual Limb Supp - Swing-Out, Right, 7x9in
No.PartQtyPriceAction
1 V1 Universal Legrest Hanger Right - AssyManufacturer no. 0031613B-00 1Quote Ask us about this part
2 Residual Limb Supp Pad & Base Plate 7x9in - AssyManufacturer no. 0031296A-00 1Quote Ask us about this part
3 Residual Limb Support Structure ClampManufacturer no. 0031323A-00 1Quote Ask us about this part
4 Residual Limb Support Structure TubeManufacturer no. 00313224-00 1Quote Ask us about this part
5 0.75-1 In Clamp - AssyManufacturer no. 0041703B-00 2Quote Ask us about this part
6 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 2$5.45 Add to cart
7 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
8 C1 Hanger Latch + Trigger Right Spare Parts KitManufacturer no. 0031520A-00 1Quote Ask us about this part

Residual Limb Supp - Swing-Out, Left, 7x9in

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002145A-00.

Parts in Residual Limb Supp - Swing-Out, Left, 7x9in
No.PartQtyPriceAction
1 V1 Universal Legrest Hanger Left - AssyManufacturer no. 0031614B-00 1Quote Ask us about this part
2 Residual Limb Supp Pad & Base Plate 7x9in - AssyManufacturer no. 0031296A-00 1Quote Ask us about this part
3 Residual Limb Support Structure ClampManufacturer no. 0031323A-00 1Quote Ask us about this part
4 Residual Limb Support Structure TubeManufacturer no. 00313224-00 1Quote Ask us about this part
5 0.75-1 In Clamp - AssyManufacturer no. 0041703B-00 2Quote Ask us about this part
6 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 2$5.45 Add to cart
7 V2 Footrest Pivot - AssemblyManufacturer no. 0031551B-00 1Quote Ask us about this part
8 Cl Hanger Latch + Trigger Left Spare Parts KitManufacturer no. 00313]2A-00 1Quote Ask us about this part

Back Cane - Carbon Fiber, Angle Adjustable, Straight

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001247A and 9012504.

Parts in Back Cane - Carbon Fiber, Angle Adjustable, Straight
No.PartQtyPriceAction
1 Adj Carbon Back Cane 12-15inManufacturer no. 0032520B-00 1Quote Ask us about this part
2 Adj Carbon Back Cane 15-18inManufacturer no. 0032521B-00 1Quote Ask us about this part
3 Adj Carbon Back Cane 18-21inManufacturer no. 0032522B-00 1Quote Ask us about this part
4 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
5 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part

Back Cane - Carbon Fiber, Angle Adjustable, 8° Bend

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001005A, 9001251A and 9001252A.

Parts in Back Cane - Carbon Fiber, Angle Adjustable, 8° Bend
No.PartQtyPriceAction
1 Adj Carbon Adj 8 Deg Back Cane 13½-15inManufacturer no. 0032523B-00 1Quote Ask us about this part
2 Adj Carbon Adj 8 Deg Back Cane 15-18inManufacturer no. 0032524B-00 1Quote Ask us about this part
3 Adj Carbon Adj 8 Deg Back Cane 18-21inManufacturer no. 0032525B-00 1Quote Ask us about this part
4 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
5 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part

Back Cane - Carbon, Straight, Fixed 9in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002375A-00.

Parts in Back Cane - Carbon, Straight, Fixed 9in
No.PartQtyPriceAction
1 Carbon Siraight Back Cane ?In No Push HandleManufacturer no. 003211BA-00 1Quote Ask us about this part
2 Motion Composites 1 in Tube Cap 0099704A-000099704A-00 1$5.45 Add to cart
3 Rivet Nut M5x0.8 (3.3-5.7MM)Manufacturer no. 0099653A-00 1Quote Ask us about this part

Back Cane - Carbon Fiber, Straight, Fixed Height

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001253, 9001254 and 9001256.

Parts in Back Cane - Carbon Fiber, Straight, Fixed Height
No.PartQtyPriceAction
1 Adj Straight Pediatric Back Cane 15-18inManufacturer no. 0032094B-00 1Quote Ask us about this part
2 Carbon Straight Back Cane 12-15inManufacturer no. 0032074D-00 1Quote Ask us about this part
3 Carbon Straight Back Cane t8in No Push Randle (Fm)Manufacturer no. 0032041A-O0 1Quote Ask us about this part
4 Carbon Straight Back Cane 2] In No Push Handle (MM)Manufacturer no. 0032042A-00 1Quote Ask us about this part
5 Motion Composites 1 in Tube Cap 0099704A-000099704A-00 1$5.45 Add to cart

Back Cane - Carbon Fiber, 8° Bend, Fixed Height

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001257, 9001256 and 9001259.

Parts in Back Cane - Carbon Fiber, 8° Bend, Fixed Height
No.PartQtyPriceAction
1 Fixed Height Carbons Deg Back Cane 13.5inManufacturer no. 00:32043B-00 1Quote Ask us about this part
2 Fixed Height Carbon 8 Deg Back Cane 13inManufacturer no. 0032044B-00 1Quote Ask us about this part
3 Fixed Height Carbon 8 Deg Back Cane 18inManufacturer no. 0032045B-00 1Quote Ask us about this part
4 Motion Composites 1 in Tube Cap 0099704A-000099704A-00 1$5.45 Add to cart
5 Rivet Nut M5x0.8 (3.3-5.7MM)Manufacturer no. 0099653A-00 1Quote Ask us about this part

Back Cane - Carbon Fiber, Angle Adjustable, Fixed Height

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001260, 9001261, 9001262 and 9001263.

Parts in Back Cane - Carbon Fiber, Angle Adjustable, Fixed Height
No.PartQtyPriceAction
1 Adj Carbon Back Cane 12-15inManufacturer no. 0032520B-00 1Quote Ask us about this part
2 Adj Carbon Back Cane 15-18inManufacturer no. 0032521B-00 1Quote Ask us about this part
3 Adj Carbon Back Cane 18-21inManufacturer no. 0032522B-00 1Quote Ask us about this part
4 Adj Carbon Back Cane 21-24inManufacturer no. 0032527B-00 1Quote Ask us about this part
5 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
6 Motion Composites 1 in Tube Cap 0099704A-000099704A-00 1$5.45 Add to cart
7 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part

Aluminum Back Canes

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Aluminum Back Canes
No.PartQtyPriceAction
1 Alu Straight Back Cane 18-21inManufacturer no. 0032084A-00 1Quote Ask us about this part
2 Alu Straight Back Cane 12-15inManufacturer no. 0032082A-00 1Quote Ask us about this part
3 Alu Straight Back Cane 15-18inManufacturer no. 0032083A-00 1Quote Ask us about this part
4 Alu Straight Back Cane 18-21inManufacturer no. 0032084A-00 1Quote Ask us about this part
5 Alu 8 Deg Bend Back Cane 13½-15inManufacturer no. 0032085B-00 1Quote Ask us about this part
6 Alu 8 Deg Bend Back Cane 15-18inManufacturer no. 0032086B-00 1Quote Ask us about this part
7 Alu 8 Deg Bend Back Cane 18-21inManufacturer no. 0032087B-00 1Quote Ask us about this part
8 Straight Aluminium Back Cane, 15-18 in 9001271A-00 1$136.36 Request a quote
9 Back Cane - Alu, Angle Adj, Straight, 18-21inManufacturer no. 9001272A-00 1Quote Ask us about this part
10 8 Degree Bend Aluminium Back Cane, 15-18 in 9001273A-00 1$159.27 Request a quote
11 Back Cane - Alu, Angle Adj, 8° Bend, 18-21inManufacturer no. 9001274A-00 1Quote Ask us about this part

Back Cane - Alu, Angle Adj, Straight

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001271A and 9012724.

Parts in Back Cane - Alu, Angle Adj, Straight
No.PartQtyPriceAction
1 Motion Composites adjustable aluminium 8 degree back cane, 15-18 in or 18-21 in, parts 0032550A-00 and 0032551A-00 1$102.55 Request a quote
2 Motion Composites adjustable aluminium back cane, 18-21 in, part 0032549A-000032549A-00 1$90.55 Add to cart
3 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
4 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part

Back Cane - Alu, Angle Adj, 8° Bend

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001273A and 9001274A.

Parts in Back Cane - Alu, Angle Adj, 8° Bend
No.PartQtyPriceAction
1 Motion Composites adjustable aluminium 8 degree back cane, 15-18 in or 18-21 in, parts 0032550A-00 and 0032551A-00 1$102.55 Request a quote
2 Adj Alu 8 Deg Back 18-21in - AssyManufacturer no. 0032551A-00 1Quote Ask us about this part
3 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
4 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part

Push Handles & Straight Extension

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Push Handles & Straight Extension
No.PartQtyPriceAction
1 Without Push Handle - Straight ExtensionManufacturer no. 2001286 1Quote Ask us about this part
2 Push Handle- AdjustableManufacturer no. 2001285 1Quote Ask us about this part
3 HD Push Handle- AdjustableManufacturer no. 9002713 1Quote Ask us about this part
4 Motion Composites fold-down push handle (9003095A-00)9003095A-00 1$96.00 Add to cart

Straight Adj Extension

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001286A-00.

Parts in Straight Adj Extension
No.PartQtyPriceAction
1 Back Extension - AssyManufacturer no. 0032506B-00 1Quote Ask us about this part
2 Motion Composites push handle back sleeve (0032017B-00)0032017B-00 1$10.91 Add to cart
3 Motion Composites Push Handle Dowel Nut Assembly 0032514B-000032514B-00 1$22.91 Add to cart

Standard & HD Push Handle - Adjustable

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9012854 and 9002915A.

Parts in Standard & HD Push Handle - Adjustable
No.PartQtyPriceAction
1 Motion Composites 7/8 in push handle assembly (0032507B-00)0032507B-00 1$39.27 Add to cart
2 Motion Composites HD push handle assembly, 7/8 in, part 0032533A-000032533A-00 1$51.27 Add to cart
3 Motion Composites push handle back sleeve (0032017B-00)0032017B-00 1$10.91 Add to cart
4 Motion Composites Push Handle Dowel Nut Assembly 0032514B-000032514B-00 1$22.91 Add to cart

Push Handle - Fold Down

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003095A-00.

Parts in Push Handle - Fold Down
No.PartQtyPriceAction
1 Fold Down Push Handle - AssyManufacturer no. 0032542A-00 1Quote Ask us about this part
2 Motion Composites push handle back sleeve (0032017B-00)0032017B-00 1$10.91 Add to cart
3 Motion Composites Push Handle Dowel Nut Assembly 0032514B-000032514B-00 1$22.91 Add to cart

Clamp On Height Adjustable Push Handles

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Clamp On Height Adjustable Push Handles
No.PartQtyPriceAction
1 Push Handle - Clamp On Height Adj, 9-20inManufacturer no. 9003300A-00 1Quote Ask us about this part
2 Push Handle - Clamp On Height Adj, 9-23inManufacturer no. 9003301A-00 1Quote Ask us about this part
3 Motion Composites warning label for a height-adjustable push handle, 0051455A-000051455A-00 1$5.45 Add to cart

Push Handle - Clamp On Height Adjustable

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9005300A and 9005201A.

Parts in Push Handle - Clamp On Height Adjustable
No.PartQtyPriceAction
1 Motion Composites height adjustable push handle, 16 or 19 in, parts 0032543A-00 and 0032544A-00 1$62.18 Request a quote
2 Height Adjustable Push Handle 19in - AssyManufacturer no. 0032544A-00 1Quote Ask us about this part
3 Motion Composites height adjustable push handle clamp assembly, 0032545A-000032545A-00 1$141.82 Add to cart

Back Cane - Aluminium, Straight + Integrated Push Handle

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003299.

Parts in Back Cane - Aluminium, Straight + Integrated Push Handle
No.PartQtyPriceAction
1 Motion Composites IPH aluminium straight back cane, part 0032539A-00 1Price on request Request a quote
2 IPH Alu Straight Back Cane 15-21in - AssyManufacturer no. 0032540A-00 1Quote Ask us about this part
3 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part

Back Cane - Aluminum, Angle Adjustable, 8° Bend + Integrated Push Handle

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001276 and 9001277.

Parts in Back Cane - Aluminum, Angle Adjustable, 8° Bend + Integrated Push Handle
No.PartQtyPriceAction
1 Motion Composites adjustable aluminium IPH 8 degree back cane, 16 in or 20 in, parts 0032501A-00 and 0032502A-00 1$96.00 Request a quote
2 Adj IPH Alu 8 Deg Back Cane 20in - AssyManufacturer no. 0032502A-00 1Quote Ask us about this part
3 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
4 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part
5 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part

Back Cane Hardware (Aluminum Frame)

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Back Cane Hardware (Aluminum Frame)
No.PartQtyPriceAction
1 Motion Composites flip back armrest hardware and tie down, part 9001233A-009001233A-00 1$10.91 Add to cart
2 Hardware - For Flip Back ArmrestManufacturer no. 9001175A-00 1Quote Ask us about this part
3 For 2D OnlyManufacturer no. FOOT]AZA-O0 1Quote Ask us about this part
4 Motion Composites armrest hardware without tie down, part 9001174A-009001174A-00 1$17.45 Add to cart
5 Tie DownManufacturer no. 0022004C-00 1Quote Ask us about this part

Back Cane Hardware (L Type Armrest)

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Back Cane Hardware (L Type Armrest)
No.PartQtyPriceAction
1 Motion Composites swing away armrest hardware and tie down, part 9007624A-009007624A-00 1$5.45 Add to cart
2 Motion Composites swing away armrest hardware, part 9007625A-009007625A-00 1$5.45 Add to cart
3 Tie DownManufacturer no. 0022004C-00 1Quote Ask us about this part

Back Cane Hardware (Depth Adj. Back Cane)

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Back Cane Hardware (Depth Adj. Back Cane)
No.PartQtyPriceAction
1 Motion Composites depth adjustable back cane hardware and tie down, part 9007626A-009007626A-00 1$5.45 Add to cart
2 Motion Composites depth adjustable back cane hardware, part 9007627A-009007627A-00 1$5.45 Add to cart
3 Bent Tie DownManufacturer no. 0022076A-00 1Quote Ask us about this part

Head Rests

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Head Rests
No.PartQtyPriceAction
3 Motion Composites head rest pad, small and medium, 0060105A-00 1$255.27 Request a quote
4 Head Rest Pad - MediumManufacturer no. 0060106A-00 1Quote Ask us about this part

Stabilizer Bar - Non-Folding, With Anchor Plate & Swivel Mount Kit

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001592.

Parts in Stabilizer Bar - Non-Folding, With Anchor Plate & Swivel Mount Kit
No.PartQtyPriceAction
1 Motion Composites Swivel Mount, Anchor and Stabilizer Bar Kit 0060701A-000060701A-00 1$544.36 Add to cart
2 Motion Composites Swivel Mount 0060108A-000060108A-00 1$170.18 Add to cart
3 Motion Composites Stabilizer Bar 0060703A-000060703A-00 1$170.18 Add to cart

Stabilizer Bar - Non-Folding, With Anchor Plate Kit

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001593.

Parts in Stabilizer Bar - Non-Folding, With Anchor Plate Kit
No.PartQtyPriceAction
1 Motion Composites Stabilizer Bar and Anchor Plate Kit 0060702A-000060702A-00 1$374.18 Add to cart
2 Motion Composites Stabilizer Bar 0060703A-000060703A-00 1$170.18 Add to cart

Push Handles For Head Rests

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Push Handles For Head Rests
No.PartQtyPriceAction
1 Motion Composites heavy-duty push handle (9007565A-00)9007565A-00 1$79.64 Add to cart
2 Back Cane - Alu, IPH, TC, Straight, 9-15inManufacturer no. 9007610A-00 1Quote Ask us about this part
3 Back Cane - Alu, IPH, TC, Straight, 15-21inManufacturer no. 9007611A-00 1Quote Ask us about this part
4 Back Cane - Alu, IPH, TC, 8° Bend, 16, 18 Or 20inManufacturer no. 9007612A-00 1Quote Ask us about this part
5 IPH TC Aluminium Back Cane, 8 Degree Bend, 16 in 9007613A-00 1$170.18 Request a quote
6 Back Cane - Alu, IPH, TC, Angle Adj, 8° Bend, 20inManufacturer no. 9007614A-00 1Quote Ask us about this part
7 Back Cane - Alu, IPH, TC, Straight, 21-24inManufacturer no. 9007746A-00 1Quote Ask us about this part
8 Back Cane - Alu, IPH, TC, &° Bend, 21 -24inManufacturer no. 200#745A-00 1Quote Ask us about this part

HD Push Handle - Adjustable With Tube Connector

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007565.

Parts in HD Push Handle - Adjustable With Tube Connector
No.PartQtyPriceAction
1 Motion Composites HD push handle and tube connection assembly, part 0032541A-000032541A-00 1$67.64 Add to cart
2 Motion Composites push handle back sleeve (0032017B-00)0032017B-00 1$10.91 Add to cart
3 Motion Composites Push Handle Dowel Nut Assembly 0032514B-000032514B-00 1$22.91 Add to cart

Back Cane - Alu, Straight + Fixed Push Handle, With Tube Connect

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007610 and 9007611.

Parts in Back Cane - Alu, Straight + Fixed Push Handle, With Tube Connect
No.PartQtyPriceAction
1 Motion Composites IPH aluminium straight back cane and tube connection, 9 to 15 or 15 to 21 in, parts 0032546A-00 and 0032547A-00 1$74.18 Request a quote
2 IPH Alu Straight Back Cane & Tube Conn 15-21inManufacturer no. 0032547A-00 1Quote Ask us about this part
3 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part

Back Cane - Alu, Angle Adj, 8° Bend + Fixed Push Handle, With Tube Connect

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007613 and 9007614.

Parts in Back Cane - Alu, Angle Adj, 8° Bend + Fixed Push Handle, With Tube Connect
No.PartQtyPriceAction
1 Motion Composites adjustable aluminium IPH 8 degree back cane, 16 in or 20 in, parts 0032501A-00 and 0032502A-00 1$96.00 Request a quote
2 Adj IPH Alu 8 Deg Back Cane 20in - AssyManufacturer no. 0032502A-00 1Quote Ask us about this part
3 Motion Composites lower adjustable backrest, part 0032037B-000032037B-00 1$56.73 Add to cart
4 Button Cap Screw M6x1x25mm LManufacturer no. 0090663A-00 2Quote Ask us about this part
5 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part
6 Motion Composites tube connector retaining washer, 1/4-20, 0.75/0.775 in, 0099802A-000099802A-00 1$5.45 Add to cart

Back Cane - Alu, IPH, TC, Straight, 21-24in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9079464.

Parts in Back Cane - Alu, IPH, TC, Straight, 21-24in
No.PartQtyPriceAction
1 IPH Alu Straight Back Cane 21-24in - AssyManufacturer no. 0005596A-00 1Quote Ask us about this part
2 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part
3 Motion Composites tube connector retaining washer, 1/4-20, 0.75/0.775 in, 0099802A-000099802A-00 1$5.45 Add to cart

Back Cane - Alu, IPH, TC, 8° Bend, 21-24in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007945A-00.

Parts in Back Cane - Alu, IPH, TC, 8° Bend, 21-24in
No.PartQtyPriceAction
1 Fixed Alu Seat Pan 14x18in - AssyManufacturer no. 0005935A-52 1Quote Ask us about this part
2 Button Cap Screw M5x0.8x18mm LManufacturer no. 0090647A-00 1Quote Ask us about this part
3 Motion Composites tube connector retaining washer, 1/4-20, 0.75/0.775 in, 0099802A-000099802A-00 1$5.45 Add to cart

Rear Wheel - Mag

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001483A and 9001485A.

Parts in Rear Wheel - Mag
No.PartQtyPriceAction
1 Motion Composites wheel cap, part 0021104B-000021104B-00 1$5.45 Add to cart
2 Motion Composites 20 in plastic mag wheel cap, part 0021108B-000021108B-00 1$5.45 Add to cart

Oblique Projection Handrims

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oblique Projection Handrims
No.PartQtyPriceAction
1 Motion Composites Oblique Projections Anodized Aluminium Handrim, 22 or 24 in 1$322.91 Request a quote
2 Oblique Projections Aluminum Anodized Handrim 24inManufacturer no. 0021525A-00 1Quote Ask us about this part

Flat Free Inserts For Pneumatics 1 3/8 in

9 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Flat Free Inserts For Pneumatics 1 3/8 in
No.PartQtyPriceAction
1 Motion Composites 22 Inch Flat Free Insert and Pneumatic Tire 9002409A-009002409A-00 1$152.73 Add to cart
2 Motion Composites Flat Free Insert, 22 by 1-3/8 Inch (0021371A-00)0021371A-00 1$45.82 Add to cart
3 Pneumatic Tire 22x1⅜inManufacturer no. 0007917A-00 1Quote Ask us about this part
4 Motion Composites 24 Inch Flat Free Insert and Pneumatic Tire 9002410A-019002410A-01 1$152.73 Add to cart
5 Motion Composites 24 x 1-3/8 in oval flat-free insert, part 0006834A-000006834A-00 1$45.82 Add to cart
6 Pneumatic Tire 24x1⅜inManufacturer no. 0008584A-00 1Quote Ask us about this part
7 Motion Composites 26 Inch Flat Free Insert and Pneumatic Tire 9002412A-009002412A-00 1$152.73 Add to cart
8 Flat Free Insert 26x] ¥2inManufacturer no. 0005466A-00 1Quote Ask us about this part
9 Pneumatic Tire 26x1⅜inManufacturer no. 0008193A-00 1Quote Ask us about this part

Spoke Guards (page 154)

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001629 and 9001632.

Parts in Spoke Guards (page 154)
No.PartQtyPriceAction
1 Motion Composites spoke guards, 20 to 26 in (0051019A-00 and others) 1$90.55 Request a quote
2 Spoke Guard 22inManufacturer no. 0051020A-00 1Quote Ask us about this part
3 Spoke Guard 24inManufacturer no. 0051021A-00 1Quote Ask us about this part
4 Spoke Guard 26inManufacturer no. 0051025A-00 1Quote Ask us about this part
5 Motion Composites spoke guard clip, part 0051034A-000051034A-00 6$5.45 Add to cart
6 Spoke Shield Clip WasherManufacturer no. 0051033A-00 6Quote Ask us about this part

Rear Wheel Mounting Plate T2

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001167 and 9001168.

Parts in Rear Wheel Mounting Plate T2
No.PartQtyPriceAction
1 T2 Mounting PlateManufacturer no. 0021028A-00 1Quote Ask us about this part
2 Flat Washer 1/4in, 17/64 ID, 1/2 OD, .032 THKManufacturer no. 0099560A-00 4Quote Ask us about this part
3 Nut M18x1Manufacturer no. 0091031A-00 2Quote Ask us about this part
4 Motion Composites axle bushing M18x1, 0 or 3 degree, parts 0021041B-00 and 0021042B-00 1$56.73 Request a quote
5 3 Deg Bushing M18x1Manufacturer no. 0021042B-00 1Quote Ask us about this part
6 Lock Washer M18Manufacturer no. 0099597A-00 1Quote Ask us about this part
7 T2 Mounting Plate Threaded RailManufacturer no. 0021029A-00 2Quote Ask us about this part
8 Button Cap Screw M6x1x43mm L, 24mm ThreadManufacturer no. 0091040A-00 4Quote Ask us about this part

Rear Wheel - Axle Bushing + Hardware

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002444 and 9002445.

Parts in Rear Wheel - Axle Bushing + Hardware
No.PartQtyPriceAction
1 Motion Composites axle bushing M18x1, 0 or 3 degree, parts 0021041B-00 and 0021042B-00 1$56.73 Request a quote
2 3 Deg Bushing M18x1Manufacturer no. 0021042B-00 1Quote Ask us about this part
3 Nut M18x1Manufacturer no. 0091031A-00 2Quote Ask us about this part
4 Lock Washer M18Manufacturer no. 0099597A-00 1Quote Ask us about this part

OAD - T2, Newton One 24in

18 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in OAD - T2, Newton One 24in
No.PartQtyPriceAction
1 Motion Composites OAD one-arm drive, T2, Newton One 24 in anodized handrim, parts 9010435A-01 to -08 1$1,849.09 Request a quote
2 OAD - T2, Newton One 24in, Anodized HR, 13in WDManufacturer no. 9010435A-01 1Quote Ask us about this part
3 OAD - T2, Newton One 24in, Anodized HR, 14in WDManufacturer no. 9010435A-02 1Quote Ask us about this part
4 OAD - T2, Newton One 24in, Anodized HR, 15in WDManufacturer no. 9010435A-03 1Quote Ask us about this part
5 OAD - T2, Newton One 24in, Anodized HR, 16in WDManufacturer no. 9010435A-04 1Quote Ask us about this part
6 OAD - T2, Newton One 24in, Anodized HR, 17in WDManufacturer no. 9010435A-05 1Quote Ask us about this part
7 OAD - T2, Newton One 24in, Anodized HR, 18in WDManufacturer no. 9010435A-06 1Quote Ask us about this part
8 Motion Composites OAD one-arm drive, T2, Newton One 24 in anodized handrim, parts 9010435A-01 to -08 1$1,849.09 Request a quote
9 OAD - T2, Newton One 24in, Anodized HR, 20in WDManufacturer no. 9010435A-08 1Quote Ask us about this part
10 Motion Composites OAD one-arm drive, T2, Newton One 24 in plastified handrim, parts 9010483A-01 to -08 1$1,861.09 Request a quote
11 Motion Composites OAD one-arm drive, T2, Newton One 24 in plastified handrim, parts 9010483A-01 to -08 1$1,861.09 Request a quote
12 OAD - T2, Newton One 24in, Plastified HR, 14in WDManufacturer no. 9010483A-02 1Quote Ask us about this part
13 OAD - T2, Newton One 24in, Plastified HR, 15in WDManufacturer no. 9010483A-03 1Quote Ask us about this part
14 OAD - T2, Newton One 24in, Plastified HR, 16in WDManufacturer no. 9010483A-04 1Quote Ask us about this part
15 OAD - T2, Newton One 24in, Plastified HR, 17in WDManufacturer no. 9010483A-05 1Quote Ask us about this part
16 OAD - T2, Newton One 24in, Plastified HR, 18in WDManufacturer no. 9010483A-06 1Quote Ask us about this part
17 OAD - T2, Newton One 24in, Plastified HR, 19in WDManufacturer no. 9010483A-07 1Quote Ask us about this part
18 OAD - T2, Newton One 24in, Plastified HR, 20in WDManufacturer no. 9010483A-08 1Quote Ask us about this part

OAD - T2, Newton One 24in, Anodized HR

16 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010435A.

Parts in OAD - T2, Newton One 24in, Anodized HR
No.PartQtyPriceAction
1 Motion Composites One Arm Drive Newton One Wheel, 24 in Assembly 0021560A-000021560A-00 1$187.64 Add to cart
2 Motion Composites One Arm Drive Driven Side T2 Mounting 0021533A-000021533A-00 1$141.82 Add to cart
3 Motion Composites One Arm Drive Extensible Transmission Shaft, 12-20 in 1$686.18 Request a quote
4 OAD Extensible Transmission Shaft 13inManufacturer no. 0001249A-01 1Quote Ask us about this part
5 OAD Extensible Transmission Shaft 14inManufacturer no. 0001249A-02 1Quote Ask us about this part
6 OAD Extensible Transmission Shaft 15inManufacturer no. 0001249A-03 1Quote Ask us about this part
7 OAD Extensible Transmission Shaft 16inManufacturer no. 0001249A-04 1Quote Ask us about this part
8 OAD Extensible Transmission Shaft 17inManufacturer no. 0001249A-05 1Quote Ask us about this part
9 OAD Extensible Transmission Shaft 18inManufacturer no. 0001249A-06 1Quote Ask us about this part
10 OAD Extensible Transmission Shaft 19inManufacturer no. 0001249A-07 1Quote Ask us about this part
11 OAD Extensible Transmission Shaft 20inManufacturer no. 0001249A-08 1Quote Ask us about this part
12 Motion Composites One Arm Drive Driving Side T2 Mounting 0001251A-000001251A-00 1$152.73 Add to cart
13 Motion Composites One Arm Drive Handrim Core, 24 in Wheel 0021557A-000021557A-00 1$436.36 Add to cart
14 Button Cap Screw M5x0.8x25mm LManufacturer no. 0090650A-00 4Quote Ask us about this part
15 Motion Composites anodized aluminium handrim for mag wheel, 20 in, 22 in or 24 in, parts 0021236A-00, 0021205A-00 and 0021206A-00 1$108.00 Request a quote
16 Motion Composites Newton One 24 inch wheelchair rear wheel, part 0021111B-000021111B-00 1$170.18 Add to cart

OAD - T2, Newton One 24in, Plastified HR

16 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010483A.

Parts in OAD - T2, Newton One 24in, Plastified HR
No.PartQtyPriceAction
1 Motion Composites One Arm Drive Newton One Wheel, 24 in Assembly 0021560A-000021560A-00 1$187.64 Add to cart
2 Motion Composites One Arm Drive Driven Side T2 Mounting 0021533A-000021533A-00 1$141.82 Add to cart
3 Motion Composites One Arm Drive Extensible Transmission Shaft, 12-20 in 1$686.18 Request a quote
4 OAD Extensible Transmission Shaft 13inManufacturer no. 0001249A-01 1Quote Ask us about this part
5 OAD Extensible Transmission Shaft 14inManufacturer no. 0001249A-02 1Quote Ask us about this part
6 OAD Extensible Transmission Shaft 15inManufacturer no. 0001249A-03 1Quote Ask us about this part
7 OAD Extensible Transmission Shaft 16inManufacturer no. 0001249A-04 1Quote Ask us about this part
8 OAD Extensible Transmission Shaft 17inManufacturer no. 0001249A-05 1Quote Ask us about this part
9 OAD Extensible Transmission Shaft 18inManufacturer no. 0001249A-06 1Quote Ask us about this part
10 OAD Extensible Transmission Shaft 19inManufacturer no. 0001249A-07 1Quote Ask us about this part
11 OAD Extensible Transmission Shaft 20inManufacturer no. 0001249A-08 1Quote Ask us about this part
12 Motion Composites One Arm Drive Driving Side T2 Mounting 0001251A-000001251A-00 1$152.73 Add to cart
13 Button Cap Screw M5x0.8x25mm LManufacturer no. 0090650A-00 4Quote Ask us about this part
14 Motion Composites One Arm Drive Handrim Core, 24 in Wheel 0021557A-000021557A-00 1$436.36 Add to cart
15 Motion Composites plastic-coated handrims for mag wheels (0021207A-00 and others) 1$108.00 Request a quote
16 Motion Composites Newton One 24 inch wheelchair rear wheel, part 0021111B-000021111B-00 1$170.18 Add to cart

Wheel Lock - Push & Pull

10 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. The manufacturer marks this assembly as no longer supplied, replaced by 0041076 and 0041516.

Parts in Wheel Lock - Push & Pull
No.PartQtyPriceAction
1 Nevwton Push Spring Vwheel Lock, Left - AssyManufacturer no. 00410564-00 1Quote Ask us about this part
2 Newton Push Spring Wheel Lock, Right - AssyManufacturer no. 0041057A-00 1Quote Ask us about this part
3 Newton Pil Wheellock & Ext, Left - AssyManufacturer no. 004105]A-00 1Quote Ask us about this part
4 Newton PTL Wheel Lock & Ext, Right- AssyManufacturer no. 00410524-00 1Quote Ask us about this part
5 Alu Pull Wwheel Lock, RightManufacturer no. 00410/70A-00 1Quote Ask us about this part
6 Alu Pull Wheel Lock, LeftManufacturer no. 0041079A-00 1Quote Ask us about this part
9 Motion Composites aluminium pull-to-lock wheel lock with extension, right, 0041080A-000041080A-00 1Price on request Request a quote
10 Alu Pull Wheel Lock + Handle, LeftManufacturer no. 0041061)A-OO 1Quote Ask us about this part
11 Wheel Lock PushManufacturer no. 0041002A-00 1Quote Ask us about this part
12 Alu Push Wheellock + Extension (Pair)Manufacturer no. 00410]3A-O00 1Quote Ask us about this part

Wheel Lock - Newton Spring Loaded Push To Lock

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002216 and 9002217.

Parts in Wheel Lock - Newton Spring Loaded Push To Lock
No.PartQtyPriceAction
1 Newton Push Spring Wheel Lock, Right - AssyManufacturer no. 0041057A-00 1Quote Ask us about this part
2 Motion Composites Newton Push Wheel Lock, Left and Right 1Price on request Request a quote

Wheel Lock - Pull To Lock

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001128 and 9001129.

Parts in Wheel Lock - Pull To Lock
No.PartQtyPriceAction
1 Motion Composites aluminium pull wheel lock, right, 0041078A-000041078A-00 1Price on request Request a quote
2 Pull To Lock Wheellock, LeftManufacturer no. 410/79 1Quote Ask us about this part

Wheel Lock - Push & Pull With Extended Rail

9 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock - Push & Pull With Extended Rail
No.PartQtyPriceAction
1 Motion Composites Newton Push to Lock Wheel Lock, Right and Left 0041516B-00 / 0041517B-00 1$85.09 Request a quote
2 V2 Newton PTL Wheel Lock, LeftManufacturer no. 0041517B-00 1Quote Ask us about this part
3 V2 Newton PTL Wheel Lock & Ext. Handle, RightManufacturer no. 0041076C-00 1Quote Ask us about this part
4 V2 Newton PTL Wheel Lock & Ext. Handle, LeftManufacturer no. 0041077C-00 1Quote Ask us about this part
5 Motion Composites aluminium pull wheel lock, right or left, parts 0041714B-00, 0041715B-00 and 0041079A-00 1Price on request Request a quote
6 Alu Pull Wheel Lock, LeftManufacturer no. 0041715B-00 1Quote Ask us about this part
7 Motion Composites aluminium pull wheel lock with extension handle, right, part 0041712B-000041712B-00 1$108.00 Add to cart
8 Alu Pull Wheel Lock, LeftManufacturer no. 0041715B-00 1Quote Ask us about this part
9 Motion Composites aluminium push wheel lock with extension handle, right, part 0041503B-000041503B-00 1$104.73 Add to cart

V2 Newton PTL Wheel Lock & Ext. Handle

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 0041076C and 0041077C.

Parts in V2 Newton PTL Wheel Lock & Ext. Handle
No.PartQtyPriceAction
1 Motion Composites Newton Push to Lock Wheel Lock, Right and Left 0041516B-00 / 0041517B-00 1$85.09 Request a quote
2 V2 Newton PTL Wheel Lock, LeftManufacturer no. 0041517B-00 1Quote Ask us about this part
3 Newton Removable Extension Handle BlackManufacturer no. 0041500B-00 1Quote Ask us about this part

Wheel Lock - Scissor

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock - Scissor
No.PartQtyPriceAction
1 Out-Front Scissor Wheellock, RightManufacturer no. 004}O39A-00 1Quote Ask us about this part
2 Out-Front Scissor Wheel Lock, LeftManufacturer no. 00410304-00 1Quote Ask us about this part
3 MBL Scissor Wheel Lock, RightManufacturer no. 0041123B-00 1Quote Ask us about this part
4 Motion Composites MBL scissor wheel lock, left and right, 0041122B-00 1$193.09 Request a quote

Wheel Lock - Newton Grade Aid, Push To Lock, 6 in Removable Extension Handle

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001583 and 9001584.

Parts in Wheel Lock - Newton Grade Aid, Push To Lock, 6 in Removable Extension Handle
No.PartQtyPriceAction
1 Grade Aid Wheel Lock, Right - AssyManufacturer no. 0041035A-00 1Quote Ask us about this part
2 Grade Aid Wheel Lock, Left - AssyManufacturer no. 0041036A-00 1Quote Ask us about this part
3 Motion Composites removable extension handle (0041005A-00)0041005A-00 1$45.82 Add to cart

Wheel Lock - Grade Aid With Extended Rail

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock - Grade Aid With Extended Rail
No.PartQtyPriceAction
1 Motion Composites NEWTON Grade Aid Long Rail, Right or Left 1$198.55 Request a quote
2 Grade Aid - Newton, Long Rail, LeftManufacturer no. 9003030A-00 1Quote Ask us about this part
3 Motion Composites NEWTON Grade Aid Long Rail with 6 Inch Handle, Right or Left 1$244.36 Request a quote
4 Grade Aid - Newton, LR, 6in Handle, LeftManufacturer no. 9003032A-00 1Quote Ask us about this part

Grade Aid - Newton, Long Rail

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003029A and 9002030A.

Parts in Grade Aid - Newton, Long Rail
No.PartQtyPriceAction
1 Motion Composites Newton Grade Aid and LR Assembly, Left or Right 1$198.55 Request a quote
2 Newton Grade Aid & LR, Left - AssyManufacturer no. 0041515A-00 1Quote Ask us about this part
3 Cap 3/4inManufacturer no. 007701A-00 1Quote Ask us about this part
4 Motion Composites Newton Extended Anti-Rollback Rail, 0041075A-000041075A-00 1Price on request Request a quote

Grade Aid - Newton, LR, 6in Handle

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003031A and 9003032A.

Parts in Grade Aid - Newton, LR, 6in Handle
No.PartQtyPriceAction
1 Motion Composites Newton Grade Aid and LR Assembly, Left or Right 1$198.55 Request a quote
2 Newton Grade Aid & LR, Left - AssyManufacturer no. 0041515A-00 1Quote Ask us about this part
3 Motion Composites removable extension handle (0041005A-00)0041005A-00 1$45.82 Add to cart
4 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 1$5.45 Add to cart
5 Motion Composites Newton Extended Anti-Rollback Rail, 0041075A-000041075A-00 1Price on request Request a quote

Unilateral Pull-To-Lock Wheel Lock

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Unilateral Pull-To-Lock Wheel Lock
No.PartQtyPriceAction
1 Unilateral Pull-Tl Wheel Lock 10-15in Left Activ.Manufacturer no. 0004570A-02 1Quote Ask us about this part
2 Motion Composites Unilateral Pull-to-Lock Wheel Lock, Left 16-22 in or 10-15 in, Right 10-15 in 1$386.18 Request a quote
3 Unilateral Pull-Tl Wheel Lock 10-15in Right Activ.Manufacturer no. 0004570A-03 1Quote Ask us about this part
4 Unilateral Pull-Tl Wheel Lock 16-22in Right Activ.Manufacturer no. 0004570A-01 1Quote Ask us about this part

Wheel Lock - Clamps

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Wheel Lock - Clamps
No.PartQtyPriceAction
1 Motion Composites Wheel Lock Clamp Assembly, Aluminium 0041501A-000041501A-00 1$39.27 Add to cart
2 Motion Composites Ultralight Wheel Lock Clamp 9001212A-009001212A-00 1$56.73 Add to cart

Unilateral Wheel Lock Adaptor Kit

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Unilateral Wheel Lock Adaptor Kit
No.PartQtyPriceAction
1 Kit - Unilateral Wheel Lock Adaptor, 2inManufacturer no. 7O026850A-00 1Quote Ask us about this part
2 Motion Composites unilateral wheel lock adaptor kit, 4 in, 9001002A-009001002A-00 1$130.91 Add to cart

Kit - Unilateral Wheel Lock Adaptor

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001002A and 9002850A.

Parts in Kit - Unilateral Wheel Lock Adaptor
No.PartQtyPriceAction
1 Motion Composites frame clamp assembly, 0.75-0.75 in or 0.75-1 in, parts 0041502A-00 and 0041703B-00 2$74.18 Request a quote
2 Tube Spacer 2in LGTHManufacturer no. 004]00°4-00 2Quote Ask us about this part
3 Tube Spacer 4in LGTHManufacturer no. 0041028A-00 2Quote Ask us about this part
4 Motion Composites 3/4 in Tube Cap 0099701A-000099701A-00 4$5.45 Add to cart

Footrest Stopper

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Footrest Stopper
No.PartQtyPriceAction
1 Motion Composites Footrest Stopper Clamp 9003048A-009003048A-00 2$22.91 Add to cart

Wheel Lock - Footrest Stopper

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003048.

Parts in Wheel Lock - Footrest Stopper
No.PartQtyPriceAction
1 Motion Composites 1¼ in frame saver, part 0060201A-000060201A-00 1$10.91 Add to cart
2 Motion Composites Wheel Lock Stopper 0041120A-000041120A-00 1$22.91 Add to cart
3 Socket Cap Screw M6x1x45mm L, 24mm ThreadManufacturer no. 0090777A-00 1Quote Ask us about this part

U & T Armrests

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in U & T Armrests
No.PartQtyPriceAction
1 U and T Type Wheelchair Armrest, Right, 8-12 in, Desk Length 9001299B-00 1$255.27 Request a quote
2 Armrest - U & T Type, Left, 8-12in, Desk LengthManufacturer no. 9001303B-00 1Quote Ask us about this part
3 Armrest - U & T Type, Right, 10-14in, Desk LengthManufacturer no. 9001301B-00 1Quote Ask us about this part
4 Armrest - U & T Type, Left, 10-14in, Desk LengthManufacturer no. 9001305B-00 1Quote Ask us about this part
5 Armrest - U & T Type, Right, 8-12in, Full LengthManufacturer no. 9001300B-00 1Quote Ask us about this part
6 Armrest - U & T Type, Left, 8-12in, Full LengthManufacturer no. 9001304B-00 1Quote Ask us about this part
7 Armrest - U & T Type, Right, 10-14in, Full LengthManufacturer no. 9001302B-00 1Quote Ask us about this part
8 Armrest - U & T Type, Left, 10-14in, Full LengthManufacturer no. 9001306B-00 1Quote Ask us about this part

Armrest - U & T Type, Right, 8-12in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001299B.

Parts in Armrest - U & T Type, Right, 8-12in
No.PartQtyPriceAction
1 Motion Composites V2 flip back armrest, part 0033554B-000033554B-00 1$193.09 Add to cart
2 Motion Composites Armrest Pad Standard 8-12 in Desk Length Right 9010394B-00 1$67.64 Request a quote
3 Armrest Pad - STD, 8-12in, Full Length, RightManufacturer no. 9010396B-00 1Quote Ask us about this part

Armrest - U & T Type, Right, 10-14in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001301B and 9001302B.

Parts in Armrest - U & T Type, Right, 10-14in
No.PartQtyPriceAction
1 Motion Composites V2 flip back armrest, part 0033554B-000033554B-00 1$193.09 Add to cart
2 Armrest Pad - STD, 10-14in, Desk Length, RightManufacturer no. 9010395B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 10-14in, Full Length, RightManufacturer no. 9010397B-00 1Quote Ask us about this part

Armrest - U & T Type, Left, 8-12in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001303 and 9001304.

Parts in Armrest - U & T Type, Left, 8-12in
No.PartQtyPriceAction
1 Motion Composites V2 flip back armrest, part 0033554B-000033554B-00 1$193.09 Add to cart
2 Armrest Pad - STD, 8-12in, Desk Length, LeftManufacturer no. 9010398B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 8-12in, Full Length, LeftManufacturer no. 9010400B-00 1Quote Ask us about this part

Armrest - U & T Type, Left, 10-14in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001305 and 9001306.

Parts in Armrest - U & T Type, Left, 10-14in
No.PartQtyPriceAction
1 Motion Composites V2 flip back armrest, part 0033554B-000033554B-00 1$193.09 Add to cart
2 Armrest Pad - STD, 10-14in, Desk Length, LeftManufacturer no. 9010399B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 10-14in, Full Length, LeftManufacturer no. 9010401B-00 1Quote Ask us about this part

Armrest Pad - STD, Right

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010394, 9010395, 9010396 and 9010377.

Parts in Armrest Pad - STD, Right
No.PartQtyPriceAction
1 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 V3 Armrest Struct Desk Length 8-12inManufacturer no. 0033579B-00 1Quote Ask us about this part
4 V3 Armrest Struct Desk Length 10-14inManufacturer no. 0033580B-00 1Quote Ask us about this part
5 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
6 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
7 Button Cap Screw MiSx0.8x40mm LManufacturer no. 0099013A-00 2Quote Ask us about this part

Armrest Pad - STD, Left

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010376, 9010372, 9010400 and 9010401.

Parts in Armrest Pad - STD, Left
No.PartQtyPriceAction
1 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 V3 Armrest Struct Desk Length 8-12inManufacturer no. 0033579B-00 1Quote Ask us about this part
4 V3 Armrest Struct Desk Length 10-14inManufacturer no. 0033580B-00 1Quote Ask us about this part
5 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
6 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
7 Button Cap Screw MiSx0.8x40mm LManufacturer no. 0099013A-00 2Quote Ask us about this part

T Armrests

12 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in T Armrests
No.PartQtyPriceAction
1 Armrest - T Type, Right, 8-12in, Desk LengthManufacturer no. 9003551B-00 1Quote Ask us about this part
2 Armrest - T Type, Left, 8-12in, Desk LengthManufacturer no. 9003555B-00 1Quote Ask us about this part
3 Armrest - T Type, Right, 8-12in, Full LengthManufacturer no. 9003552B-00 1Quote Ask us about this part
4 Armrest - T Type, Left, 8-12in, Full LengthManufacturer no. 9003556B-00 1Quote Ask us about this part
5 T-Type Wheelchair Armrest, Right, 10-14 in, Desk Length 9003553B-00 1$209.45 Request a quote
6 Armrest - T Type, Left, 10-14in, Desk LengthManufacturer no. 9003557B-00 1Quote Ask us about this part
7 Armrest - T Type, Right, 10-14in, Full LengthManufacturer no. 9003554B-00 1Quote Ask us about this part
8 Armrest - T Type, Left, 10-14in, Full LengthManufacturer no. 9003558B-00 1Quote Ask us about this part
9 Armrest - T Type, Right, 6-10in, Desk LengthManufacturer no. 9007954A-00 1Quote Ask us about this part
10 Armrest - T Type, Left, 6-10in, Desk LengthManufacturer no. 9007956A-00 1Quote Ask us about this part
11 Armrest - T Type, Right, 6-10in, Full LengthManufacturer no. 9007955A-00 1Quote Ask us about this part
12 Armrest - T Type, Left, 6-10in, Full LengthManufacturer no. 9007957A-00 1Quote Ask us about this part

Armrest - T Type, Right, 8-12 in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003551B and 9003552B.

Parts in Armrest - T Type, Right, 8-12 in
No.PartQtyPriceAction
1 Motion Composites V2T armrest, part 0033596B-000033596B-00 1$147.27 Add to cart
2 Motion Composites Armrest Pad Standard 8-12 in Desk Length Right 9010394B-00 1$67.64 Request a quote
3 Armrest Pad - STD, 8-12in, Full Length, RightManufacturer no. 9010396B-00 1Quote Ask us about this part

Armrest - T Type, Right, 10-14 in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9035538.

Parts in Armrest - T Type, Right, 10-14 in
No.PartQtyPriceAction
1 Motion Composites V2T armrest, part 0033596B-000033596B-00 1$147.27 Add to cart
2 Armrest Pad - STD, 10-14in, Desk Length, RightManufacturer no. 9010395B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 10-14in, Full Length, RightManufacturer no. 9010397B-00 1Quote Ask us about this part

Armrest - T Type, Left, 8-12 in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003555B and 9003556B.

Parts in Armrest - T Type, Left, 8-12 in
No.PartQtyPriceAction
1 Motion Composites V2T armrest, part 0033596B-000033596B-00 1$147.27 Add to cart
2 Armrest Pad - STD, 8-12in, Desk Length, LeftManufacturer no. 9010398B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 8-12in, Full Length, LeftManufacturer no. 9010400B-00 1Quote Ask us about this part

Armrest - T Type, Left, 10-14 in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9003557B and 9003553B.

Parts in Armrest - T Type, Left, 10-14 in
No.PartQtyPriceAction
1 Motion Composites V2T armrest, part 0033596B-000033596B-00 1$147.27 Add to cart
2 Armrest Pad - STD, 10-14in, Desk Length, LeftManufacturer no. 9010399B-00 1Quote Ask us about this part
3 Armrest Pad - STD, 10-14in, Full Length, LeftManufacturer no. 9010401B-00 1Quote Ask us about this part

Armrest - T Type, Right, 6-10in

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007954A and 9007955A.

Parts in Armrest - T Type, Right, 6-10in
No.PartQtyPriceAction
1 Motion Composites small T-armrest, 6-10 in (0003521B-00) 1$62.18 Request a quote
2 Motion Composites Armrest Pad Standard 8-12 in Desk Length Right 9010394B-00 1$67.64 Request a quote
3 Armrest Pad - STD, 8-12in, Full Length, RightManufacturer no. 9010396B-00 1Quote Ask us about this part

Armrest Pad - STD, Right (page 211)

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010394, 9010395, 9010396 and 9010377.

Parts in Armrest Pad - STD, Right (page 211)
No.PartQtyPriceAction
1 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 V3 Armrest Struct Desk Length 8-12inManufacturer no. 0033579B-00 1Quote Ask us about this part
4 V3 Armrest Struct Desk Length 10-14inManufacturer no. 0033580B-00 1Quote Ask us about this part
5 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
6 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
7 Button Cap Screw MiSx0.8x40mm LManufacturer no. 0099013A-00 2Quote Ask us about this part

Armrest Pad - STD, Left (page 212)

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9010376, 9010372, 9010400 and 9010401.

Parts in Armrest Pad - STD, Left (page 212)
No.PartQtyPriceAction
1 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 V3 Armrest Struct Desk Length 8-12inManufacturer no. 0033579B-00 1Quote Ask us about this part
4 V3 Armrest Struct Desk Length 10-14inManufacturer no. 0033580B-00 1Quote Ask us about this part
5 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
6 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
7 Button Cap Screw MiSx0.8x40mm LManufacturer no. 0099013A-00 2Quote Ask us about this part

Swing Away Armrests

8 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing Away Armrests
No.PartQtyPriceAction
1 Motion Composites Armrest Swing Away Right Desk Length 9001310A-00 1$85.09 Request a quote
2 Armrest - Swing Away, Left, Desk LengthManufacturer no. 9001311A-00 1Quote Ask us about this part
3 Armrest - Swing Away, Right, Full LengthManufacturer no. 9007947A-00 1Quote Ask us about this part
4 Armrest - Swing Away, Left, Full LengthManufacturer no. 9007948A-00 1Quote Ask us about this part
5 Motion Composites Armrest Swing Away Right Tubular Short 9001308A-00 1$85.09 Request a quote
6 Armrest - Swing Away, Left, Tubular, ShortManufacturer no. 9001309A-00 1Quote Ask us about this part
7 Armrest - Swing Away, Right, Tubular, LongManufacturer no. 9007958A-00 1Quote Ask us about this part
8 Armrest - Swing Away, Left, Tubular, LongManufacturer no. 9007959A-00 1Quote Ask us about this part

Armrest - Swing Away, Right, Desk Length

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9013104.

Parts in Armrest - Swing Away, Right, Desk Length
No.PartQtyPriceAction
1 Owing Away Split Nut - Assembly (Im)Manufacturer no. 0033392A-00 1Quote Ask us about this part
2 Swing Away Armrest Desk Length, RightManufacturer no. 0033035B-00 1Quote Ask us about this part
3 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
4 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 2Quote Ask us about this part
5 Motion Composites 1 in Tube Cap 0099702A-000099702A-00 1$5.45 Add to cart

Armrest - Swing Away, Left, Desk Length

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001311A-00.

Parts in Armrest - Swing Away, Left, Desk Length
No.PartQtyPriceAction
1 Swing Away Split Nut - AssyManufacturer no. 0033552A-00 1Quote Ask us about this part
2 Armrest Desk Length PadManufacturer no. 0033038B-00 1Quote Ask us about this part
3 Swing Away Armrest Desk Length, LeftManufacturer no. 0033036B-00 1Quote Ask us about this part
4 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 2Quote Ask us about this part
5 Motion Composites 1 in Tube Cap 0099702A-000099702A-00 1$5.45 Add to cart

Armrest - Swing Away, Right, Full Length

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007947A-00.

Parts in Armrest - Swing Away, Right, Full Length
No.PartQtyPriceAction
1 Motion Composites swing-away armrests (0005900A-00 and others) 1$67.64 Request a quote
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 Swing Away Split Nut - AssyManufacturer no. 0033552A-00 1Quote Ask us about this part
4 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 2Quote Ask us about this part
5 Motion Composites 1 in Tube Cap 0099702A-000099702A-00 1$5.45 Add to cart

Armrest - Swing Away, Left, Full Length

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007948A-00.

Parts in Armrest - Swing Away, Left, Full Length
No.PartQtyPriceAction
1 Swing Away Armrest Full Length, LeftManufacturer no. 0005900A-01 1Quote Ask us about this part
2 Motion Composites Armrest Full Length Pad 0033039B-00 1$28.36 Request a quote
3 Swing Away Split Nut - AssyManufacturer no. 0033552A-00 1Quote Ask us about this part
4 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 2Quote Ask us about this part
5 Motion Composites 1 in Tube Cap 0099702A-000099702A-00 1$5.45 Add to cart

Armrest - Swing Away, Right, Tubular, Short

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9013038A-00.

Parts in Armrest - Swing Away, Right, Tubular, Short
No.PartQtyPriceAction
1 Swing Away Armrest Desk Length, RightManufacturer no. 0033035B-00 1Quote Ask us about this part
2 Motion Composites armrest foam grip, short or long, parts 0033049A-00 and 0033049A-01 1$5.45 Request a quote
3 Swing Away Split Nut- Assembly (Mj)Manufacturer no. O033992A-00 1Quote Ask us about this part
4 Cap Jin (Alu)Manufacturer no. 007702A-00 1Quote Ask us about this part

Armrest - Swing Away, Left, Tubular, Short

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001309A-00.

Parts in Armrest - Swing Away, Left, Tubular, Short
No.PartQtyPriceAction
1 Swing Away Armrest Desk Length, LeftManufacturer no. 0033036B-00 1Quote Ask us about this part
2 Motion Composites armrest foam grip, short or long, parts 0033049A-00 and 0033049A-01 1$5.45 Request a quote
3 Swing Away Split Nut - AssyManufacturer no. 0033552A-00 1Quote Ask us about this part
4 Motion Composites 1 in Tube Cap 0099702A-000099702A-00 1$5.45 Add to cart

Armrest - Swing Away, Right, Tubular, Long

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007953A-00.

Parts in Armrest - Swing Away, Right, Tubular, Long
No.PartQtyPriceAction
1 Motion Composites swing-away armrests (0005900A-00 and others) 1$67.64 Request a quote
2 Swing Away Tubular Foam Grip LongManufacturer no. 0033049A-01 1Quote Ask us about this part
3 Swing Away Split Nut - AssyManufacturer no. 0033552A-00 1Quote Ask us about this part

Flip Up I Armrest - Assy

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9035503A and 0033504A.

Parts in Flip Up I Armrest - Assy
No.PartQtyPriceAction
1 Motion Composites armrest foam grip, short or long, parts 0033049A-00 and 0033049A-01 1$5.45 Request a quote
2 Button Cap Screw M8x1.25x70mm LManufacturer no. 0091022A-00 1Quote Ask us about this part
3 Flat Washer 5/16in, 21/64 ID, 19/32 OD, .062 THKManufacturer no. 0099590A-00 2Quote Ask us about this part
4 Button Cap Screw M6x1x30mm LManufacturer no. 0090664A-00 1Quote Ask us about this part
5 Flat Washer 1/4in, 17/64 ID, 1/2 OD, .032 THKManufacturer no. 0099560A-00 1Quote Ask us about this part
6 Thin Locknut M8x1.25Manufacturer no. 0090990A-00 1Quote Ask us about this part

Armrest Pad - Waterfall, Full Length, Right

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007814B and 9007815B.

Parts in Armrest Pad - Waterfall, Full Length, Right
No.PartQtyPriceAction
1 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
2 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
3 Waterfall Armrest Pad Full LengthManufacturer no. 0033169B-00 1Quote Ask us about this part
4 Button Cap Scre ¥V MS5x0.6x40mm LManufacturer no. 007901]3A-00 2Quote Ask us about this part

Armrest Pad - Waterfall, Full Length, Left

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007816B and 9007817B.

Parts in Armrest Pad - Waterfall, Full Length, Left
No.PartQtyPriceAction
1 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
2 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
3 Waterfall Armrest Pad Full LengthManufacturer no. 0033169B-00 1Quote Ask us about this part
4 Button Cap Scre ¥V MS5x0.6x40mm LManufacturer no. 0079013A-00 2Quote Ask us about this part

Armrest Pad - Gel, Full Length

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002932A-06.

Parts in Armrest Pad - Gel, Full Length
No.PartQtyPriceAction
1 Motion Composites Ovation Gel Armrest Pad 2 x 14 in, Full Length 0033077A-000033077A-00 1$198.55 Add to cart
2 Plastic Coved Washer ¼x1inManufacturer no. 0033068A-00 4Quote Ask us about this part
3 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 4Quote Ask us about this part

Armrest Pad - Gel, Full Length, Right

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002733 and 9002934.

Parts in Armrest Pad - Gel, Full Length, Right
No.PartQtyPriceAction
1 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
2 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
3 Motion Composites Ovation Gel Armrest Pad 2 x 14 in, Full Length 0033077A-000033077A-00 1$198.55 Add to cart
4 Plastic Coved Washer ¼x1inManufacturer no. 0033068A-00 4Quote Ask us about this part
5 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 4Quote Ask us about this part

Armrest Pad - Gel, Full Length, Left

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002935B and 9029368.

Parts in Armrest Pad - Gel, Full Length, Left
No.PartQtyPriceAction
1 Motion Composites Armrest Structure, Full Length or Desk Length 0033559B-00 / 0033560B-00 / 0033579B-00 / 0033580B-00 1$39.27 Request a quote
2 V3 Armrest Struct Full Length 10-14inManufacturer no. 0033560B-00 1Quote Ask us about this part
3 Motion Composites Ovation Gel Armrest Pad 2 x 14 in, Full Length 0033077A-000033077A-00 1$198.55 Add to cart
4 Plastic Coved Washer ¼x1inManufacturer no. 0033068A-00 4Quote Ask us about this part
5 Phillips Pan Head Screw #10-32x1.5in LManufacturer no. 0099013A-00 4Quote Ask us about this part

Rear Pivot - U & T Type, Right

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001313A-00.

Parts in Rear Pivot - U & T Type, Right
No.PartQtyPriceAction
1 V2 Rear Pivot - AssemblyManufacturer no. 0033558A-00 1Quote Ask us about this part
2 Motion Composites V2 armrest double hook trigger (0033561A-00)0033561A-00 1$22.91 Add to cart

Correction Kit - Rear Pivot, Flip Back, Type 2, Right

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002851.

Parts in Correction Kit - Rear Pivot, Flip Back, Type 2, Right
No.PartQtyPriceAction
1 Correction Kit - V2 Armrest Type 2 Rear Pivot - AssyManufacturer no. 0033595 1Quote Ask us about this part
2 Motion Composites V2 armrest double hook trigger (0033561A-00)0033561A-00 1$22.91 Add to cart

Correction Kit - Rear Pivot, Flip Back, Type 2, Left

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002852.

Parts in Correction Kit - Rear Pivot, Flip Back, Type 2, Left
No.PartQtyPriceAction
1 Correction Kit - V2 Armrest Type 2 Rear Pivot - AssyManufacturer no. 0033595 1Quote Ask us about this part
2 Motion Composites V2 armrest double hook trigger (0033561A-00)0033561A-00 1$22.91 Add to cart

Sideguards

16 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Sideguards
No.PartQtyPriceAction
1 Motion Composites Plastic Side Guard, Right Small, Right Medium or Left Small 1$96.00 Request a quote
2 Side Guard - Plastic, Left, SmallManufacturer no. 9001297A-00 1Quote Ask us about this part
3 Side Guard - Plastic, Right, MediumManufacturer no. 9001296A-00 1Quote Ask us about this part
4 Side Guard - Carbon, Fixed, Left, LargeManufacturer no. 9001294A-00 1Quote Ask us about this part
5 Motion Composites Carbon Side Guard, Right, Small 9002489A-00 1$209.45 Request a quote
6 Side Guard - Carbon, Left, SmallManufacturer no. 9002492A-00 1Quote Ask us about this part
7 Side Guard - Carbon, Right, MediumManufacturer no. 9002490A-00 1Quote Ask us about this part
8 Side Guard - Carbon, Left, MediumManufacturer no. 9002493A-00 1Quote Ask us about this part
9 Side Guard - Carbon, Right, LargeManufacturer no. 9002491A-00 1Quote Ask us about this part
10 Side Guard - Carbon, Left, LargeManufacturer no. 9002494A-00 1Quote Ask us about this part
11 Motion Composites Carbon Fixed Side Guard, Right, Small 9001289A-00 1$152.73 Request a quote
12 Side Guard - Carbon, Fixed, Left, SmallManufacturer no. 9001292A-00 1Quote Ask us about this part
13 Side Guard - Carbon, Fixed, Right, MediumManufacturer no. 9001290A-00 1Quote Ask us about this part
14 Side Guard - Carbon, Fixed, Left, MediumManufacturer no. 9001293A-00 1Quote Ask us about this part
15 Side Guard - Carbon, Fixed, Right, LargeManufacturer no. 9001291A-00 1Quote Ask us about this part
16 Side Guard - Carbon, Fixed, Left, LargeManufacturer no. 9001294A-00 1Quote Ask us about this part

Side Guard - Plastic, Removable, Right

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001295 and 9001296.

Parts in Side Guard - Plastic, Removable, Right
No.PartQtyPriceAction
1 Motion Composites plastic side guards, small and medium (0051002A-00) 1$51.27 Request a quote
2 Plastic Side Guard Medium - AssyManufacturer no. 0051003A-00 1Quote Ask us about this part
3 Motion Composites mudguard and sideguard adjusting plate, 00914160091416 1Price on request Request a quote
4 Button Cap Screw M4x0.7x8mm LManufacturer no. 0090631A-00 4Quote Ask us about this part

Side Guard - Plastic, Removable, Left

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001297 and 9001298.

Parts in Side Guard - Plastic, Removable, Left
No.PartQtyPriceAction
1 Motion Composites plastic side guards, small and medium (0051002A-00) 1$51.27 Request a quote
2 Plastic Side Guard Medium - AssyManufacturer no. 0051003A-00 1Quote Ask us about this part
3 Motion Composites mudguard and sideguard adjusting plate, 00914160091416 1Price on request Request a quote
4 Button Cap Screw M4x0.7x8mm LManufacturer no. 0090631A-00 4Quote Ask us about this part

Side Guard - Carbon Fiber, Removable, Right

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002489 and 9002491.

Parts in Side Guard - Carbon Fiber, Removable, Right
No.PartQtyPriceAction
1 Small Ajustable Carbon Fiber Sideguard, H-} 65mm L-372mm - AssemblyManufacturer no. 31213 1Quote Ask us about this part
2 Motion Composites adjustable carbon side guard, medium or large, parts 0051214B-00 and 0051215B-00 1$181.09 Request a quote
3 Large Ajustable Carbon Fiber Sideguard, H-24] Mm L-372mm - AssemblyManufacturer no. 912135 1Quote Ask us about this part
4 Mudguard & Sideguard Adjusting PlateManufacturer no. S116 1Quote Ask us about this part
5 Button Cap Screw M4x0.7x8mm LManufacturer no. 0090631A-00 4Quote Ask us about this part

Side Guard - Carbon Fiber, Removable, Left

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9002492 and 9002494.

Parts in Side Guard - Carbon Fiber, Removable, Left
No.PartQtyPriceAction
1 Small Ajustable Carbon Fiber Sideguard, H-} 65mm L-372mm - AssemblyManufacturer no. 31213 1Quote Ask us about this part
2 Motion Composites adjustable carbon side guard, medium or large, parts 0051214B-00 and 0051215B-00 1$181.09 Request a quote
3 Adj Carbon Side Guard Large - AssyManufacturer no. 0051215B-00 1Quote Ask us about this part
4 Mudguard & Sideguard Adjusting PlateManufacturer no. S118 1Quote Ask us about this part
5 Button Cap Screw M4x0.7x8mm LManufacturer no. 0090631A-00 4Quote Ask us about this part

Side Guard - Carbon Fiber, Fixed, Right

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001289 and 9001291.

Parts in Side Guard - Carbon Fiber, Fixed, Right
No.PartQtyPriceAction
1 Small Fixed Carbon Fiber Sideguard, H-165mm L-372mm - AssemblyManufacturer no. a11t2 1Quote Ask us about this part
2 Motion Composites Fixed Carbon Side Guard, Medium or Large 1$141.82 Request a quote
3 Fixed Carbon Side Guard Large - AssyManufacturer no. 0051114B-00 1Quote Ask us about this part
4 Motion Composites 1¼ in frame saver, part 0060201A-000060201A-00 2$10.91 Add to cart
5 Motion Composites 1 in frame saver pair, part 0060202A-000060202A-00 1$17.45 Add to cart
6 Button Cap Screw M6x1x35mm L, 24mm ThreadManufacturer no. 0090665A-00 3Quote Ask us about this part

Side Guard - Carbon Fiber, Fixed, Left

6 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001292 and 9001294.

Parts in Side Guard - Carbon Fiber, Fixed, Left
No.PartQtyPriceAction
1 Small Fixed Carbon Fiber Sideguard, H-} 65mm L-372mm - AssemblyManufacturer no. 91112 1Quote Ask us about this part
2 Motion Composites Fixed Carbon Side Guard, Medium or Large 1$141.82 Request a quote
3 Fixed Carbon Side Guard Large - AssyManufacturer no. 0051114B-00 1Quote Ask us about this part
4 Motion Composites 1¼ in frame saver, part 0060201A-000060201A-00 2$10.91 Add to cart
5 Motion Composites 1 in frame saver pair, part 0060202A-000060202A-00 1$17.45 Add to cart
6 Button Cap Screw M6x1x35mm L, 24mm ThreadManufacturer no. 0090665A-00 3Quote Ask us about this part

Fender Sideguards

22 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Fender Sideguards
No.PartQtyPriceAction
1 Motion Composites Plastic Fender Sideguard, Right or Left, Four Sizes 1$124.36 Request a quote
2 Fender Sideguard - Plastic, Left, X-SmallManufacturer no. 9007634A-00 1Quote Ask us about this part
3 Fender Sideguard - Plastic, Right, SmallManufacturer no. 9007631A-00 1Quote Ask us about this part
4 Fender Sideguard - Plastic, Left, SmallManufacturer no. 9007635A-00 1Quote Ask us about this part
5 Fender Sideguard - Plastic, Right, MediumManufacturer no. 9007632A-00 1Quote Ask us about this part
6 Fender Sideguard - Plastic, Left, MediumManufacturer no. 9007636A-00 1Quote Ask us about this part
7 Fender Sideguard - Plastic, Right, LargeManufacturer no. 9007633A-00 1Quote Ask us about this part
8 Fender Sideguard - Plastic, Left, LargeManufacturer no. 9007637A-00 1Quote Ask us about this part
9 Motion Composites Plastic Offset Fender Sideguard, Right or Left, Four Sizes 1$170.18 Request a quote
10 Fender Sideguard - Plastic, Offset, Left, X-SmallManufacturer no. 9007642A-00 1Quote Ask us about this part
11 Fender Sideguard - Plastic, Offset, Right, SmallManufacturer no. 9007639A-00 1Quote Ask us about this part
12 Fender Sideguard - Plastic, Offset, Left, SmallManufacturer no. 9007643A-00 1Quote Ask us about this part
13 Fender Sideguard - Plastic, Offset, Right, MediumManufacturer no. 9007640A-00 1Quote Ask us about this part
14 Fender Sideguard - Plastic, Offset, Left, MediumManufacturer no. 9007644A-00 1Quote Ask us about this part
15 Fender Sideguard - Plastic, Offset, Right, LargeManufacturer no. 9007641A-00 1Quote Ask us about this part
16 Fender Sideguard - Plastic, Offset, Left, LargeManufacturer no. 9007645A-00 1Quote Ask us about this part
17 Motion Composites Carbon Fender Sideguard, Right or Left, Three Sizes 1$272.73 Request a quote
18 Fender Sideguard - Carbon, Left, SmallManufacturer no. 9001322A-00 1Quote Ask us about this part
19 Fender Sideguard - Carbon, Right, MediumManufacturer no. 9001320A-00 1Quote Ask us about this part
20 Fender Sideguard - Carbon, Left, MediumManufacturer no. 9001323A-00 1Quote Ask us about this part
21 Fender Sideguard - Carbon, Right, LargeManufacturer no. 9001321A-00 1Quote Ask us about this part
22 Fender Sideguard - Carbon, Left, LargeManufacturer no. 9001324A-00 1Quote Ask us about this part

Fender Sideguard - Plastic, Right

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007630A and 9007633A.

Parts in Fender Sideguard - Plastic, Right
No.PartQtyPriceAction
1 Motion Composites Fendered Plastic Side Guard, Right or Left, Four Sizes 1$62.18 Request a quote
2 Fendered Plastic Side Guard Small, RightManufacturer no. 0051386A-00 1Quote Ask us about this part
3 Fendered Plastic Side Guard Medium, RightManufacturer no. 0051387A-00 1Quote Ask us about this part
4 Fendered Plastic Side Guard Large, RightManufacturer no. 0051388A-00 1Quote Ask us about this part
5 Motion Composites sideguard adjusting plate (0051393B-00)0051393B-00 1$28.36 Add to cart
6 Motion Composites sideguard inner plate (0051395A-00)0051395A-00 1$22.91 Add to cart
7 Socket Cap Screw M4x0.7x8mm LManufacturer no. 0090723A-00 4Quote Ask us about this part

Fender Sideguard - Plastic, Offset, Right

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007638A and 9007641A.

Parts in Fender Sideguard - Plastic, Offset, Right
No.PartQtyPriceAction
1 Motion Composites Fendered Plastic Side Guard, Right or Left, Four Sizes 1$62.18 Request a quote
2 Fendered Plastic Side Guard Small, RightManufacturer no. 0051386A-00 1Quote Ask us about this part
3 Fendered Plastic Side Guard Medium, RightManufacturer no. 0051387A-00 1Quote Ask us about this part
4 Fendered Plastic Side Guard Large, RightManufacturer no. 0051388A-00 1Quote Ask us about this part
5 Motion Composites sideguard offset adjusting plate (0051394B-00)0051394B-00 1$51.27 Add to cart
6 Motion Composites sideguard inner plate (0051395A-00)0051395A-00 1$22.91 Add to cart
7 Socket Cap Screw M4x0.7x8mm LManufacturer no. 0090723A-00 4Quote Ask us about this part

Fender Sideguard - Plastic, Offset, Left

7 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007642A and 9007645A.

Parts in Fender Sideguard - Plastic, Offset, Left
No.PartQtyPriceAction
1 Fendered Plastic Side Guard X-Small, LeftManufacturer no. 0051389A-00 1Quote Ask us about this part
2 Fendered Plastic Side Guard Small, LeftManufacturer no. 0051390A-00 1Quote Ask us about this part
3 Fendered Plastic Side Guard Medium, LeftManufacturer no. 0051391A-00 1Quote Ask us about this part
4 Fendered Plastic Side Guard Large, LeftManufacturer no. 0051392A-00 1Quote Ask us about this part
5 Motion Composites sideguard offset adjusting plate (0051394B-00)0051394B-00 1$51.27 Add to cart
6 Motion Composites sideguard inner plate (0051395A-00)0051395A-00 1$22.91 Add to cart
7 Socket Cap Screw M4x0.7x8mm LManufacturer no. 0090723A-00 4Quote Ask us about this part

Fender Sideguard - Carbon Fiber, Right

5 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001319A and 9001321A.

Parts in Fender Sideguard - Carbon Fiber, Right
No.PartQtyPriceAction
1 Motion Composites Apex small right carbon fender side guard, part 0051106A-000051106A-00 1$249.82 Add to cart
2 Motion Composites Apex right carbon fender side guards, medium and large, parts 0051108A-00 and 0051110A-00 1$260.73 Request a quote
3 Carbon Fender Sideguard Large, RightManufacturer no. 0051110A-00 1Quote Ask us about this part
4 Button Cap Screw M4x0.7x8mm LManufacturer no. 0090631A-00 4Quote Ask us about this part
5 Motion Composites sideguard and mudguard adjusting plate, part 0051118A-000051118A-00 1$45.82 Add to cart

Plastic Insert For V2 Receiver

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Plastic Insert For V2 Receiver
No.PartQtyPriceAction
1 Motion Composites V2 receiver adaptor insert, part 9001307A-009001307A-00 2$45.82 Add to cart

Mud Guard & Plastic Side Guard - Plastic Insert For V2 Receiver

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001307.

Parts in Mud Guard & Plastic Side Guard - Plastic Insert For V2 Receiver
No.PartQtyPriceAction
1 Motion Composites side guard insert for the V2 receiver (0051037A-00)0051037A-00 1$33.82 Add to cart
2 Motion Composites V2 slim armrest clamp sleeve, 0033114A-000033114A-00 2$5.45 Add to cart
3 18-8 SS Slotted Spring Pin, M2x10mm LManufacturer no. 0090914A-00 1Quote Ask us about this part

Side Guards Clip

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Side Guards Clip
No.PartQtyPriceAction
1 Motion Composites side guard clip assembly (0002174B-00)0002174B-00 2$28.36 Add to cart
2 Motion Composites side guard clip, deported back (0003790A-00)0003790A-00 2$28.36 Add to cart

Positioning Seatbelts

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Positioning Seatbelts
No.PartQtyPriceAction
1 Motion Composites Velcro Adjustable Seatbelt Assembly, 35 in or 60 in 1$62.18 Request a quote
2 Seatbelt - Velcro Adj, 60in - AssyManufacturer no. 9002138A-00 1Quote Ask us about this part
3 Seatbelt - Auto Buckle, 35in, Small - AssyManufacturer no. 9001588B-00 1Quote Ask us about this part
4 Motion Composites Auto Buckle Seatbelt Assembly, 35 in Small or 60 in Large 1$96.00 Request a quote

Hip Belt - Bodypoint Evoflex

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007771A, 9007792A and 9007973A.

Parts in Hip Belt - Bodypoint Evoflex
No.PartQtyPriceAction
4 BodyPoint EVOFLEX Rehab latch hip belt L62 for Apex wheelchairs, part 0051418A-000051418A-00 1$357.82 Add to cart
5 BodyPoint 32 mm band clamp pair for Apex wheelchairs, part 0051419A-000051419A-00 1$136.36 Add to cart

WC-19 Kit - Alu Frame

10 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9060419B and 9060420B.

Parts in WC-19 Kit - Alu Frame
No.PartQtyPriceAction
1 Motion Composites WC-19 Short Seat Belt Assembly, Apex Frame, 0051536A-000051536A-00 1Price on request Request a quote
2 WC-19 Seatbelt Long - AssemblyManufacturer no. O05)5SQ0A-00 1Quote Ask us about this part
3 WC-19 Scre V¥Manufacturer no. 00511SOC-00 2Quote Ask us about this part
4 V¥C-19 Plastic WasherManufacturer no. 0051152A-00 4Quote Ask us about this part
5 WWC-19 Spring WasherManufacturer no. 0051151A-00 2Quote Ask us about this part
6 WC-19 Tie Do WNManufacturer no. 00511494-00 2Quote Ask us about this part
7 Tie DownManufacturer no. 0022004C-00 2Quote Ask us about this part
8 Button Cap Screw M6x1x16mm LManufacturer no. 0090659A-00 4Quote Ask us about this part
9 Warning Stickers- WC-19Manufacturer no. 0070375A-00 4Quote Ask us about this part
10 Resna WC1? LabelManufacturer no. 00072]SA-0] 1Quote Ask us about this part

WC-19 Kit - Alu Frame, Without Belt

9 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9060419B-01.

Parts in WC-19 Kit - Alu Frame, Without Belt
No.PartQtyPriceAction
1 WC-19 Scre VVManufacturer no. 0051|50C-00 2Quote Ask us about this part
2 Spacer M10x14mm ODX4mm LManufacturer no. 0091056A-00 2Quote Ask us about this part
3 WC-19 Spring WasherManufacturer no. 0051151A-00 2Quote Ask us about this part
4 WC-19 Tie DownManufacturer no. 00511494-00 2Quote Ask us about this part
5 VWC-19 Plastic WasherManufacturer no. 00351152A-00 2Quote Ask us about this part
6 Tie DownManufacturer no. 0022004C-00 2Quote Ask us about this part
7 Button Cap Screw M6x1x16mm LManufacturer no. 0090659A-00 4Quote Ask us about this part
8 Warning Stickers- WC-19Manufacturer no. 0070375A-00 4Quote Ask us about this part
9 Motion Composites ISO 7176-19 Frame Label, 0007215A-010007215A-01 1Price on request Request a quote

Swing Away Anti-Tipper

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Swing Away Anti-Tipper
No.PartQtyPriceAction
1 Motion Composites Swing-Away Anti-Tipper with Instruction 9007930A-009007930A-00 1$260.73 Add to cart

Swing Away Anti-Tipper & Instruction

3 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9007930A-00.

Parts in Swing Away Anti-Tipper & Instruction
No.PartQtyPriceAction
1 Motion Composites Swing-Away Anti-Tipper 0002343A-000002343A-00 1Price on request Request a quote
2 Instruction Sheet Swving Away Anti-Tippers- EnManufacturer no. 00060568A-00 1Quote Ask us about this part
3 Instruction Sheet Swing Away Anti-Tippers- FRManufacturer no. 0006057A-00 1Quote Ask us about this part

Clamp-On Cup Holder

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Clamp-On Cup Holder
No.PartQtyPriceAction
1 Motion Composites Clamp-On Cup Holder 0001883A-000001883A-00 1$108.00 Add to cart

Cane Holders

2 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Cane Holders
No.PartQtyPriceAction
1 Motion Composites Helio C2 cane and crutch holder, right or left, parts 9001627A-00 and 9001628A-00 1$232.36 Request a quote
2 Cane Holder - LeftManufacturer no. 9001628A-00 1Quote Ask us about this part

Cane Holders (page 280)

4 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part. This drawing covers assembly 9001627 and 9001623.

Parts in Cane Holders (page 280)
No.PartQtyPriceAction
1 Cane Holder, Right - AssyManufacturer no. 0051505A-00 1Quote Ask us about this part
2 Motion Composites Cane Holder Assembly, Left or Right 1$96.00 Request a quote
3 Motion Composites Wheel Lock Clamp Assembly, Aluminium 0041501A-000041501A-00 1$39.27 Add to cart
4 Motion Composites Cane Holder Strap 0051023A-000051023A-00 1$22.91 Add to cart

Oxygen Tank Holder

1 part

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Oxygen Tank Holder
No.PartQtyPriceAction
1 Motion Composites Oxygen Tank Holder Assembly 0060501B-000060501B-00 1$464.73 Add to cart

Color Touch-Up

19 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Color Touch-Up
No.PartQtyPriceAction
1 Color Touch Up - FuchsiaManufacturer no. 0070.3504-00 1Quote Ask us about this part
4 Color Touch Up - BurgundyManufacturer no. 00703594-00 1Quote Ask us about this part
5 Motion Composites Ferrari red Touch-Up Paint 0070360A-000070360A-00 1Price on request Request a quote
6 Color Touch Up - Sunkissed OrangeManufacturer no. 0070361)A-OO 1Quote Ask us about this part
7 Motion Composites Acid green Touch-Up Paint 0070362A-000070362A-00 1Price on request Request a quote
8 Motion Composites Monster green Touch-Up Paint 0070363A-000070363A-00 1Price on request Request a quote
9 Motion Composites Sapphire blue Touch-Up Paint 0070364A-000070364A-00 1Price on request Request a quote
10 Color Touch Up - Steel BlueManufacturer no. 00/0365A-00 1Quote Ask us about this part
11 Color Touch Up - CharcoalManufacturer no. 0070.366A-00 2Quote Ask us about this part
12 Motion Composites Black Touch-Up Paint 0070367A-000070367A-00 1Price on request Request a quote
13 Color Touch Up- Electric PurpleManufacturer no. 0070356A4-01 1Quote Ask us about this part
14 Color Touch Up - Caribbean BlueManufacturer no. 0070355A-02 1Quote Ask us about this part
15 Color Touch Up - WhiteManufacturer no. 0070358A-03 1Quote Ask us about this part
16 Color Touch Up - Pink PearlManufacturer no. 00/0356A-04 1Quote Ask us about this part
17 Color Touch Up - Plum PurpleManufacturer no. 00/0356A-05 1Quote Ask us about this part
18 Color Touch Up - Sky BlueManufacturer no. 000350A-06 1Quote Ask us about this part
19 Color Touch Up - Black CherryManufacturer no. 00/03564-07 1Quote Ask us about this part
20 Color Touch Up - Khaki GreenManufacturer no. 0070356A-08 1Quote Ask us about this part
21 Color Touch Up - Desert SandManufacturer no. 000355A-0F 1Quote Ask us about this part

Link & Hardware

11 parts

Exploded view from the manufacturer's parts manual (Motion Composites Move Parts Book). The numbers on the drawing match that manual's parts list. Tell us the number and the model and our order desk will quote the part.

Parts in Link & Hardware
No.PartQtyPriceAction
1 Motion Composites X-brace link 12 in with hardware, part 9002150A-00 1$33.82 Request a quote
2 Link - 13in & HardwareManufacturer no. 9002151A-00 1Quote Ask us about this part
3 Link - 14in & HardwareManufacturer no. 9002152A-00 1Quote Ask us about this part
4 Link - 15in & HardwareManufacturer no. 9002153A-00 1Quote Ask us about this part
5 Link - 16in & HardwareManufacturer no. 9002154A-00 1Quote Ask us about this part
6 Link - 17in & HardwareManufacturer no. 9002155A-00 1Quote Ask us about this part
7 Link - 18in & HardwareManufacturer no. 9002156A-00 1Quote Ask us about this part
8 Link - 19in & HardwareManufacturer no. 9002157A-00 1Quote Ask us about this part
9 Link - 20in & HardwareManufacturer no. 9002158A-00 1Quote Ask us about this part
10 Link - 21in & HardwareManufacturer no. 9002159A-00 1Quote Ask us about this part
11 Link - 22in & HardwareManufacturer no. 9002160A-00 1Quote Ask us about this part

Not sure which part you need?

Send us a photo of the part, or of where it sits, and tell us what it is doing. We would rather ask you one question than send you the wrong part.

Or call (905) 798-1853 and describe it to us.

Where to go next

The product page

Specifications, documents and the full product page for the Motion Composites Move Folding Wheelchair.

All replacement parts

Search every part we list, or browse by the equipment it fits.

Have us fit it

Our technicians service what we sell.

Not sure where to start?

Talk to a specialist. No pressure, no obligation.

Call us(905) 798-1853
Book a free visit
