Description

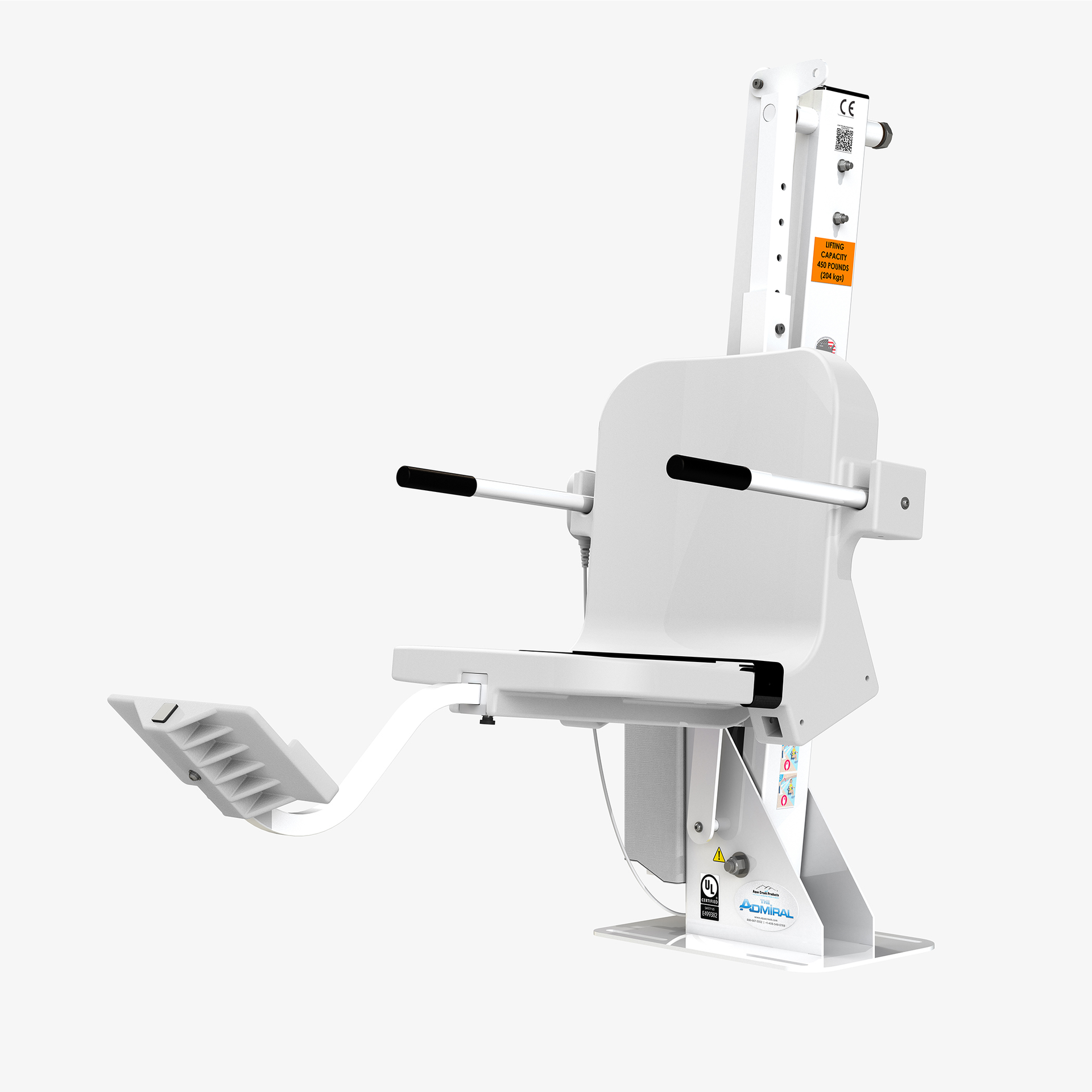

The Aqua Creek Admiral is an anchor-mounted pool lift for an in-ground pool or spa. It is a non-rotating lift: the seat rises and lowers on a powered mast, and the frame can be turned around in the field. The rated capacity is 450 lb (204 kg).
The anchor and the deck
- The deck anchor is separate from the lift and must be installed before the lift goes on. Standard concrete, quick-attach concrete, 8-inch and wood-deck anchors are available.
- The anchor setback range is 13.75 to 20.75 in (35 to 52 cm). The maximum setback needs the highest seat position.
- The seat pole adjusts in 2 in steps. Most pools use the lowest position; a higher seat clears a wall or curb.
- The lift meets the US ADA seat-height and submersion figures when it is set up to the manual. ADA is a US standard; compliance is the pool owner's responsibility.
How it moves
- A two-button hand control raises and lowers the seat. The lift does not rotate.
- The seat has a belt, a flip-up armrest and an adjustable footrest. The footrest extends in 2 in steps up to 12 in.
- The frame can be reversed 180 degrees in the field for the other installation side.
- The frame is stainless steel with a powder-coat finish.
Battery, care and storage
- The lift runs on a rechargeable battery with a wall-mounted charger. Remove the battery and leave it on the charger when the lift is not in use.
- Wash the lift with fresh water and dry it with a soft, non-abrasive cloth. Do not wash it with pool water and do not spray the control box or battery.
- Inspect and run the lift through a full cycle before each use, and have an annual inspection with a test load.
- Do not store the lift in a pump room or near chemicals.
Limits
- Do not exceed 450 lb (204 kg), and never operate the lift under load in a dry pool.
- Do not allow children to play on or around the lift. The lift may need bonding to local electrical code.
- An in-ground pool or spa with a suitable deck is required; the anchor type and deck construction decide the fit.
Where it fits in the range
Other pool lifts include rotating models and different capacities, and the wider patient lift range covers home lifts. See the free home assessment and funding guide.
Funding and quote
The lift is quoted with the anchor and installation for your pool. Funding may help: see the funding guide. A home assessment can record the deck, pool edge and transfer route before the quote.
Frequently asked questions
Does the seat rotate?
No. The Admiral is non-rotating; the seat rises and lowers, and the frame can be reversed in the field.
Is the deck anchor included?
No. The anchor is sold separately in concrete, quick-attach, 8-inch and wood-deck versions, and it must be installed before the lift.
What does the warranty cover?
Five years on the structure. Electrical parts are pro-rated from year three (60, 50 and 40 percent). Mesh slings and hydraulic actuators carry one year. See the Warranty tab.
Can it be installed on either side?
Yes. The frame is field reversible through 180 degrees, so the seat and control arm can face the other way.
Is it ADA compliant?
It is built to the US ADA pool lift figures, including a 16 to 19 in seat height and 18 in submersion. ADA is US law, and compliance stays the pool owner's responsibility.
Specifications
- Weight capacity
- 450 lb (204 kg)
- Installation
- Separate Aqua Creek deck anchor; setback 13.75 to 20.75 in (35 to 52 cm)
- Seat height
- Adjustable in 2 in steps; higher positions clear a wall or curb
- Overall length
- 63.75 in (162 cm)
- Controls
- Two-button hand control for up and down
- Care and washing
- Wash with fresh water and a soft cloth; do not use pool water or spray the control box
- Rotation
- Non-rotating; frame field reversible 180 degrees
- Material
- Stainless steel with powder-coat finish
- Battery charger
- Wall-mounted charger for the rechargeable battery
- Warranty
- Five years structural; electrical parts pro-rated from year 3; mesh slings and hydraulic actuators one year
- Product type
- Anchor-mounted pool lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
- Brochure Admiral Pool Lift lift guide
- Brochure Admiral Pool Lift brochure
- Brochure Admiral specification sheet, INV01513
- Brochure Admiral Pool Lift specifications sheet
- User Manual Admiral installation and operation manual, INV01513 rev 1
- User Manual Admiral Pool Lift user manual
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Aqua Creek Products warrants the Admiral pool lift (F-ADMRL) to the original end user purchaser, when properly installed, used and maintained, against defects in material and workmanship.
- Lift: 5 years from the date of original purchase.
- Electrical components, including the linear actuator: full cover in years 1 and 2, then 60% in year 3, 50% in year 4 and 40% in year 5.
- Hydraulic actuators and mesh slings: 1 year.
- Excludes labour to remove, repair or install, shipping, powder coat wear, misuse, overloading and normal wear.
- Void if the lift is altered, repaired or installed improperly without Aqua Creek's written approval.
