Description
The Ki Mobility Axiom Custom Back (E2617) is a rigid wheelchair back made to the shape, width and height chosen with the order for a user who needs a made-to-measure fit.
What does it do and how does it work?
It supports the trunk with a formed aluminum shell, foam and a cover.

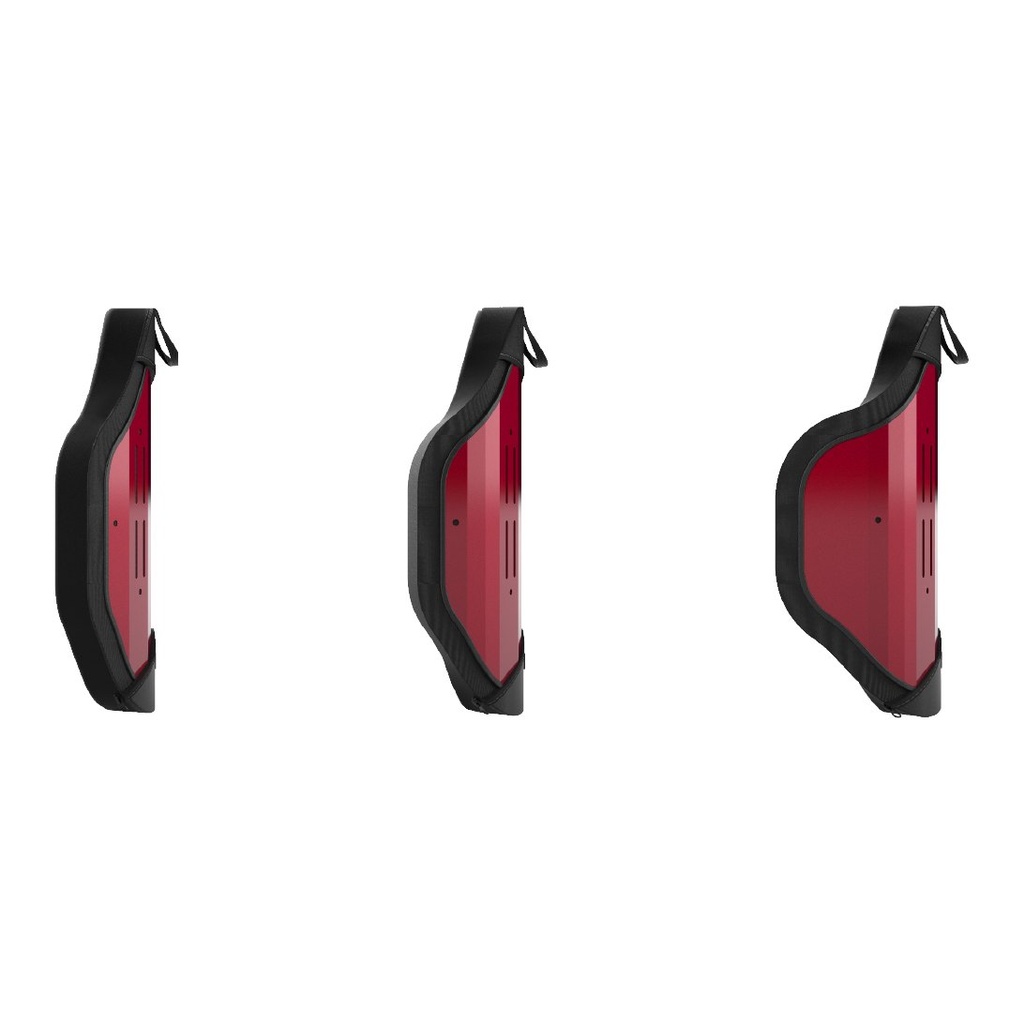

- Three shapes: AXCPB 2.25 in (57 mm) lateral depth, AXCPL 3.75 in (95 mm), AXCDL 6 in (152 mm).

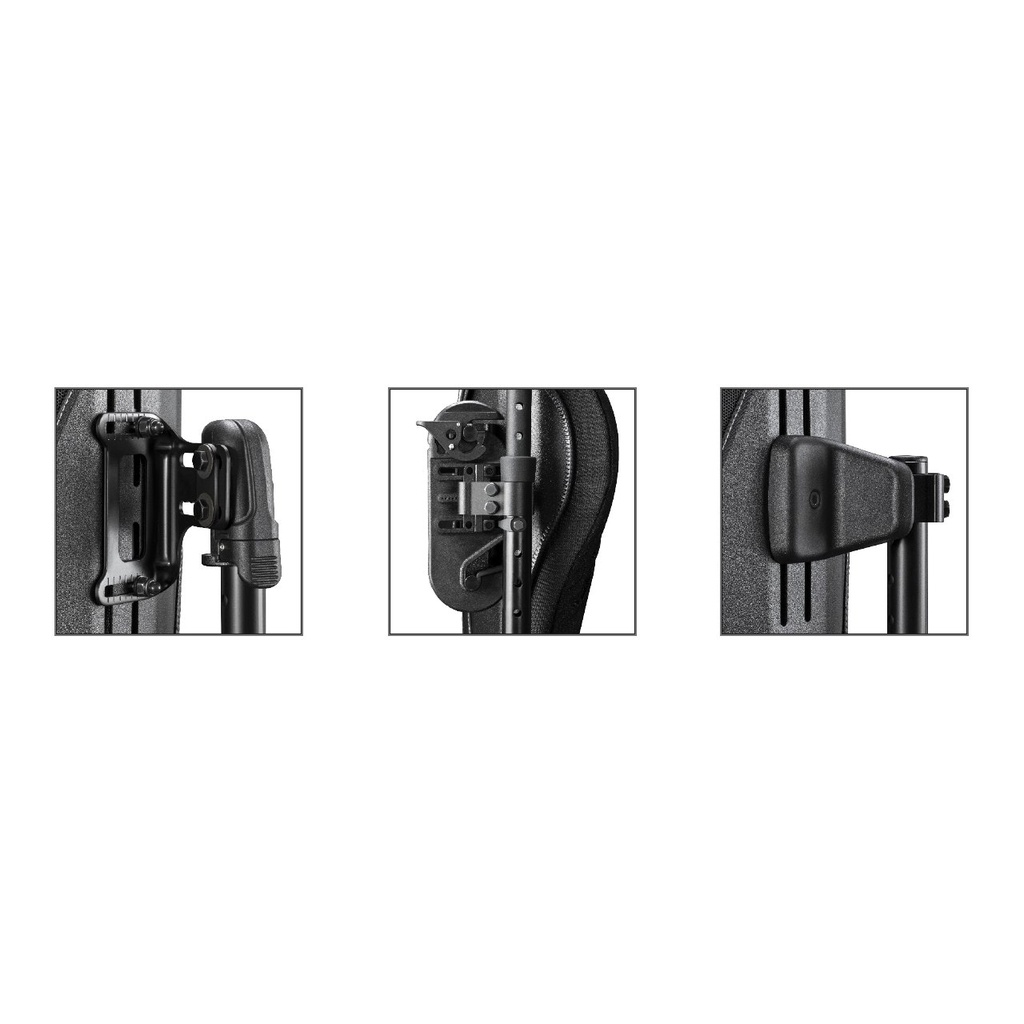

- Hardware: DEX or BTX removable adjustable, or FXT fixed, included.
- Weight capacity: 300 lbs (136 kg) with DEX or FXT, 400 lbs (181 kg) with BTX.
- Adjustments: 3.3 in (8.3 cm) height, 2 in (5.1 cm) width, 1.5 to 2 in depth and up to 20 degrees of angle.
Who is it for, and who should choose something else?
It suits a person whose seating assessment calls for a made-to-measure back: an unusual torso shape, a fixed asymmetry, or a size between stocked ranges. An occupational therapist or physiotherapist assesses and chooses the shape.
Choose a stocked back from our wheelchair backrests if a symmetric standard shape fits.
Will it fit?
- Back: 12 to 24 in (30.5 to 61 cm) wide and high.
- Standard: 12 to 22 in wide by 12 to 22 in high; complex 12 to 24 by 8 to 24 in, in 1 in steps.
- Chair width: within 2 in (5.1 cm) narrower or wider than the back.
- Finished height: add 2 in (51 mm) to the shell height.
Using it day to day
We mount the hardware and set height, depth and angle; the back lifts off for cleaning.
- Cover: machine wash hot at 60°C, line dry, no bleach or dry cleaning.
- Foam and shell: wipe with soap and water; do not immerse the foam.
- Travel: tested to ANSI/RESNA WC-4 Section 20 and ISO 16840-4; back top within 5.5 in (14 cm) of the shoulder.
What does it work with, and what are its limits?
- Works with: Axiom headrests, lateral and anterior trunk supports.
- Short backs: 12 in high or less cannot take accessory laterals, a headrest mount or anterior supports.
- Not a restraint: headrests and laterals do not replace an occupant restraint; do not lift or push the chair by the back.
- Custom order: not returnable once in production; read the return policy first.
- Warranty: 24 months on the shell and foam, 6 months on the covers; see the Warranty tab.
Which version should I choose?
- Shape: AXCPB posterior, AXCPL posterior lateral, AXCDL deep lateral.
- Hardware: DEX for most chairs, BTX for 23 to 24 in backs and up to 400 lbs (181 kg), FXT to keep the back fixed.
- Cover: Axiom fabric or TekStretch wipeable, with optional embroidery.
How does it compare?
A Max TrueFitt is a moulded foam back; a Prism TrueFitt is a rigid back. Choose it when the measured size or contour falls outside them, or read the backrest guide.
Frequently asked questions
Can I order a width or height in half inches?
No. Complex orders use 1 in (25 mm) increments; standard sizes are even inches.
Can I move the back to a second wheelchair?
The back lifts off its receivers, which stay on the first chair; a second chair needs its own hardware.
How do I clean the foam?
Wipe it with soap and water and let it dry; do not immerse the foam.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 300 lbs (136 kg) with DEX or FXT hardware; 400 lbs (181 kg) with BTX
- Sizes
- Standard 12 to 22 in wide by 12 to 22 in high; complex 12 to 24 in wide by 8 to 24 in high
- Construction
- Formed aluminum shell, 1/4 in closed-cell foam base, 1 to 4 in of foam in up to four levels
- Cover
- Axiom fabric or TekStretch wipeable cover, zipped and removable
- Cover care
- Machine wash hot at 60 C, line dry or tumble with no heat; no bleach or dry cleaning
- Adjustments
- Height 3.3 in (8.3 cm), width 2 in (5.1 cm), depth 1.5 in DEX or 2 in BTX, angle 20 degrees DEX and BTX, 5 degrees FXT
- Custom sizes
- Built to order in 1 in (25 mm) increments; size confirmed before the order
- Back width
- 12 to 24 in (30.5 to 61 cm)
- Back height
- 12 to 24 in (30.5 to 61 cm)
- Contour depth
- 2.25 in (57 mm), 3.75 in (95 mm) or 6 in (152 mm) by shape
- Lateral support
- Built into the shell; AXCPB 2.25 in, AXCPL 3.75 in, AXCDL 6 in; pads optional
- Mounting hardware
- DEX or BTX removable adjustable hardware, or FXT fixed hardware; included
- Fits wheelchair widths
- Within 2 in (5.1 cm) narrower or wider than the back width
- Available colours

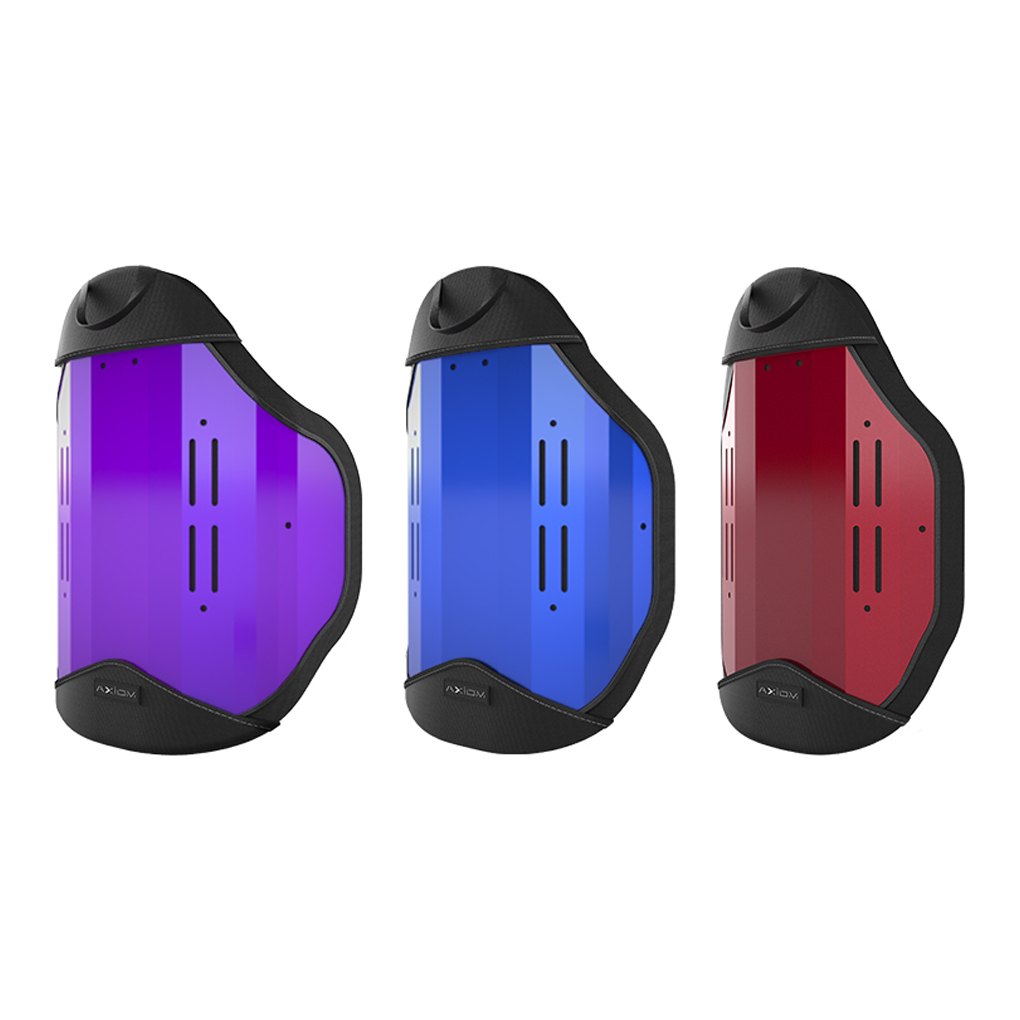

- Gloss and matte painted shells, including Black, Ruby Red, Deep Sapphire Blue and White
- Warranty
- 24 months on shell and foam, 6 months on removable covers
- Product type
- Custom rigid wheelchair back, aluminum shell with foam
- Use category
- Postural support and pressure distribution
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Ki Mobility warrants the Axiom Custom back to be free from defects in materials and workmanship from the date of purchase, under normal use.
- Back shell and foam: 24 months.
- Removable covers: 6 months.
- Defective parts are repaired or replaced at Ki Mobility's option, without charge.
- Excludes punctures, tears and burns; damage from neglect, accident, misuse, or improper installation or repair; products modified without Ki Mobility's written consent; and damage from exceeding the weight limit.
- Applies in North America to the first consumer purchase through an authorized Ki Mobility supplier, and is not transferable.
