Description

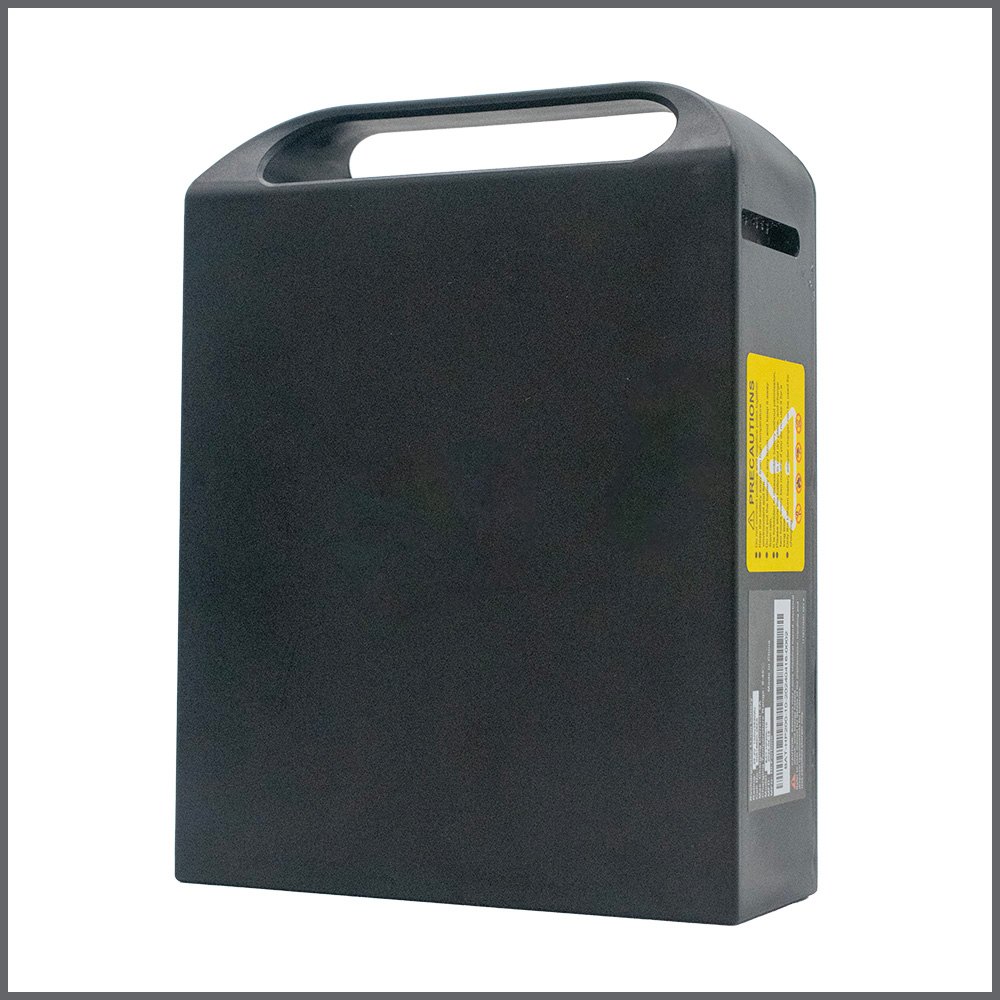

Pride's 20Ah Battery Box is the sealed 25.2 V lithium-ion pack for the Jazzy Ultra Light power chair, part of our power chair batteries range. It is the longer-range of the two packs Pride sells for this chair.
Which chair does it fit?
Only the Pride Jazzy Ultra Light in its 20 Ah configuration. It is not the Jazzy Carbon 24 V 12 Ah box, not the 22 Ah Battery Box for scooters, and not a lead acid pair. Pride does not sell bare cells, so the box and the pack are one part.
10 Ah or 20 Ah?
- Range: up to 16.4 miles (26.3 km) at 200 lb (91 kg) and 14.4 miles (23.1 km) at 300 lb (136 kg), against about 8 and 7 miles with the 10 Ah box.
- Weight: 7.4 lb (3.4 kg) against 4.96 lb (2.25 kg) for the 10 Ah box.
- Air travel: Pride marks the 20 Ah box as not airline compliant; only the 10 Ah box is.
Charging, care and limits
- Charge in the chair or with the box lifted out, using the off-board charger that comes with the chair.
- Charge at least weekly if you use the chair weekly or less, and once a month over 30 days of storage. Never store a flat battery.
- Operating -20 C to 50 C, storage -5 C to 25 C and charging 0 C to 40 C.
- The sealed box is not serviceable: replace the whole box, not the cells.
Frequently asked questions
Can I put a 20 Ah box in a chair that came with the 10 Ah battery?
Yes. Pride lists the 20 Ah box as an accessory that raises the range; only the 10 Ah box stays airline compliant.
Can I replace just the battery cells?
No. Pride seals the box and calls it non-serviceable, so the whole box is the replacement part.
Will a Jazzy Carbon battery fit?
No. The Jazzy Carbon uses a 24 V 12 Ah box, a different voltage and part.
Funding may help: see who may help pay. We can replace the box and test the chair at your home or in our shop: battery replacement or our service.
Specifications
- Product weight
- 7.4 lb (3.4 kg)
- Installation
- Our technicians can replace the box and test the chair at your home or in our shop
- Disposal
- Lithium pack: never in household garbage or the Blue Bin; Ontario collects batteries under the RPRA Batteries program
- Battery capacity
- 20 Ah (504 Wh)
- Battery voltage
- 25.2 V
- Battery group
- None
- Battery terminal
- No posts; the box has a charger port and an on/off switch
- Sold as
- One sealed battery box; not serviceable
- Air travel
- Not airline compliant; the 10 Ah box is the airline compliant option
- Compatible with
- Pride Jazzy Ultra Light in its 20 Ah configuration
- Battery charger
- Off-board charger supplied with the chair; charge with the box in or out of the power base
- Product type
- Sealed lithium-ion battery box for a power chair
- Chemistry
- Lithium-ion
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
