Drive Medical

Drive Bellavita Dive battery bath lift, item 477400252

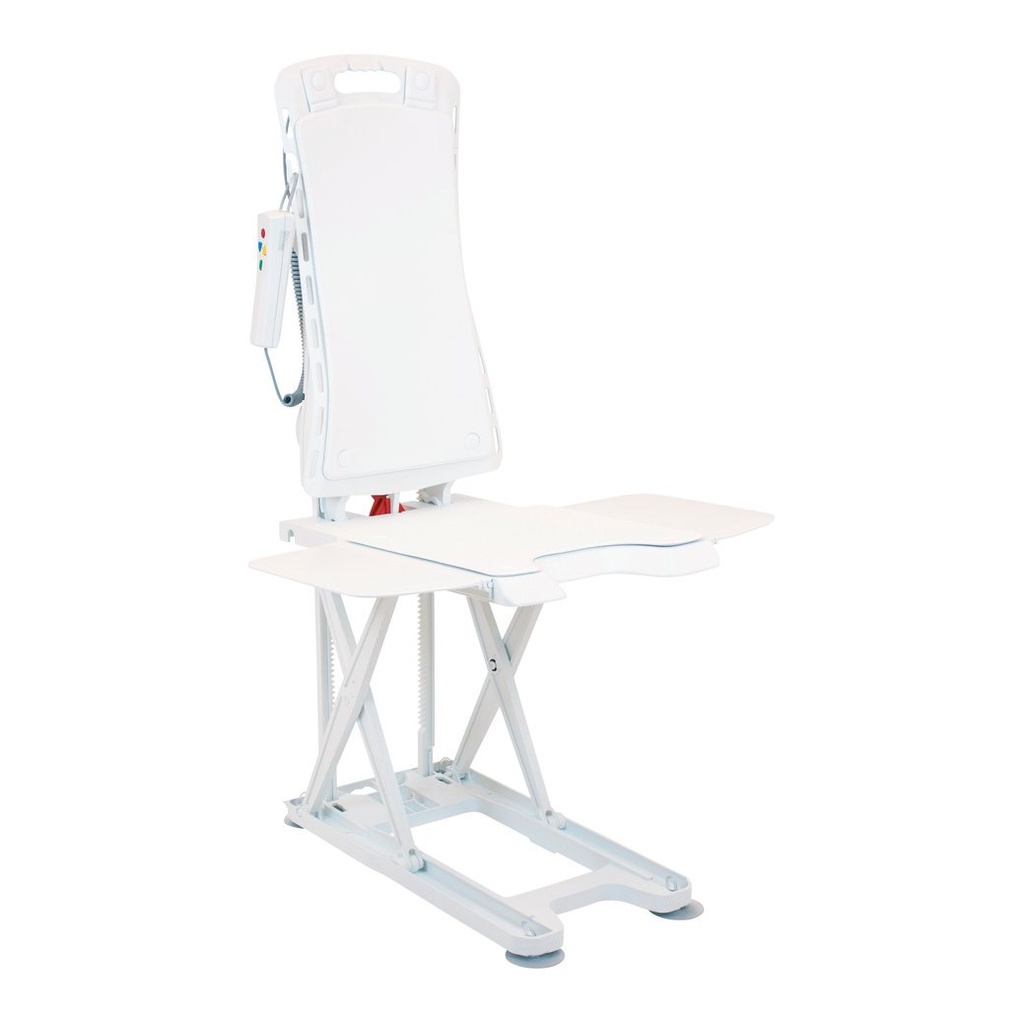

The Drive Bellavita Dive bath lift, item 477400252, is a battery bath lift that lowers you to the bottom of the tub and lifts you back to the rim. Its backrest reclines to 50 degrees and the seat drops to 2.6" (6.5 cm), so you sit deep in the water instead of on top of it. Four suction cups hold it to the tub floor, and no plumbing or electrical work is needed. Made by Drive DeVilbiss Healthcare.

Key specifications All specifications
Product type
Bath lift
Seat height
2.6" to 18.9" (6.5-48 cm)
Backrest

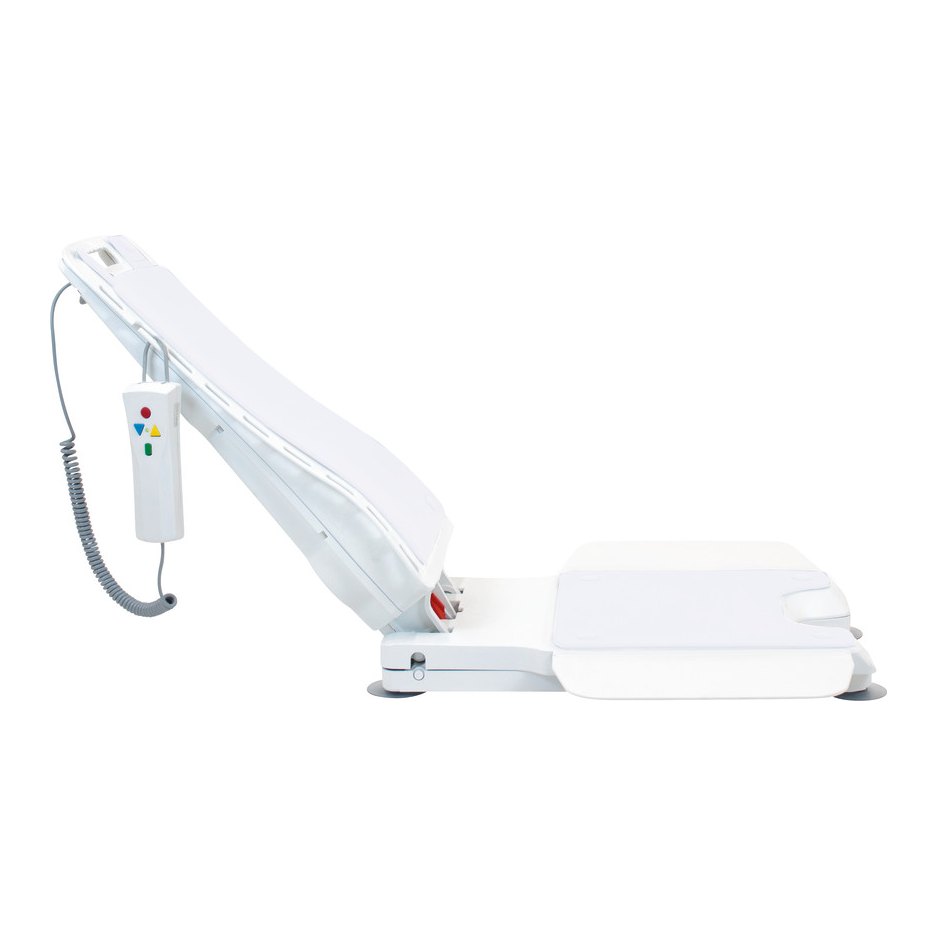

Removable, reclines 10 to 50 degrees
Product weight
21.8 lbs (9.9 kg)
$ 1,529.71 $ 1,529.71

What is included?

Ask us to confirm what ships with your lift. The parts diagram lists the hand control with battery 460900600, the charger 460900403, the suction cups 460900225 and the cover set 460900252 as separate articles.

Offers and rewards Applied in your cart at checkout.
  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
SKU
477400252
Brand
Drive Medical
Category
Bath Lifts
Barcode 822383019604 822383019604

Barcode: 822383019604

Description

The Bellavita Dive is a battery bath lift from Drive DeVilbiss Healthcare, item 477400252. It sits on the tub floor on suction cups, lowers you to 2.6" (6.5 cm) above it and lifts you back to the rim. The backrest reclines to 50 degrees.

Who is the Bellavita Dive for?

Someone who can sit and stand with a handhold but cannot lower into a tub safely. If you cannot sit unsupported, ask us about a transfer bench.

Will it fit your bathtub?

It needs a flat tub floor: the base plate is 24" by 12" (61 x 31 cm), held by four suction cups. The floor must be clean and dry, with no non-slip mat. We measure your tub at the free home assessment.

How do you set it up and charge it?

No plumbing and no electrical work: the seat unit drops onto the base plate. The floating hand control carries the battery, and a full charge covers up to six baths.

How safe is it to use?

When the battery runs low it only moves upward, so you are never left at the bottom of the tub.

How do you clean it and change the covers?

Rinse it after each bath with a cleaner that has no scouring agent; do not use vinegar-based cleaners. The cover washes at 60 C.

Which sizes and covers are there?

One size only, item 477400252. Spare covers come in white, blue and grey; controls, chargers and suction cups are sold separately.

Funding may help: see who may help pay. Bathroom equipment is bought privately in most cases. See our funding guide or call (905) 798-1853.

How does it compare with the other models?

The Dive adds the reclining backrest and the lower seat; the Bellavita Auto is the simpler model.

How do delivery and service work?

We deliver across Toronto and the GTA and set the lift up in your tub. Bathroom items cannot be returned once used under our return policy, so measure first.

What warranty comes with it?

Five years on the lift and two years on the hand control and battery; see the Warranty tab.

Frequently asked questions

How deep does the Bellavita Dive lower me into the tub?

The seat stops 2.6" (6.5 cm) above the tub floor.

Does it stay plugged in while I bathe?

No. The hand control holds the battery and floats in the water.

What if the battery runs down mid-bath?

It still rises to the rim, but will not go down again until charged.

Specifications

Weight capacity
300 lbs (136 kg)
Product weight
21.8 lbs (9.9 kg) with the hand control
Assembly
Seat unit drops onto the base plate and the drive unit slots in; no plumbing or electrical work
Seat width
15" (38 cm)
Seat depth
20.7" (52.5 cm)
Backrest
Removable, reclines 10 to 50 degrees
Seat height
2.6" to 18.9" (6.5-48 cm)
Height adjustment
Powered by the floating hand control, stepless, no tools
Overall width
27.6" (70 cm)
Overall length
40.2" (102 cm)
Battery
Lithium ion, built into the floating hand control
Water resistance
Hand control rated IP X7
Material
Plastic
Charging time
About 4 hours
Tub fit
Flat tub floor that takes the 24" x 12" (61 x 31 cm) base plate, with no non-slip mat
Item number
477400252 (Drive), barcode 822383019604
Warranty
5 years on the lift; 2 years on the hand control and battery
Product type
Bath Lift

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Drive DeVilbiss (Drive Medical) warrants the Bellavita Dive bath lift (477400252) against manufacturing and material defects.

  • Bath lift: 5 years.
  • Hand control and battery: 2 years.
  • Consumables, such as the covers and suction feet, are not covered unless a repair or replacement is a clear, direct result of a manufacturing or material defect.
  • Discolouration of the covers is not covered.
  • Unauthorized modifications, repairs outside authorized workshops, or opening the hand control invalidate the warranty.
