Drive Medical

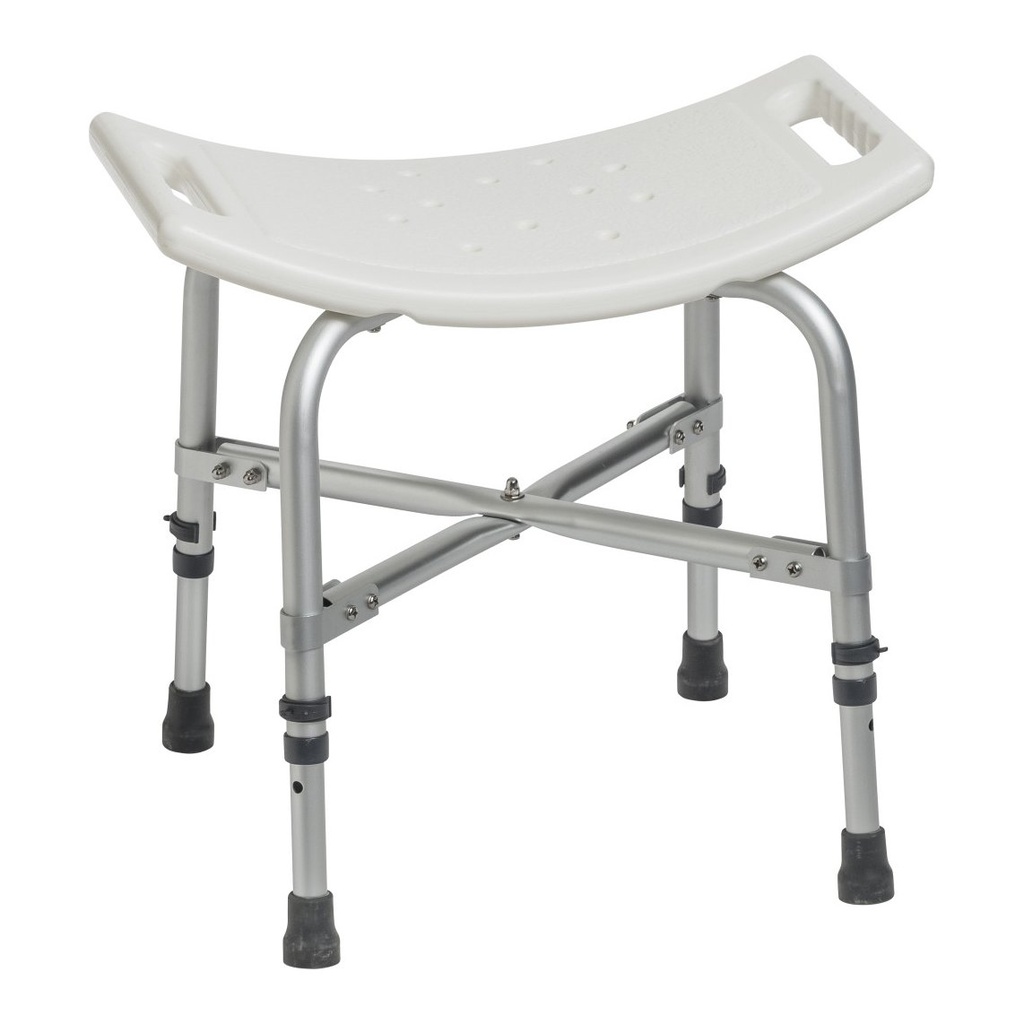

Drive Deluxe Bariatric Shower Chair, 500 lb, No Back, 12022KD-1

The Drive 12022KD-1 is a heavy duty shower chair without a backrest, with a 20 in (51 cm) wide blow moulded seat and a cross braced aluminum frame. Drive rates it to 500 lbs (227 kg).

Key specifications All specifications
Weight capacity
500 lbs (227 kg)
Seat
20 in (51 cm) wide by 12 in (30 cm) deep
Frame
Aluminum with width and depth cross braces
Height
1 in (2.5 cm) leg steps, locked with clips
Back and arms
None
Warranty
Limited lifetime; rubber tips and grips excluded
$ 75.89 $ 75.89

What is included?

The seat, four legs, the cross brace set and the assembly hardware. No backrest, no arms and no tools. The same chair with a backrest is the 12021KD-1.

Offers and rewards Applied in your cart at checkout.
  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
SKU
12022KD-1
Brand
Drive Medical
Barcode 822383148250 822383148250

Barcode: 822383148250

Description

The Drive 12022KD-1 is a heavy duty shower chair without a backrest: a 20 in (51 cm) wide seat on a cross braced aluminum frame, rated to 500 lbs (227 kg).

Funding may help: see who may help pay.

Drive covers the chair for the lifetime of the original purchaser; rubber tips and grips are wear items.

What does it do and how does it work?

  • Seat: 20 in (51 cm) wide by 12 in (30 cm) deep, blow moulded plastic with drainage holes so water runs off.

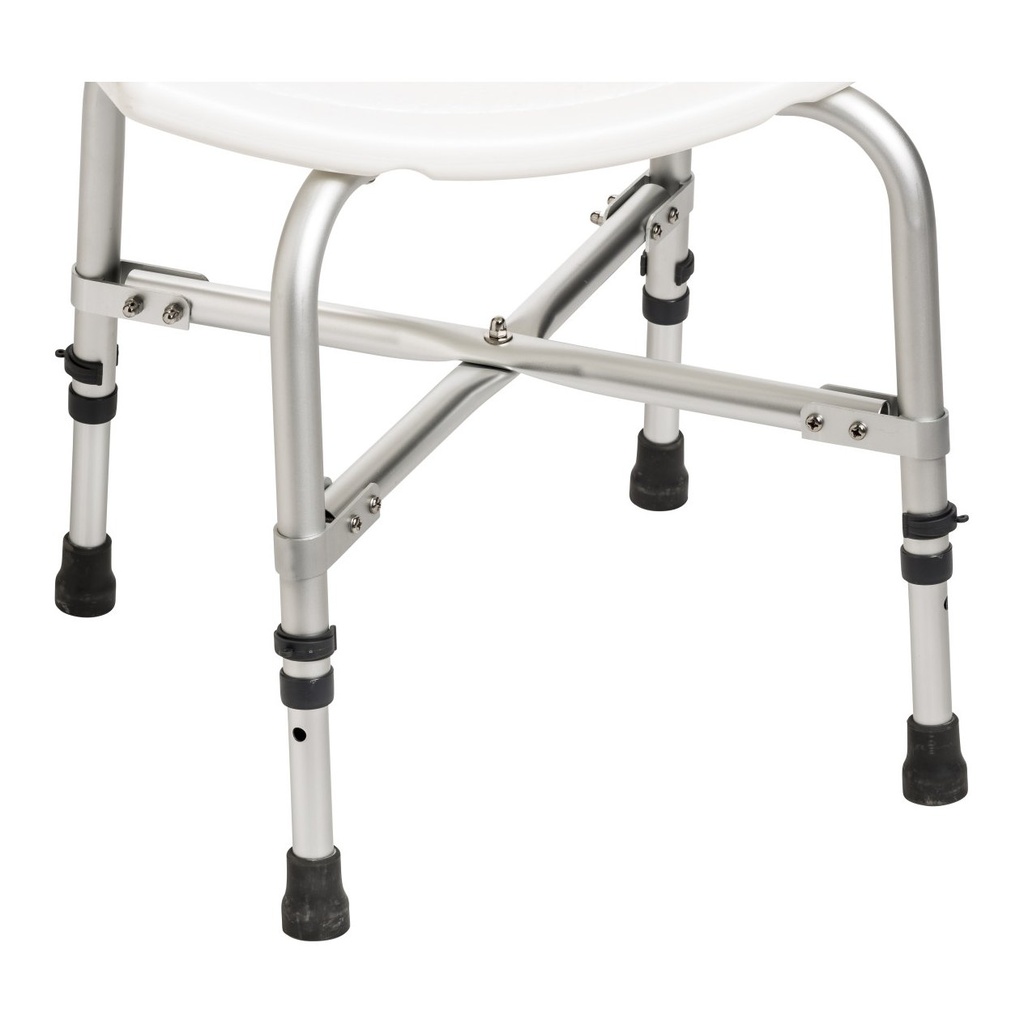

  • Corrosion-proof aluminum, with cross braces riveted across the width and depth.
  • Height: each leg adjusts in 1 in (2.5 cm) steps and locks with a Euro-style clip.

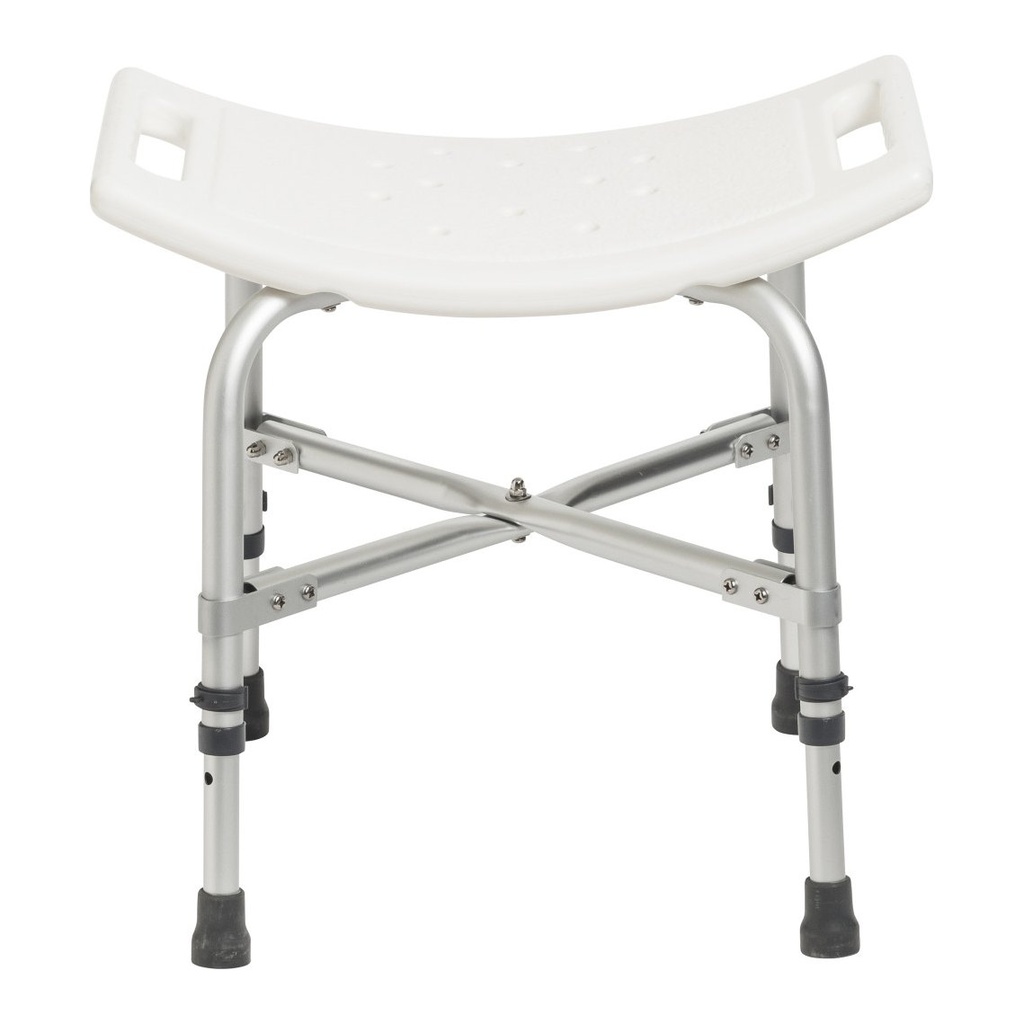

  • No back or arms, with a hand hold cut into each side of the seat.
  • Knockdown build: the frame bolts together, so it comes apart for storage or transport.
  • Made using recycled materials.

Who is it for, and who should choose something else?

It suits someone past the weight limit of a standard bath chair, or a person who wants a wide seat and no back so they can reach around while washing. Choose the 12021KD-1 for back support, a transfer bench for a tub edge, or a shower stool for a smaller room.

Will it fit?

  • The seat is 20 in (51 cm) wide by 12 in (30 cm) deep; measure the shower floor and entry, and leave clearance for the frame.
  • All four tips must sit level on the shower floor, not on a curb or mat.
  • Check the height suits the person before sitting: the legs move in 1 in (2.5 cm) steps.
  • A free home assessment will measure the shower.

Using it day to day

  • Bolt the legs and cross braces to the seat; a Phillips screwdriver and a wrench are needed.
  • Height: pull each leg clip, set the same step on all four legs, and push the clips back in.
  • Before each use, check that all four rubber tips touch the floor and that the legs are locked.
  • Wash with mild soap and warm water, then dry the seat.

What does it work with, and what are its limits?

  • 500 lbs (227 kg), for sitting; do not stand on the chair.
  • No back or arms, so it does not support the back or help a person rise.
  • It is not a commode: the seat is solid, with drainage holes only.
  • It is not a transfer bench and does not cross the edge of a tub.
  • Limited lifetime warranty; see the Warranty tab.

How does it compare?

Frequently asked questions

Is there a model with a back?

Yes. The 12021KD-1 is the same chair with a blow moulded backrest.

Can I use it as a commode?

No. The seat is solid with drainage holes; a commode chair has an opening and a pail.

How do I change the height?

Pull each leg clip, set the same step on all four legs, and push the clips back in.

What tools does assembly need?

A Phillips screwdriver and a wrench; the hardware comes in the box.

Specifications

Weight capacity
500 lbs (227 kg)
Assembly
Arrives knockdown; bolts together with the included hardware; Phillips screwdriver and wrench needed
Leg tips
Rubber tips on all four legs
Seat width
20 in (51 cm)
Seat depth
12 in (30 cm)
Armrests
None
Backrest
None
Height adjustment
1 in (2.5 cm) steps, locked with a U-clip
Uses
Heavy duty shower chair or bath bench, without a backrest
Material
Aluminum frame and blow moulded plastic seat
Warranty
Limited lifetime; rubber tips and grips excluded
Product type
Bath Chair

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Drive Medical warrants the Deluxe Bariatric Shower Chair with Cross-Frame Brace, without back (12022KD-1) to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.

  • Term: limited lifetime.
  • Covers the original consumer purchaser only.
  • Excludes failure from owner misuse or negligence, and normal wear and tear.
  • Excludes non-durable parts that wear and need periodic replacement, such as rubber accessories, casters and grips.

Questions about this product?

Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
