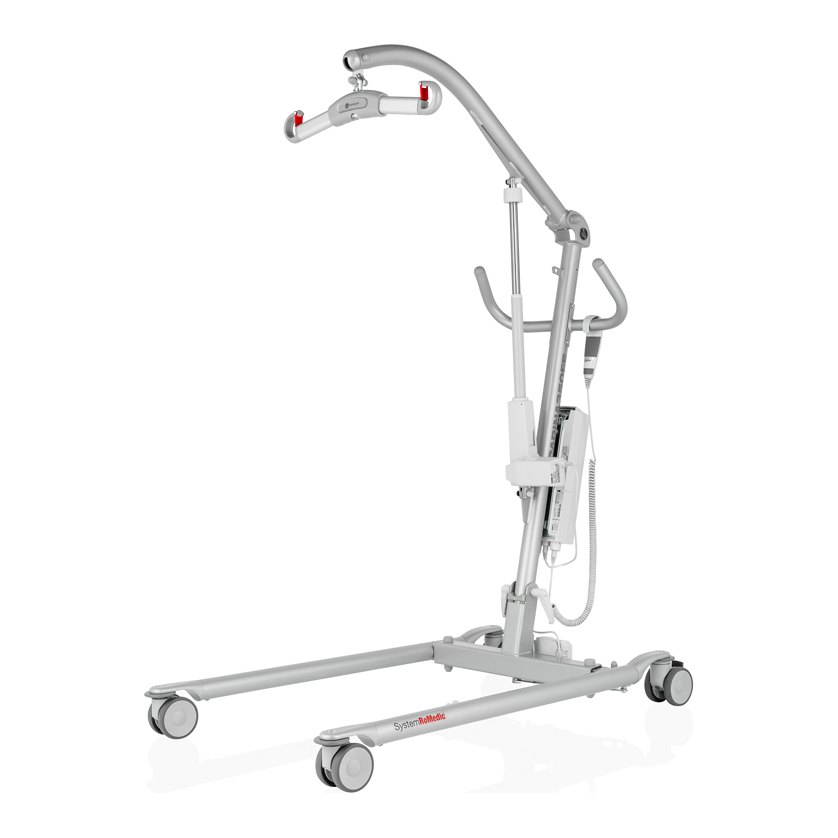

Item 60600009 is the Carina350EE floor lift with electrical base widening and a standard-height base. It is rated 350 lb, and the frame folds for storage between uses.
Which code you are buying
- 60600009 is electrical base widening on the standard-height base; 60600014 is the same lift with low legs.
- 60600011 is the manual-widening Carina350EM; 60600012 is the EM with low legs.
- The other three codes are different lifts.
How a transfer works
- The hooks travel from 22.8 to 66.1 in (580 to 1,680 mm), and a 17.7 in (450 mm) aluminium two-point bar with safety latches is fitted.

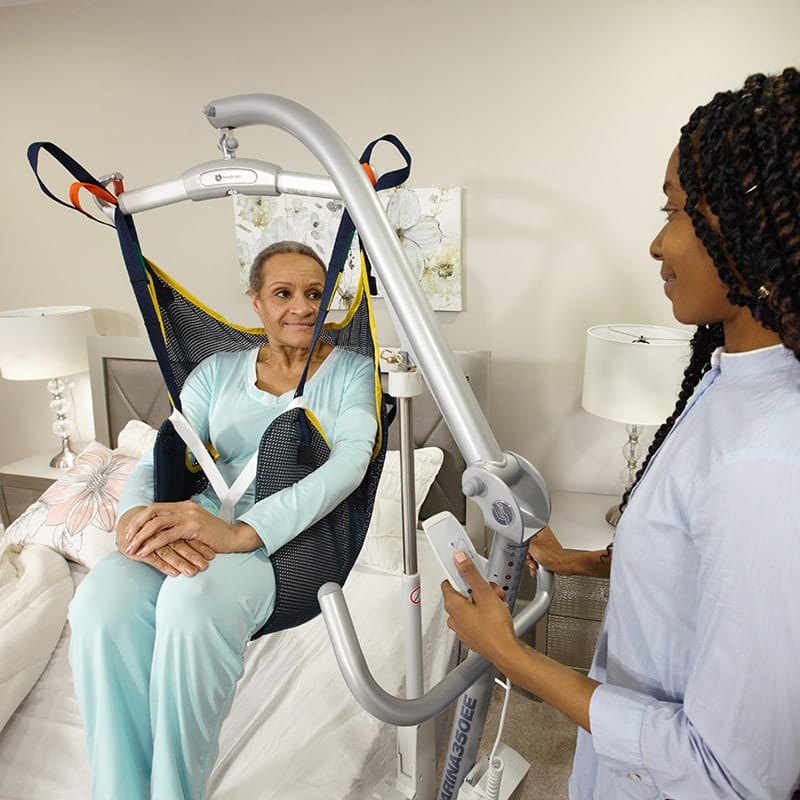

- The hand control raises and lowers the arm and opens the legs; motion stops when the button is released.
- Use only a sling Handicare allows; the lowest limit on the lift, the bar and the sling is the one that applies.
- Never leave the person unattended during a transfer.
Will it fit the room?
- Outer base width runs from 26.8 to 42.5 in (680 to 1,080 mm), with 22 to 37 in (560 to 940 mm) between the legs.
- Base height is 4.9 in (125 mm) and overall height is 50.8 to 72.4 in (1,290 to 1,840 mm).
- Folded, it is 47.9 in long and 16.8 in high (1,216 x 428 mm). It arrives folded, and no tools are needed to stand the mast up.
- Use it on a level floor; measure the doorway and the space under the bed before ordering.
Battery and emergency lowering
- Two 12 V, 2.9 Ah gel batteries charge from the built-in charger, which draws up to 400 mA. Charge for at least four hours before first use.
- Lowering can be manual or electrical if the power fails.
- The lift is rated IPX4 and lifts at about 0.9 in/sec (23 mm/sec) without load.
- Use it indoors for a short transfer. Do not use it in a shower, outdoors or an oxygen-enriched room, and do not charge it in a wet room.
Where it fits in the range
See the patient lifts page and the electric floor lifts range. A free home assessment can check the doorway and the bed clearance, and the funding guide covers possible help.
Funding help for a floor lift
Funding may help: see who may help pay. Call (905) 798-1853 with any questions.
Book a free home assessment if you want the doorway checked. Showrooms are on our showroom page, and service is on the service page.
Frequently asked questions
Is 60600009 the low-leg Carina?
No. 60600009 is the standard-height base. Low legs are item 60600014.
Do the legs open by a foot pedal?
Not on this code. The hand control opens the legs on 60600009; the EM has the manual base.
Does the box include a sling?
No. The bar is fitted, and the sling is chosen separately; use only a sling Handicare allows.
Can it roll into a shower?
No. Do not use it in water, and do not charge it in a wet room.
Specifications
- Weight capacity
- 350 lb
- Product weight
- 76 lb (35 kg)
- Caster size
- 3.9 in (100 mm), front and rear
- Overall height
- 50.8-72.4 in (1290-1840 mm)
- Folded dimensions
- 47.9 in long and 16.8 in high (1216 x 428 mm)
- Sling attachment
- Aluminium two-point bar with safety latches
- Folding
- Folds for storage. No tools to set it up
- Controls
- Hand control HB33-6, electrical base widening
- Emergency lowering
- Manual and electrical
- Battery
- Two 12 V, 2.9 Ah sealed gel
- Water resistance
- IPX4
- Lifting range
- 22.8-66.1 in (580-1680 mm)
- Base width closed
- 26.8 in (680 mm), outer
- Base width open
- 42.5 in (1080 mm), outer
- Base height
- 4.9 in (125 mm)
- Leg opening
- 22-37 in (560-940 mm), inner
- Material
- Powder-coated steel frame
- Battery charger
- Built-in, max 400 mA
- Product type
- Foldable floor lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
