Description

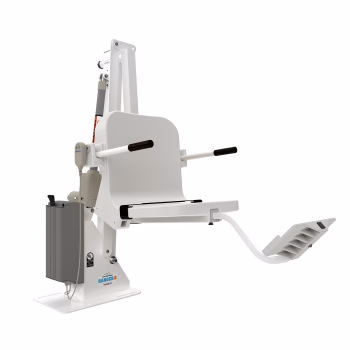

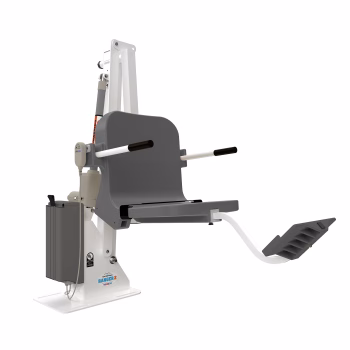

The Aqua Creek Ranger 2 (F-RNGR2) is a fixed, non-rotating pool lift for in-ground pools and spas.
Who is the Ranger 2 pool lift for?
- A swimmer who can sit on a poolside seat and be lowered into the water.
- A pool where the lift can stay at one entry point: it does not rotate.
- Rated 350 lb (160 kg); the deck, anchor and water depth must suit it.
How is it operated?
- A two-button hand control lowers the seat in one out-and-down motion.
- The seat stays parallel to the edge, with flip-up armrests, footrest and belt.
- The frame is 304 stainless with a powder coat, and it is field reversible.
- The maker says it meets the US ADA pool lift requirements and is UL certified.
Will it fit your pool?
- The base plate sits 14.5 to 19 in (37 to 48 cm) back from the edge; measure the coping.
- Rated for a 14 in (35.5 cm) water draft at full load; seat about 18 in (45.7 cm) at the deck.
- Locate it where the water level does not exceed 48 in, with clear deck space beside the seat.
- Leave the entry point clear, and book a free home assessment to check the deck.
How is it anchored?
- The anchor is sold separately and must be set in the deck before the lift is installed.
- Concrete (F-04CAJP), quick-attach, 8 in paver (F-08CAJP) and wood (F-40220-AT1) anchors are listed.
- Bondable anchors take 8 AWG copper to the pool bonding system, as local code requires.
- The anchor is set to the maker's instructions; the quote confirms your anchor.
Battery, storage and care
- A 24 V battery lifts off and stores on a wall charger between uses.
- Cover it when not in use, wash with fresh water, dry, and keep spray off the control box.
- For long storage, remove the battery and keep it on the charger in a dry, climate-controlled area.
- Never use it in a dry pool; the seat can become hot in sun.
Which options are there?
- White with blue, tan, grey or white pads, or a custom colour.
- Cover, chest strap, headrest, leg rest, adjustable seat, solar charger, extra battery and cart.
Funding help for a pool lift
Funding may help: see who may help pay.
How do delivery and service work?
Mobility supplies and services pool lifts across Toronto and the GTA; each is quoted for your pool. See pool lifts or service.
The warranty is five years structural, with electrical parts pro-rated from year 3 and mesh slings one year.
How does it compare?
- Mighty 400: a rotating lift rated 400 lb.
- Mighty 600: a rotating lift rated 600 lb.
Frequently asked questions
Does the Ranger 2 come with the deck anchor?
No. It is sold separately and set in the deck before the lift is installed.
Which deck can the anchor be installed in?
Concrete, paver and wood anchors cover standard concrete, paver, hard surface and wood decks.
How deep does the seat go into the water?
At least 18 in (46 cm) below the water line, the US ADA minimum; 14 in water draft.
Can it rotate?
No. It is fixed and non-rotating, so entry is at one point.
Specifications
- Weight capacity
- 350 lbs (160 kg)
- Product weight
- Approx. 151 lbs (68.7 kg)
- Installation
- Deck anchor, sold separately, set in the deck before the lift is installed
- Seat height
- About 18 in (45.7 cm) to the top of the seat at the deck
- Controls
- Two-button hand control, up and down
- Battery
- Rechargeable 24 V battery, lifts off the control box
- Rotation
- Non-rotating, fixed seat
- Minimum setback
- 14.5 in (37 cm) from the pool edge to the base plate
- Maximum setback
- 19 in (48 cm) from the pool edge to the base plate
- Maximum depth
- 14 in (35.5 cm) water draft at full load
- Battery charger
- Wall-mounted charger, battery stores on it between uses
- Warranty
- Five years structural; electrical parts pro-rated from year three
- Product type
- Pool lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
- Brochure Ranger 2 Pool Lift brochure
- Brochure Ranger 2 Pool Lift specifications sheet
- User Manual Ranger 2 standard concrete deck anchor instructions (F-04CAJP)
- User Manual Ranger 2 8 in deck anchor instructions (F-08CAJP)
- User Manual Ranger 2 wood deck anchor instructions (F-40220-AT1)
- User Manual Ranger 2 Pool Lift user manual
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Aqua Creek Products warrants the Ranger 2 pool lift (F-RNGR2) to the original end user purchaser, when properly installed, used and maintained, against defects in material and workmanship.
- Lift: 5 years from the date of original purchase.
- Electrical components, including the linear actuator: full cover in years 1 and 2, then 60% in year 3, 50% in year 4 and 40% in year 5.
- Hydraulic actuators and mesh slings: 1 year.
- Excludes labour to remove, repair or install, shipping, powder coat wear, misuse, overloading and normal wear.
- Void if the lift is altered, repaired or installed improperly without Aqua Creek's written approval.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
