Description

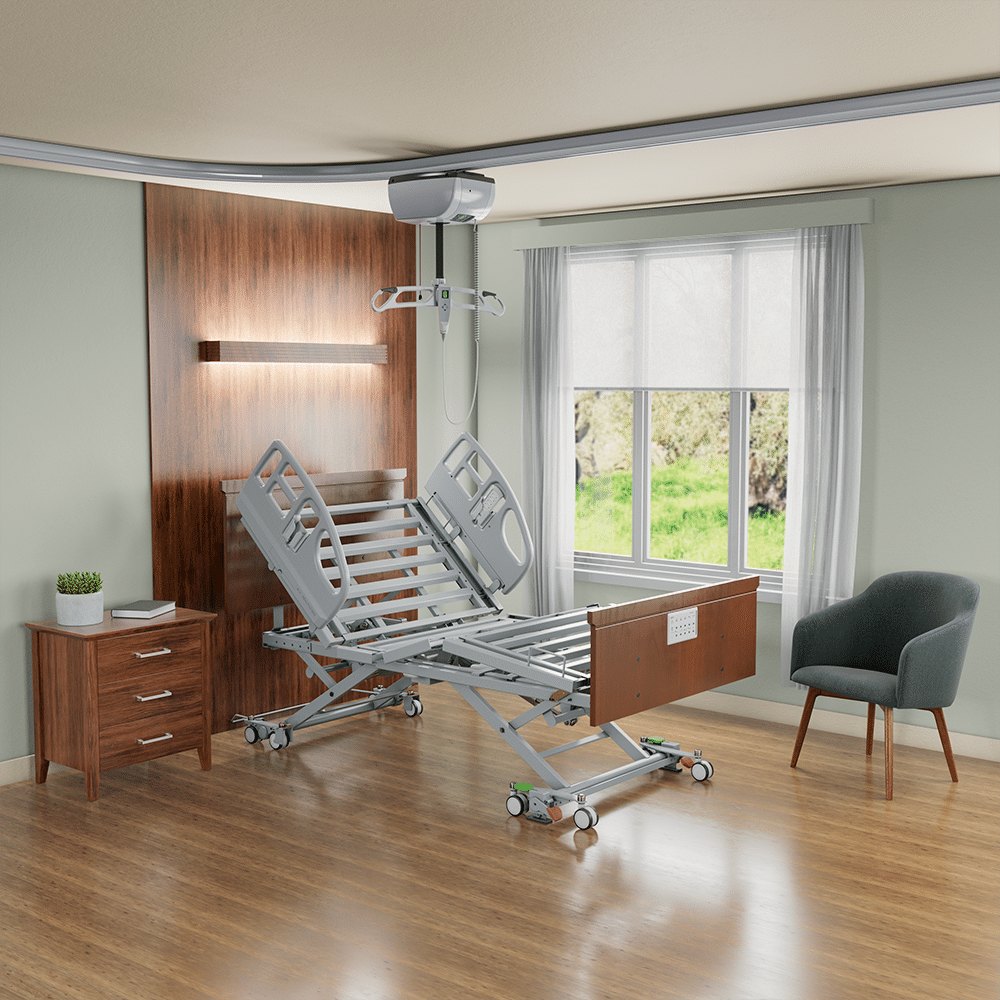

MC9RWZ is the Encore with ReadyWide and a built-in backup battery. The bed weighs 253 lb (115 kg) without accessories.
Deck size
Sleep width is 36, 39 or 42 in. We confirm the exact width before you order. Width with rails is 40-1/2, 43-1/2 or 46-1/2 in (1029, 1105 or 1181 mm).
Sleep length is 76, 80 or 84 in. The 84 in length needs the 4 in extender. Overall length is 82, 86 or 90 in. The sleep surface retracts 12 in (305 mm).
Positions and the battery
Four actuators move the deck. Back 0 to 70 degrees, knee 0 to 30. The pendant includes auto-contour. The foot-end control adds lockout, Comfort Chair, Trendelenburg, reverse Trendelenburg and cardiac care.
Casters allow mobility at any height, and the head end has a directional lock. Descent pauses at 12.5 in (318 mm), then continues from the foot-end control. The backup battery is part of MC9RWZ. Rails are not: see bed rails.
Who is the Encore for?
- Long-term care rooms. It is not meant for home care; for a house, see full electric homecare beds.
- Rooms where power can drop: the built-in battery runs the bed through an outage or away from an outlet.
What are the use limits?
- The motors run on a 10% duty cycle: at most 2 minutes on, then 18 minutes off.
- Do not put the whole body weight on a raised head or foot section.
- Never move a resident in the bed. Two staff roll the empty bed, unplugged, and never push on rails or accessories.
- Keep the battery plugged into the control box. Charge it for 24 hours before first use, and before and after long storage.
Choose a mattress for the width you lock, at medical mattresses. The frame group is long-term care beds. Add-ons are under bed accessories.
Frequently asked questions
Is the backup battery included on MC9RWZ?
Yes. Savaria lists MC9RWZ as Encore ReadyWide with a built-in backup battery. MC9RW, without the Z, is the bed without the built-in battery.
Does 84 in come on the frame?
The 84 in sleep length needs the 4 in extender kit. Q6785 is the factory extender code.
Is a USB charger included?
No. The USB charging kit is a separate accessory.
Warranty: 15 years on the frame and welds; see the warranty terms.
Funding may help: see who may help pay. A room check is booked from a free home assessment.
Specifications
- Product weight
- 253 lb (115 kg) without accessories
- Safety standard
- ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, No. 60601-2-52:11 and No. 60601-1-2-08. Ingress IPX4. Electrical parts IP66.
- Caster locks
- Swivel casters, mobility at any height, head-end directional lock
- Overall width
- 40-1/2, 43-1/2 or 46-1/2 in (1029, 1105 or 1181 mm) with side rails
- Overall length
- 82, 86 or 90 in (2083, 2184 or 2286 mm)
- Package contents
- Encore ReadyWide bed with built-in battery, pendant and foot-end controls. No mattress, rails, boards or USB kit.
- Compatible rails
- R9959 pivot assist pair and R9308H half rails, each its own code.
- Motors
- Four DC linear actuators; 10% duty cycle (2 minutes on, 18 minutes off)
- Battery backup
- Built in. Lead acid, 24 V DC. Replace only with a Span battery.
- Hand pendant
- Standard pendant, including auto-contour
- Bed length
- 76, 80 or 84 in (1930, 2032 or 2134 mm). The 84 in length needs the 4 in extender.
- Minimum bed height
- 7-7/8 in (200 mm), floor to mattress support
- Maximum bed height
- 31 in (787 mm), floor to mattress support
- Deck sections
- Sleep surface retracts 12 in (305 mm). Back and knee sections.
- Bed positions
- Foot-end control: lockout, Comfort Chair, Trendelenburg, reverse Trendelenburg and cardiac care.
- Section angles
- Back 0 to 70 degrees. Knee 0 to 30 degrees.
- Head and footboards
- Optional. Profile names: Lincoln, Standard, Lethbridge, Trenton.
- Sold as
- One bed, code MC9RWZ
- Available colours
- Board finishes named: Valley Oak, Candle Light, Hardrock Maple, Summer Flame, Choco. Boards are separate.
- Warranty
- Frame and welds 15 years. Control box and actuators 5 years. Batteries, pendants, foot-end controls, cables, wear parts 1 year.
- Product type
- Encore bed with ReadyWide and a built-in backup battery
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Span Medical Products Canada warrants the Encore ReadyWide bed MC9RWZ against defects in workmanship and materials under normal use, from the date of first delivery.
- Frame and all welds on steel structural parts: 15 years.
- Control box and actuators (motors): 5 years.
- Batteries, hand pendants, foot-end controls and cables: 1 year.
- Parts subject to wear and bed accessories: 1 year.
- Covers the original purchaser only. Labour is not covered; return shipping is covered in the first year.
- Excludes abuse, misuse, poor maintenance, excessive loads, unapproved repairs or modifications, and parts from other makers.
