Description
The Span America PressureGuard APM-i, item 38036, is an 80 by 36 by 7 in (203 by 91 by 18 cm) powered air therapy mattress with the model 6200 control unit, rated 350 lbs (159 kg).
What does it do and how does it work?

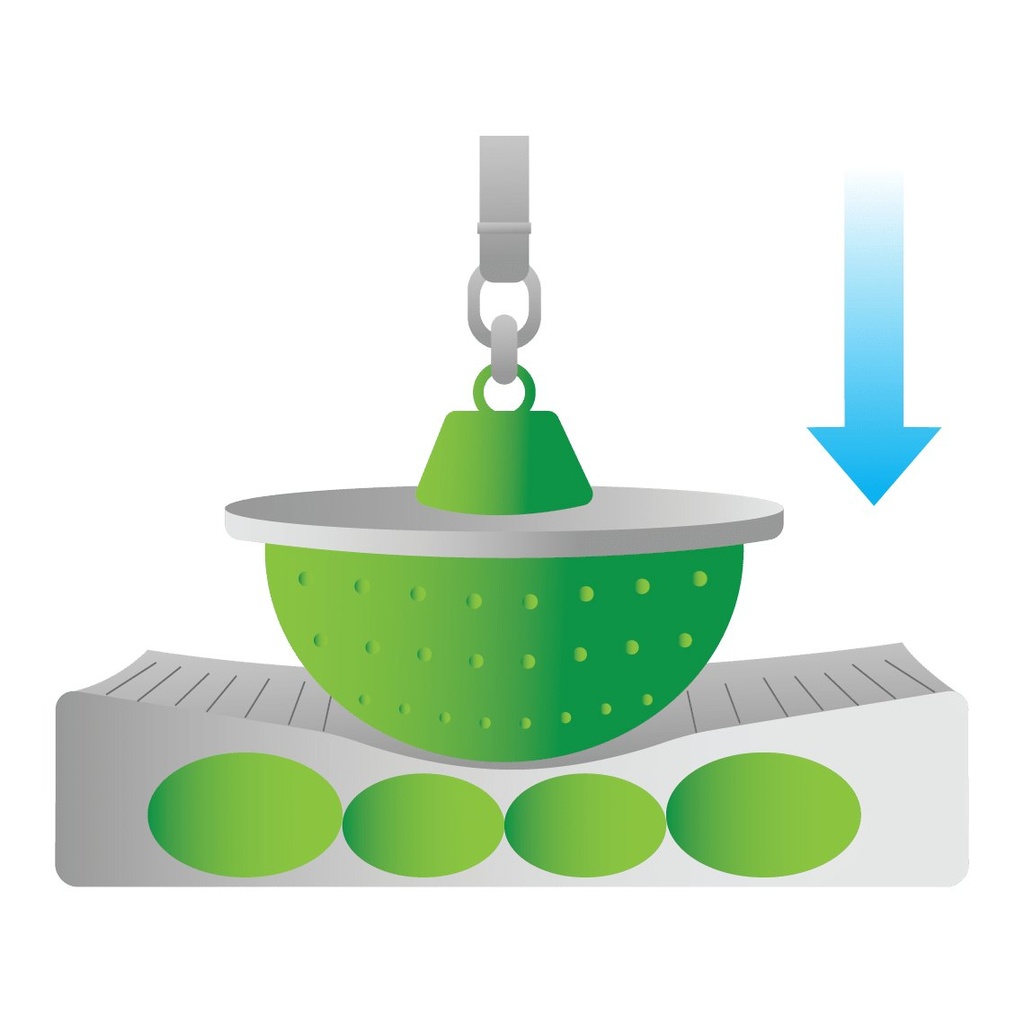

- SmartImmerse senses the person on the surface and auto-calibrates the air in four head-to-foot cylinders.

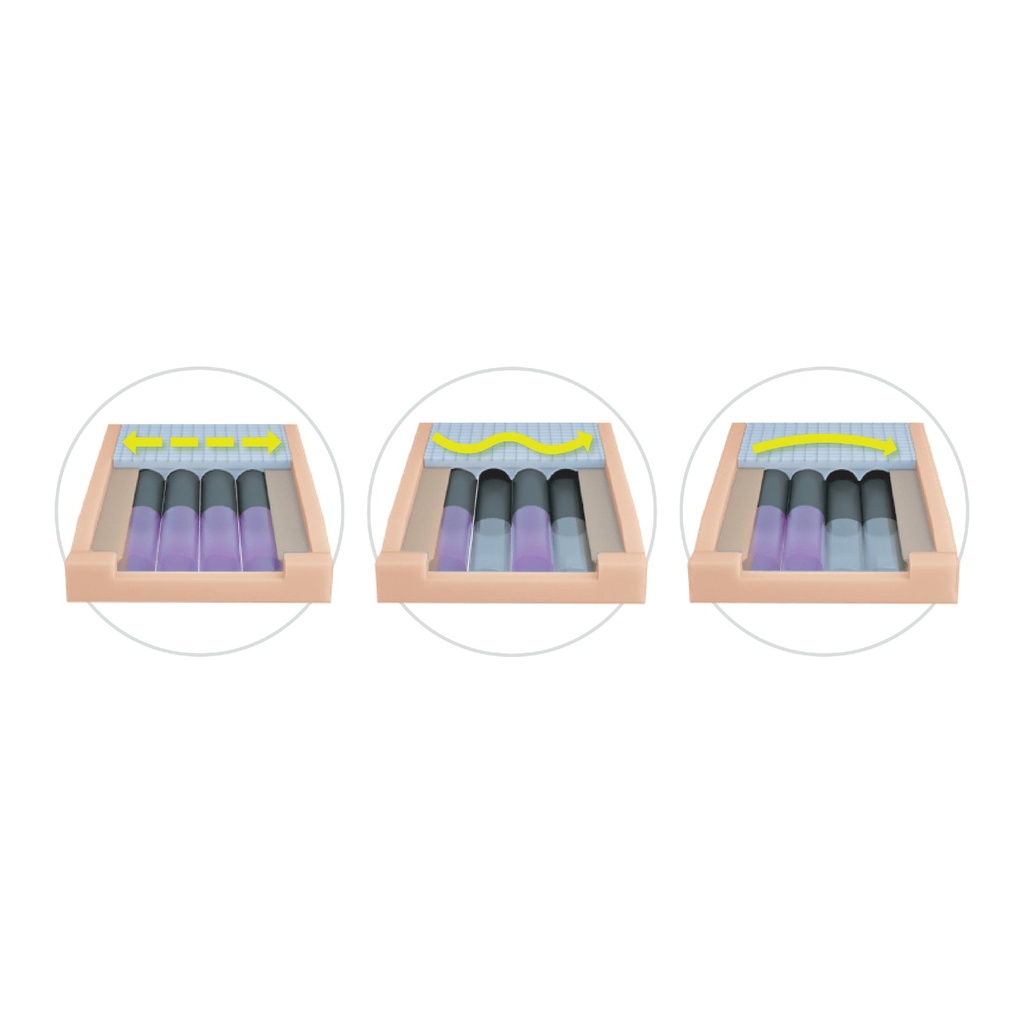

- Three modes: Immersion fills all four cylinders equally, Alternating Pressure shifts the load, and Lateral Rotation turns the surface; each therapy mode runs a fixed 10-minute cycle.

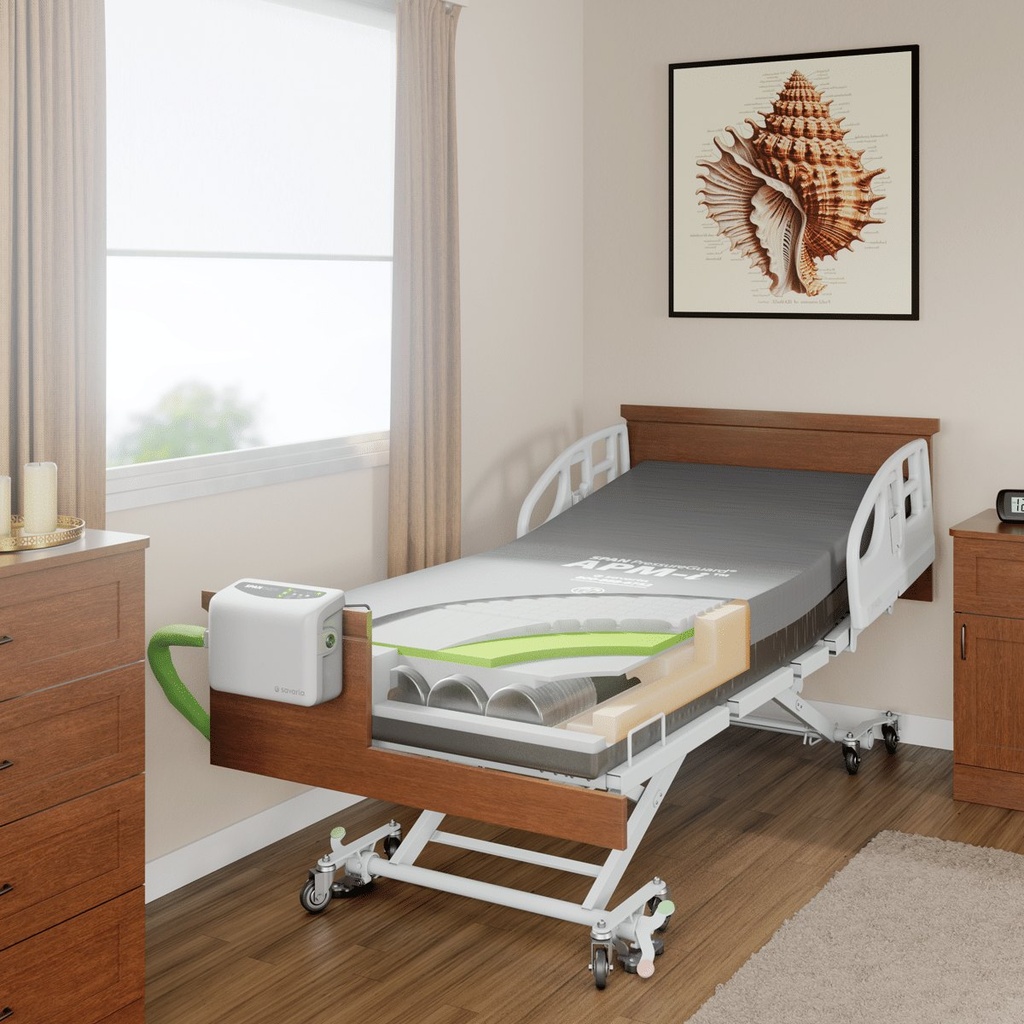

- A Geo-Matt foam top with more than 800 individual cells sits over the cylinders, with Safety Edge bolsters at both sides, a Heel Slope at the foot, and Shear Transfer Zones under the cover.
- Auto Firm gives a firm surface for 20 minutes for transfers, care and CPR, then returns to the previous mode.

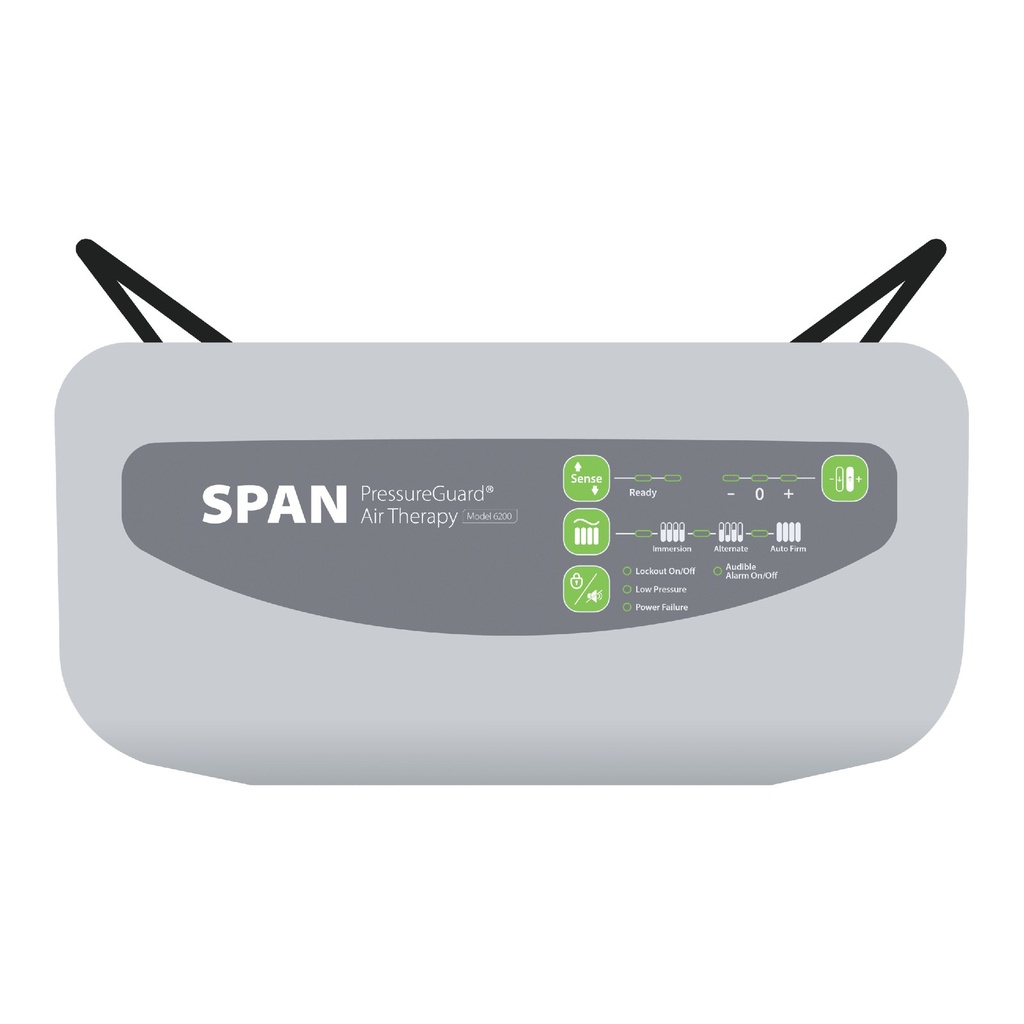

- The control unit has low-pressure and power-failure lights, an audible alarm, a five-minute lockout and a transport cap.
Who is it for, and who should choose something else?
- Savaria lists the APM-i for aggressive treatment through stage 4 and for prevention in immobile or high-risk patients; the care team decides.
- A person up to 350 lbs (159 kg) on an 80 by 36 in deck.
- An 84 in deck or 42 in width needs 38436, 38042 or 38442.
Will it fit?
- It is 80 by 36 by 7 in (203 x 91 x 18 cm) and goes directly on a healthcare bed frame, not on another mattress.
- The 350 lbs (159 kg) limit is the mattress rating; the bed's own limit applies if it is lower.
- Recheck the rail gaps with the mattress inflated. Health Canada recommends gaps under 120 mm (4 3/4 in) within and under the rail, and under 60 mm (2 3/8 in) at the rail ends. See bed rails.
- A mattress that has touched skin cannot be returned, so measure first. See the return policy.
Using it day to day
- Let SmartImmerse calibrate with the person on the bed, then set the mode and comfort.
- In a power failure the light and alarm come on; fit the transport cap to seal the air.
- For CPR, press Auto Firm and place a crash board under the person. There is no quick-deflate valve.
- Wipe the cover with neutral suds and lukewarm water, rinse and air dry; no harsh cleaners or solvents.
What does it work with, and what are its limits?
- It is a powered replacement: no therapy without power.
- The mattress weighs about 20 lbs (9.1 kg); the control unit weighs 5.1 lbs (2.3 kg).
- The mattress is warranted for three years, the cover for two years and the control unit for 18 months; none of it is pro-rated. See the Warranty tab.
How does it compare?
- PressureGuard APM: the earlier air-and-foam surface.
- Alternating pressure mattresses: the category.
Frequently asked questions
What does SmartImmerse do?
It senses the person and sets the air pressure for that body, then the comfort setting can be adjusted.
Is there a quick-deflate valve for CPR?
No. Press Auto Firm and place a crash board under the person.
What happens in a power failure?
The power-failure light and alarm come on; fit the transport cap to seal the air lines.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 350 lbs (159 kg)
- Product weight
- Mattress about 20 lbs (9.1 kg). The control unit is weighed separately.
- Construction
- Foam shell, Geo-Matt topper about 2" with more than 800 cells, four head-to-foot air cylinders, Heel Slope, Safety Edge bolsters
- Cover
- Zippered, bacteriostatic, fluid-proof and tear resistant, with bi-directional stretch and Shear Transfer Zones
- Cover care
- Wipe with neutral suds and lukewarm water, rinse, and air dry. No harsh cleaners or solvents.
- Therapy modes
- Immersion (four cylinders equal), alternating pressure, and lateral rotation
- Cycle time
- 10 minutes, fixed, for alternating pressure and for lateral rotation
- Comfort settings
- Firmer or softer than the original setting. Auto Firm runs 20 minutes.
- Alarms
- Low pressure and power failure, each with a light. A mute button silences the sound.
- CPR release
- Press Auto Firm and place a crash board. There is no quick-deflate valve.
- Edge support
- Safety Edge foam bolsters along both sides
- Power failure protection
- Power-failure light and audible alarm. A transport cap seals air in the mattress.
- Power supply
- 100-120 V AC, 60 Hz, 0.17 A, model 6200
- Pump weight
- 5.1 lbs (2.3 kg). Size 11.4 x 7.3 x 5 in (29 x 19 x 13 cm).
- Mattress width
- 36" (91 cm), item 38036
- Mattress length
- 80" (203 cm), item 38036
- Mattress height
- 7" (18 cm)
- Warranty
- Mattress 3 years, cover 2 years, control unit 18 months. Not pro-rated. Manufacturing defects.
- Product type
- Alternating Pressure Mattress
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Span-America, part of Savaria Patient Care, warrants the PressureGuard APM-i mattress system with the 6200 control unit to the original purchaser against defects in materials and workmanship, from the date of purchase. Repair or replacement is free during the term.
- Mattress: 3 years, not prorated.
- Cover: 2 years.
- Control unit: 18 months.
- Claims are made in writing with the original invoice and the sewn-in label or serial number; return shipping is paid by the maker with a return authorization number.
- Excludes defects from improper use, use without the cover, or use against the maker's instructions.
