Description

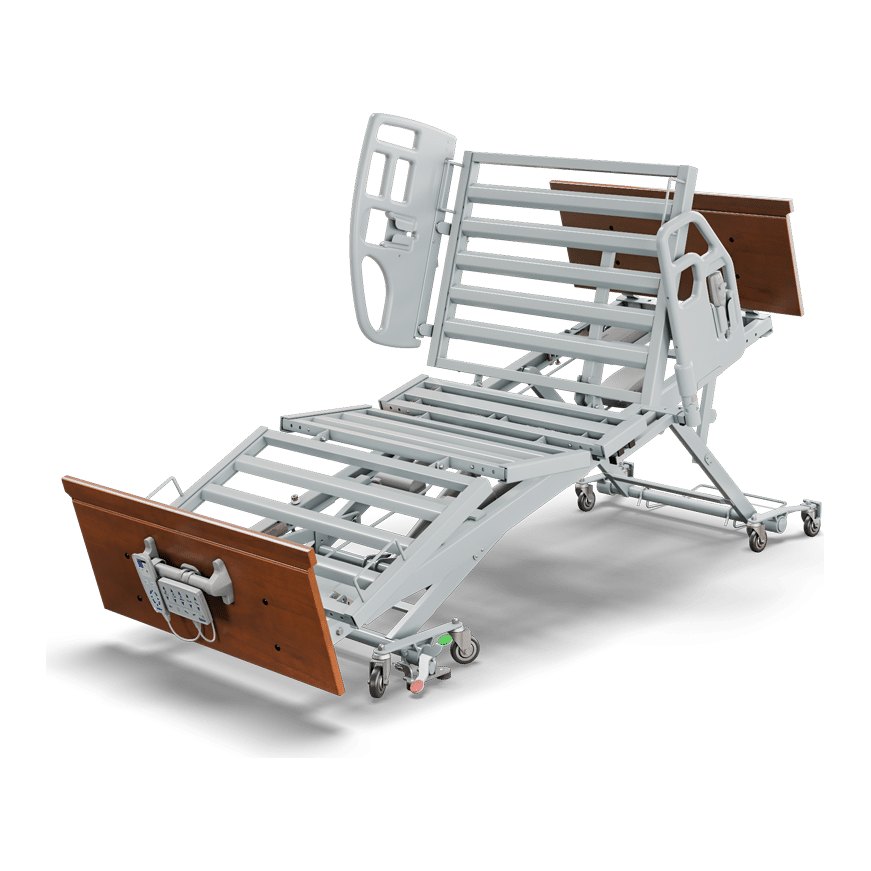

The Savaria SPAN Weigh Scale Bed MC7WSML is a low long-term care bed with a built-in weigh scale, a ReadyWide deck, mobility at any height and floor locks. It is the standard 500 lb model, not the 650 lb Plus.
What does the scale do?
- An independent scale pendant moves around the bed, so a caregiver can weigh a resident without moving the bed.
- A separate bed pendant runs the deck, and the foot-end control adds lockout, Comfort Chair, Trendelenburg and reverse Trendelenburg.
- Smart Stop pauses the deck at 12.5 in (318 mm) from the floor; lowering below that pause is done from the foot-end control only.
- Under-bed lighting can switch to a discreet night-time floor light, and a nurse call port is optional.
Will it fit the room?
- Deck height: 8-5/8 to 32-1/4 in (219 to 819 mm) from the floor to the mattress support.
- Sleep surface: 36, 39 or 42 in wide by ReadyWide two-click expansion, and 76, 80 or 84 in long.
- The 84 in length needs the 4 in bed extender, and overall length is 82, 86 or 90 in.
- The standard bed weighs 297 lb (135 kg) without accessories; the Plus bed is a different code at 301 lb.
- Confirm the deck width before you order a mattress, because the published width and metric pair do not match for the 36 in setting.
Using it day to day
- Back raises to 70 degrees and the knee to 30 degrees.
- The deck moves vertically with almost no horizontal travel, and the head deck lowers quickly for emergency treatment.
- A ratchet-style vascular footrest and an antimicrobial coating are standard.
- Floor locks hold the bed, and the ReadyWide expanders let it pass a narrow doorway.
What is not included?
- The mattress, bed rails, head and footboards and the nurse call connection are separate.
- Molded half-head assist rails, boards in several profiles and finishes, and the 4 in extender are options.
- See bed accessories, bed rails and medical mattresses.
How does it compare?
- Long term care beds: other facility frames, including the ReadyWide bed without a scale.
- Bariatric beds: the 650 lb Plus version and other wider frames.
Funding and warranty
Funding may help: see who may help pay. A room check is booked from a free home assessment.
Frequently asked questions
Is MC7WSML the 650 lb Plus bed?
No. MC7WSML is the standard model at 500 lb (227 kg). The 650 lb version is a different code.
Are there two hand controls?
Yes. One pendant runs the scale and one runs the deck, and the foot-end control adds the staff functions.
Can the resident lower the bed all the way?
No. Smart Stop halts at 12.5 in (318 mm), and only the foot-end control can take it lower.
Warranty: 15 years on the frame and welds and 5 years on the control box and actuators; see the warranty terms.
Specifications
- Weight capacity
- 500 lb (227 kg) safe working load. Plus at 650 lb is a different code.
- Product weight
- 297 lb (135 kg) without accessories, standard model
- Safety standard
- ANSI/AAMI ES60601-1:2005; CAN/CSA-C22.2 No. 60601-1-08, No. 60601-2-52:11 and No. 60601-1-2-08
- Caster locks
- Floor locks, with mobility, as printed on MC7WSML
- Overall length
- 82, 86 or 90 in (2083, 2184 or 2286 mm)
- Package contents
- Scale bed, mobility, floor locks, standard foot-end controls, bed pendant and scale pendant. No mattress, rails, boards or nurse call.
- Hand pendant
- Bed pendant, plus a separate weigh-scale pendant
- Bed length
- 76, 80 or 84 in (1930, 2032 or 2134 mm). The 84 in length needs the 4 in extender.
- Minimum bed height
- 8-5/8 in (219 mm), floor to mattress support
- Maximum bed height
- 32-1/4 in (819 mm), floor to mattress support
- Bed positions
- Standard foot-end controls: lockout, Comfort Chair, Trendelenburg and reverse Trendelenburg.
- Section angles
- Back 0 to 70 degrees. Knee 0 to 30 degrees.
- Head and footboards
- Optional. Profile names: Lincoln, Standard, Lethbridge, Trenton.
- Sold as
- One bed, code MC7WSML
- Available colours
- Board finishes named: Valley Oak, Candle Light, Hardrock Maple, Summer Flame, Choco. Boards are separate.
- Mobility
- Moves and locks at any height, with floor locks
- Scale
- Built-in weigh scale with an independent pendant that moves around the bed
- Foot-end control
- Lockout, Comfort Chair, Trendelenburg and reverse Trendelenburg
- Smart Stop
- Pauses at 12.5 in (318 mm); lowering below the pause is from the foot-end control only
- Under-bed lighting
- Standard, with a night-time floor light setting
- Nurse call
- Optional connection port, not included
- Frame finish
- Antimicrobial coating; ratchet-style vascular footrest
- Warranty
- Frame and welds 15 years. Control box and actuators 5 years. Batteries, pendants, foot-end controls, cables, wear parts 1 year.
- Product type
- Weigh scale bed with ReadyWide, mobility, floor locks and standard foot-end controls
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Span Medical Products Canada warrants the Weigh Scale Bed MC7WSML against defects in workmanship and materials under normal use, from the date of first delivery.
- Frame and all welds on steel structural parts: 15 years.
- Control box and actuators (motors): 5 years.
- Batteries, hand pendants, foot-end controls and cables: 1 year.
- Parts subject to wear and bed accessories: 1 year.
- Covers the original purchaser only. Labour is not covered; return shipping is covered in the first year.
- Excludes abuse, misuse, poor maintenance, excessive loads, unapproved repairs or modifications, and parts from other makers.
