Aqua Creek

The Revolution XL Deep Draft Pool Lift - 360° Rotation - 400lbs Weight Capacity

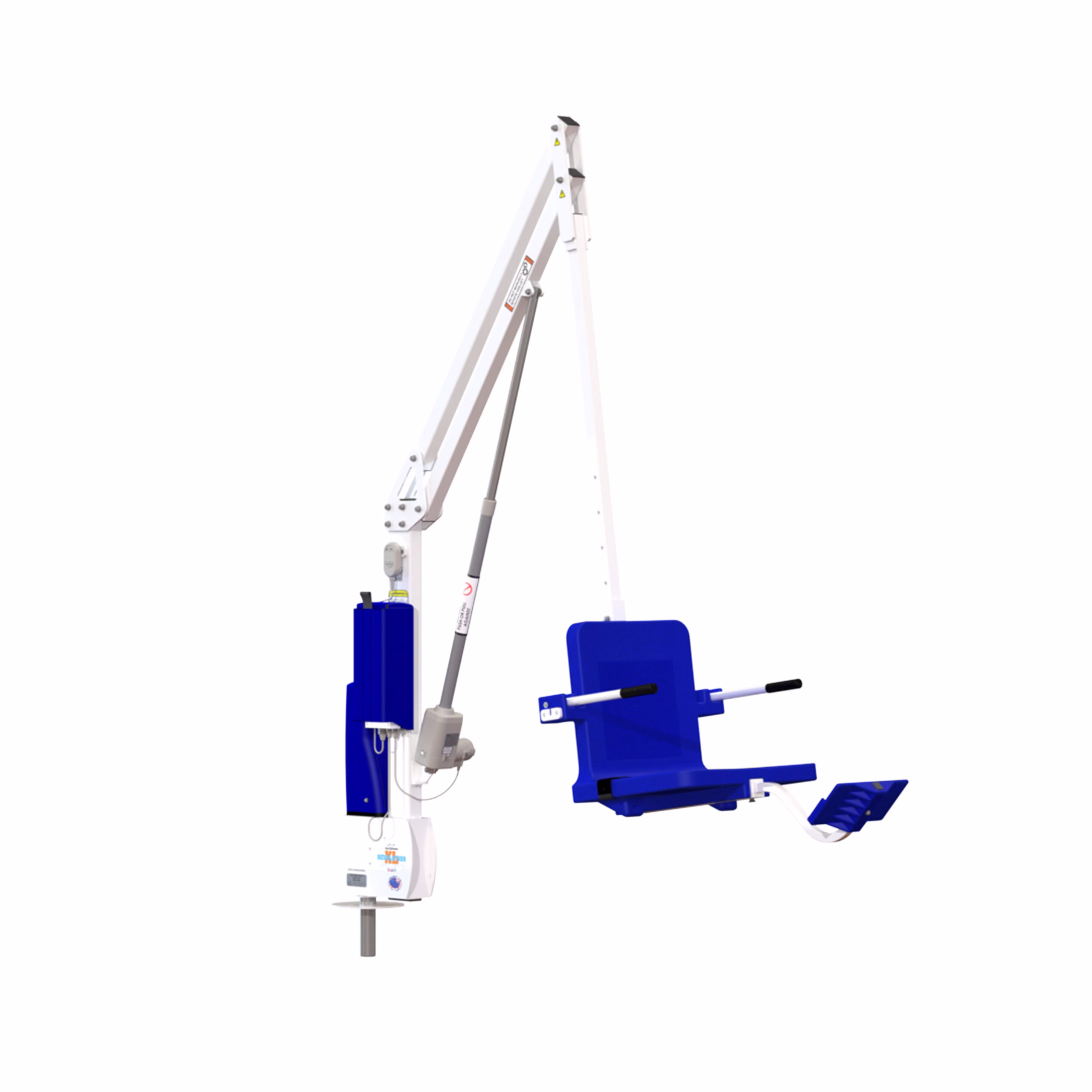

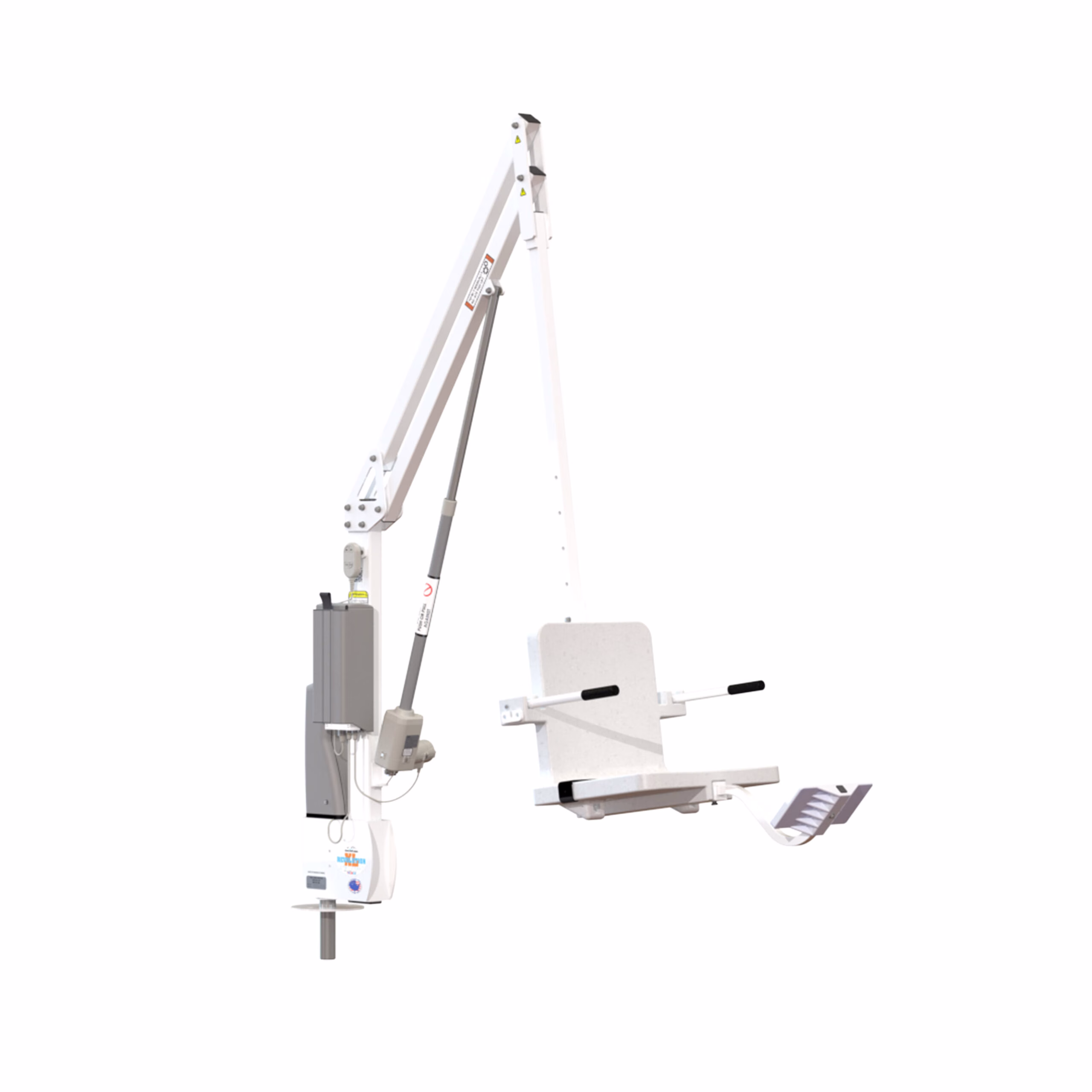

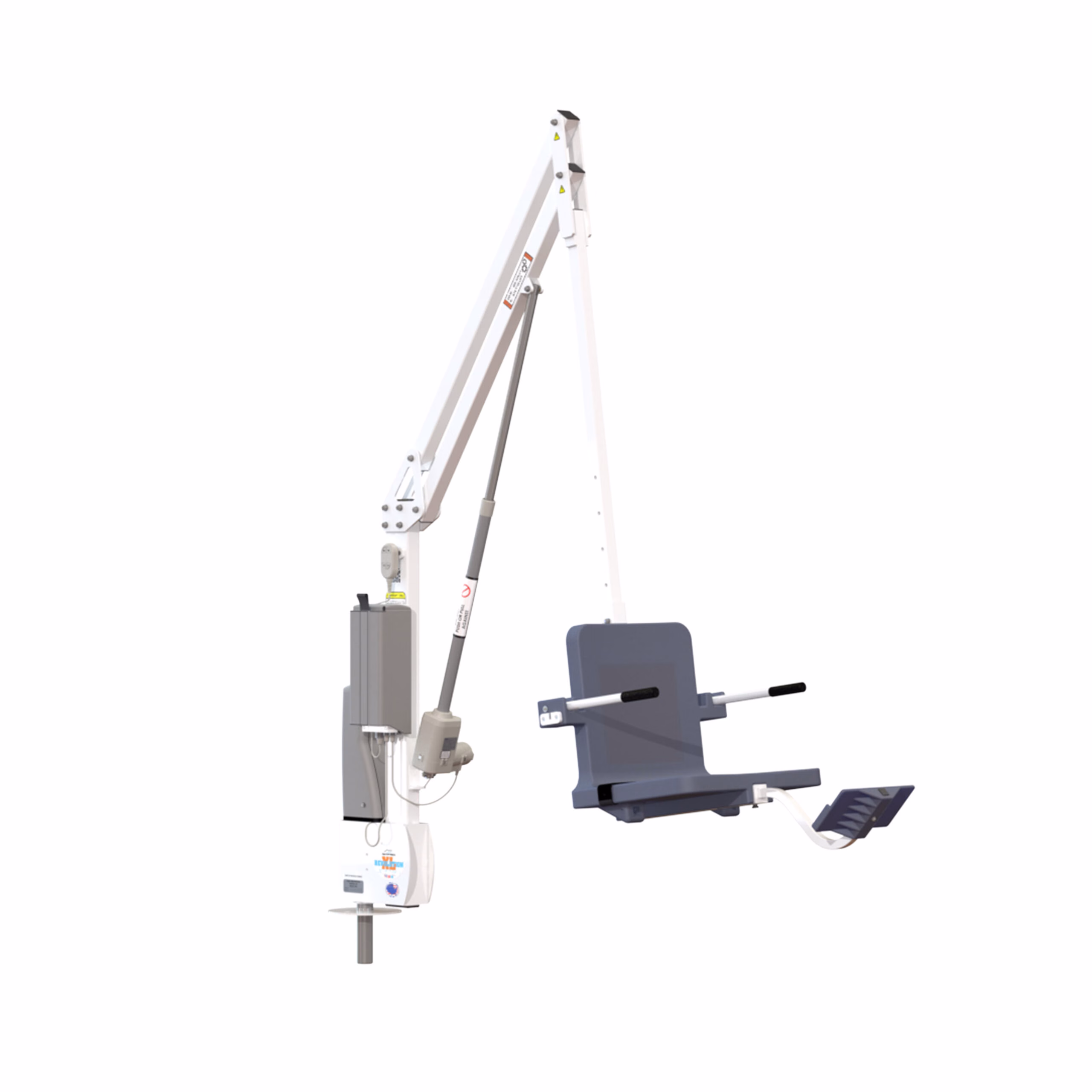

The Aqua Creek Revolution XL Deep Draft is a powered pool lift for wide gutters and deeper water, with 360-degree rotation. It is rated 400 lb (181 kg) and has the largest anchor setbacks in the Aqua Creek range, up to 52 in. The anchor is not included.

Key specifications All specifications
Capacity
400 lb (181 kg)
Model
F-REVXL-DD
Setback
10 to 52 in (25 to 132 cm)
Water draft
15 3/​8 in (39.1 cm)
Feature
Powered 360-degree rotation
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The Revolution XL Deep Draft lift, seat, flip-up armrest, seat belt, footrest, rechargeable battery and wall charger. The deck anchor, installation and any options are quoted separately.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
SKU
REVXLDEEP
Brand
Aqua Creek
Category
Pool Lifts
Barcode REVXLDEEP REVXLDEEP

Description

The Aqua Creek Revolution XL Deep Draft is a powered pool lift for in-ground and partially raised pools with wide gutters, small curbs and deeper water. It rotates a full 360 degrees and is rated 400 lb (181 kg).

How Deep Draft differs

  • The model is F-REVXL-DD, a 400 lb lift.
  • The standard Revolution XL is rated 500 lb and has a different application envelope.
  • The Deep Draft has the largest anchor setbacks and the deepest water draft in the Aqua Creek range, for wide gutters and partially raised pools.

Will it reach this pool?

  • The anchor setback range is 10 to 52 in (25 to 132 cm).
  • The water draft is 15 3/8 in (39.1 cm); clearances change with wall height and width.
  • Plot the pool on the maker's application chart, then survey the deck, curb and water level before ordering.
  • A site survey decides the anchor position and whether the lift can be used safely.

What the lift has

  • Powered 360-degree rotation with a direct-drive motor, and a flip-up armrest.
  • An adjustable seat pole with five positions in 4 in increments, a seat belt and an adjustable footrest.
  • A 304 stainless steel frame with a powder-coat finish.
  • A rechargeable battery and a wall-mounted charger.
  • The lift is UL certified and built to the US ADA pool lift figures.

What the quote must include

  • The anchor is not included. Standard concrete, paver and wood-deck anchors are separate, and the anchor type must match the deck.
  • The written quote names the lift code, anchor, installation, charger and any options.
  • Do not use the lift without a suitable anchor installed to the maker's instructions.

Limits and care

  • Do not exceed 400 lb (181 kg), and never use the lift with a dry pool.
  • Wash with fresh water and a soft cloth; do not use pool water.
  • Keep the lift covered when it is not in use, and store the battery on its charger.
  • Run the lift through a full cycle before each use and have an annual inspection with a test load.

Where it fits in the range

Compare other pool lifts, including the standard Revolution XL. A free home assessment can record the deck and pool edge before the quote; see the funding guide for possible help. Support after purchase is under service.

Funding and warranty

Funding may help: see the funding guide. Aqua Creek's five-year limited warranty terms are in the Warranty tab.

Frequently asked questions

Does it rotate?

Yes. The lift has powered 360-degree rotation.

Is it the same as the standard XL?

No. The standard Revolution XL is rated 500 lb; the Deep Draft is 400 lb and reaches further over wide gutters.

Is an anchor included?

No. The lift is supplied without an anchor; the correct concrete, paver or wood-deck anchor is a separate item.

Can it fit any wide gutter?

No. The setback range is 10 to 52 in and the water draft 15 3/8 in; the application chart and a site survey confirm the fit.

Specifications

Weight capacity
400 lbs (181 kg)
Installation
Anchor not included; concrete, paver or wood-deck anchor is separate
Battery
LINAK 24 V rechargeable
Rotation
360 degrees, powered
Minimum setback
10 in (25 cm)
Maximum setback
52 in (132 cm)
Minimum rotation radius
81.1 in (206 cm)
Maximum rotation radius
99.5 in (253 cm)
Maximum depth
15 3/8 in (39.1 cm) water draft
Material
304 stainless steel, powder-coat finish
Battery charger
LINAK 24 V wall charger
Maker model
F-REVXL-DD
Setback range
10 to 52 in (25 to 132 cm); confirm with a site survey
Warranty
Five years structural; five years pro-rated on electronics
Product type
Pool lift, F-REVXL-DD

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Aqua Creek Products warrants the Revolution XL Deep Draft pool lift (F-REVXL-DD) to be free from defects in material and workmanship for five years from the date of original purchase, when it is installed, used and maintained to Aqua Creek's instructions.

  • Frame and structure: 5 years.
  • Electrical parts, including the linear actuator: full cover in years 1 and 2, then 60% in year 3, 50% in year 4 and 40% in year 5.
  • Covers the original end user purchaser.
  • Excludes labour to remove, repair or install the lift, and shipping.
  • Excludes accident, misuse, overloading, poor maintenance, normal wear, and powder coat scratches or corrosion from use. Altering, repairing or installing the lift without Aqua Creek's approval voids the warranty.
