Description

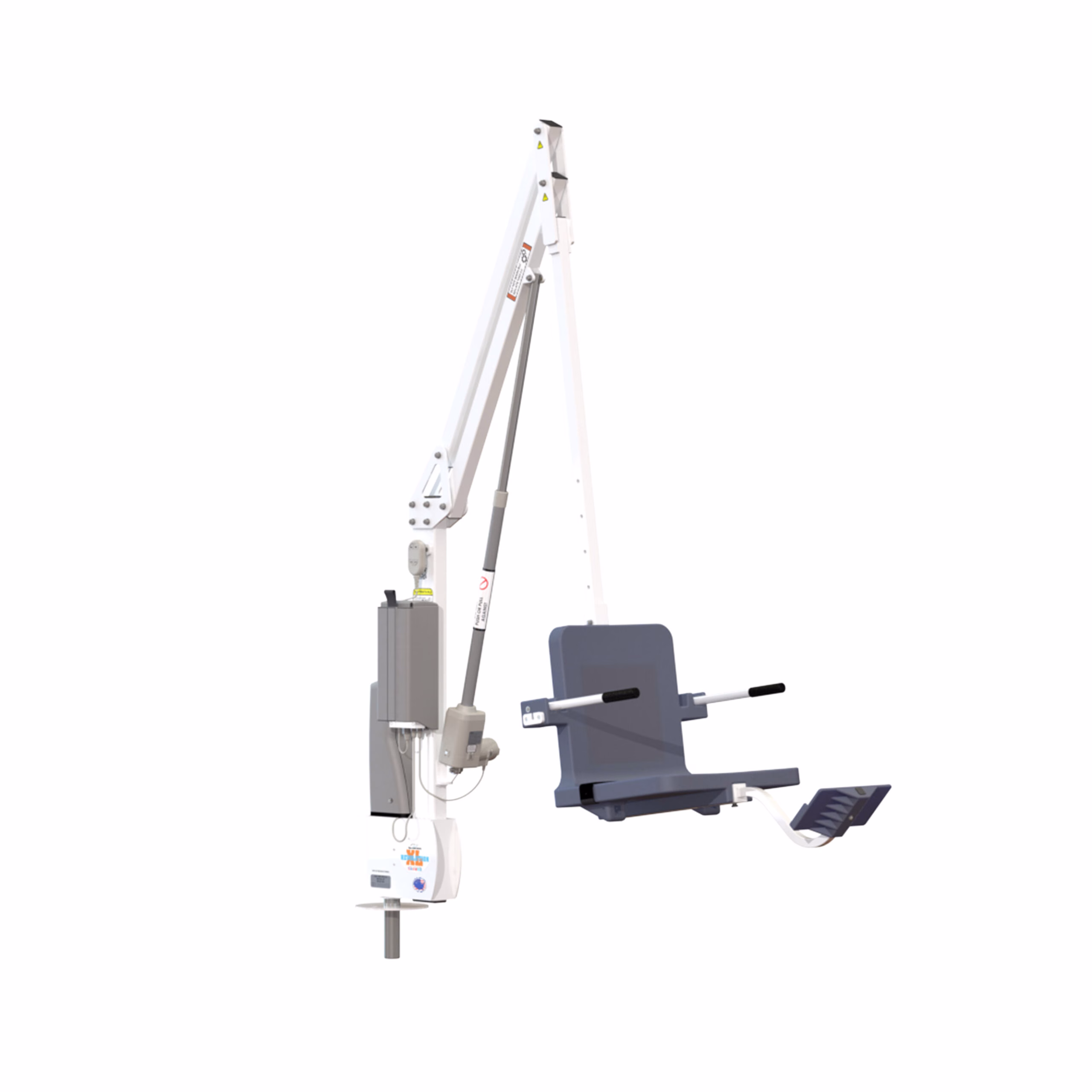

The Revolution XL is an Aqua Creek pool lift rated 500 lb (226 kg). It is powered, turns 360 degrees and is designed to be self-operated from a four-button handset.
What does it do?
- It raises and lowers a person into an in-ground or partially raised pool.
- The seat turns a full circle, and the seat pole adjusts.
- The frame is 304 stainless steel with a powder coat finish. The lift weighs about 199.83 lb (90.6 kg).
- It is ADA compliant and UL safety certified.
- The lift stops with the seat 16 to 19 in (41 to 48 cm) above the deck.
Which Revolution XL is this?
This is the standard F-REVXL at 500 lb (226 kg). The Revolution XL Deep Draft is a separate 400 lb model with a deeper draft for a different pool wall.

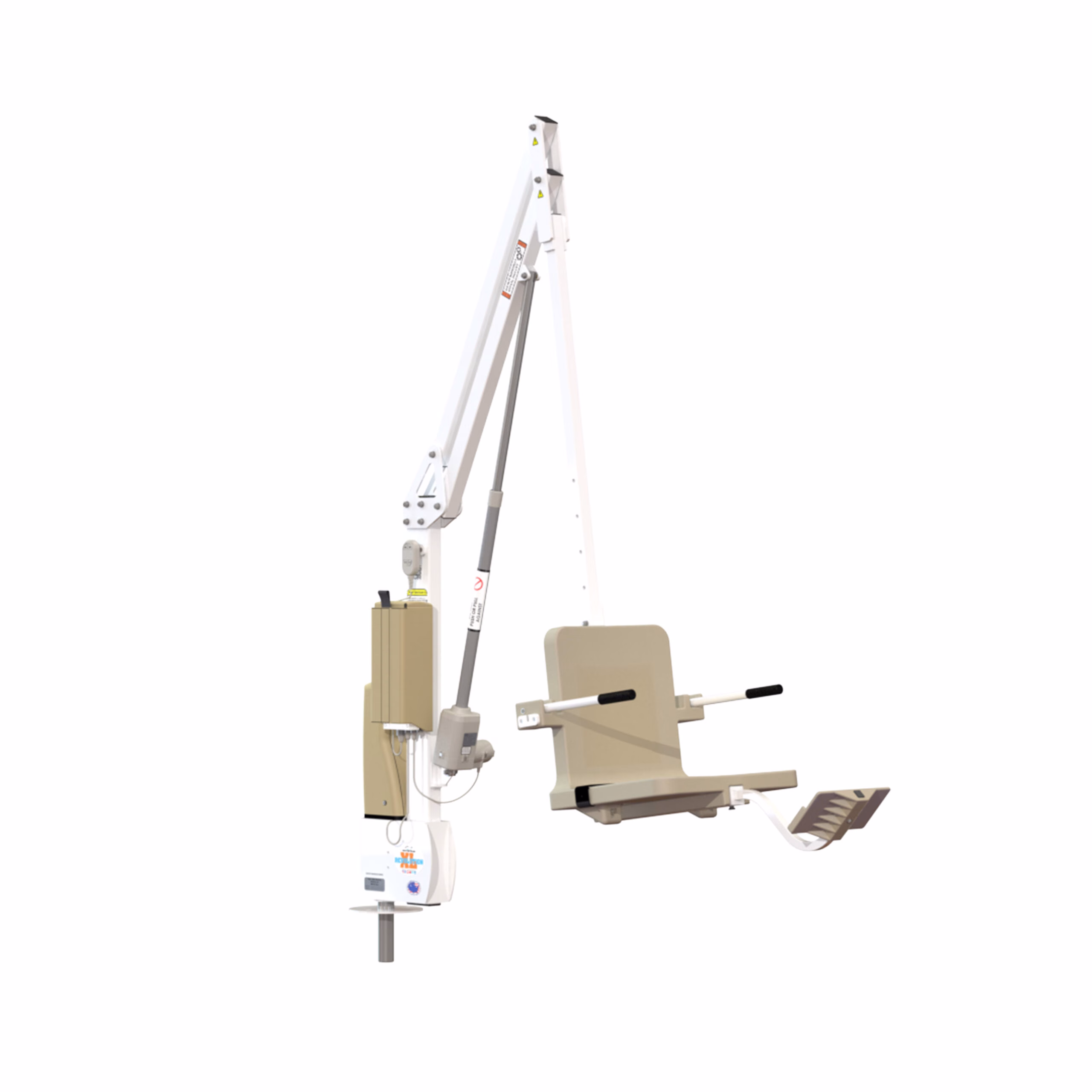

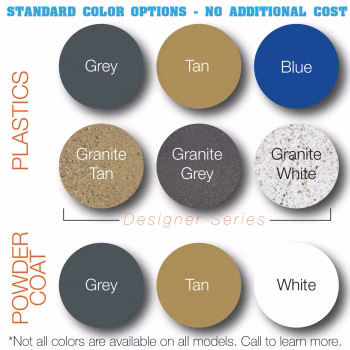

- Colour codes: F-REVXL blue and white, F-REVXL-T tan, F-REVXL-G gray, F-REVXL-W white, F-REVXL-C custom.
- The anchor is not included.
What pool geometry does it need?
- Anchor setback is 9 to 50 in, depending on the site.
- The deck survey and application chart decide whether an anchor position reaches the water safely.
- ADA planning uses 36 in (91 cm) of deck space; compliance stays with the pool owner.
- Measure the deck, the water and the transfer path before a quote.
Can an existing anchor be reused?
New XL stems are slightly smaller than older Revolution stems. Aqua Creek can machine a stem for an existing anchor when that is specified at order time.
- The anchor spindle is a 1.90 in square drive.
- The installer still inspects the anchor and the deck before the lift goes on.
Battery and controls
- Two LINAK 24 V batteries and a wall-mounted charger.
- The four-button handset controls all movement for the user.
- Put the battery on the charger whenever the lift is not in use.
Warranty
Aqua Creek's limited warranty runs five years, with electrical parts pro-rated from year 3; the terms are in the Warranty tab.
Plan the install
Browse pool lift choices and arrange a fit assessment. The written quote must identify the complete setup, delivery and training. For support after purchase, see our service options.
Funding
Funding may help: see who may help pay.
Frequently asked questions
Does the lift rotate all the way around?
Yes. The powered seat turns 360 degrees.
Is it the Deep Draft model?
No. Deep Draft is a separate 400 lb product with different reach.
Does the lift include an anchor?
No. F-REVXL ships without the anchor.
Will an older Revolution anchor fit?
New XL stems are smaller, but a machined stem can suit an existing anchor if ordered that way, after an anchor and deck check.
Specifications
- Weight capacity
- 500 lbs (226 kg)
- Product weight
- About 199.83 lb (90.6 kg)
- Construction
- 304 stainless steel with a powder coat finish
- Battery
- Two LINAK 24 V batteries, wall-mounted charger
- Rotation
- 360 degrees
- Minimum setback
- 9"
- Maximum setback
- 50"
- Minimum rotation radius
- 72"
- Maximum rotation radius
- 96"
- Maker model
- F-REVXL
- Setback
- 9 to 50 in, site dependent
- Anchor
- Not included with maker lift model
- Standards
- ADA compliant; UL safety certified
- Seat height above deck
- 16 to 19 in (41 to 48 cm)
- Anchor spindle
- 1.90 in square drive
- Warranty
- 5 years structure; electrical parts 100% years 1-2, pro-rated years 3-5
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
- Brochure The Revolution XL Pool Lift lift guide
- Brochure The Revolution XL Pool Lift brochure
- Brochure Aqua Creek Revolution XL specification, INV03177
- Brochure The Revolution XL Pool Lift specifications sheet
- User Manual Aqua Creek Revolution XL installation and operation manual, INV03177
- User Manual The Revolution XL Pool Lift user manual
- Other Aqua Creek Revolution XL application graph, INV03177
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Aqua Creek Products warrants the Revolution XL pool lift (F-REVXL) to be free from defects in material and workmanship for five years from the date of original purchase, when it is installed, used and maintained to Aqua Creek's instructions.
- Frame and structure: 5 years.
- Electrical parts, including the linear actuator: full cover in years 1 and 2, then 60% in year 3, 50% in year 4 and 40% in year 5.
- Covers the original end user purchaser.
- Excludes labour to remove, repair or install the lift, and shipping.
- Excludes accident, misuse, overloading, poor maintenance, normal wear, and powder coat scratches or corrosion from use. Altering, repairing or installing the lift without Aqua Creek's approval voids the warranty.
