Description

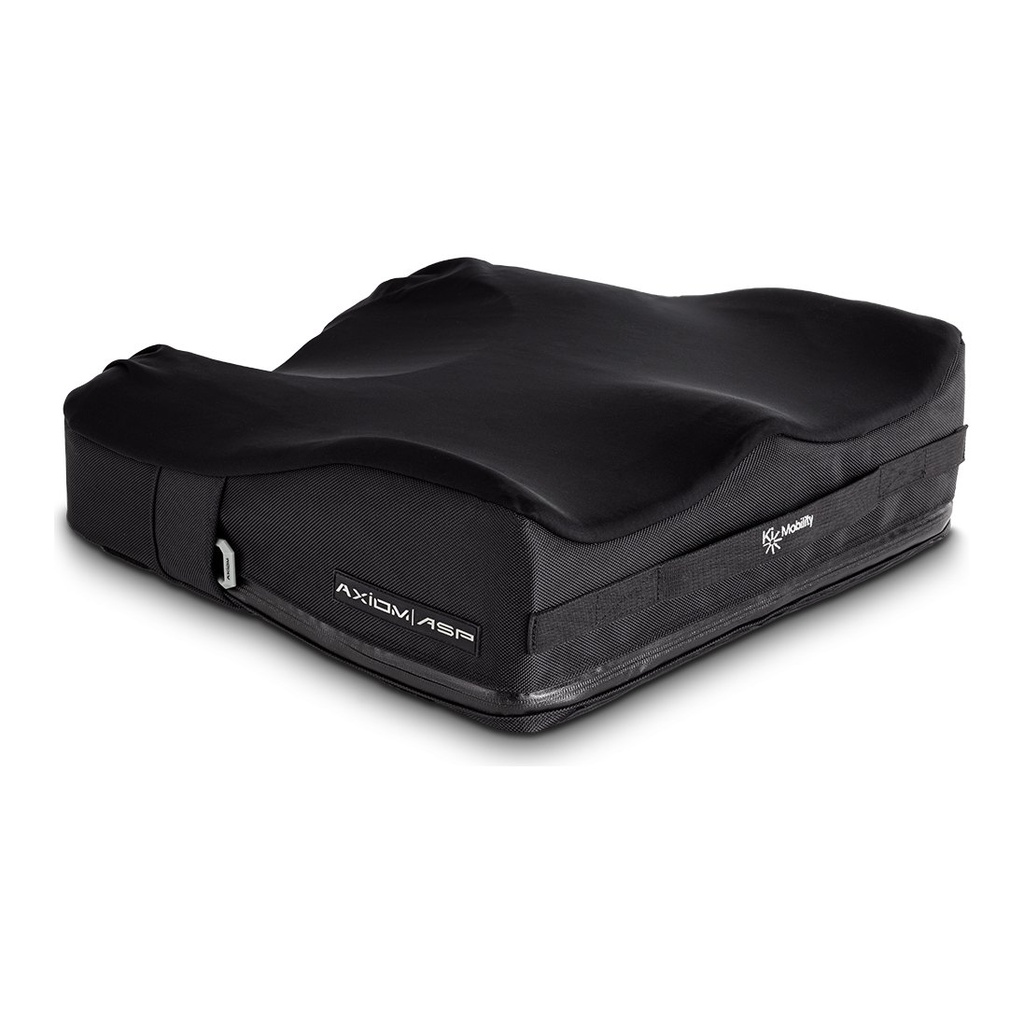

The Ki Mobility Axiom ASP (SE0001932) is a pre-contoured wheelchair cushion with fluid pads that set themselves under the user's weight. Ki rates it for skin protection and positioning.
What does it do and how does it work?
- Self-adjusting fluid: bodyweight pushes the Hydrolite fluid aside until the load is spread, with no pump needed.
- Ischial pads: two fluid pads under the seat bones use a more mobile fluid, and the separate hip pads use a stiffer one for side stability.

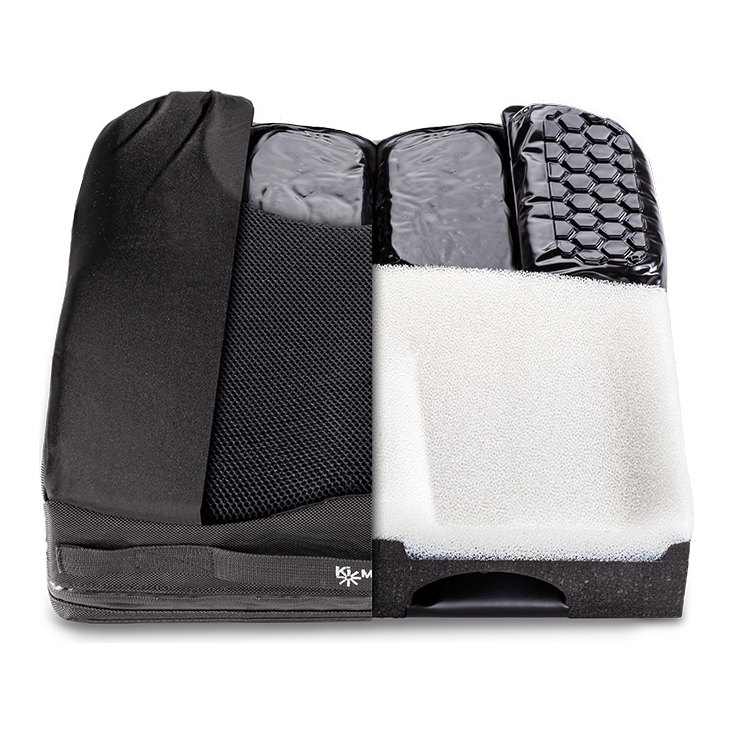

- Base: closed-cell structural foam with reservoir channels, vents, and a spacer fabric layer over reticulated foam.
- Cover: pleated four-way stretch Lycra, zipped, with the ischial pads just under the outer surface.
Who is it for, and who should choose something else?
It suits a person whose assessment calls for skin protection and positioning in one cushion, with fluid under the seat bones and firmer support at the hips. An occupational therapist or physiotherapist chooses and sizes it in a seating assessment.
Choose an air cushion when the assessment calls for hand-adjusted cell pressure, or a foam cushion when fluid pads are not wanted.
Will it fit?
- Width and depth: 14 to 22 in (35.6 to 55.9 cm) in 67 pairs, not every width with every depth.
- Narrowing: the 14 in width runs to 20 in deep, the 17 and 18 in widths start at 15 in, the 19 to 22 in widths start at 16 in, and the 21 in width starts at 18 in.
- Height: 5.5 in (14 cm) overall and 3.8 in (9.5 cm) at the leg troughs; check that the footrests still set the thighs level.
- Seat: the cushion needs hook-and-loop on the seat sling, and a sling that is not stretched.
Using it day to day
- Placement: tags to the rear, handle to the front, non-skid side down; the cover is marked top, front, back and bottom.
- Bottoming out: once a month, sit on the covered cushion for 5 to 10 minutes, lift off and push down where the seat bones were; at least 0.5 in (12.5 mm) of fluid should sit before the base.
- Cover: machine wash hot, tumble dry with no heat; no bleach, iron or dry clean.
- Foam and pads: spray and wipe, never immerse; let both dry fully, out of sunlight.
What does it work with, and what are its limits?
- Weight limit: 350 lbs (158 kg).
- Clear the seat: keys, lift slings and underpads under the user create pressure points.
- Heat: keep the cushion away from open flame, extreme heat and prolonged sun.
- Stop use after: a thick white fluid around a pad (a leak), a tear, or foam that flattens or breaks down.
- Body changes: recheck the fit after weight gain or loss, and at least monthly.
- Warranty: 24 months.
Which version should I choose?
The ASP is 5.5 in (14 cm) overall; the Axiom AS is 4.5 in (11.4 cm), for a lower seat. Both use the same cover.
How does it compare?
A ROHO Hybrid Select uses air cells the user adjusts with a pump; a Geo-Matrix Platinum uses gel. The cushion range lists the rest.
Frequently asked questions
Can I add or remove fluid myself?
No. Bodyweight sets the immersion; a clinician can change the volume through the reservoir, but nothing is pumped.
What does a leak look like?
A thick white fluid on or around a pad; stop using the cushion and contact us.
Will it stay on a seat without hook-and-loop?
Not reliably. The cushion depends on hook-and-loop and its non-skid bottom to stay put.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 350 lbs (158 kg)
- Product weight
- 3.3 lbs (1.5 kg)
- Seat width
- 14 to 22 in (35.6 to 55.9 cm)
- Seat depth
- 14 to 22 in (35.6 to 55.9 cm)
- Cushion height
- 5.5 in (14 cm) overall, 3.8 in (9.5 cm) at the leg troughs
- Sizes
- 67 width and depth pairs; 14 in width to 20 in deep, 17 and 18 in widths from 15 in, 19 to 22 in widths from 16 in, 21 in from 18 in
- Construction
- Closed-cell structural foam base with fluid reservoir channels and vents; reticulated foam and spacer fabric; ischial and trochanteric fluid pads
- Cover
- Pleated four-way stretch Lycra cover, zipped, with a non-skid bottom
- Cover care
- Machine wash hot, tumble dry no heat; no bleach, iron or dry clean
- Adjustments
- Bodyweight sets the immersion; fluid volume adjusted through the reservoir, no pump
- Item numbers
- XASP plus the width and the depth, for example XASP1818 for 18 x 18 in
- Warranty
- 24 months on the base and fluid pads, 6 months on the removable cover
- Product type
- Pre-contoured foam and fluid wheelchair cushion
- Use category
- Skin protection and positioning
Options and sizes can change some figures. Ask us to confirm yours before you order.
