Ki Mobility

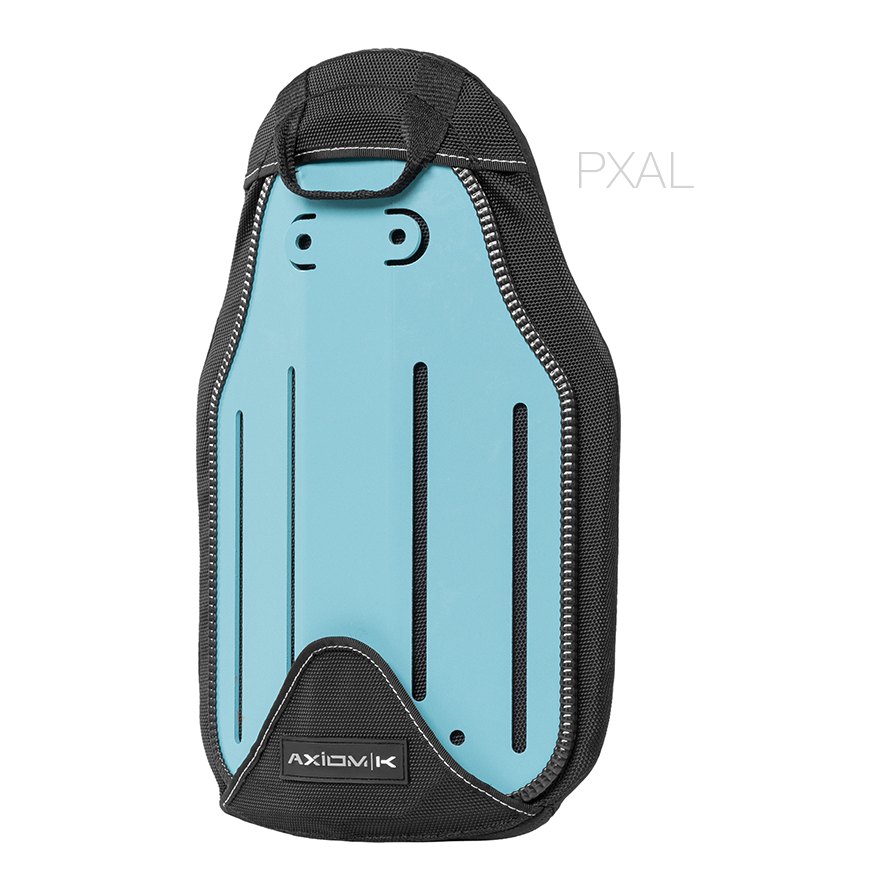

Ki Mobility Axiom for Kids Adjustable Lateral Back (PXAL)

The Ki Mobility Axiom for Kids Adjustable Lateral Back (PXAL) is a back system built to change: the shell takes laterals at the trunk or the hips, fixed or swing-away, and the pads swap as the child grows.

Key specifications All specifications
Product type
Adjustable lateral back support for a paediatric wheelchair
Part number
PXAL (the PXALCL is the same shell with contour lateral wings)
Back size
10 to 16 in wide (25.4-40.6 cm) and 10 to 18 in high (25.4-45.7 cm), from 10 x 10 in
Adjustment
3.3 in (8.4 cm) of height, 1 in (2.5 cm) of width, 2 in or 4 in (5.1 or 10.2 cm) of angle
Lateral options
Shell only, or fixed or swing-away laterals mounted at the trunk or the hips
Cover
Breathable, wipeable and removable, over 1 in (2.5 cm) of foam
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The back shell with its foam and cover, and the Dex-4-Kids mounting hardware. Laterals are chosen at order: none, fixed or swing-away, at the trunk or the hips.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
Brand
Ki Mobility

Description

The Ki Mobility Axiom for Kids Adjustable Lateral Back (PXAL) is a paediatric wheelchair back with separate lateral supports that can be mounted at the trunk or the hips, fixed or swing-away, and moved as the child grows. It is quoted to the size and build your therapist sets.

What does it do and how does it work?

  • Shell: 3.3 in (8.4 cm) of height adjustment, 1 in (2.5 cm) of width adjustment, and a 2 in or 4 in (5.1 or 10.2 cm) angle setting.
  • Laterals: separate hardware on their own adjustment slots, so they do not interfere with the back mounting; fixed or swing-away, at the trunk or the hips.
  • Pads: interchangeable, so the support can change without a new back.
  • Foam and cover: 1 in (2.5 cm) of foam under a breathable, wipeable cover that lifts off for washing.

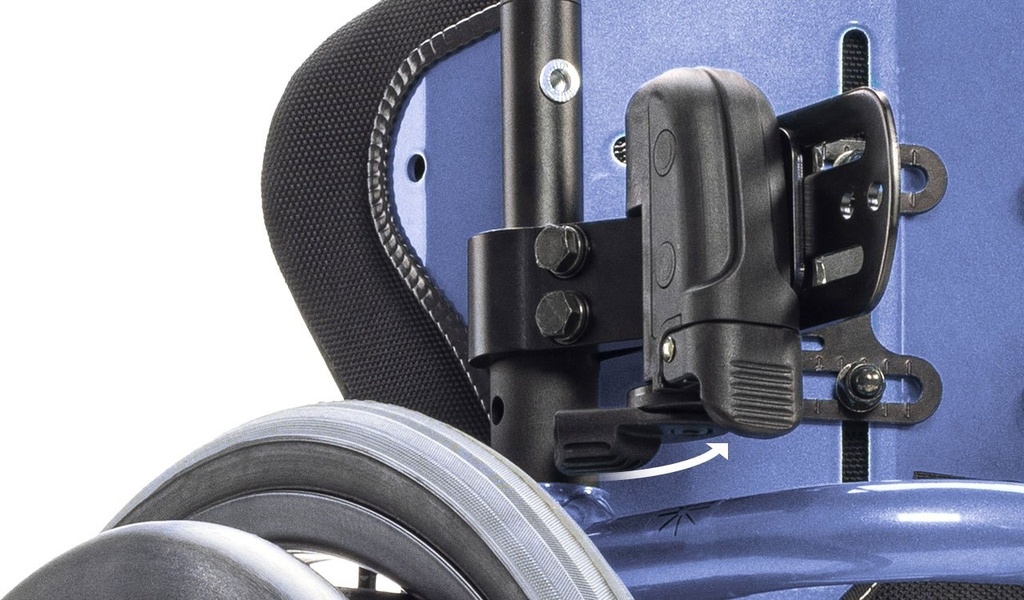

  • Mounting: Dex-4-Kids hardware with a lockout latch that clicks when the back is locked.

Who is it for, and who should choose something else?

It is for a child whose posture needs support at the trunk, the hips or both, and for a family that wants one back to last through growth.

  • A fixed shell shape: the posterior lateral back (PXPL) forms the laterals into the shell.
  • Contour wings: the PXALCL uses this same shell with shaped wings.
  • Assessment: a therapist should decide the lateral position and angle with the child seated.

Will it fit?

  • Size: 10 to 16 in (25.4 to 40.6 cm) wide and 10 to 18 in (25.4 to 45.7 cm) high; sizes start at 10 x 10 in.
  • Chair: the back fits chair widths within 1 in of the back width.
  • Depth: the Dex-4-Kids hardware gives 2 in (5.1 cm) of depth adjustment.

Fitting and day-to-day use

  • An occupational therapist sets the lateral height, width and angle with the child in the chair.
  • Pull up on the handle and listen for the locking click before each trip.
  • The cover lifts off for washing; the foam and shell stay in place.
  • We can assess the home before the build is ordered and fit the back when it arrives.

What does it work with, and what are its limits?

  • Warranty: 24 months on the shell and foam, 6 months on the removable covers; punctures, tears and burns are excluded.
  • Configuration: the back is built to the size and options chosen, so the quote names the build rather than a stock item number.
  • Back panel only: the shell can be ordered without laterals when the therapist wants no side support.

How does it compare?

Funding, quote and delivery

Funding may help: see who may help pay. Send us the therapist's measurements and we will quote the build and confirm the Canadian lead time.

Frequently asked questions

Can one back last through growth?

The shell adjusts 3.3 in in height and 1 in in width, and the laterals move on their own slots.

Can the shell be ordered on its own?

Yes. It can be built with no laterals, or with laterals at the trunk or hips in a fixed or swing-away mount.

How is this different from the PXPL?

The PXPL's laterals are formed into the shell. The PXAL has separate hardware and swappable pads.

Specifications

Product dimensions
10-16 in wide (25.4-40.6 cm) and 10-18 in high (25.4-45.7 cm), from 10 x 10 in, with 1 in (2.5 cm) of foam
Height adjustment range
3.3 in (8.4 cm) of height, 1 in (2.5 cm) of width and 2 in or 4 in (5.1 or 10.2 cm) of angle
Cover
Breathable, wipeable and removable for washing
Compatible with
Chairs within 1 in of the back width; Dex-4-Kids hardware with 2 in (5.1 cm) of depth adjustment
Side
Fixed or swing-away laterals, mounted at the trunk or at the hips, or a back panel with no laterals
Warranty
24 months on the shell and foam, 6 months on the removable covers
Product type
Adjustable lateral back support for a paediatric wheelchair
Part number
PXAL; the PXALCL is the same shell with contour lateral wings

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Ki Mobility warrants the Axiom for Kids adjustable lateral back (PXAL) against defects in materials and workmanship from the date of purchase.

  • Back shell and foam: 24 months; punctures, tears and burns are not covered.
  • Removable covers: 6 months; punctures, tears and burns are not covered.
  • Ki Mobility repairs or replaces covered parts. Get Ki Mobility's approval before a return or repair; claims go through the nearest authorized supplier.
  • For the first consumer purchase through an authorized Ki Mobility supplier; not transferable; North America only.
  • Not covered: neglect, accident, misuse, improper installation or repair, changes made without Ki Mobility's written consent, and damage from exceeding the weight limit.
