Description

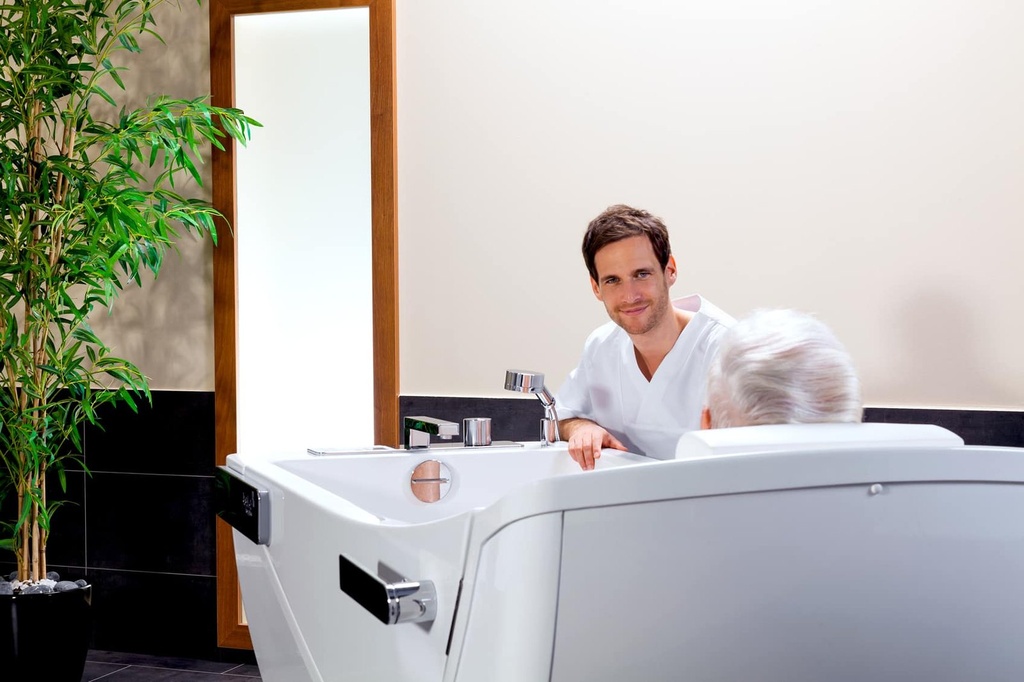

The Beka Avero Motion E is a side-entry care bathtub. A partly mobile resident walks in through the side door, sits on the moulded seat, and the tub tilts back 23 degrees into the bathing position. Everything runs from a cable remote control.
This tub is quoted with its options and installation, so the price depends on the fitted equipment.
What does it do and how does it work?
- Entry: a side door at a boarding height of 19.3 to 27.2 in (490 to 690 mm).
- Movement: electric lift of 7.9 in (200 mm) plus a 23 degree tilt, from the cable remote.
- Size: 33.9 in wide, 69.3 in long in entry and 75.1 in tilted back, 75.6 in high with the door open.
- Water: 98 L pre-fills the foot area, about 270 L to fill, draining at 75 L a minute.
- Build: glass-fibre reinforced plastic body, moulded seat with an anti-slip back profile, hygiene opening and handles.
- Safety: double scalding protection, set mechanically on the thermostatic mixer.
- Capacity: 772 lb (350 kg) with patient and water; 485 lb (220 kg) maximum patient.
Who is it for, and who should choose something else?
- For bathing residents in a care home, including a partly mobile resident who can walk in through the side door.
- The maker rates it for mobility groups 1 to 3, and group 4 only with a transfer hoist.
- For an ordinary tub with a lifting seat, choose a bath lift.
Will it fit?
- It needs a level floor, a 120 V power supply and hot and cold water, connected through 1/2 in hoses with dirt filters.
- Boarding height runs 490 to 690 mm and working height 810 to 1010 mm at the front.
- Check the room for the 860 mm width and the 1920 mm height with the door open.
Using it day to day
- Set the hot and cold mixer and its scalding limit before the first bath, then pre-fill the foot area.

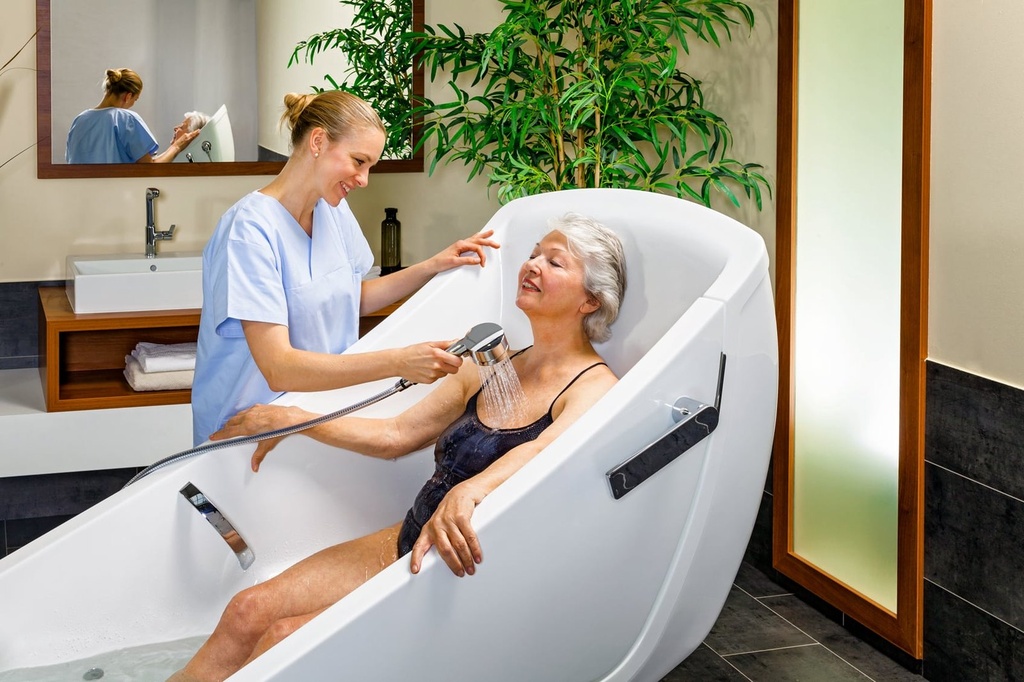

- A carer tilts the tub back 23 degrees, bathes the resident at working height, then drains it.
- Wipe with a soft cloth and soapy water or a plastic cleaner, and disinfect after each use.
- Never use an abrasive cleaner; surface damage from aggressive cleaning is excluded from cover.
What does it work with, and what are its limits?
- It carries a 350 kg safe working load with patient and water, and no more than 220 kg of patient.
- Emergency power-failure function, automatic filling, whirlpool, music, colour light, disinfection and a neck pillow are options.
- It is delivered ready to use and levelled on its screw legs; installation and options are quoted.
- Bathroom safety items are non-returnable under our return policy once used.
How does it compare?
This is a fixed care tub a resident walks into under bathing systems; the Niagara is another fixed tub, and a bath lift works with an ordinary tub.
Frequently asked questions
Does the tub tilt back on its own?
The carer tilts it back 23 degrees from the cable remote control.
Can a resident get in without being lifted?
Yes for a partly mobile resident; the side door opens at a 490 mm entry height.
How much water does a bath take?
About 270 L to fill, with 98 L already in the foot area before the tub tilts back.
Does it need a hoist in the room?
Not for mobility groups 1 to 3. Group 4 residents need a transfer hoist, and the open base frame lets one reach over the tub.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 772 lbs (350 kg) with the patient and the water; 485 lbs (220 kg) maximum patient
- Product weight
- 386 lbs (175 kg) without packaging
- Assembly
- Delivered ready to use; levelled on its screw legs with a wrench; connected through 1/2 inch hoses with dirt filters on the water supply
- Backrest
- Moulded seat with a special back profile to stop slipping as the tub tilts back
- Seat height
- 19.3" to 27.2" (490-690 mm) boarding height; 31.9" to 39.8" (810-1010 mm) at working height
- Height adjustment
- Electric, 7.9" (200 mm) of lift, plus a 23 degree tilt into the bathing position
- Overall width
- 33.9" (860 mm) outside; 24.4" (620 mm) inside at the bottom, 26.8" (680 mm) at the top
- Overall height
- 75.6" (1920 mm) with the door open
- Overall length
- 69.3" (1760 mm) in the entry position; 75.1" (1908 mm) tilted back
- Uses
- Bathing a resident in a care home; a partly mobile resident walks in through the side door
- Water resistance
- Tub IPX4; cable remote control IPX6
- Water capacity
- About 270 L (71.3 gal) to fill; 98 L (25.9 gal) already sits in the foot area before it tilts back; about 185 L of water per bath
- Material
- Glass-fibre reinforced plastic tub body
- Product type
- Bathing System
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
1 year on parts.
Read the warranty and service policy for the full terms.
Replacement parts for this model
19 parts
Open the parts finder for this model
- Avero Bluetooth Sound System, 810609550 810609550
- Avero Door Hinge Cover, T9100890 T9100890
- Avero Emergency Function, 810150587 810150587
- Avero Motion Air Jet Whirl System, 810150570 810150570
- Avero Motion Automatic Water Stop, 810150560 810150560
- Avero Motion Cable Remote Control, 810150555 810150555
- Avero Motion Colour Light System, 810150575 810150575
- Avero Motion Disinfection System, 810150585 810150585
- Beka Avero Motion accumulator, 12 V (K9104240) K9104240
- Beka Avero Motion charger, 24 V (K9104230) K9104230
- Beka Avero Motion drain change holder (910150582) 910150582
- Beka Avero Motion plain bearing with collar N3002002 N3002002
- Beka Avero Motion plummer plastic (K9103810) K9103810
- Beka AVERO Motion Second Showerhead Holder 910150586 910150586
- Beka Avero music sound system, part 810150572 810150572
- Beka disinfectant reservoir, order code K9103860 K9103860
- Beka door lock bolt, order code T9101121 T9101121
- Beka lock cassette for a care bathtub, order code S9100003 S9100003
- Neck pillow, order 910210000 910210000
