Description

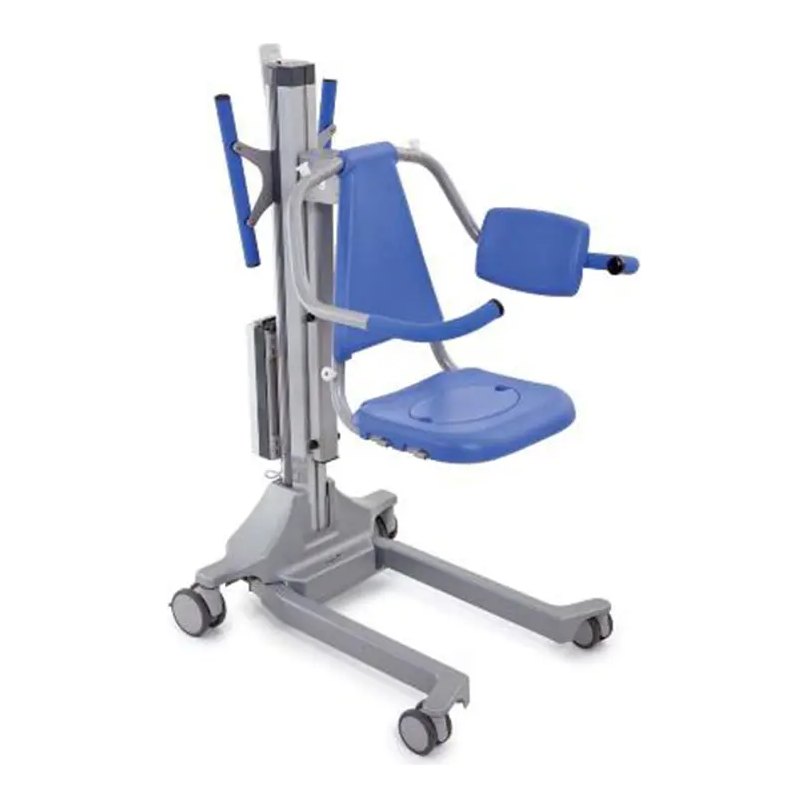

The Beka Senta PUR L is a battery powered combi bath lift for a modern care bathtub. It rolls to the bed as a seat lift, and click-on stretcher wings turn the same lift into a lying surface for a resident who cannot sit up.
Who is a Senta PUR L for?

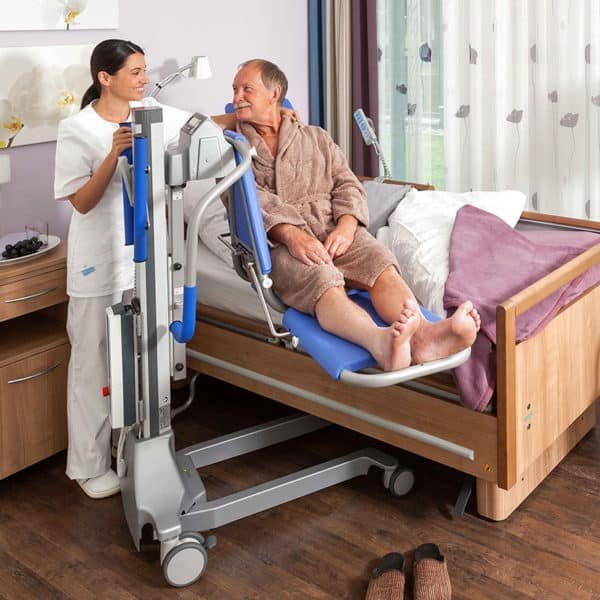

Mobility groups 1 to 3 use it as a seat lift; groups 4 and 5 need the stretcher wings. A resident who can step across sits on the PUR seat; one who cannot sit up is lifted on the wings.
Will it fit your care tub?
It suits all modern care bathtubs. It is 28.3 in (718 mm) wide, turns in a 43.3 in (110 cm) radius, and both rear castors lock. Send us the room measurements and we will check the approach.
How do you set it up and use it?

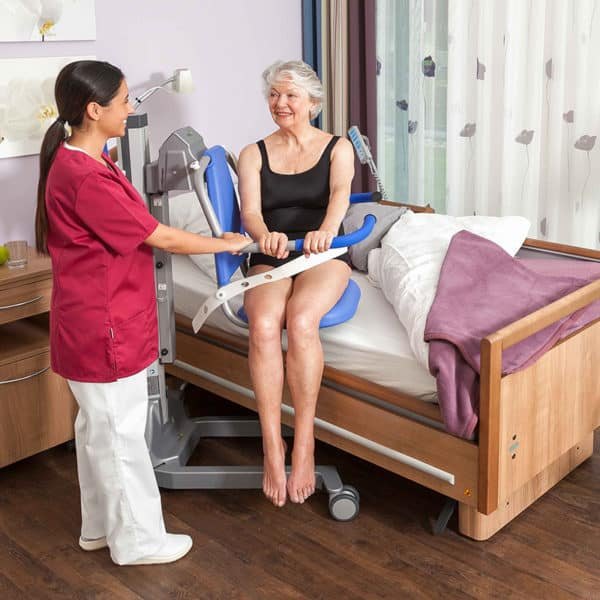

Charge the battery for about four hours before first use. Roll the lift to the bed, take the resident on board on the seat or the wings, wheel it to the tub and lower them in. One carer runs the lift from the hand control, which shows the battery level.
How safe is it to use?
The safe working load is 331 lbs (150 kg). Brakes must be on while the resident gets on and off, and the control box carries an emergency stop. If the power fails, the lift can be lowered by hand or electrically.
How do you clean and care for it?
The PUR seat pad lifts off for cleaning or replacement, and the seat has a large hygiene opening with a lockable cover. The frame is stainless steel and aluminum. Our technicians service what we sell.
What sizes and options are there?
One size, item 920101008. Stretcher wings, side rails, a footrest, a bedpan holder, a digital patient scale, a spare 24 V battery and a wall charger are options. The wings are what turn it into the stretcher version.
How do delivery, setup and service work?
We deliver across Toronto and the GTA and show your team how it works. Bathroom items cannot be returned once used, under our return policy: please measure the room first.
What warranty comes with it?
The Canadian warranty terms are confirmed before you order. The seat pad, castors and battery are wear parts.
How does it compare?
A bath lift moves one person in a home bathtub; this one works in a care tub and can become a stretcher. A Niagara bathing system is a fixed bathing tub for a care bathroom. See the rest under bathing systems.
Frequently asked questions
Does the Senta PUR L convert into a stretcher?

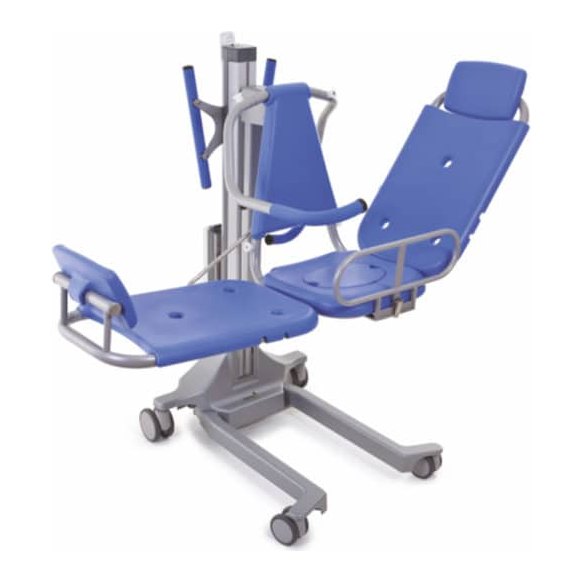

Yes. The click-on stretcher wings fit the same lift and give it a lying surface for mobility groups 4 and 5.
How much weight does the Senta PUR L take?
331 lbs (150 kg) safe working load.
Does it need plumbing or wiring?
No. It runs on a removable 24 V battery that charges from a household socket, with a full charge before first use.
How low does the seat go?
18.7 in (475 mm) at its lowest, and it lifts to 46.3 in (1175 mm).
Specifications
- Weight capacity
- 331 lbs (150 kg) safe working load
- Product weight
- 139 lbs (63 kg) without packaging
- Seat height
- 18.7" to 46.3" (475-1175 mm), lowest entry height and highest lift
- Height adjustment
- Electric, 700 mm of travel, run from the hand control
- Caster size
- Two front double castors 3.9" (100 mm), two rear 4.9" (125 mm) with brakes
- Overall width
- 28.3" (718 mm)
- Seat opening
- Large hygiene opening with a removable, lockable cover
- Overall length
- 33.9" (860 mm) with the arms open, 37.0" (940 mm) closed
- Uses
- Bathing a resident in a care bathtub, from the bed or by their own entry
- Battery
- Removable 24 V
- Water resistance
- IPX4
- Material
- Stainless steel and aluminum, with a removable PUR seat pad
- Charging time
- About 4 hours
- Item number
- 920101008
- Product type
- Bath Lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
1 year on parts.
Read the warranty and service policy for the full terms.
Replacement parts for this model
26 parts
Open the parts finder for this model
Bath & Shower Parts
- Beka Avero Motion door sealing profile C, part Z9200580 Z9200580
- Beka bath lift hand control, order SK9201150 SK9201150
- Beka chassis motor (LA30), order K9200801 K9200801
- Beka control box for a bath lift, order K9200546 K9200546
- Beka scale display, order Z9200830 Z9200830
- Beka SENTA PUR L Back Cover Z9200001 Z9200001
- Beka SENTA PUR L Back Support Z9200021 Z9200021
- Beka SENTA PUR L control box (Canada), part K9200541 K9200541
- Beka SENTA PUR L Control Box Bracket K9200400 K9200400
- Beka SENTA PUR L digital scale, part 920104008 920104008
- Beka Senta Pur L emergency lowering Allen key, part K9200070 K9200070
- Beka SENTA PUR L Grab Handle for the Stretcher Lift 920103120 920103120
- Beka SENTA PUR L handle complete, part M9200430 M9200430
- Beka SENTA PUR L Handset K9201150 K9201150
- Beka Senta Pur L hygiene seat element, part Z9200011 Z9200011
- Beka SENTA PUR L Rear Castor 125 mm With Brake K9300270 K9300270
- Beka Senta Pur L seat cover, part Z9200220 Z9200220
- Beka Senta Pur L wing pad, part Z9200041 Z9200041
- Beka SENTA-ST PUR L Strap Holder Z9200130 Z9200130
- Compression T-fitting, order S9210001 S9210001
- Stretcher wings for the Beka Senta Pur L bath lift 920103008
- Thigh padding, order Z9200854 Z9200854
- Wheel cover, order S9290000 S9290000
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
