Description

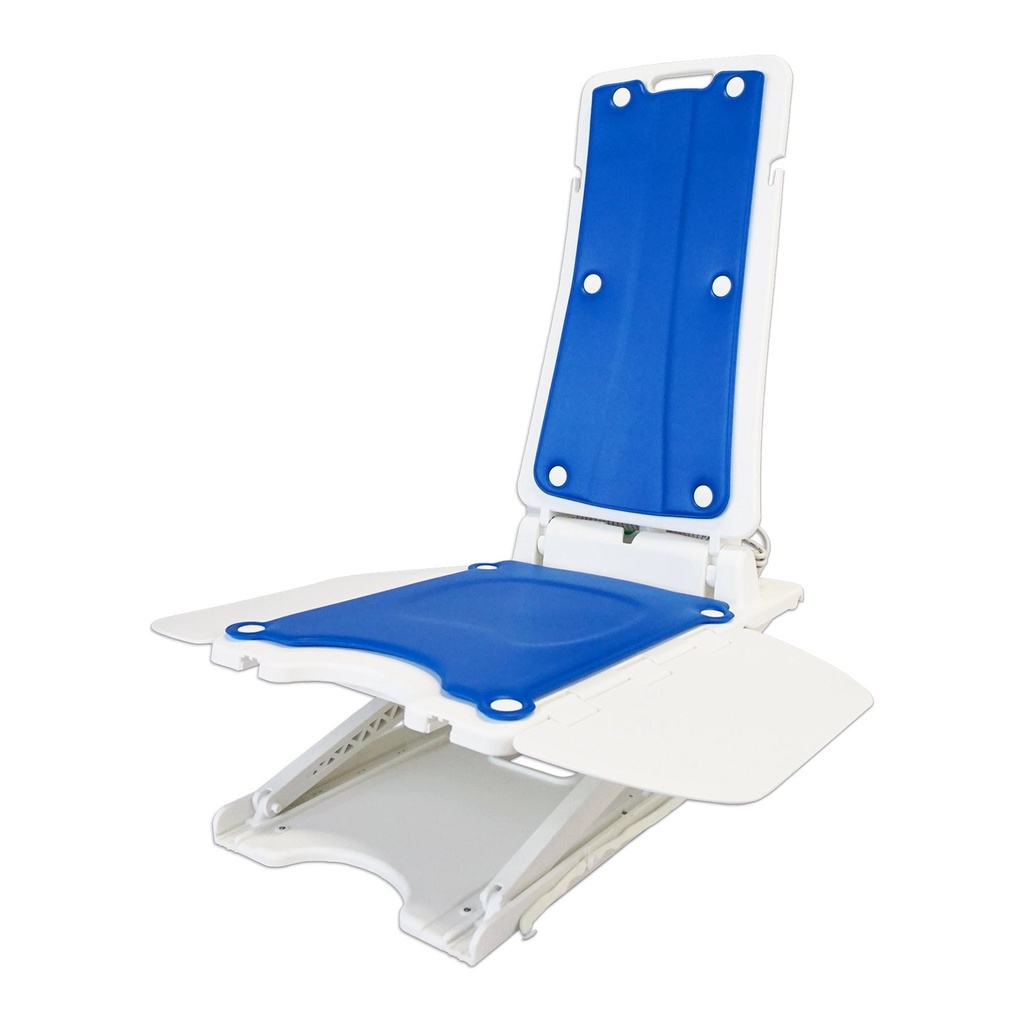

The Bridge Bath Lift (MP-P01) by Climbing Steps is a powered tub lift that lowers a bather into the water and reclines the back up to 54 degrees. The same lift works from the floor as a fall recovery aid, raising someone without manual lifting.
What does it do and how does it work?
- Seat height: 2.38 to 18.99 in (6 to 48.2 cm) from the tub floor, on the hand control.
- Recline: the backrest goes to 54 degrees and measures 28 by 11.5 in (71.1 by 29.2 cm).
- Seat: 13.5 by 17 in (34.3 by 43.2 cm), with 7 in (17.8 cm) transfer flaps that take the length to 28 in (71.1 cm).
- Base: six anti-slip suction cups hold it on the tub floor.
- Control: a waterproof hand control with an emergency stop and a quick-release charge plug.
- Weight: 26 lb (11.8 kg), folding flat with a carry handle.
Who is it for, and who should choose something else?
- For someone who can stand with a handhold but cannot lower themselves safely into the bath.
- For a carer who needs to raise a person who has fallen, without lifting them by hand.
- It is not a hoist transfer; choose a patient lift for a sling transfer.
- Compare the Drive Bellavita and the Medline EZ bath lift.
Will it fit?
- The base is 14.4 by 23.6 in (36.6 by 59.9 cm), and 28 in (71.1 cm) across with both transfer flaps out.
- The six cups need a smooth tub floor. A textured or anti-slip surface may not hold.
- Do not use it where the floor slopes more than 5 degrees, and do not stand or kneel on the seat.
- Measure the tub floor, including the drain, or book a free home assessment.
Using it day to day
- Set it on the six cups and use the hand control to lower, raise and recline; no tools or bathroom changes are needed.

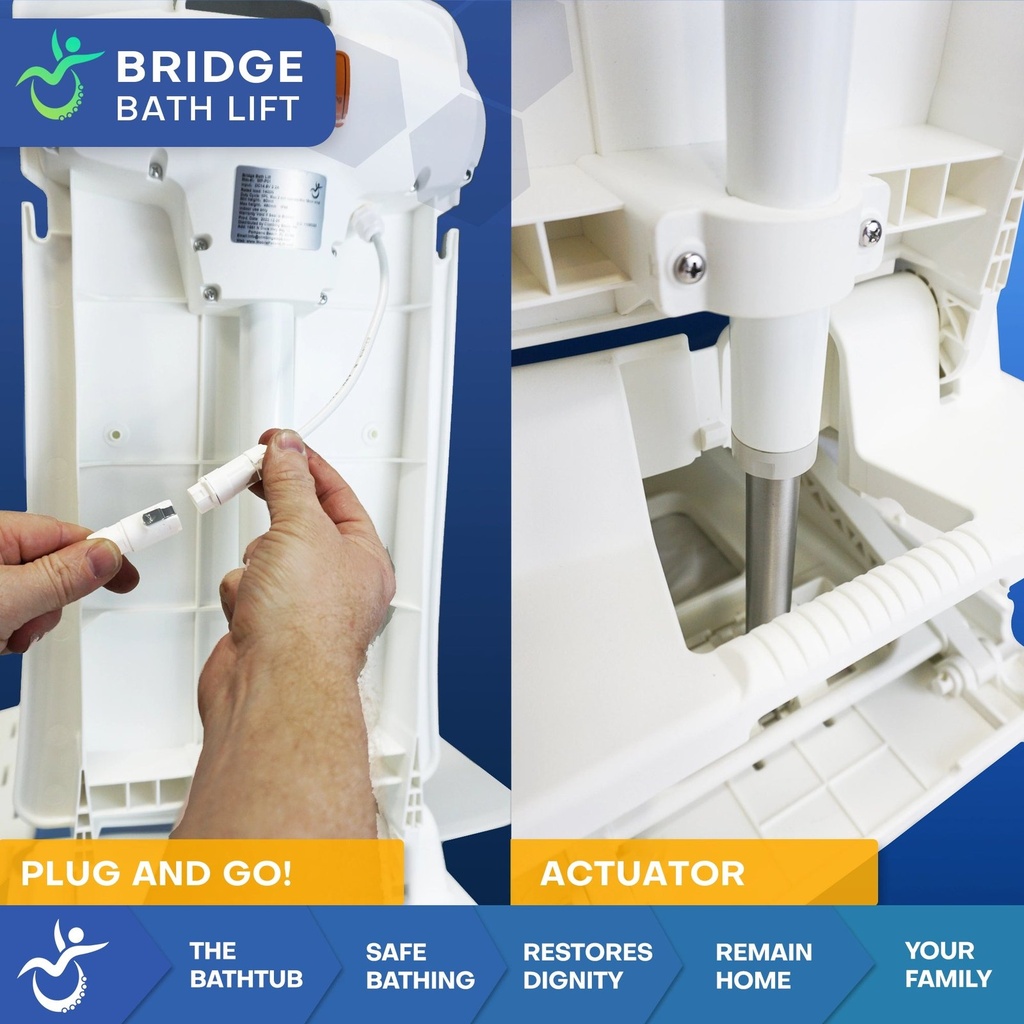

- Charge through the quick-release plug; the charger and a waterproof remote come with the lift.
- Lift the padded latex-free seat off for cleaning, and fold the lift flat for storage between baths.
What does it work with, and what are its limits?
- It carries 315 lb (142.9 kg) for the seated user.
- It is a bath and floor lift, not a hoist, and it does not replace a sling transfer.
- Warranty terms by component are in the Warranty tab.
- Bathroom safety items are non-returnable, so measure first under our return policy.
How does it compare?
The Drive Bellavita is a lighter split lift that comes apart into two pieces. The Medline EZ bath lift is another powered seat. All three are under bath lifts.
Frequently asked questions
Will it fit my tub?
The base is 14.4 by 23.6 in, and 28 in with the flaps out. The cups need a smooth floor, not a textured or anti-slip surface.
How much does a carer lift?
The whole lift weighs 26 lb (11.8 kg) and folds flat between baths.
Does it need installing?
No. It sits on six suction cups in the tub, with no tools and no bathroom changes.
Can it lift someone who has fallen?
Yes. It works from the floor as a fall recovery lift, so a carer does not have to lift the person by hand.
Funding may help: see who may help pay.

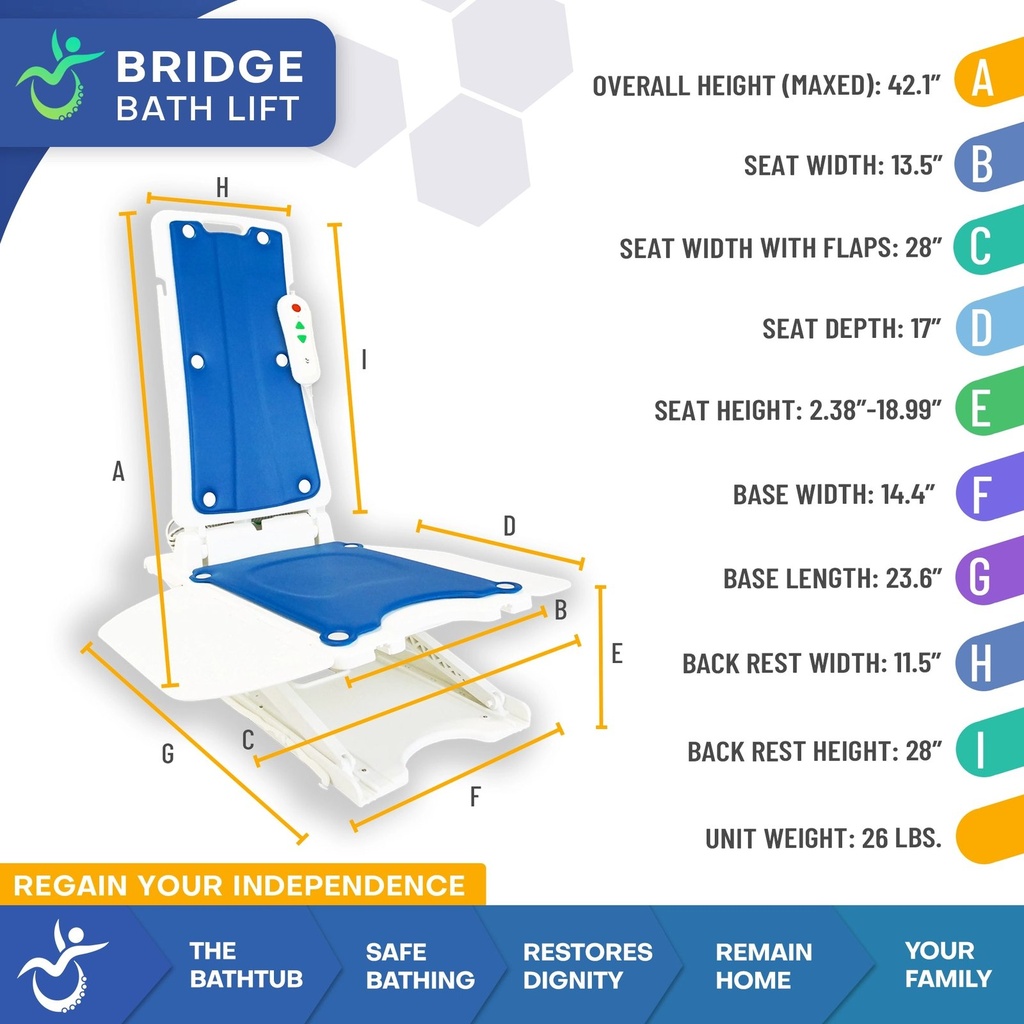

Specifications
- Weight capacity
- 315 lb (142.9 kg) for the seated user
- Product weight
- 26 lb (11.8 kg)
- Assembly
- Tool-free setup, with no installation or bathroom modification
- Seat width
- 13.5" (34.3 cm)
- Seat depth
- 17" (43.2 cm)
- Backrest
- Reclines up to 54 degrees; 28" (71.1 cm) high by 11.5" (29.2 cm) wide
- Seat height
- 2.38" to 18.99" (6 to 48.2 cm) floor to seat top
- Height adjustment
- Powered, set on the waterproof hand control
- Overall width
- 14.4" (36.6 cm) base; 28" (71.1 cm) with the transfer flaps out
- Overall height
- 42.1" (107 cm) at its highest
- Overall depth
- 23.6" (59.9 cm) base
- Folding
- Folds flat for storage or transport
- Uses
- Bath lift and a floor-level fall recovery lift
- Battery
- Rechargeable; the maker states up to 120 lifts per charge
- Water resistance
- Waterproof hand control with an emergency stop
- Available colours
- White frame with a blue seat and back
- Warranty
- Electronics and battery 1 year; other parts 180 days; seat pads not covered
- Product type
- Bath Lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Climbing Steps, Inc. warrants the Bridge Bath Lift (MP-P01) against defects in materials and workmanship from the date of purchase, and will repair or replace a faulty product or part with new or refurbished items at no cost.
- Electronics and battery: 1 year.
- Other products and parts: 180 days.
- Seat pads: wear items, not covered.
- A repaired or replaced item carries the rest of the original term or 180 days, whichever is longer.
- Excludes misuse, accidents, abnormal conditions, alterations, unauthorized repairs and damage not caused by a defect.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
