Description

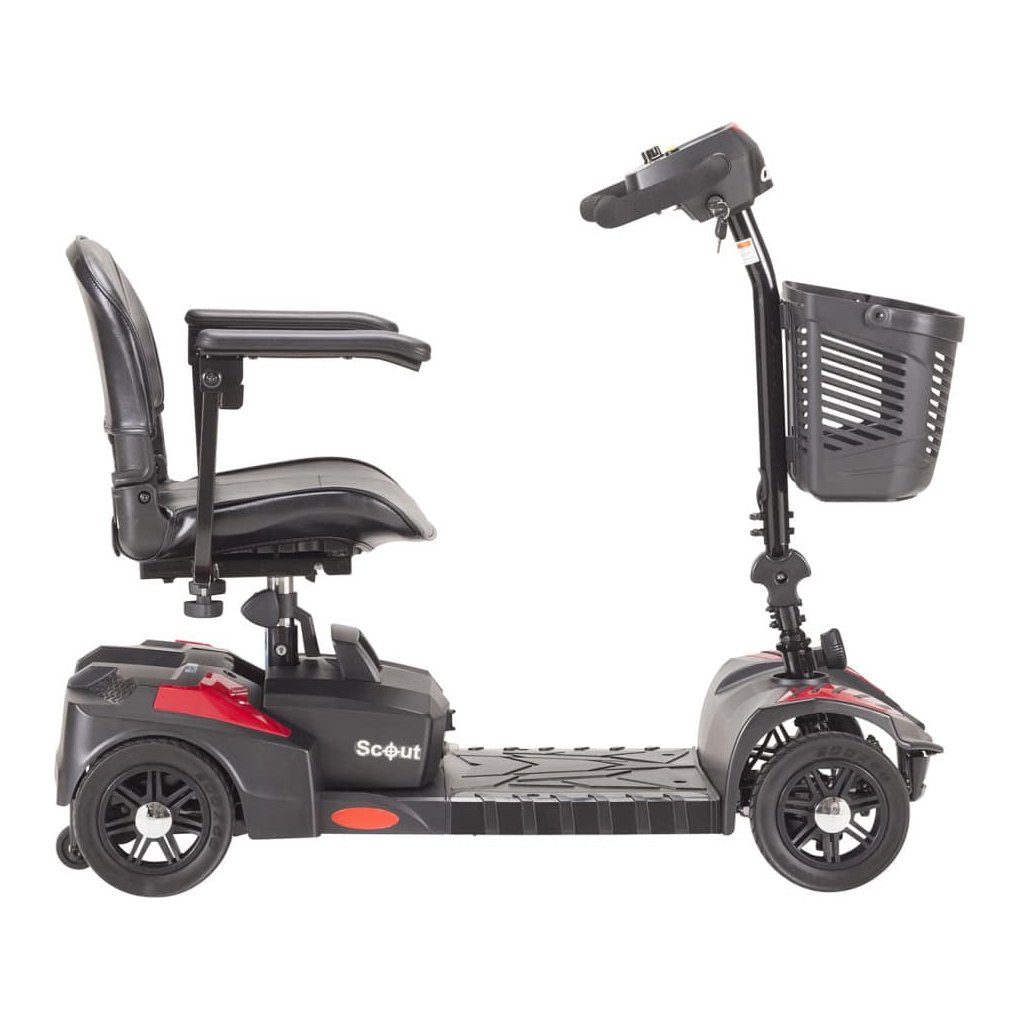

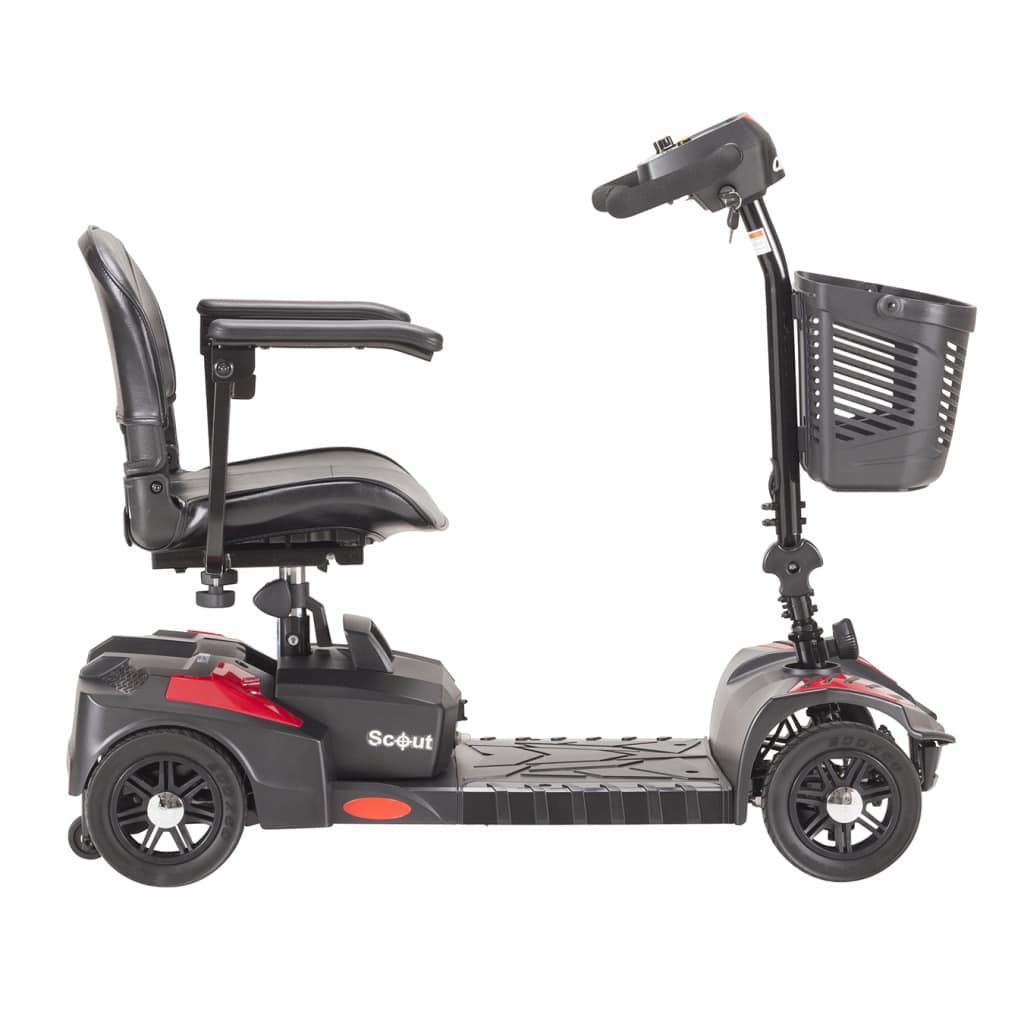

The Drive Scout 4 is the four-wheel travel scooter. It has no light, so it is not for riding after dark. The two 12 Ah batteries come with it.
Who it suits, and who should choose something else
- A rider up to 300 lbs (136 kg) who can lift a front section of about 38 to 39 lbs (17 to 18 kg).
- Ground clearance is 2.5 in (64 mm). The climbing angle is 6 degrees. Grass, gravel and steep drives are a poor match.
- There is no headlight, only a battery gauge. Do not ride after dark. The three-wheel version is the Scout 3.
- If you need a cushion or back support for posture, ask your therapist about a power wheelchair.
Check the pieces

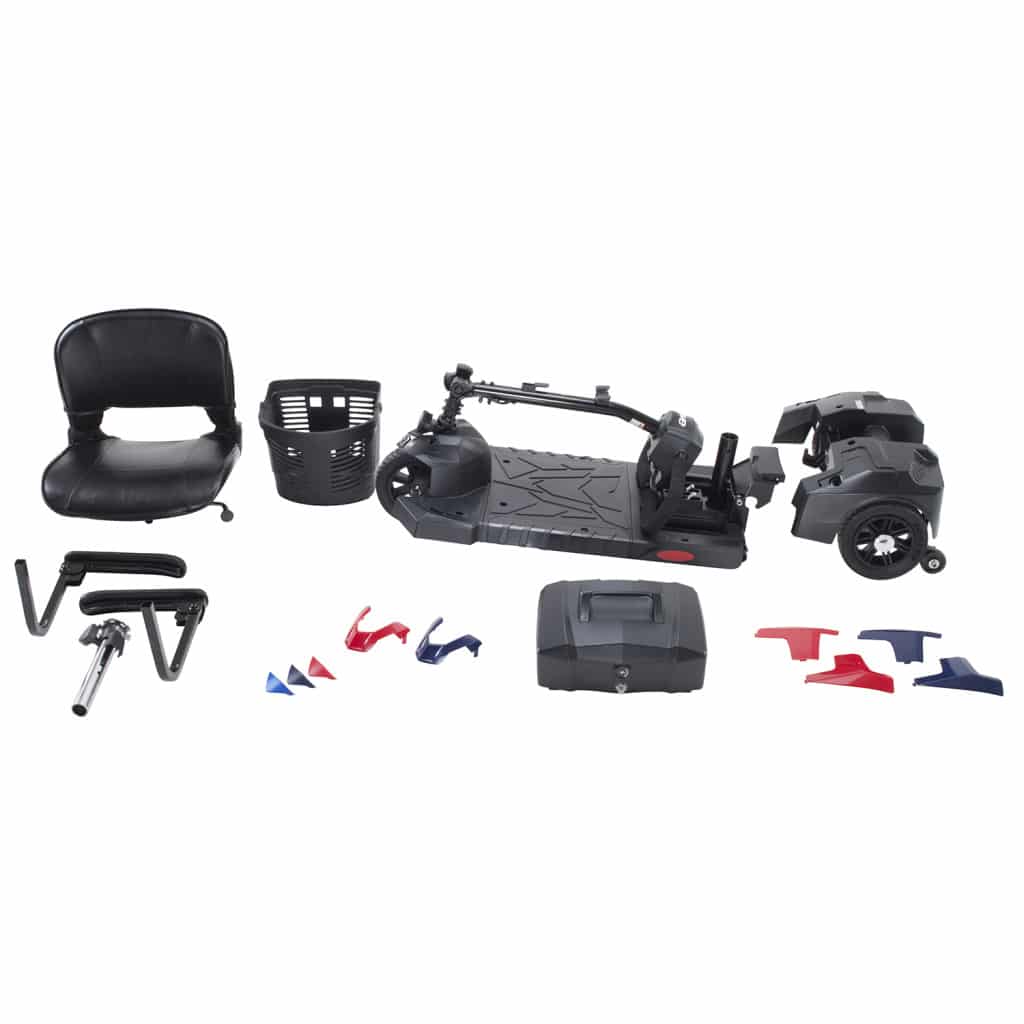

- Five pieces, no tools: seat, basket, battery pack, front section and rear section.
- Base 58 lbs, battery pair 20 lbs, seat 16 lbs, about 94 lbs together. The manual says the front section is 38 lbs. The sheet says 39 lbs. We confirm before you order.
- Length 42.5 in (108 cm). Width 21.5 in on the pages, 21.25 in in the manual. Turning radius 53.75 in (136 cm).
- Folding stadium seat, 16.5 by 16 in. Solid 8 by 2 in tires. Top speed about 6.8 km/h (4.25 mph). Red and blue panels are both included.
Batteries
- Two 12 V 12 Ah sealed batteries. Range up to 9 miles (14.5 km) on that pack. Drive also lists a 20 Ah pack at up to 15 miles (24 km). We confirm that pack before you order.
- The 2 amp charger is included. Operate between about -8 C and 50 C. We replace worn batteries.
Frequently asked questions
Can I ride it at dusk?
No. The Scout 4 has no headlight. The console light is only a battery gauge.
What do I have to lift?
The front section, 38 lbs in the manual and 39 lbs on the sheet. The seat is 16 lbs and the battery pair is 20 lbs.
Is this the three-wheel Scout?
No. This is the four-wheel Scout. The three-wheel has its own page.
Funding may help: see who may help pay.
Drive covers the frame for life, the controller and drivetrain for 24 months, and batteries for 12 months. See the Warranty tab.
Specifications
- Weight capacity
- 300 lbs (136 kg)
- Product weight
- 94 lbs (42.6 kg) complete; base 58 lbs (26.3 kg), battery pair 20 lbs (9.1 kg), seat 16 lbs (7.3 kg)
- Folding or disassembly
- Disassembles into five pieces without tools: seat, basket, battery pack, front section and rear section
- Heaviest piece
- 39 lbs (17.7 kg): the front section, the piece to lift first when the scooter is loaded
- Seat width
- 16.5" (419 mm)
- Seat depth
- 16" (406 mm)
- Seat height
- 17" to 19" (432 to 483 mm) from the floor to the seat
- Seat type

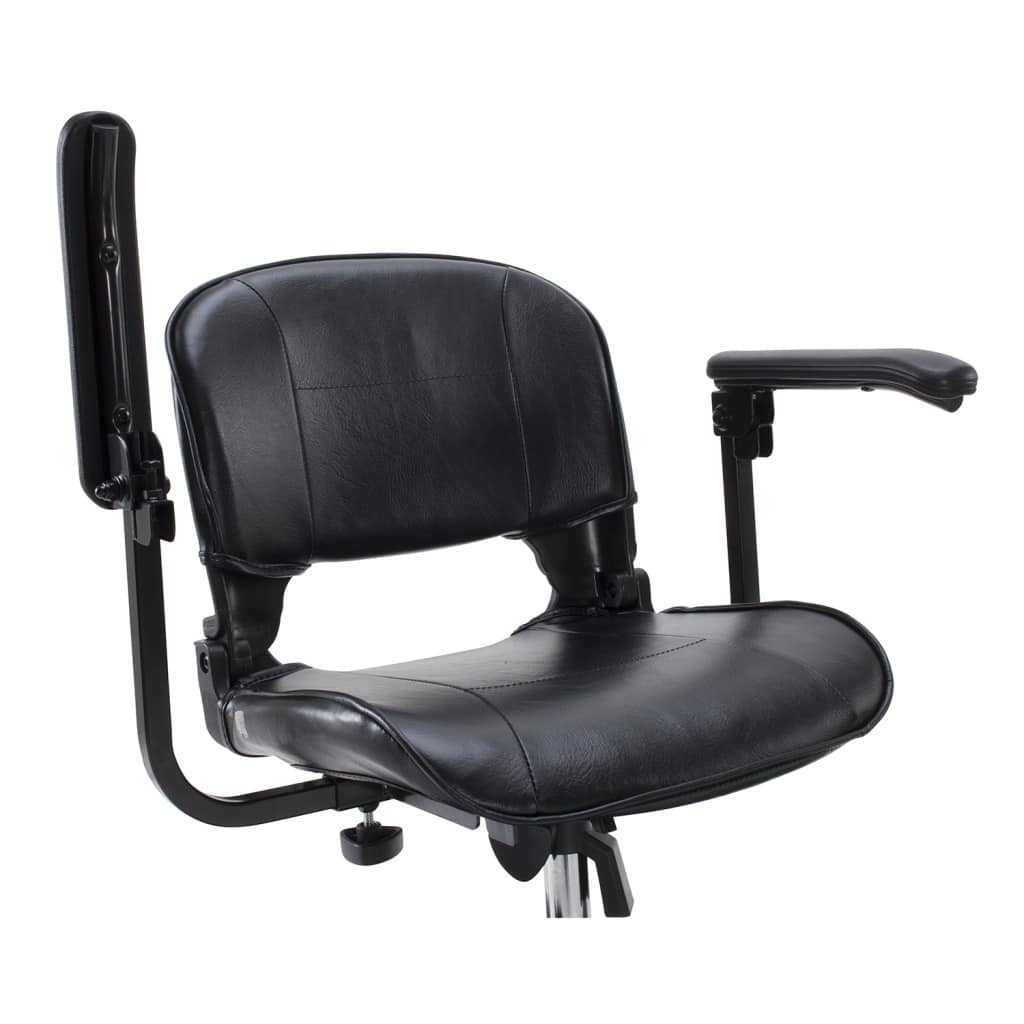

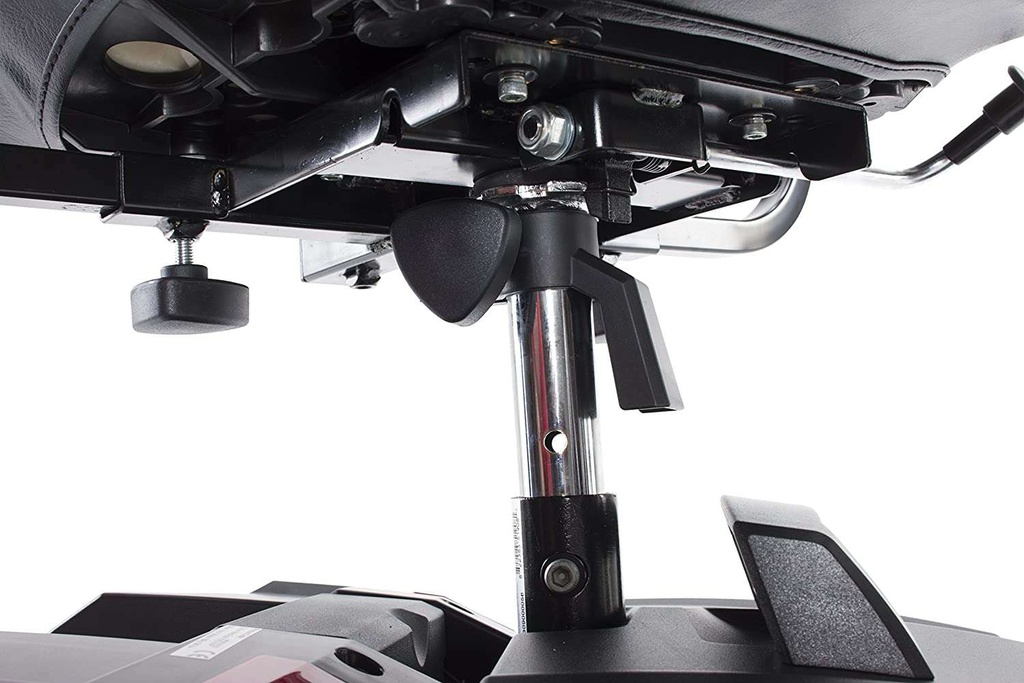

- Folding stadium seat, 16 lbs (7.3 kg), with a fold-down backrest, padded armrests that adjust in height and width, and a swivel post
- Tiller

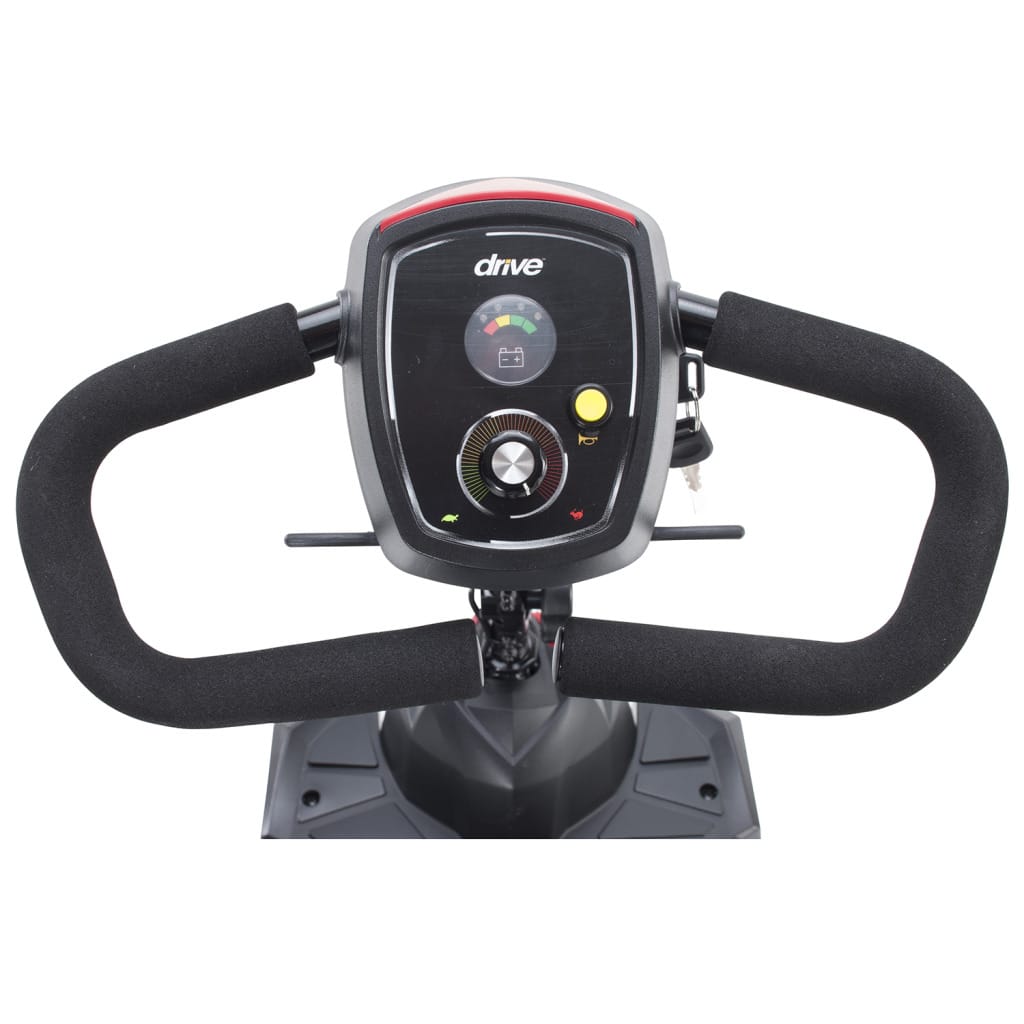

- Delta tiller with an angle adjustment knob; the console carries the key switch, thumb throttle, speed dial, battery gauge and horn
- Tires

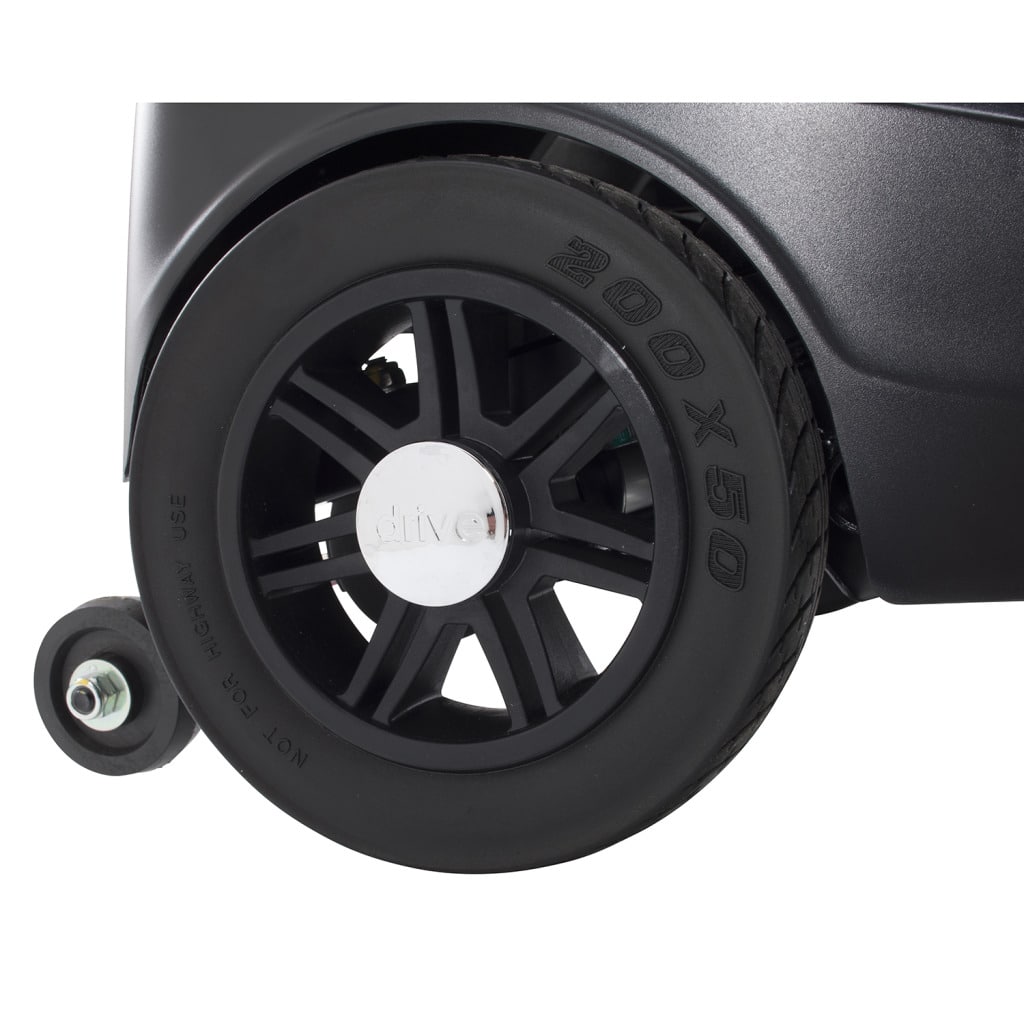

- 8" x 2" (203 x 51 mm) flat-free solid non-marking tires, front and rear
- Suspension
- None: a rigid frame with no front or rear suspension
- Overall width
- 21.5" (546 mm)
- Overall length
- 42.5" (1080 mm)
- Ground clearance
- 2.5" (64 mm)
- Turning radius
- 53.75" (1365 mm)
- Maximum slope
- 6 degrees
- Driving range
- Up to 14.5 km (9 mi) on the 12 Ah batteries; up to 24 km (15 mi) on the 20 Ah extended-battery model (SFSCOUT4-EXT)
- Top speed
- Up to 6.8 km/h (4.25 mph)
- Brakes
- Regenerative braking when the throttle is released, plus an electromagnetic brake
- Lights
- No headlight, turn signals or tail light; the console has a battery gauge with a diagnostic light
- Motor

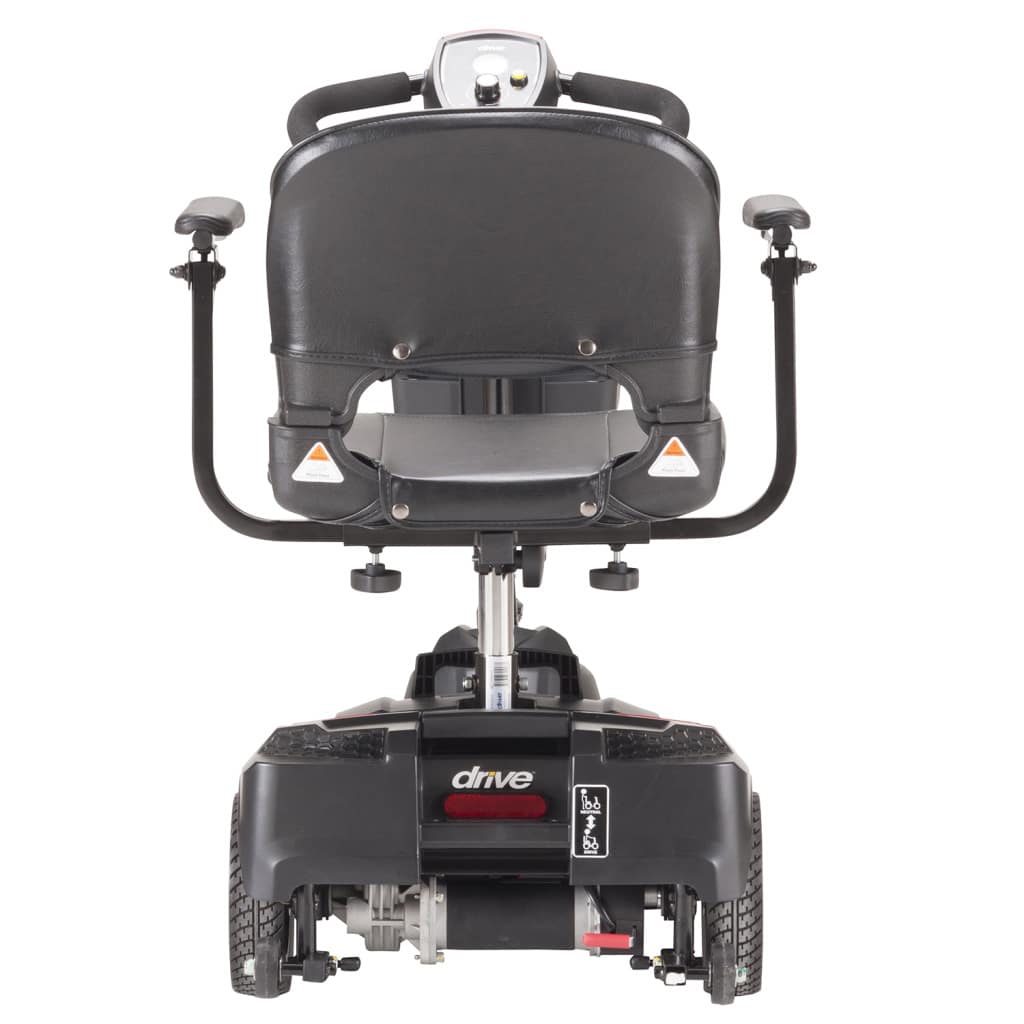

- 24 V x 270 W motor at 4700 rpm, rear-wheel drive
- Batteries
- Two 12 V 12 Ah sealed lead acid (AGM or gel) batteries, included, 20 lbs (9.1 kg) the pair
- Available colours
- Red and blue colour-through shroud panels, supplied with the scooter and interchangeable
- Charging time
- 8 to 12 hours for a full charge; 10 to 14 hours once a week when the scooter is used infrequently
- Battery charger
- 2 amp off-board charger
- Warranty
- Lifetime on the frame; 24 months on the electronic controller and drivetrain; 12 months on the batteries
- Product type
- Portable Scooter
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
