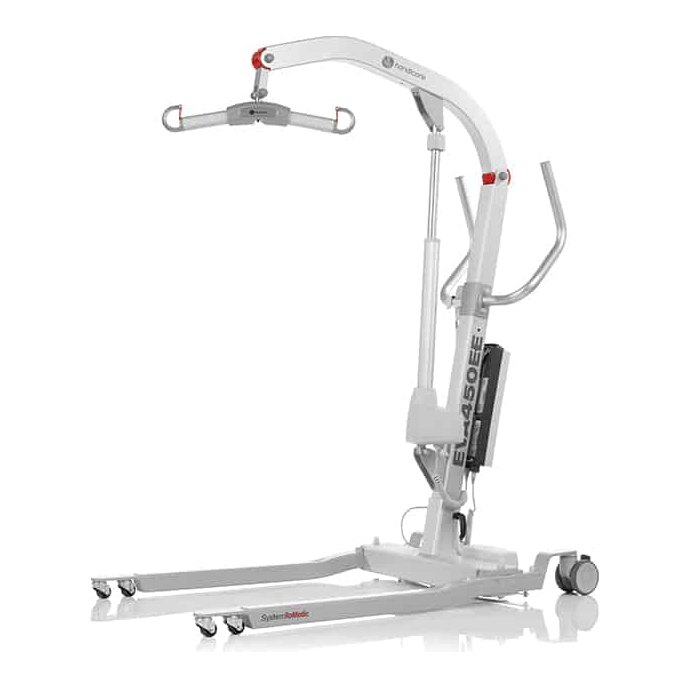

Item 60100006 is the Eva450EE with low legs: a powered floor lift for a seated or supine transfer, rated 450 lb (205 kg). The low front casters let the base go under a lower bed, and the base still spreads under power.
Which Eva this is
- 60100006 is electrical base widening with low legs.
- 60100002 is the standard 450 lb lift with 3.9 in casters front and rear.
- 60100007 is the low-leg lift with a manual base.
Bed clearance and base
- The front casters are 1.4 in (36 mm) and the rear casters are 3.9 in (100 mm); all four lock.
- Outside base width is 27.0 in (685 mm) closed and 38.6 in (980 mm) open, with 34.6 in (880 mm) between the legs when open.
- Measure the bed clearance and the doorway: the low legs lower the front of the base but do not narrow it.
Lifting and sling
- The lifting range is 19.7 to 70.5 in (500 to 1790 mm), with three mast positions.
- The mast position decides how low the lift can reach, including lifting from the floor.
- The carry bar is 17.7 in (450 mm) with safety latches, the same bar length as 60100002. Match a sling to the bar and the person before you order.
Power and controls
- The hand control raises and lowers the arm and widens the base. The emergency stop is on the control box.
- Lowering can be manual or electrical if the power fails.
- Charging is built in. The battery is 17.6 Ah and the lift is rated IPX4.
- Charge for at least four hours before first use, and charge regularly after use. Do not charge the lift in a wet room.
Weight and service
- The lift weighs 85.9 lb (39 kg) with the battery; the frame is aluminium.
- Repairs and maintenance are by authorized Handicare personnel with original parts. The lift needs regular inspection, and a service agreement is available.
Where it sits in the range
Browse patient lifts and electric floor lifts. The Hoyer Advance is another powered floor lift. A free home assessment can check the bed clearance and the doorways.
Funding and setup
Funding may help: see who may help pay. For this floor lift we deliver and set it up in Toronto and the GTA, fit the sling and walk through the controls and emergency lowering. A short need can start with a patient lift rental.
Frequently asked questions
Are the legs still powered on 60100006?
Yes. 60100006 has electrical base widening with low legs. The manual-base low-leg code is 60100007.
Are the front and rear casters the same size?
No. The front casters are 1.4 in (36 mm) and the rear casters are 3.9 in (100 mm).
What happens if the power fails?
The lift has manual and electrical emergency lowering, so it can be brought down without power.
Will the low base fit under my bed?
The front casters are 1.4 in. Send us the clearance under the bed and the doorway width, and we check the fit.
Specifications
- Weight capacity
- 450 lb (205 kg)
- Product weight
- 85.9 lb (39 kg) including the battery
- Caster size
- Front 1.4 in (36 mm), rear 3.9 in (100 mm)
- Sling attachment
- Carry bar 17.7 in (450 mm) with safety latches
- Lifts from floor
- Yes, when the mast position allows it
- Controls
- Hand control for the lift and the base width
- Emergency lowering
- Manual and electrical
- Battery
- 17.6 Ah
- Water resistance
- IPX4
- Minimum lift height
- 19.7 in (500 mm), low end of the lifting range
- Maximum lift height
- 70.5 in (1,790 mm), high end of the lifting range
- Base width closed
- 27.0 in (685 mm) outside
- Base width open
- 38.6 in (980 mm) outside
- Base widening
- Electrical
- Leg opening
- 34.6 in (880 mm) inside, legs open
- Material
- Aluminum
- Battery charger
- Built-in
- Product type
- Electric floor lift with low legs
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Mobility store warranty terms
These are Mobility's purchase and service policy terms, separate from any manufacturer warranty coverage.
1 year on parts.
Read the warranty and service policy for the full terms.
Replacement parts for this model
11 parts
Open the parts finder for this model
- Handicare CBJ battery pack (80100057) 80100057
- Handicare Eva 450/600 CBJ Control Box 80100042 80100042
- Handicare Eva 450/600 Mast Actuator 80100054 80100054
- Handicare Floor Lift 4-Button Hand Control 80100062 80100062
- Handicare Floor Lift Locking Lever Set 80100032 80100032
- Handicare Floor Lift Push Handle Bar 80100034 80100034
- Handicare front castor, 100 mm (80100001) 80100001
- Handicare HB32-4 hand control (80100156) 80100156
- Handicare MiniLift200 rear castor 100 mm, part 80100002 80100002
- Handicare Replacement Lift Battery 280124 280124
- LINAK Hand Control Tester 80100130 for Handicare MiniLift200 80100130
