Description
The HealthCraft Easy Mount L-shaped grab bar, model G125SK30X30F9, is a #304 stainless rail bent to 90 degrees for a shower corner or a tub end. Each leg runs 30 in (762 mm) between flange centres, and the knurled grip helps wet hands hold on.
What does it do and how does it work?
- Shape: two 30 in legs at 90 degrees, one to run vertically and one horizontally.
- Rail: 1.25 in (32 mm) tube standing 1.50 in (38 mm) off the wall, on 3.00 in (76.2 mm) flanges.
- Finish: knurled #304 stainless steel for a wet bathroom.
- Flanges: nine screw holes each, which helps when the studs are not where a plain bar needs them.
- Fasteners: eight #10 by 2 in stainless wood screws supplied.
- Capacity: 500 lb (227 kg) of user weight on a sound wall.
Who is it for, and who should choose something else?

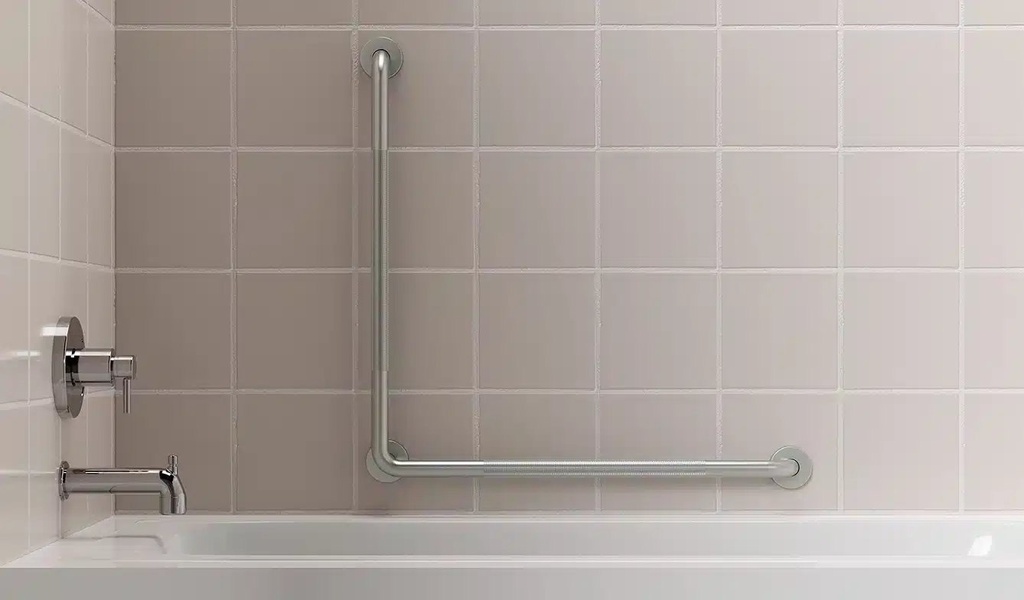

- For a corner in the shower or at the end of the tub, where one leg can run up and one along the wall.
- For a straight bar, see the HealthCraft knurled straight grab bars.
- For a wall that cannot take screws, choose a super pole or PT rail.
Will it fit?
- It has to reach solid framing: screw it into wood studs, horizontally, at an angle across two studs, or vertically on one.
- Do not fit it into metal studs or where there is no structure behind the drywall; add wood blocking if the framing is missing.
- Length is between flange centres, so allow a little more than 30 in of wall each way; a horizontal bar is usually set 33 to 36 in (838 to 914 mm) above the floor.
- Send a photo of the wall through contact us and we say whether blocking is needed.
Using it day to day
- Slide the flange covers off, mark the holes, level the bar and drill pilot holes.
- Drive at least two screws through each flange with sealant, then slide the covers back on.
- Check the screws monthly and tighten any that loosen.
- Clean with warm water and mild soap, and skip abrasive or corrosive cleaners.
What does it work with, and what are its limits?
- It is a steadying rail, not a hoist, and is not meant to carry full body weight.
- It is for indoor bathroom use, not outdoors.
- Limited lifetime warranty for the original purchaser; see the Warranty tab.
- Once fixed to a wall it cannot be returned under our return policy, so check the wall first.
How does it compare?
A straight HealthCraft bar suits a flat wall run; a grab bar range covers the rest. All bathroom rails are under bathroom safety.
Frequently asked questions
Where does an L-shaped bar work best?
In a corner, one leg vertical and the other along the back wall.
Can it go on drywall alone?
No. It has to reach wall studs or added wood blocking.
Can a hollow-wall anchor hold it?
No. HealthCraft's Easy Mount anchor is not made for this bar, so it needs studs or blocking.
Is the knurled grip hard on the hands?
It is a textured surface made for a firmer hold with wet hands.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 500 lbs (227 kg) of user weight
- Assembly
- Eight stainless wood screws supplied, with pilot holes, a level and sealant needed
- Overall length
- 30" x 30" (76.2 cm x 76.2 cm) between flange centres, at a 90 degree angle
- Uses
- A steadying rail beside the toilet, in the shower and over the tub
- Water resistance
- Built for wet bathrooms, and not intended for outdoor use
- Material
- #304 stainless steel
- Mounting
- Nine-hole Easy Mount flanges, screwed directly into wall studs
- Bar diameter
- 1.25" (32 mm)
- Finish
- Knurled stainless steel
- Warranty
- Limited lifetime
- Product type
- L-shaped grab bar
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
HealthCraft Products warrants the Easy Mount L-shaped knurled stainless grab bar, 30 x 30 in (G125SK30X30F9) against defects in materials and workmanship for the original purchaser.
- Term: limited lifetime.
- Covers the original purchaser only.
- Excludes damage from misuse, accidents or alteration, and normal wear and tear.
- Excludes damage from corrosive or abrasive cleaning products.
- HealthCraft is not liable for damage from faulty installation or from services performed by others.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
