Description

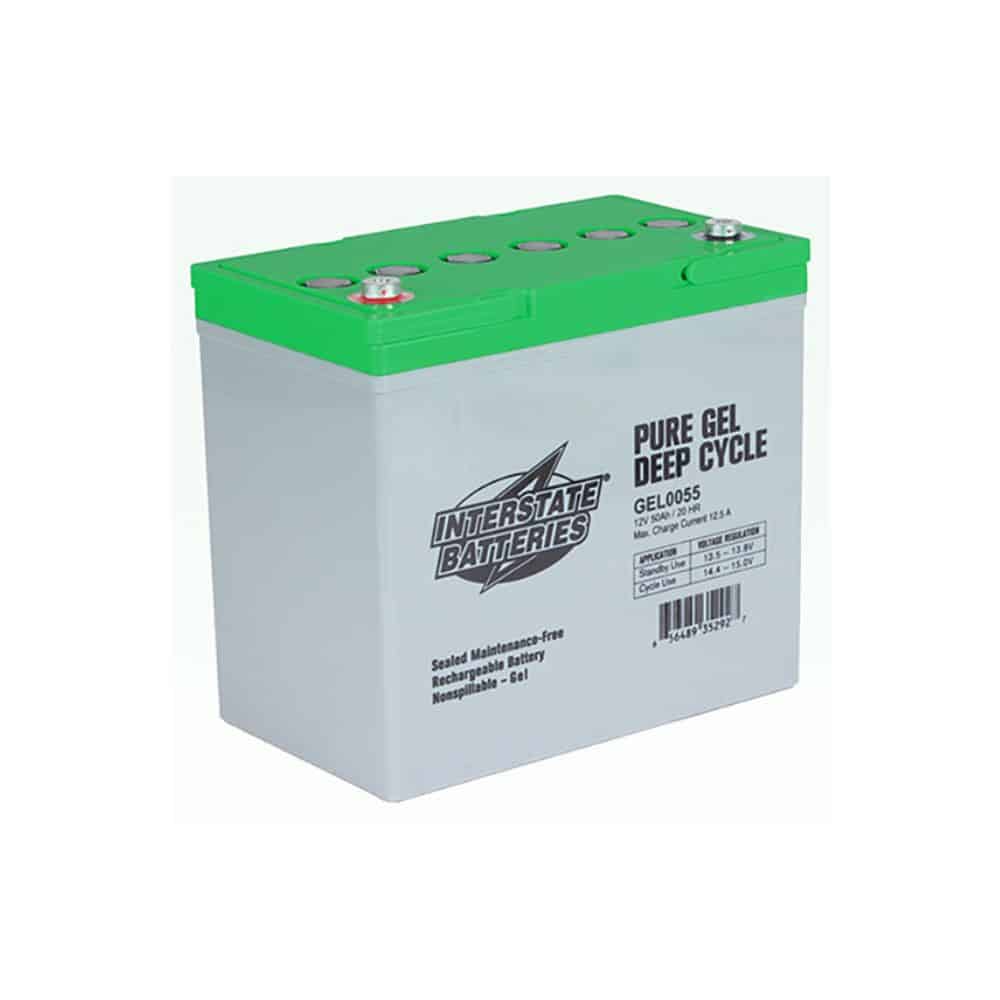

The Interstate GEL0055 is a 12 V sealed gel battery, Group 22NF with reversed terminals and an M6 insert. The price is for one battery.
Which power chairs and scooters does it fit?
Order it when the old battery is marked gel, 12 V, Group 22NF with reversed M6 inserts.
- Pride Maxima 3-wheel: a 22NF gel pack. Match the old label before ordering.
- Fortress 1700, 3-wheel and 4-wheel: Sunrise requires gel in that scooter, and the box maximum is 9.4 x 6.63 x 9.25 in. This case is 9.01 x 5.43 x 8.07 in; measure the inserts in the old battery.
- Older Golden Avenger and Quantum Q6 Edge Z: their makers allow a gel NF-22, so check the label on the old pack.
Never mix gel with AGM. The DCM0055 is the AGM 22NF. The MK 8G22NF is MK's gel 22NF at a different rating.
What must match the old battery?
- The chemistry: gel.
- The terminal: reversed M6 inserts.
- The case: 9.01 in long, 5.43 in wide and 8.07 in high (229 x 138 x 205 mm), plus the inserts.
How many do you need, and how are they charged?
Most 24 V chairs use two. Replace both at once; do not leave an old battery beside a new one. Charge with the chair's own charger on its gel setting.
Can you fly with it?
It is a sealed non-spillable gel battery under IATA and ICAO Special Provision A67. The airline must still approve the chair, so ask first.
What warranty comes with it?
The warranty is the manufacturer's or the store's, as stated on the sales order and invoice. It excludes deep discharge, storage in cold or heat, dirty contacts, non-approved chargers and misuse.
How do you recycle the old battery?
At 35.49 lbs (16.10 kg), this battery is over the 5 kg limit of Ontario's battery collection program. Never put it in the garbage or recycling. Take it to a Toronto household hazardous waste depot such as Disco Road, or a Peel Community Recycling Centre such as Brampton's on Chrysler Drive.
Funding may help: see who may help pay.
Frequently asked questions
Can I use this instead of an AGM 22NF?
Only if the chair maker allows gel. Do not mix one gel and one AGM in the same chair.
My old label says 50 Ah. Is this the same battery?
The GEL0055 is rated 55 Ah. Send us the label; do not assume 50 Ah and 55 Ah are the same part.
Will it fit a Fortress 1700?
Sunrise requires gel, and this case is inside the published box maximum. Measure the old battery, inserts included, before ordering.
Specifications
- Product weight
- 35.49 lbs (16.10 kg)
- Installation
- Our technicians can fit and test it at your home or in our shop
- Disposal
- Lead acid over 5 kg: never in household garbage. Take it to a Toronto drop-off depot or a Peel Community Recycling Centre
- Battery capacity
- 55 Ah
- Battery voltage
- 12 V
- Battery group
- Group 22NF, reversed terminals
- Battery terminal
- M6 insert (threaded)
- Sold as
- One battery; most scooters and power chairs use two
- Deep cycle
- Yes. The case is marked pure gel deep cycle
- Air travel
- IATA and ICAO Special Provision A67 for non-spillable batteries; the airline must still approve the chair
- Battery length
- 9.01 in (229 mm)
- Battery width
- 5.43 in (138 mm)
- Battery height
- 8.07 in (205 mm) case height
- Compatible with
- Pride Maxima 3-wheel; Fortress 1700 3- and 4-wheel (gel required); older Golden Avenger and Quantum Q6 Edge Z (gel NF-22). Match the gel label and M6 terminals.
- Battery charger
- Charges on the scooter or power chair's own charger
- Product type
- Power wheelchair and scooter battery
- Chemistry
- Sealed lead acid, gel electrolyte, valve regulated
Options and sizes can change some figures. Ask us to confirm yours before you order.
