Description

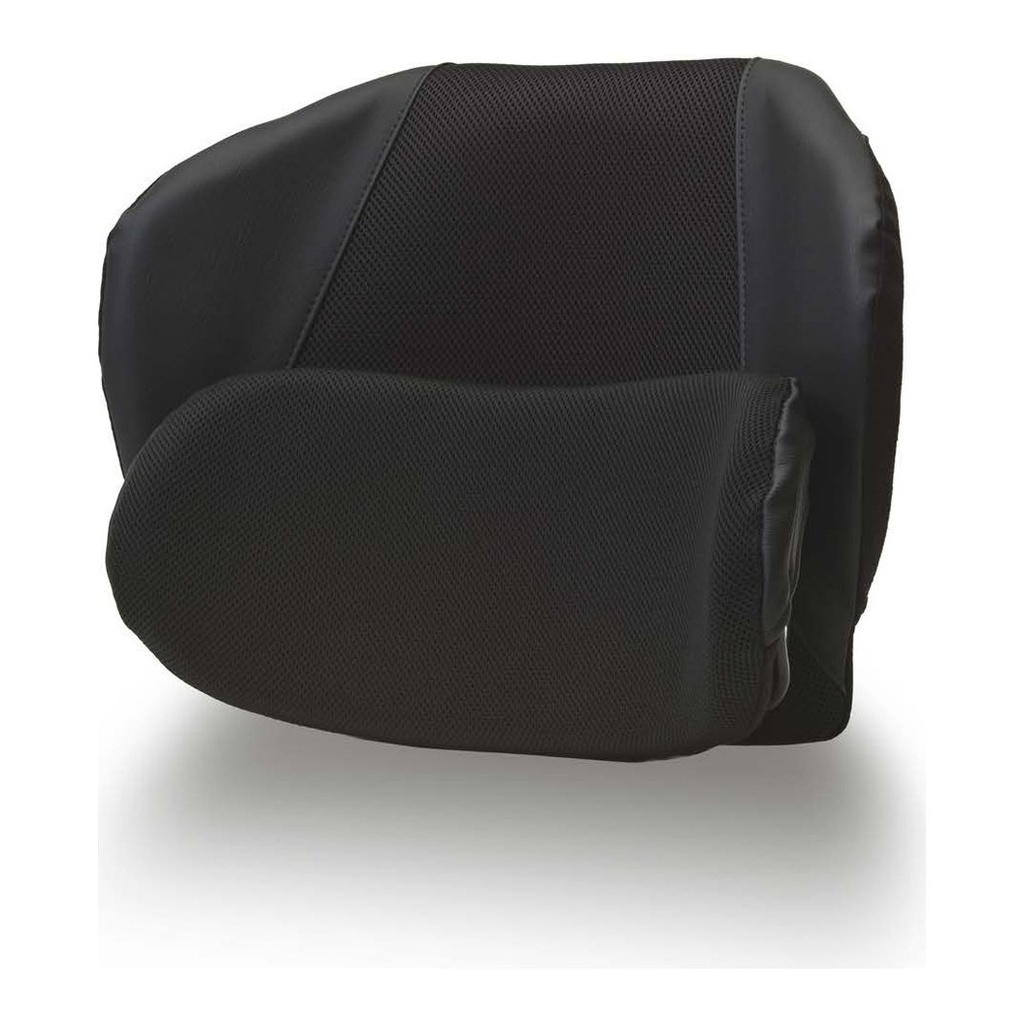

The Invacare Matrx MX2 carbon fibre back, model SE0001463, is a 16 in high shell for active wheelchair users.
What does it do and how does it work?

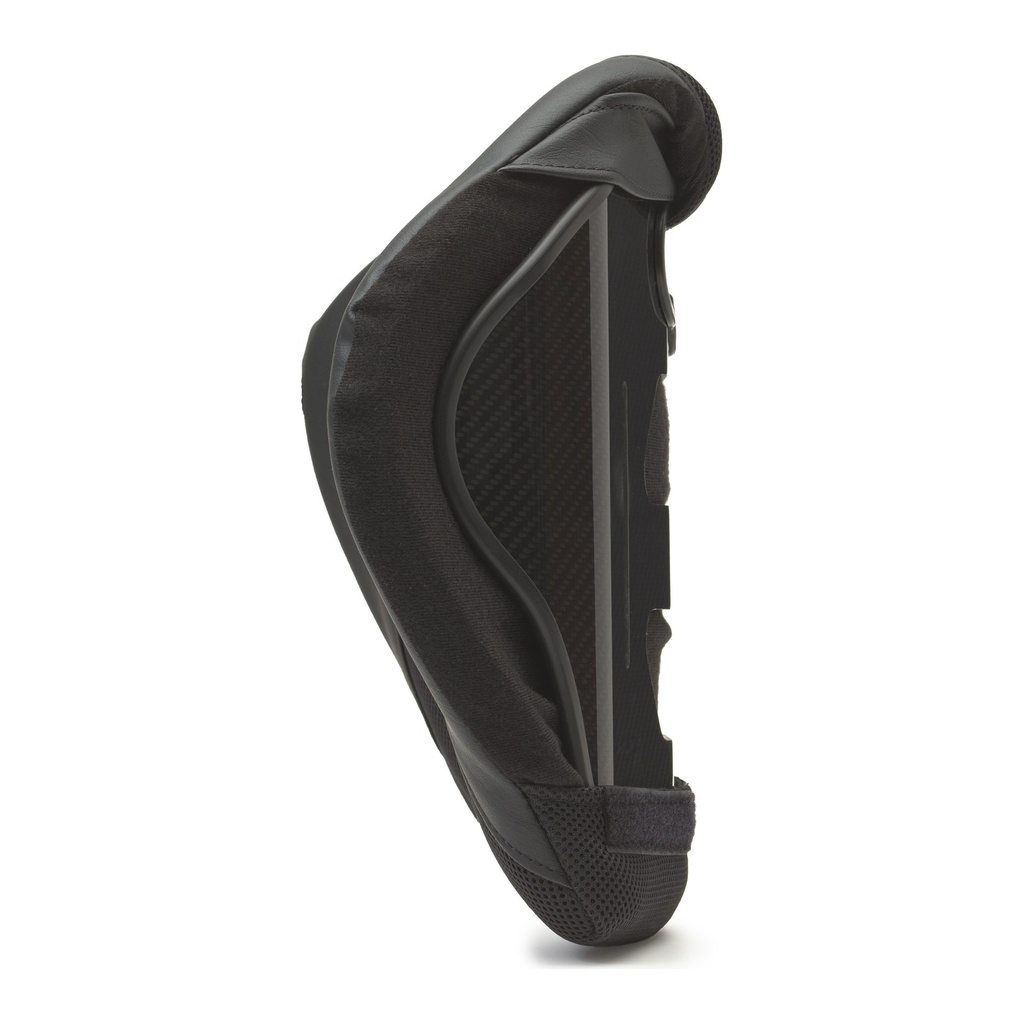

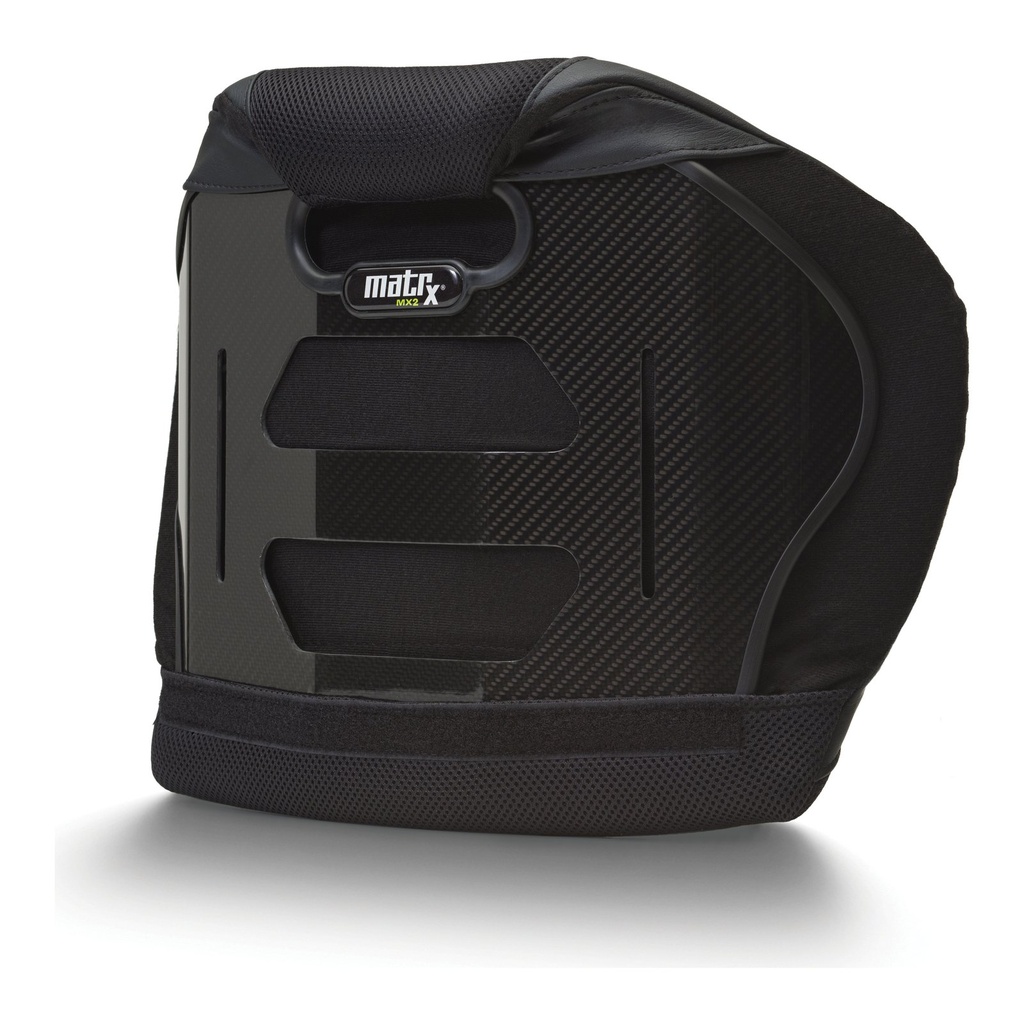

- Carbon shell: the fibres are oriented to give flex and suspension, with cutouts for breathability and slots for height adjustment.
- Contour: a 3 in (76 mm) contour depth shapes the shell to the back for positioning.

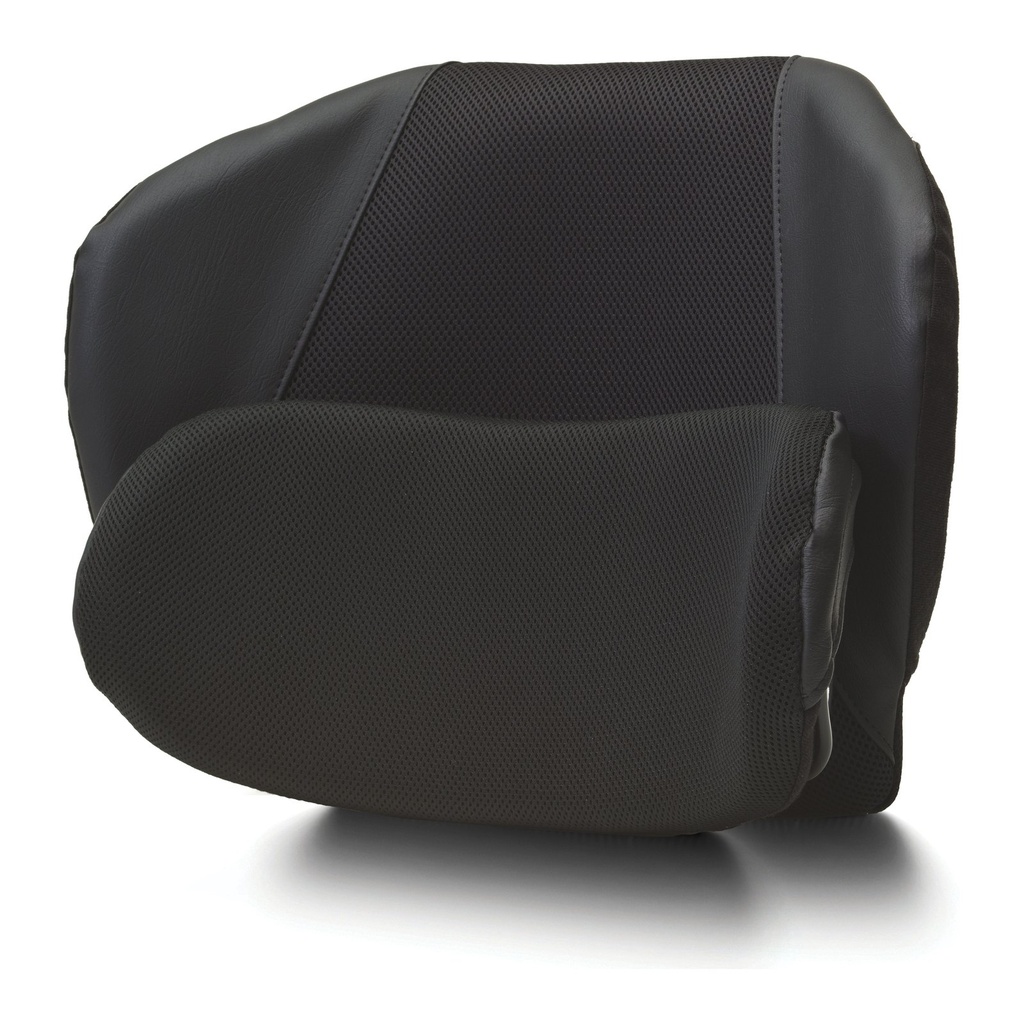

- Cover: breathable Spacetex, with leatherette side panels at this height, over a sacral and lumbar positioning pad that comes with the back.
- Light: the shell and hardware weigh from 1.5 lb (0.7 kg).
Who is it for, and who should choose something else?
- Active users: people who need a light rigid back with precise positioning.
- 16 in height: the tallest MX2; the 6, 9 and 12 in backs are separate models.
- Tilt-only or tilt/recline chairs: the Matrx Elite TR is the model made for those chairs.
- Assessment first: an occupational therapist or physiotherapist sets the back height and angle.
Will it fit?
- Widths: 14, 15, 16, 17 and 18 in, all at 16 in high, with a 3 in contour.
- Chair width: the hardware fits a chair 1 in wider or narrower than the back.
- Back canes: the cane clamps fit 1 in (25 mm), 7/8 in (22 mm) and 3/4 in (19 mm) posts, and must not be used outside that range.
- Height: the 16 in shell adjusts 3.5 in (89 mm) on its slots.
- Narrow chairs: depth and angle travel are limited when the chair is narrower than the back.
Using it day to day
- Fixed mount: a carbon fibre plate with 2 in of depth travel and a 30 degree angle range.
- Quick release: 4 in of depth travel, plus or minus 15 degrees, and the back lifts off for transport.
- Adjustments: both mounts set height, depth, angle and rotation.
- Care: remove the inner foam, machine wash the cover at 60 C (140 F) on a delicate cycle, then hang it to drip dry or tumble it on low for no more than 10 minutes at 40 C (104 F).
- Cleaners: no bleach, phenols or alcohols, and no dry cleaning.
What does it work with, and what are its limits?
- Capacity: 250 lb (113 kg).
- Mount on the order: fixed and quick release are different maker numbers, so name the mount when you order.
- Warranty: 2 years limited, excluding punctures, tears, burns and the removable cover.
Which version should I choose?
- Width: 14 to 18 in.
- Mount: fixed carbon plate or quick release.
How does it compare?
The Matrx Elite TR is the Matrx back for tilt-only or tilt/recline chairs. The Phantom back is another rigid back. See all wheelchair backrests.
Frequently asked questions
Does the privacy flap come with the back?
No. The sacral and lumbar pad is included; the privacy flap is optional and ordered separately.
What if my back canes are outside the clamp range?
The MX2 will not mount on them; the clamps fit posts from 3/4 to 1 in only.
Does the warranty cover the cover?
No. Punctures, tears, burns and the removable cover are excluded from the 2 year warranty.
Can it go on a tilt-only chair?
The Matrx Elite TR is the model made for tilt-only or tilt/recline chairs.
Mobility Specialties is an ADP registered vendor; see how ADP works with us.
Specifications
- Weight capacity
- 250 lb (113 kg)
- Product weight
- 1.5 lb (0.7 kg) and up, with hardware
- Sizes
- 14 x 16, 15 x 16, 16 x 16, 17 x 16 and 18 x 16 in
- Construction
- Carbon fibre shell with fibres oriented for flex and suspension, breathability cutouts and height-adjustment slots
- Cover
- Breathable Spacetex, with leatherette side panels at this height
- Cover care
- Remove the inner foam; wash the cover at 60 C (140 F) on delicate; hang dry or tumble low at 40 C (104 F) for 10 minutes; no bleach, phenols or alcohols
- Adjustments
- Height, depth, angle and rotation on both mounts
- Back width
- 14, 15, 16, 17 and 18 in
- Back height
- 16 in (40.6 cm); height adjusts 3.5 in (89 mm)
- Contour depth
- 3 in (76 mm)
- Mounting hardware
- Fixed: 2 in depth, 30 degrees. Quick release: 4 in depth, plus or minus 15 degrees
- Fits wheelchair widths
- 1 in wider or narrower than the back width; cane clamps fit 1 in (25 mm), 7/8 in (22 mm) and 3/4 in (19 mm) posts
- Warranty
- 2 year limited; excludes punctures, tears, burns and the removable cover
- Product type
- Carbon fibre wheelchair back
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Motion Concepts, maker of Invacare Matrx seating, warrants the Matrx MX2 back to be free from defects in materials and workmanship for two years of use by the original purchaser.
- The back: 2 years. Matrx accessories: 3 months.
- Covers the original purchaser only.
- Excludes punctures, tears and burns, the removable cover, normal wear, and damage from negligence, accident, improper use or storage, unauthorized parts or modification, or repairs by anyone other than a Motion Concepts dealer.
- Defective parts are repaired or replaced at Motion Concepts' option. Labour and shipping are not included, and a repair does not extend the warranty.
- Claims go through the dealer that sold the back.
