Description

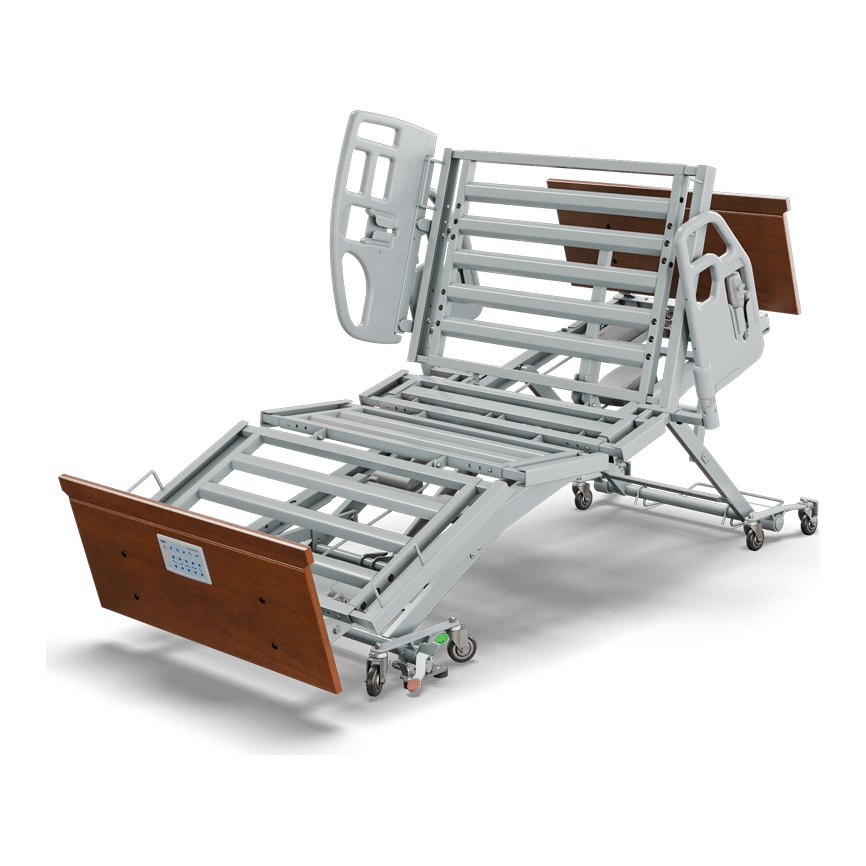

MC7WL is the Advantage ReadyWide with a floor lock. A red pedal holds the bed, and a green pedal lets it roll.
Who should choose the floor-lock bed?
- A long-term care room where the bed must stay put for a transfer, and the deck can sit near the floor.
- Not a house, not MC7WM, and not the 650 lb Plus code MC7WPML. Span limits this series to long-term care.
Will the deck and the load fit?
- One frame clicks to 39 in, then to 42 in. Sleep length is 76, 80 or 84 in, and 84 in needs an extender we confirm for the serial.
- Deck height is 7-7/8 in to 31 in, with a pause at 12.5 in (318 mm). Only the foot-end control goes lower, and a low deck shortens the distance to the floor.
- Safe working load is 500 lb (227 kg). Maximum patient weight is 350 lb (159 kg).
How do the lock and the power work?
- The red pedal locks and the green pedal releases. Caster locks are separate, so lock the bed when it is not moving.
- Two staff move the empty bed after the cord is unplugged. Battery backup is optional, and it is not fitted on this code.
- Rails are a separate order. See bed rails. MC7WML is a different item number.
How does it compare?
The Advantage grid-deck bed stays 35 in wide unless a separate expander is added. This frame already widens.
For a house, look at a full electric homecare bed. More frames are on the long-term care beds page.
Frequently asked questions
Can the floor lock stay on while someone gets in?
Yes. Span says to lock the bed whenever it is not being moved, then test that it does not shift.
Does the red pedal replace the caster brakes?
No. The pedal holds the bed and each caster still has its own lock, so use both when the bed stays put.
Will it roll through a doorway with the lock fitted?
Yes, after the green pedal is pressed and the deck is narrowed. Two staff move it, with no resident on it.
Funding and the warranty split
Funding may help: see who may help pay. The July 2026 catalogue lists mechanical parts for 5 years, the frame for 15 and welds for 15.
Pendants, foot-end controls, cables and batteries are 1 year.
Specifications
- Weight capacity
- 500 lb (227 kg) safe working load, including the person, mattress, rails and accessories
- Maximum user weight
- 350 lb (159 kg)
- Product weight
- 259 lb (118 kg) without accessories or head and foot boards
- Assembly
- Ships upright on the head end. Two people lower it. Cut only the red shipping ties.
- Safety standard
- ANSI/AAMI ES60601-1:2005. CAN/CSA-C22.2 No. 60601-1-08, 60601-2-52:11 and 60601-1-2-08.
- Caster size
- 3 in (76 mm) heavy-duty swivel casters
- Caster locks
- Caster locks, plus the floor lock. Red pedal holds the bed. Green pedal releases it.
- Overall length
- 82, 86 or 90 in (2083, 2184 or 2286 mm) with head and foot boards
- Mattress fit
- Must fill the deck width and length in use. Span asks for firm borders. No thickness is printed.
- Package contents
- Frame with expanders, pendant, foot-end control and floor lock. No mattress, boards, rails or battery.
- Compatible rails
- Optional, not included: R9959 assist pair, R9308H half head rails, R9519 split side rail.
- Motors
- 4 DC self-lubricating linear actuators
- Battery backup
- Not included. Optional factory backup for the standard model is Q6701.
- Hand pendant

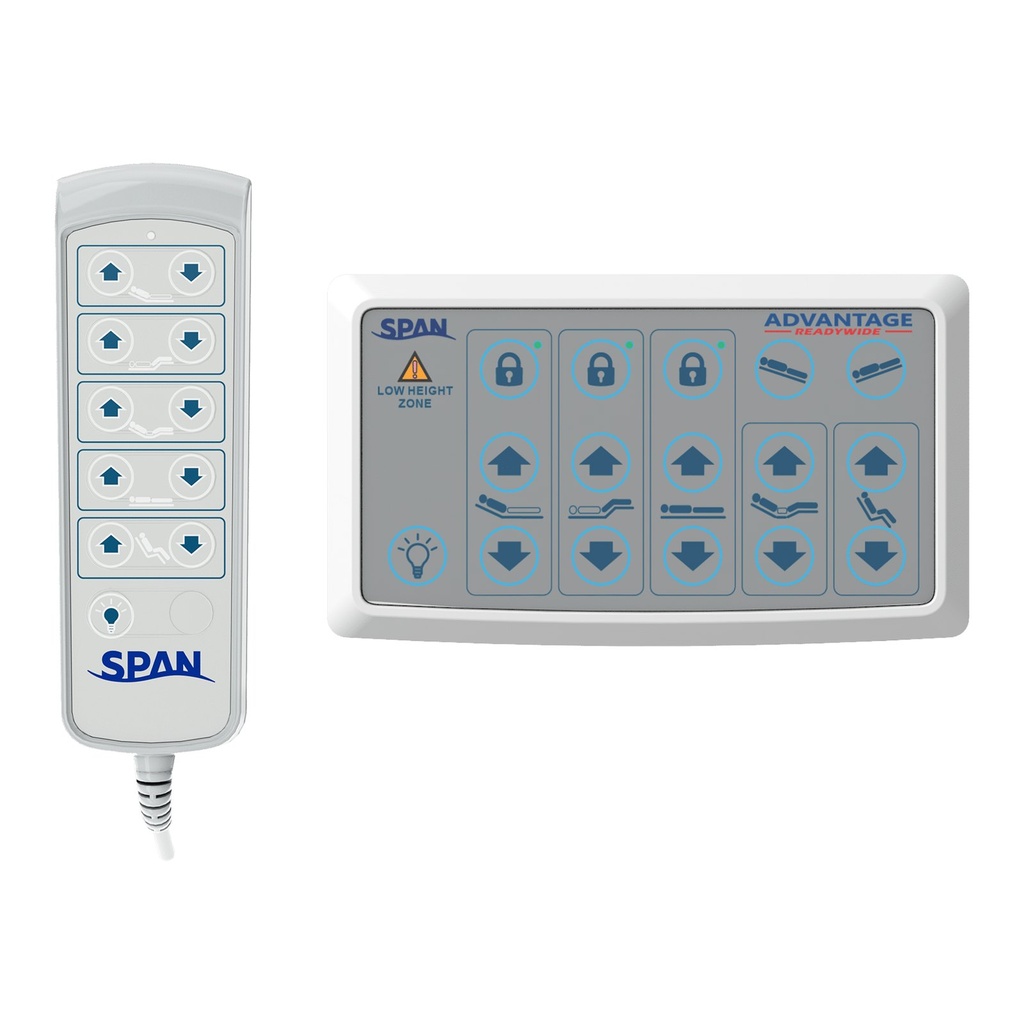

- 11 functions: height, back, knee, auto-contour and comfort chair. Foot-end control adds lockout.
- Bed width
- 35, 39 or 42 in (889, 991 or 1067 mm) sleep surface, one frame
- Bed length
- 76, 80 or 84 in (1930, 2032 or 2134 mm) sleep surface
- Size options
- One frame. Width 35, 39 or 42 in. Length 76, 80 or 84 in. 84 in needs a 4 in extender.
- Minimum bed height
- 7-7/8 in (200 mm) to the mattress support
- Maximum bed height
- 31 in (787 mm) to the mattress support
- Deck sections
- Welded steel tube and trapezoidal slats
- Bed positions
- Height, back, knee, auto-contour, comfort chair, Trendelenburg and reverse Trendelenburg
- Section angles
- Back 0 to 70 degrees. Knee 0 to 30 degrees. Trendelenburg 0 to 16. Reverse 0 to 15.
- Bed accessories
- Under-bed light Q6749 or Q6787, battery Q6701, and a 4 in extender are separate.
- Head and footboards
- Optional. Melamine profiles Lincoln and Standard. Elite HPL profiles Lethbridge and Trenton.
- Sold as
- One bed, item MC7WL
- Available colours
- Board finishes: Valley Oak, Candle Light, Hardrock Maple, Summer Flame, Choco. Valley Oak is standard boards only.
- Warranty
- Mechanical 5 years. Frame 15 years. Welds 15 years. Pendants, foot-end controls, cables and batteries 1 year.
- Product type
- Long-term care bed, full electric, item MC7WL
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
