Description

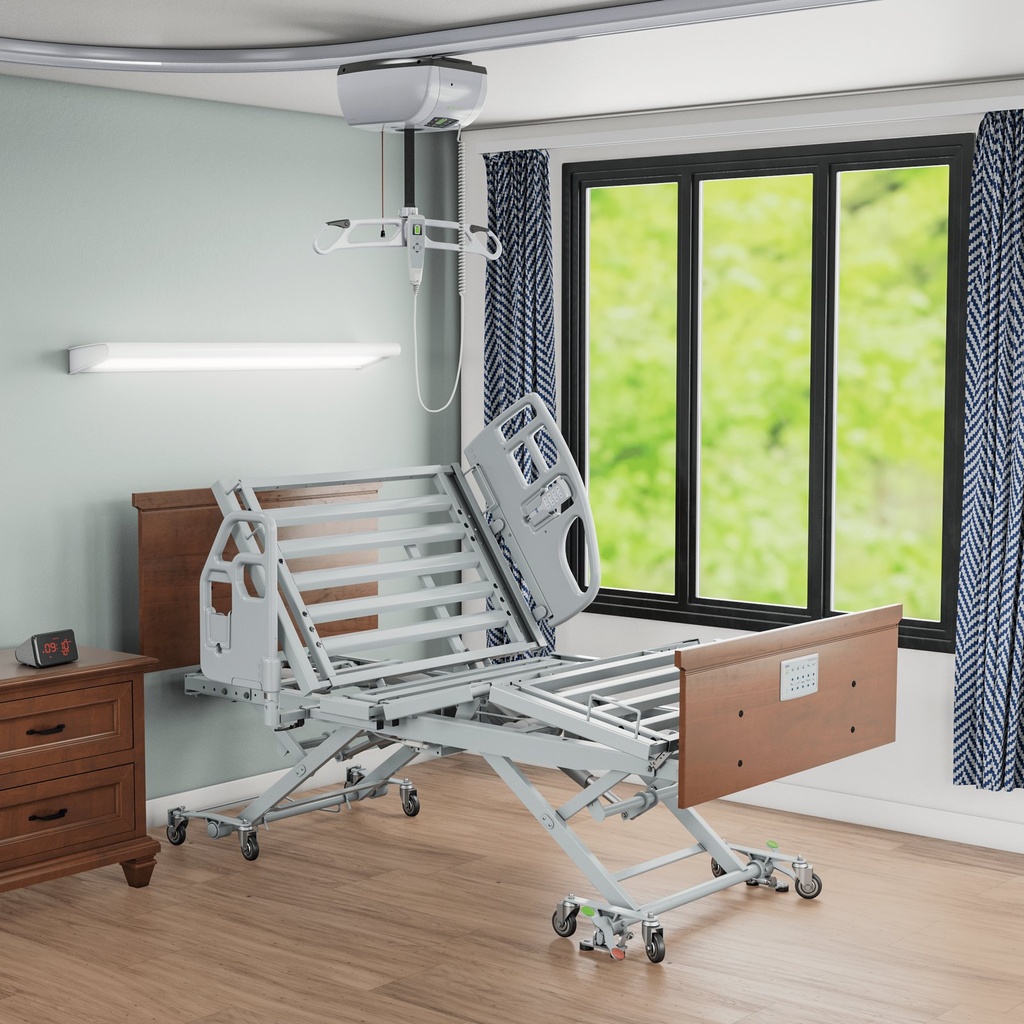

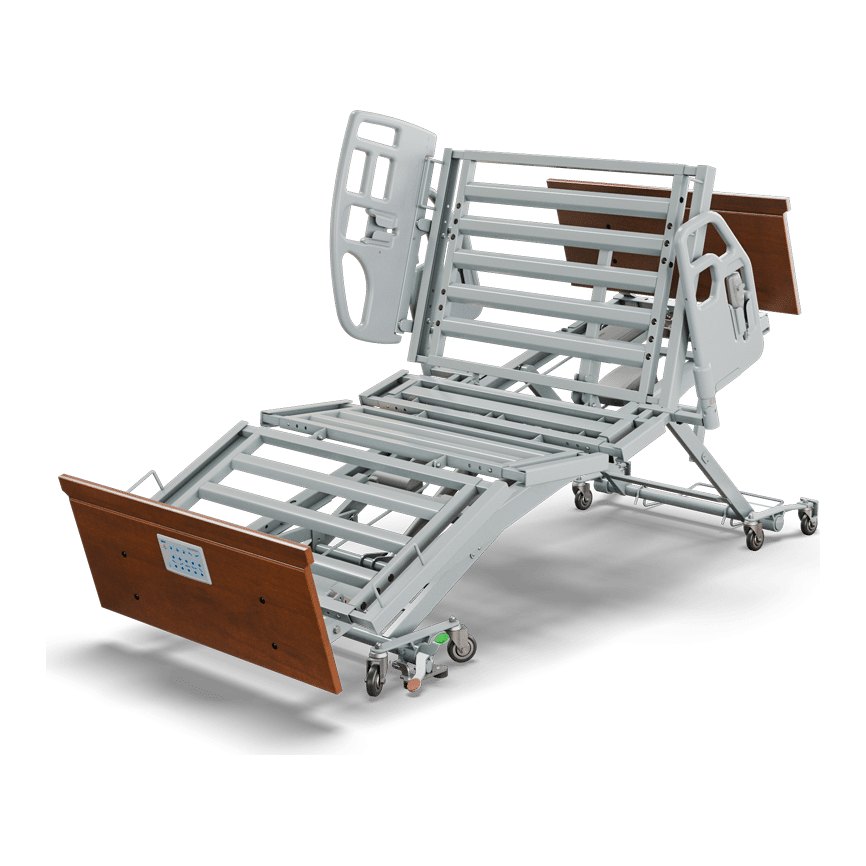

MC7WM is the ReadyWide that staff can roll with the deck at any height. The floor lock is a different item number.
Who is the mobility code for?
- A long-term care unit that moves the empty bed between rooms, even when the deck is not fully down.
- Not a private home, and not MC7WL. This code does not add a floor-lock pedal, and the 650 lb Plus bed is MC7WPML.
What has to be clear before a move?
- Narrow the sleep surface to 35 in for a tight doorway. The same frame also stops at 39 in and at 42 in, and length runs 76, 80 or 84 in.
- The deck travels from 7-7/8 in to 31 in and is meant to roll at every point in that range. Past 12.5 in, only the foot-end control continues down.
- Keep the loaded bed at or under 500 lb (227 kg), with the patient at or under 350 lb (159 kg). A deck this low shortens the distance to the floor.
What should staff not do while moving it?
- Do not leave the resident on the bed, and do not push on the rails. Two people move it with the cord unplugged and off the floor.
- Lock the 3 in casters once it is placed. Battery backup is extra. Rails are separate: see bed rails.
Which other bed should you compare?
The Advantage grid deck does not roll at any height, and it does not have these built-in width stops.
A private home should start with full electric homecare beds. This frame belongs on the long-term care beds list.
Funding and warranty terms
Funding may help: see who may help pay.
Frequently asked questions
Can one person roll MC7WM down the hall?
Two people are required, and they should check the path first. Do not use the rails as handles.
Can the deck stay up while the bed rolls?
Yes. This code is built to move with the deck raised or low, then the casters lock once it is in place.
May a resident stay in the bed for a room change?
No. This bed is not for transporting patients, including a move across a threshold.
Warranty: 15 years on the frame and welds and 5 years on the control box and actuators; see the warranty terms.
Specifications
- Weight capacity
- 500 lb (227 kg) safe working load, including the person, mattress, rails and accessories
- Maximum user weight
- 350 lb (159 kg)
- Product weight
- 259 lb (118 kg) without accessories or head and foot boards. Expanders are included.
- Assembly
- Ships upright on the head end. Two people lower it. Cut only the red shipping ties.
- Safety standard
- ANSI/AAMI ES60601-1:2005. CAN/CSA-C22.2 No. 60601-1-08, 60601-2-52:11 and 60601-1-2-08.
- Caster size
- 3 in (76 mm) heavy-duty swivel casters
- Caster locks
- Mobility at any height, 7-7/8 in to 31 in. Caster locks. No floor lock on this code.
- Overall length
- 82, 86 or 90 in (2083, 2184 or 2286 mm) with head and foot boards
- Mattress fit
- Must fill the deck width and length in use. Firm borders are recommended.
- Package contents
- Frame with expanders, mobility at any height, pendant and foot-end control. No floor lock, mattress, boards or rails.
- Compatible rails
- Optional, not included: R9959 assist pair, R9308H half head rails, R9519 split side rail.
- Motors
- 4 DC self-lubricating linear actuators
- Battery backup
- Not included. Optional factory backup for the standard model is Q6701.

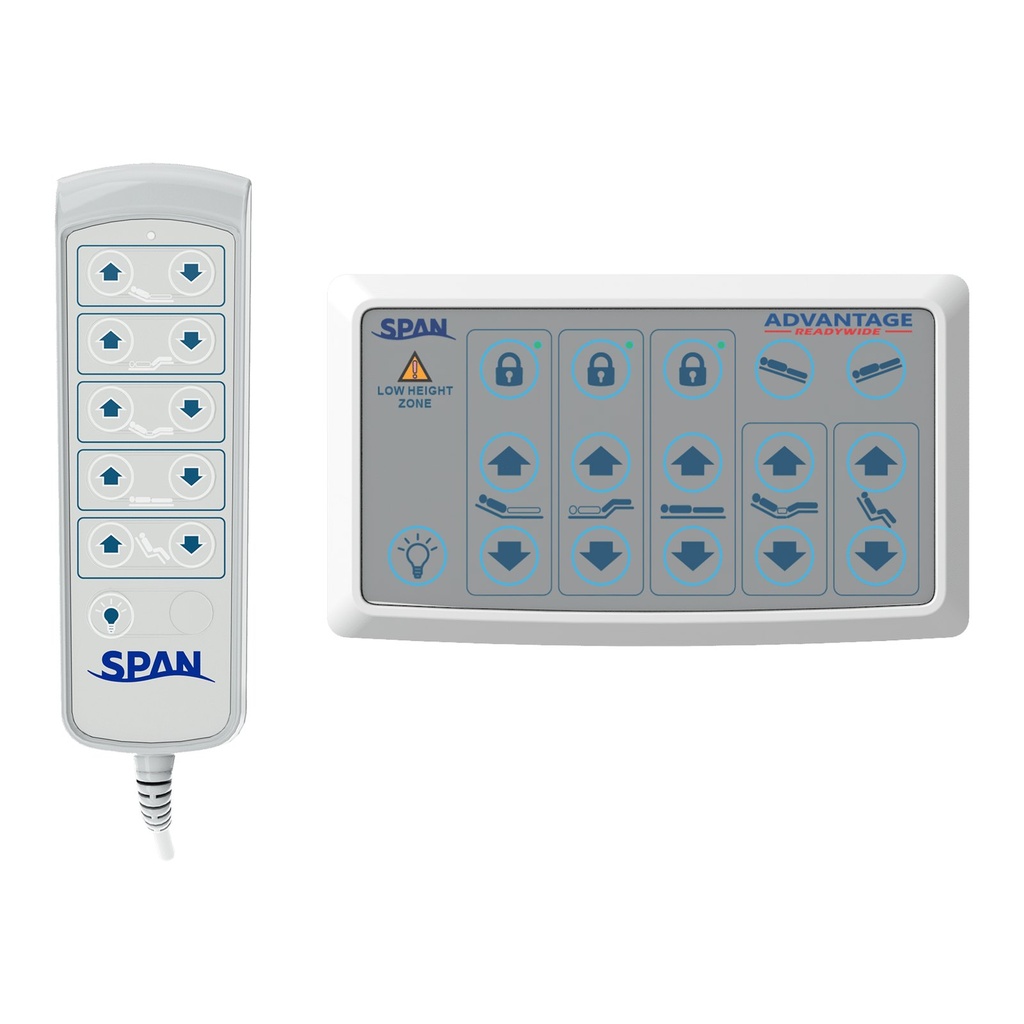

- Hand pendant
- 11 functions: height, back, knee, auto-contour and comfort chair. Foot-end control adds lockout.
- Bed width
- 35, 39 or 42 in (889, 991 or 1067 mm) sleep surface, one frame
- Bed length
- 76, 80 or 84 in (1930, 2032 or 2134 mm) sleep surface
- Size options
- One frame. Width 35, 39 or 42 in. Length 76, 80 or 84 in. 84 in needs a 4 in extender.
- Minimum bed height
- 7-7/8 in (200 mm) to the mattress support
- Maximum bed height
- 31 in (787 mm) to the mattress support
- Deck sections
- Welded steel tube and trapezoidal slats
- Bed positions
- Height, back, knee, auto-contour, comfort chair, Trendelenburg and reverse Trendelenburg
- Section angles
- Back 0 to 70 degrees. Knee 0 to 30 degrees. Trendelenburg 0 to 16. Reverse 0 to 15. Comfort chair: back 57, knee 30.
- Bed accessories
- Floor lock is a different code. Under-bed light Q6749 or Q6787 and battery Q6701 are separate.
- Head and footboards
- Optional. Melamine profiles Lincoln and Standard. Elite HPL profiles Lethbridge and Trenton.
- Sold as
- One bed, item MC7WM
- Available colours
- Board finishes: Valley Oak, Candle Light, Hardrock Maple, Summer Flame, Choco. Valley Oak is standard boards only.
- Warranty
- Frame and welds 15 years. Control box and actuators 5 years. Batteries, pendants, foot-end controls, cables, wear parts 1 year.
- Product type
- Long-term care bed, full electric, item MC7WM
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Span Medical Products Canada warrants the Advantage ReadyWide MC7WM against defects in workmanship and materials under normal use, from the date of first delivery.
- Frame and all welds on steel structural parts: 15 years.
- Control box and actuators (motors): 5 years.
- Batteries, hand pendants, foot-end controls and cables: 1 year.
- Parts subject to wear and bed accessories: 1 year.
- Covers the original purchaser only. Labour is not covered; return shipping is covered in the first year.
- Excludes abuse, misuse, poor maintenance, excessive loads, unapproved repairs or modifications, and parts from other makers.
Replacement parts for this model
2 parts
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
