Drive Medical

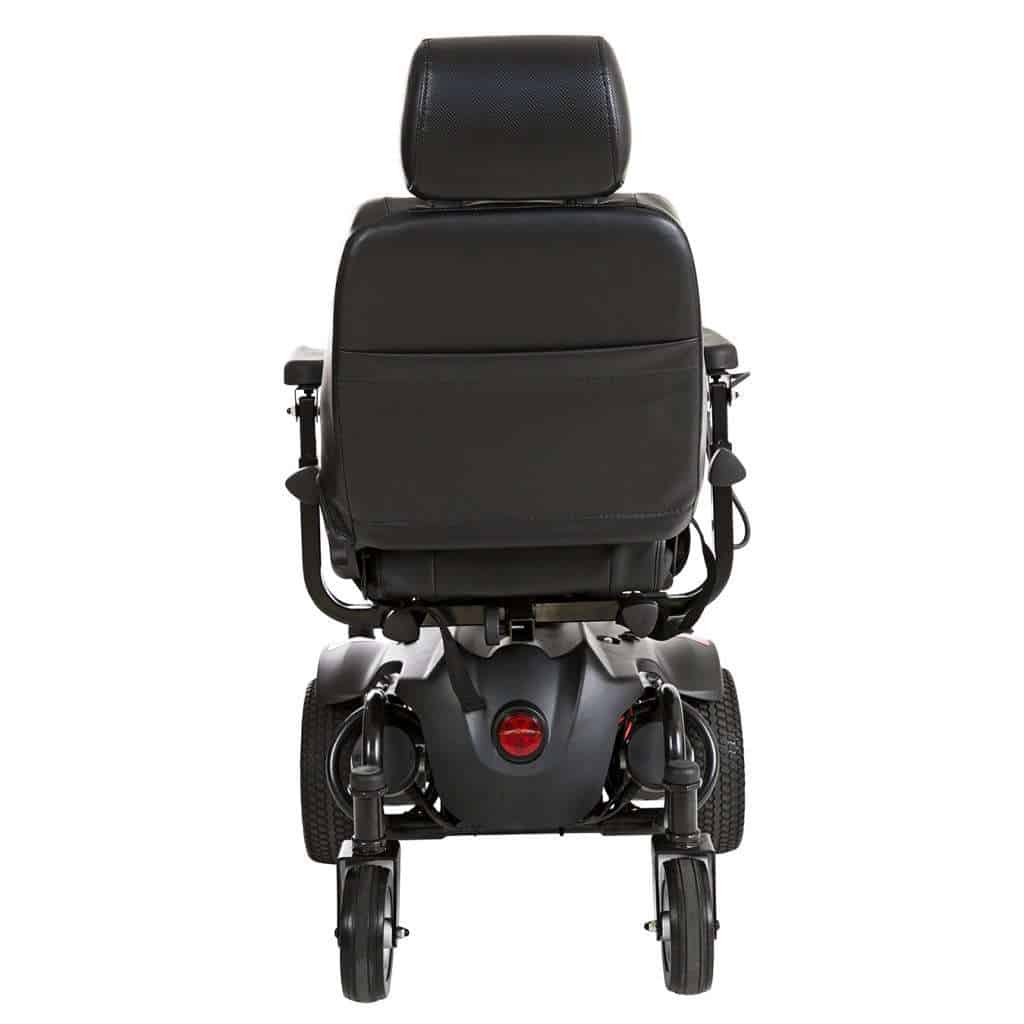

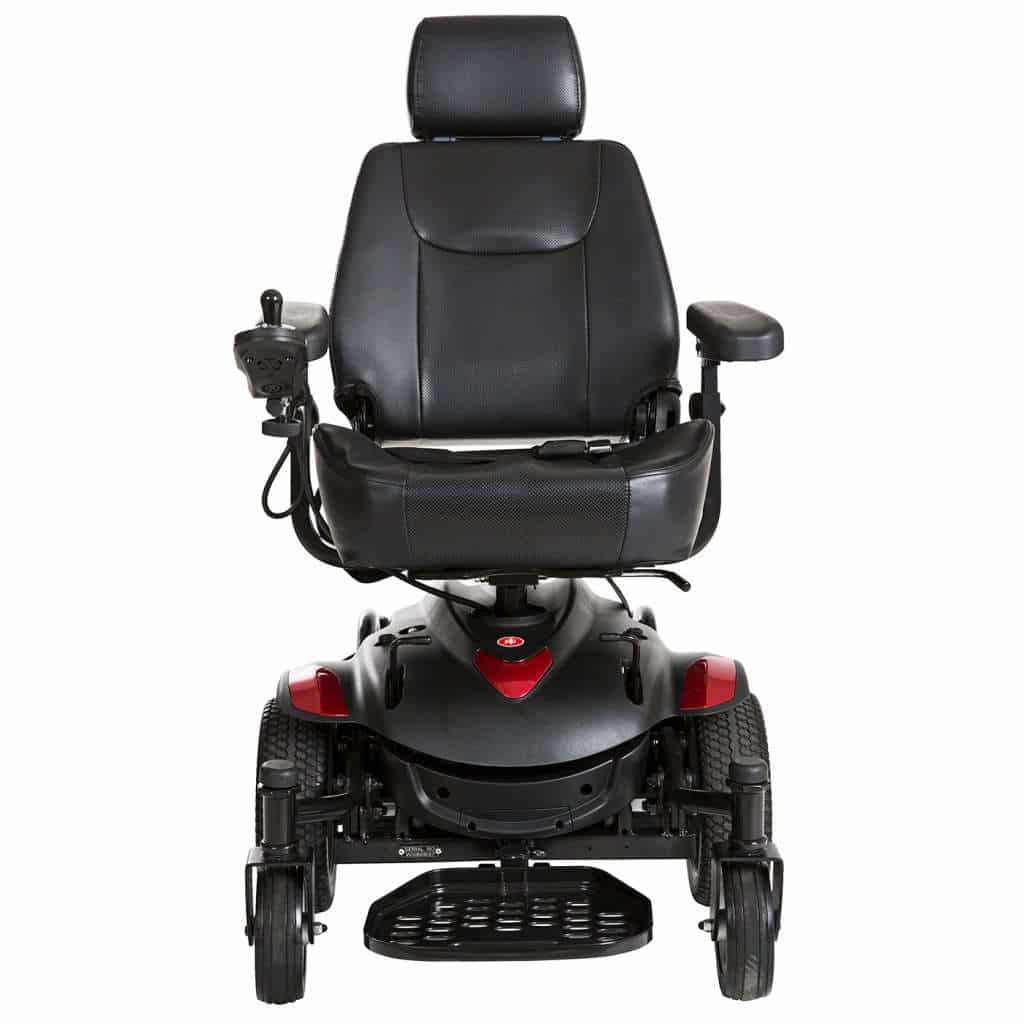

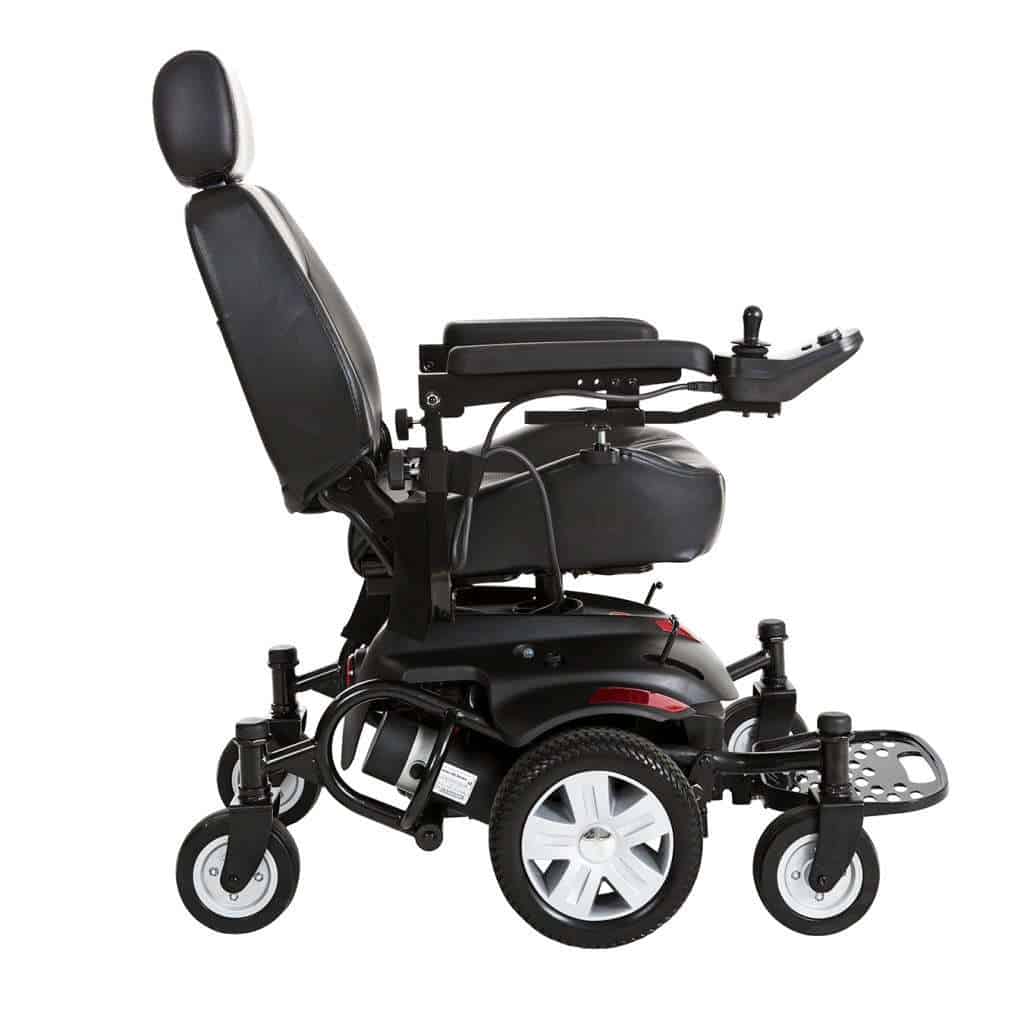

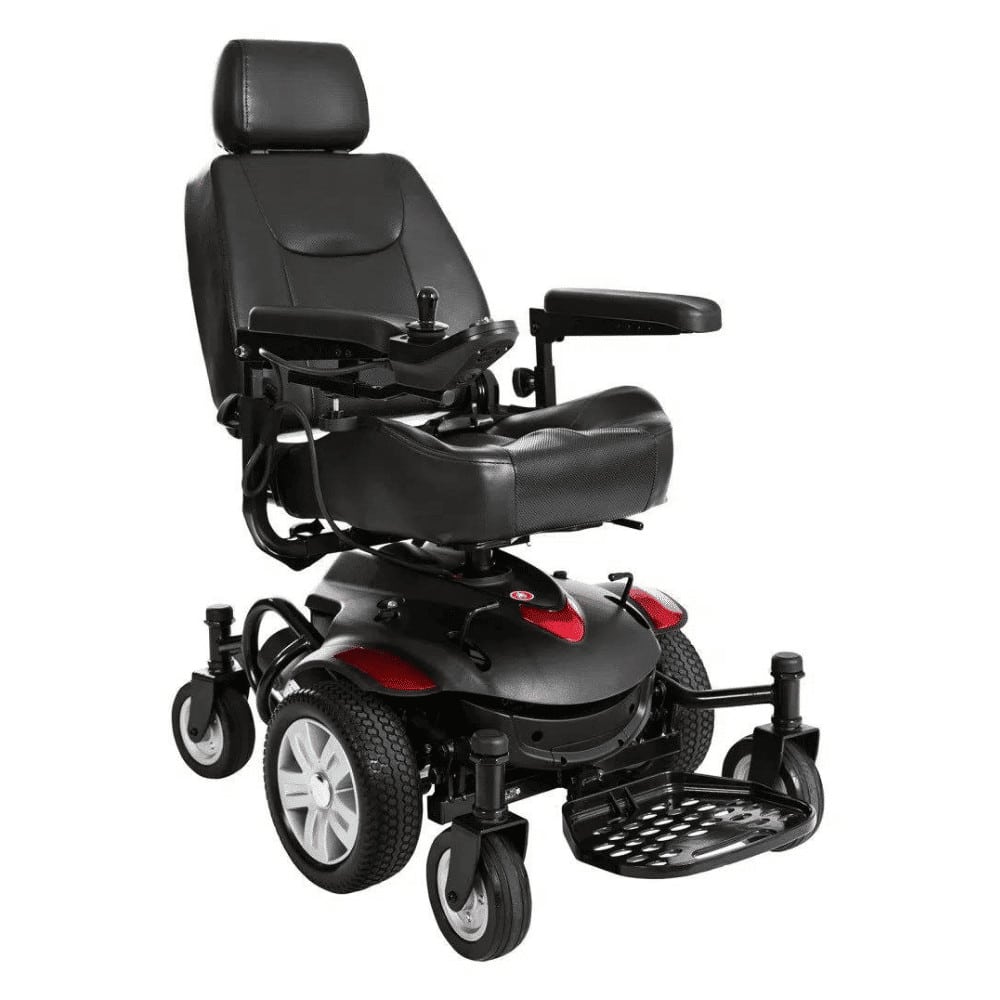

Titan AXS Mid-Wheel Powerchair by Drive Medical

The Drive Titan AXS is a mid-wheel standard power chair. This TITANAXS-18CS code denotes an 18 by 18 in captain seat; 20 and 22 in seats use different Drive codes. It carries a 300 lb (136 kg) rider, turns in 20 in and weighs 171 lb with the seat and batteries.

Key specifications All specifications
Seat
18 in wide x 18 in deep captain seat, 20.75-21.75 in off the floor; swivels in 45 degree steps and reclines
Drive
Mid-wheel, 10 x 3 in flat-free drive wheels, 6 x 2 in casters front and rear
Capacity
300 lb (136 kg)
Turning radius
20 in
Range
15 to 19 miles under test conditions; two 33 Ah sealed batteries
Top speed
4 mph
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.

What is included?

The 18CS mid-wheel base, captain seat with headrest, positioning belt, two 33 Ah batteries and 4 amp charger, adjustable controller arm, flip-up footplate, and red shrouds fitted with a spare blue set. A swing-away joystick arm, elevating leg rests, an oxygen holder and a cane holder are separate.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
SKU
TITANAXS-18CS
Brand
Drive Medical
Barcode TITANAXS-18CS TITANAXS-18CS

Description

The Drive Titan AXS is a mid-wheel standard power chair. The TITANAXS-18CS code identifies the 18 by 18 in captain-seat version; the 20 and 22 in seats use separate Drive codes.

Who is it for?

  • A rider within the 300 lb (136 kg) limit who wants a compact indoor turn and a full captain seat.
  • A rider with a van or lift: at 171 lb with the seat and batteries, it is not a chair to lift by hand.
  • For a trunk or van, the seat is 40 lb, the battery pair is 44 lb and the base is 87 lb. Secure or remove the adjustable parts before it is stowed.

Will it fit?

  • The 18CS seat is 18 in wide by 18 in deep with an 18 in back. The seat swivels in 45 degree steps, reclines, and sets 20.75-21.75 in off the floor on its post.
  • Other Drive seats ran 16 to 22 in wide and 16 to 20 in deep.
  • The chair is 23.5 in (597 mm) wide, 39.25 in (997 mm) long and 44 in (1118 mm) high, with a 20 in (508 mm) turning radius and 2.5 in (64 mm) clearance.
  • Measure the doorway and turning space with the seat fitted; the width is for the base.

How does it drive?

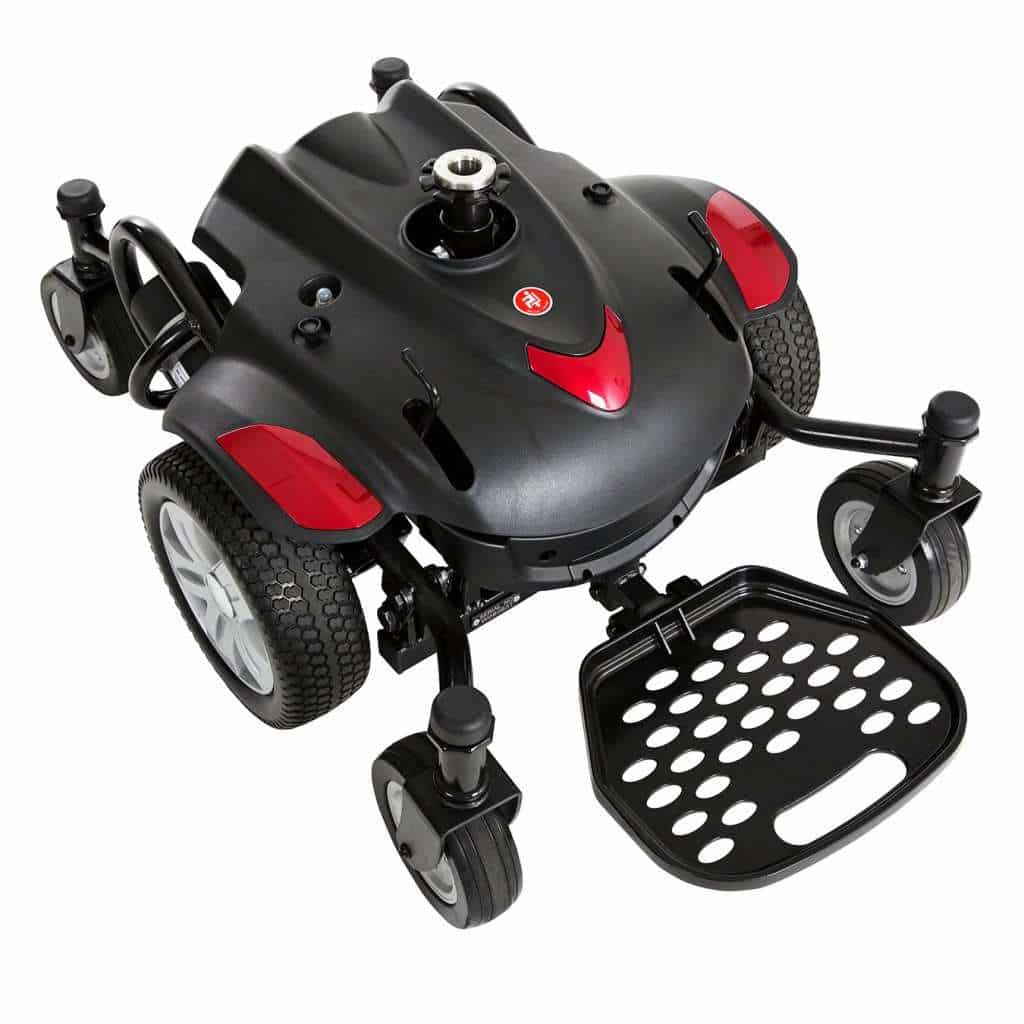

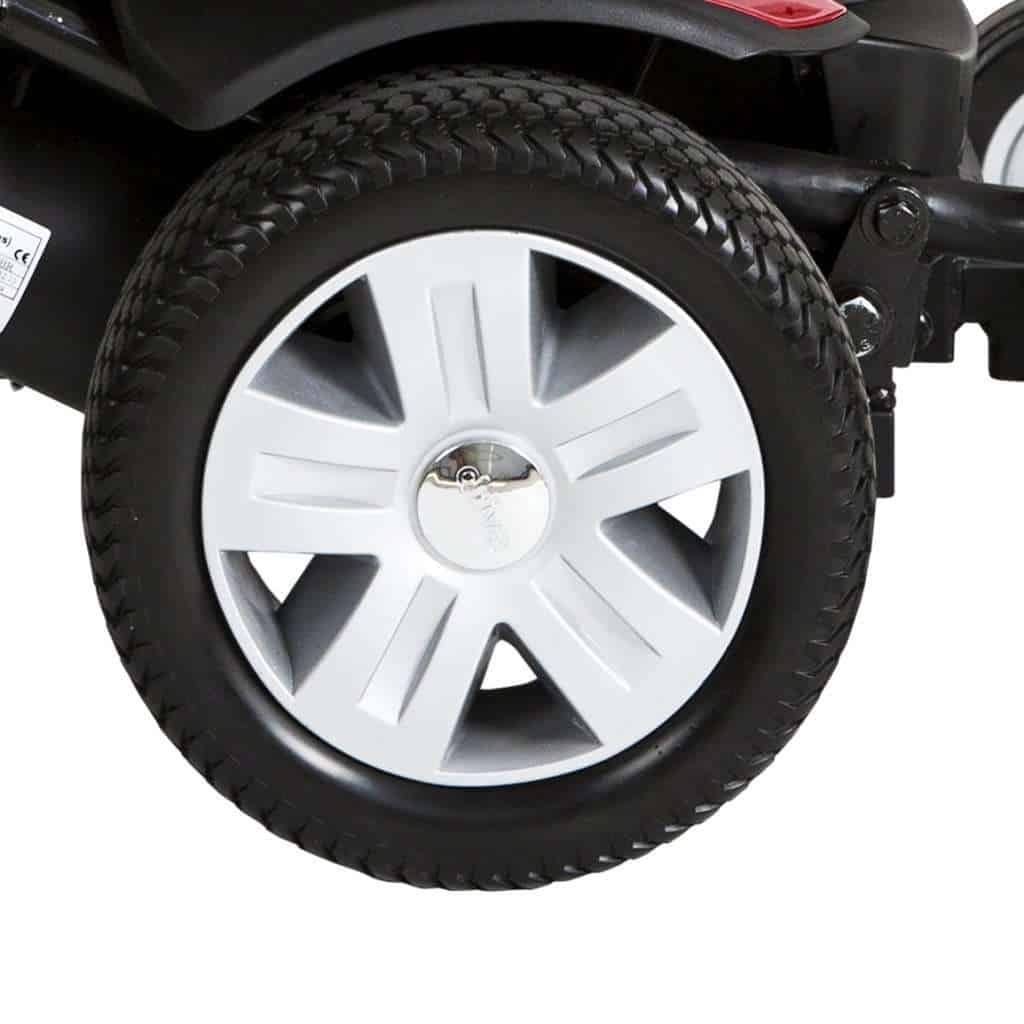

  • Mid-wheel drive with six ground-contact wheels: 10 x 3 in flat-free drive wheels and 6 x 2 in solid casters front and rear.
  • Top speed is 4 mph (6.4 km/h). It climbs 6 degrees and no obstacle taller than its 2.5 in clearance.
  • Braking is regenerative, with automatic electromagnetic park brakes.

Seat, controls and colours

  • The captain seat has a height-adjustable headrest, padded armrests that adjust for height, width and angle and flip up for transfers, and a flip-up footplate that adjusts in height, depth and angle.

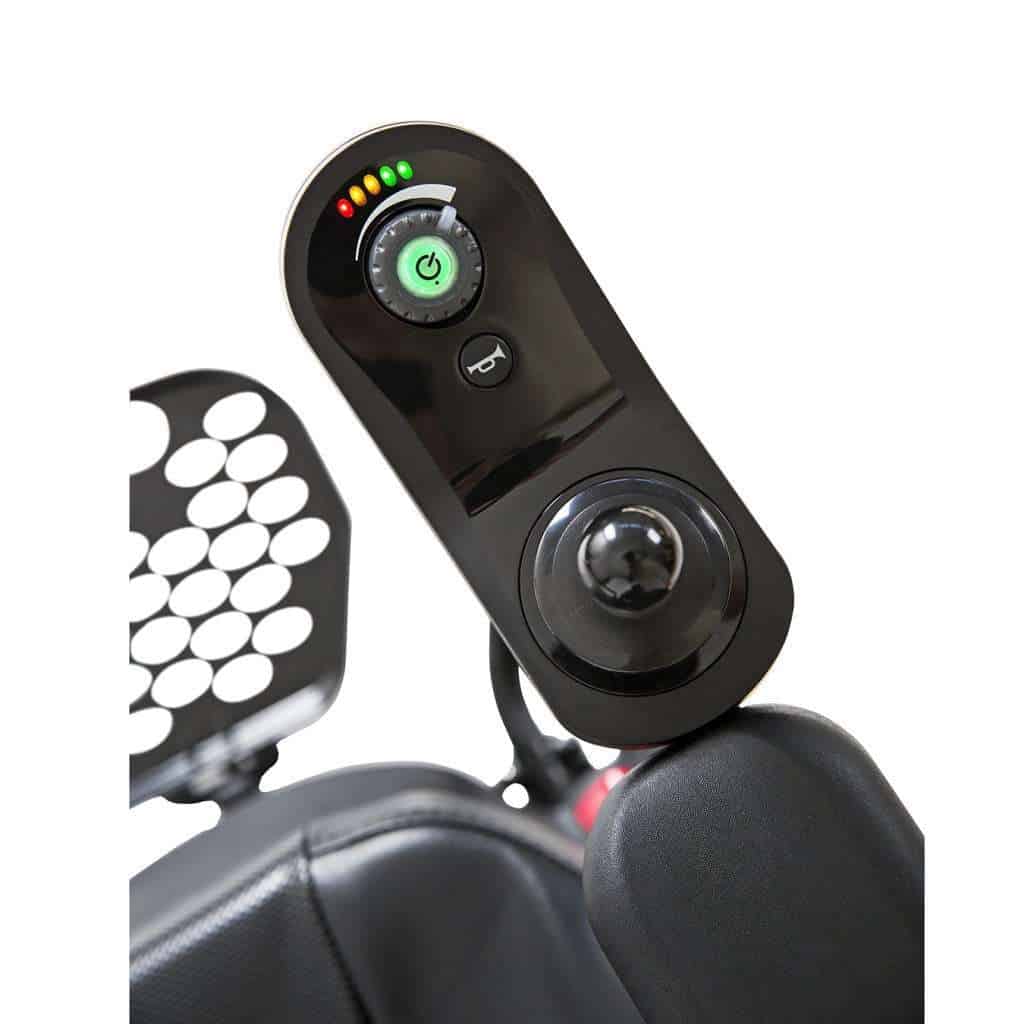

  • A positioning belt is included. The controller arm adjusts in length, and a swing-away arm is an option.
  • Red shrouds are fitted and a spare blue set ships in the box, so the colour changes without tools.

Battery and charging

  • Two 12 V U1 sealed batteries, AGM or gel only, at 33 Ah, with a 4 amp off-board charger.
  • Range is quoted at 15 to 19 miles under test; the real figure depends on battery age and load.
  • Charge 8-12 hours before first use, after each day of use, or weekly for 10-14 hours if stored. Plug the charger straight into a wall outlet, without an extension lead.

Using it safely

  • Never use the chair as a seat in a motor vehicle, and do not treat its belt as a vehicle seat belt. Stow it with the adjustable parts removed or secured.
  • Never hose the chair off. Towel dry it and leave it 8-12 hours in a dry place before use.
  • Have it inspected yearly by an authorized Drive provider.

How does it compare?

Frequently asked questions

Can the batteries travel on a plane?

The sealed AGM or gel batteries are approved for aircraft, buses and trains. Check that carrier's rules before the trip.

Does the 18CS come with a 22 inch seat?

No. Drive used a different code for the 22 by 20 in version. The 18CS is 18 by 18 in.

Can it go in a vehicle?

It can be stowed in a van or truck, but it is not a vehicle seat and its belt is not a vehicle seat belt.

Specifications

Weight capacity
300 lbs (136 kg)
Product weight
171 lbs (77.6 kg) with seat and batteries; base 87 lb, battery pair 44 lb, seat 40 lb
Seat width
18 in, captain seat
Seat depth
18 in, captain seat
Back height
18 in (457 mm)
Seat height
20.75-21.75 in (527-552 mm) floor to seat, set on the seat post
Drive wheel size
10 x 3 in (254 x 76 mm) flat-free mid-wheel
Caster size
6 x 2 in (152 x 51 mm) solid, front and rear
Overall width
23.5 in (597 mm)
Overall height
44 in (1118 mm)
Overall length
39.25 in (997 mm)
Ground clearance
2.5 in (64 mm)
Turning radius
20 in (508 mm)
Maximum obstacle height
2.5 in (64 mm), no higher than the ground clearance
Maximum slope
6 degrees (10.5 percent)
Driving range
15 to 19 miles (24 to 30.6 km) under test conditions, depending on battery age and load
Top speed
4 mph (6.4 km/h)
Motors
Two 24 V, 320 W, 4600 rpm
Controller
Dynamic Linx 40 amp, programmable, with Bluetooth for service; adjustable-length controller arm
Brakes
Regenerative braking with automatic electromagnetic park brakes
Battery
Two 12 V U1-size 33 Ah sealed batteries, AGM or gel only
Available colours
Red and blue interchangeable side panels, both included
Compatible with
Two 12 V 33 Ah batteries on original 18CS build
Charging time
8-12 hours for a full charge; charge after each day of use
Battery charger
4 amp off-board; 8-12 h before first use, after each day of use, or weekly for 10-14 h if stored
Vehicle use
Never use as a seat in a motor vehicle; the belt is not a vehicle seat belt; stow with adjustable parts removed or secured
Included
Positioning belt, red shrouds fitted and a spare blue set in the box
Seat adjustment
Swivels in 45 degree steps, reclines and has an adjustable headrest; armrests adjust height, width and angle and flip up; footplate flips up and adjusts
Warranty
Limited lifetime frame, seat post, platform and welds; 24 months electronics, motor and gearbox, and brakes
Product type
Mid-wheel standard power chair, TITANAXS-18CS

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Drive Medical warrants the Titan AXS to the original purchaser from the date of original purchase, and repairs or replaces parts that an authorized Drive Medical representative finds defective in materials or workmanship.

  • Main frame, seat post, platform and frame welds: limited lifetime.
  • Electrical harness, joystick, controller, PC board, charger, throttle assembly, motor and gearbox, and electromagnetic brake function: 24 months.
  • Accessories supplied by Drive Medical with the chair: 1 year.
  • Wear parts such as shrouds, tires and tubes, upholstery, armrest pads, bearings and motor brushes are covered only when found defective on delivery.
  • Warranty service is done by an authorized Drive Medical provider. Labour, service calls and shipping are not covered unless Drive Medical authorizes them.
  • Repairs or modifications made without Drive Medical's consent are not covered.
