Description

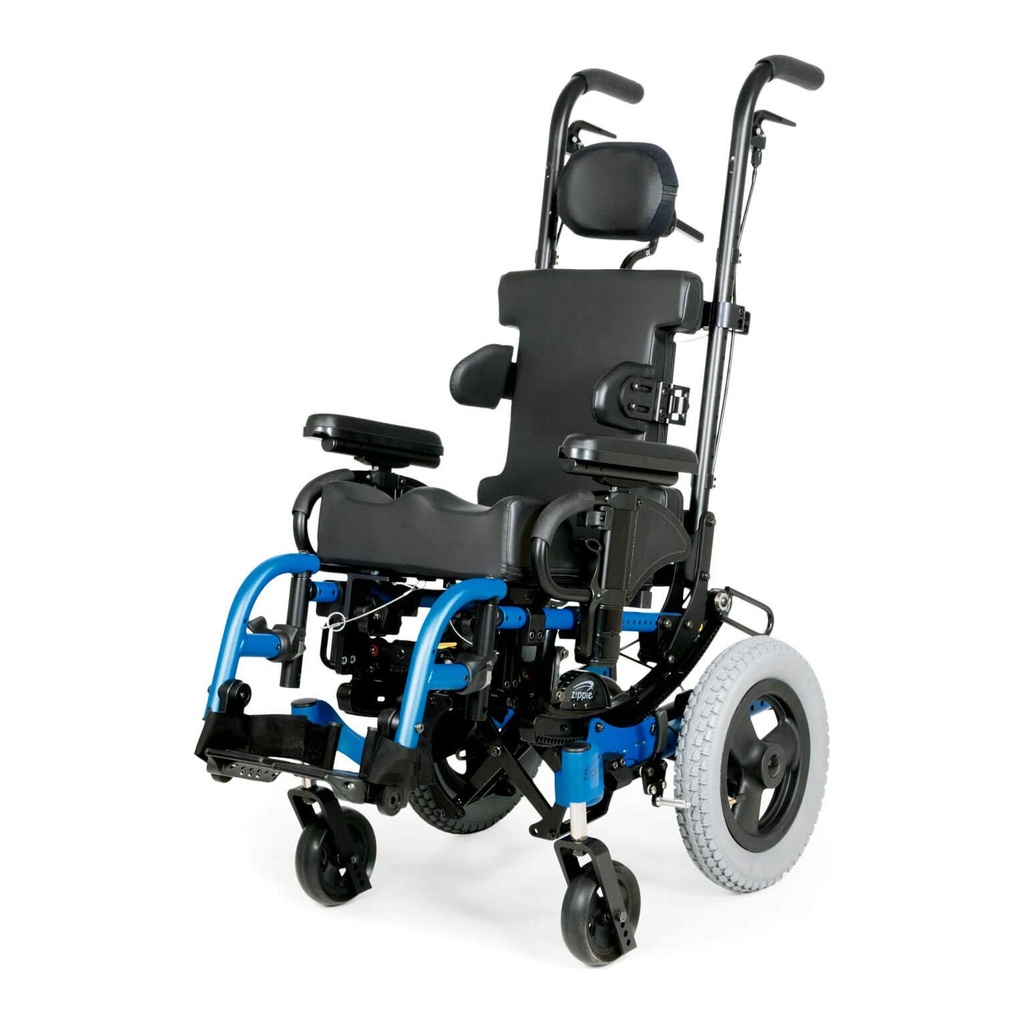

Model EIZ5A is a pediatric tilt chair. A caregiver tilts and pushes it. Sunrise does not present it as a chair the child propels.
Who it suits
- A child who needs someone else to change tilt through the day.
- Not the adult chair. That is the Quickie IRIS.
How the tilt works

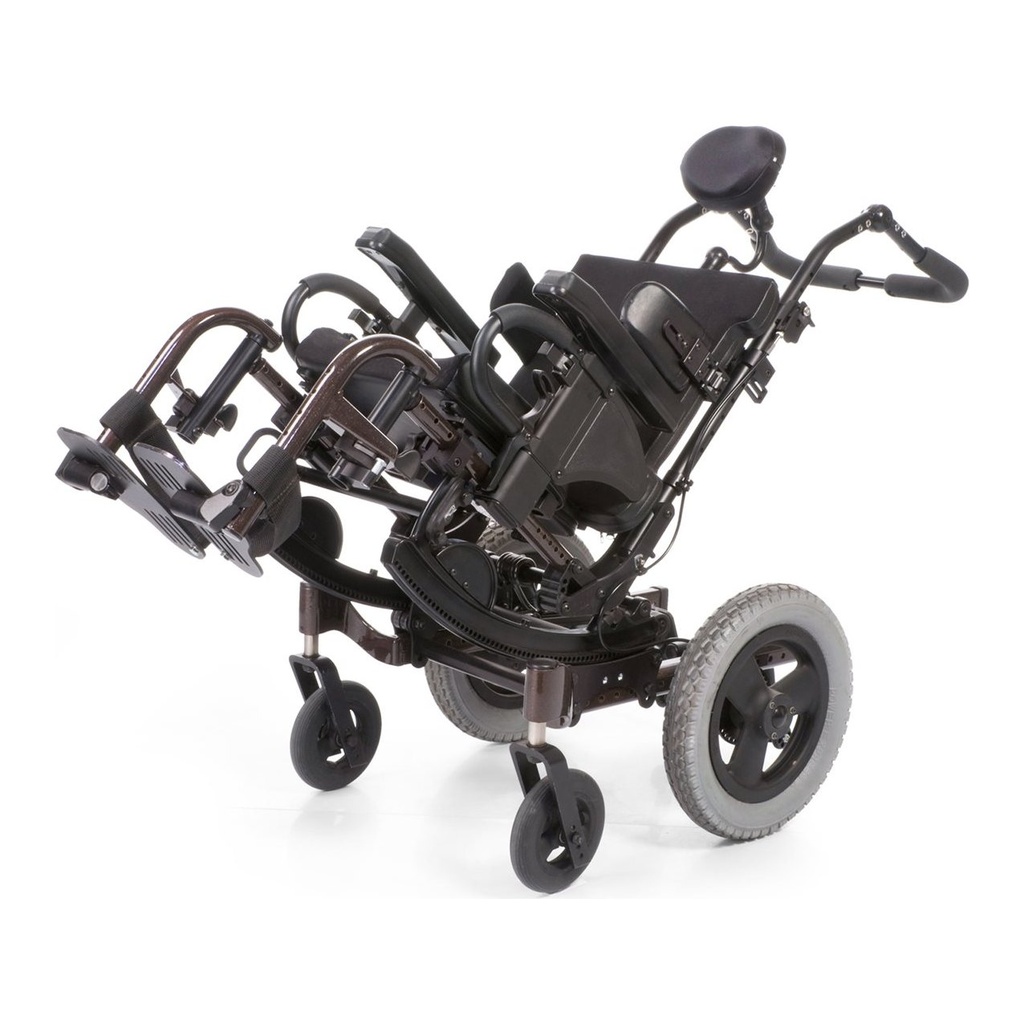

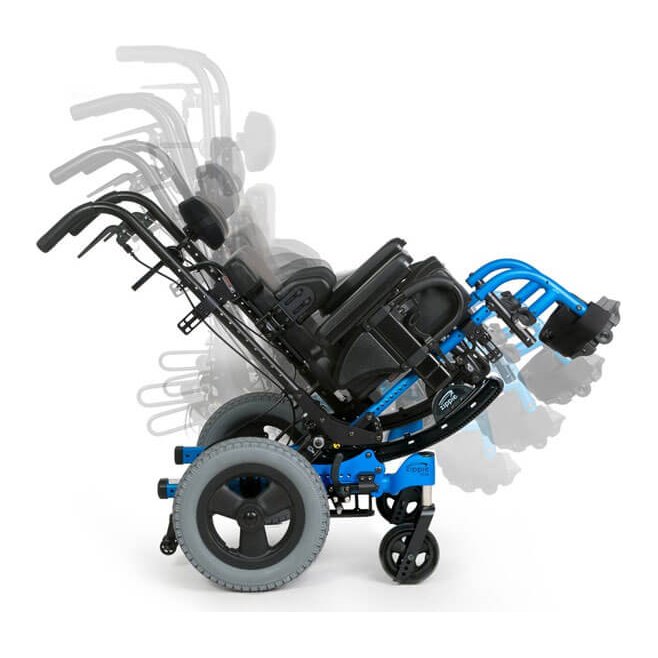

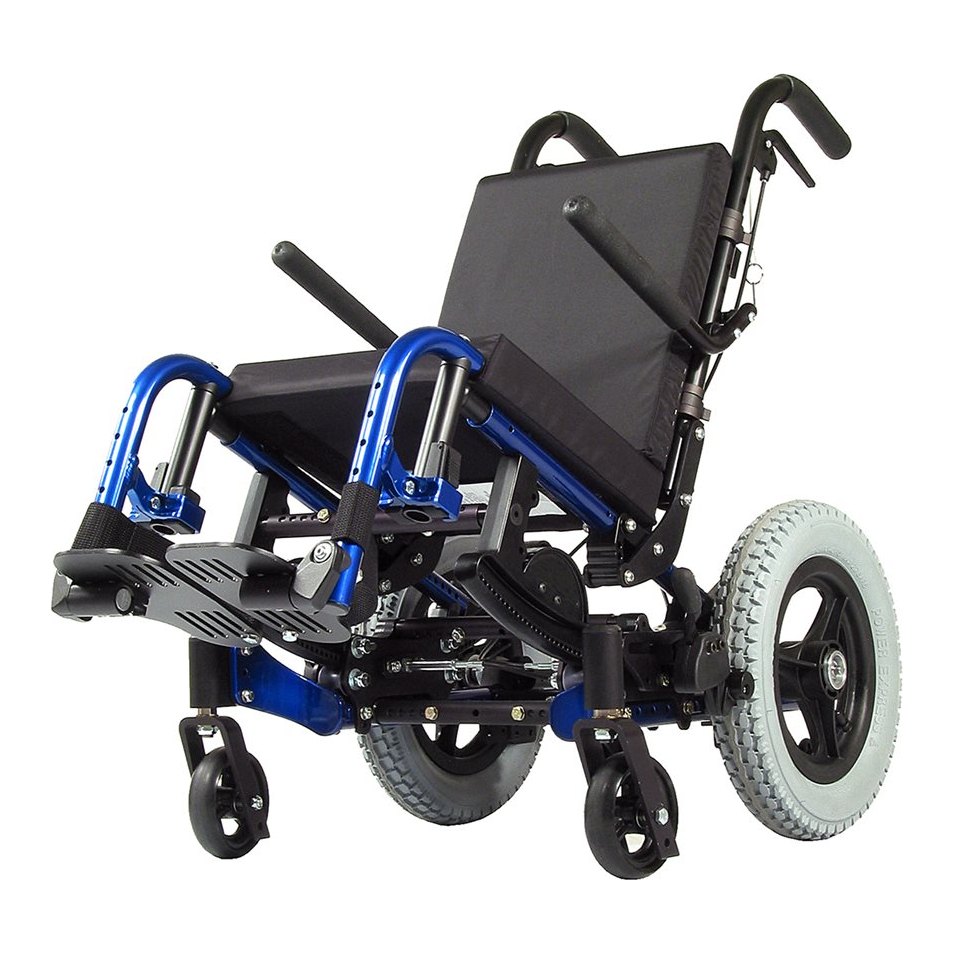

The seat frame rotates around the child's centre of gravity. Choose a 40 or 55 degree range. Those ranges can be set to reach 45 or 60 degrees back.

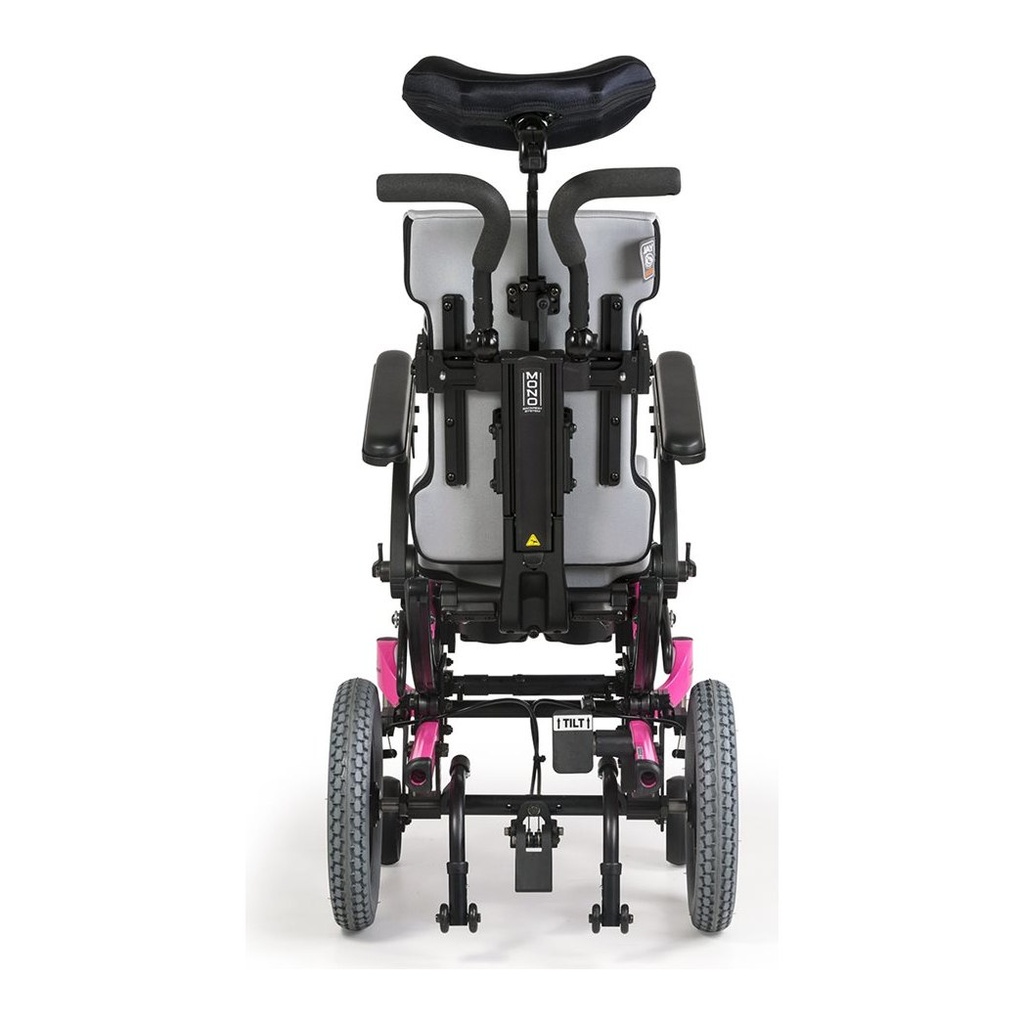

Two triggers lock the seat, and letting go locks it. A foot release hides the cables. Do not propel it while tilted forward. A dealer sets any forward tilt, from 0 to 5 degrees.
Check the fit
- Rigid width is 10 to 18 in. Folding width is 10 to 16 in and can grow to 18 in.
- Depth is 10 to 18 in. Front and rear seat height are both 13 to 19 in.
- The folding frame grows up to 4 in in depth and 2 in in width. Overall width is 17.5 to 25.5 in.
- A home assessment checks the doorway.
Limits
- Capacity is 225 lb (102 kg), rider plus items carried. The Z-Finity footrest limits the user to 165 lb (75 kg).
- Occupied travel needs the transit option. The manual names it WC-19.
- Transport weight excludes footrests, rear wheels, seat pan, armrests and transit: 22.8 lb (10.3 kg) rigid, 26.6 lb (12.1 kg) folding.
Compare the other tilt chairs
The Zippie TS tilts 45 degrees on a fixed pivot, at 165 lb. The Zippie Sphynx folds and uses static tilt at 10, 20 or 30 degrees. See pediatric wheelchairs and tilt wheelchairs.
Funding may help: see who may help pay.
Frequently asked questions
Can my child stay in the IRIS in a car?
Only if that chair was built with the transit option. The manual names it WC-19. Without it, use a vehicle seat.
What if we add the Z-Finity footrest?
The user limit drops from 225 lb (102 kg) to 165 lb (75 kg). The chair without that footrest stays at 225 lb.
Does every IRIS fold?
No. The XLOCK folding crossbrace is optional. The rigid frame is the other build, and it does not fold.
Can we set the forward tilt at home?
No. The manual says a dealer sets the 0 to 5 degree forward tilt. Do not propel the chair while it is tilted forward.
Specifications
- Weight capacity
- 225 lb (102 kg), rider plus items carried; 165 lb (75 kg) with the Z-Finity footrest
- Product weight
- Rigid standard weight 32 lb (14.5 kg); folding standard weight 35.8 lb (16.2 kg). Parts included are not listed
- Transport weight
- Rigid 22.8 lb (10.3 kg); folding 26.6 lb (12.1 kg). Excludes footrests, rear wheels, seat pan, armrests and transit
- Seat width
- Rigid 10 to 18 in (25.4-45.7 cm); folding 10 to 16 in, grows to 18 in
- Seat depth
- 10 to 18 in (25.4-45.7 cm)
- Back height
- Fixed 19, 22 or 25 in; adjustable 16-22 or 19-25 in; reclining 21 or 24 in; MONO 18.7 or 21.7 in
- Back angle
- 5 degrees forward to 30 degrees back (85 to 120 degrees)
- Armrests
- T-post, flip-up, locking flip-up, dual post or single-post height adjustable, chosen on the order form
- Legrests
- 80 degree swing-in/out hanger is standard; the Z-Finity footrest is optional and limits the user to 165 lb (75 kg)
- Tilt range
- 40 or 55 degrees of rotation, set to reach up to 45 or 60 degrees back
- Seat height
- Front and rear seat to floor 13 to 19 in (33.0-48.3 cm)
- Rear wheel size
- 12 in mag standard (no handrims); 16, 20, 22 or 24 in mag or 5-spoke; 20, 22 or 24 in lite spoke
- Caster size
- 4, 5, 6 or 8 in, including 8 x 1.5 in and 8 x 2 in; 5 in low-profile polyurethane is standard
- Overall width
- 17.5 to 25.5 in (44.5-64.8 cm)
- Folding
- Rigid frame, or an optional XLOCK folding crossbrace that locks when it is open
- Frame material
- Aluminium
- Warranty
- Frame and cross brace: lifetime for the original owner. Sunrise-made parts: 1 year. Tires, tubes, upholstery, pads and grips are not covered
- Product type
- Pediatric tilt-in-space manual wheelchair
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
Documents
- Brochure Zippie IRIS Brochure, MK-100293 Rev. C, September 2025
- Brochure Zippie Wheelchair Reference Guide, 103731 Rev. P, May 2025
- User Manual Quickie and Zippie IRIS Owner's Manual (English), MK-100151 Rev. E, 2025
- Other Quickie and Zippie WC-19 Transit Securement Supplement, MK-100072 Rev. I
- Other Quickie and Zippie Colour Palette, MK-130297 Rev. A, May 2025
