Sunrise Medical

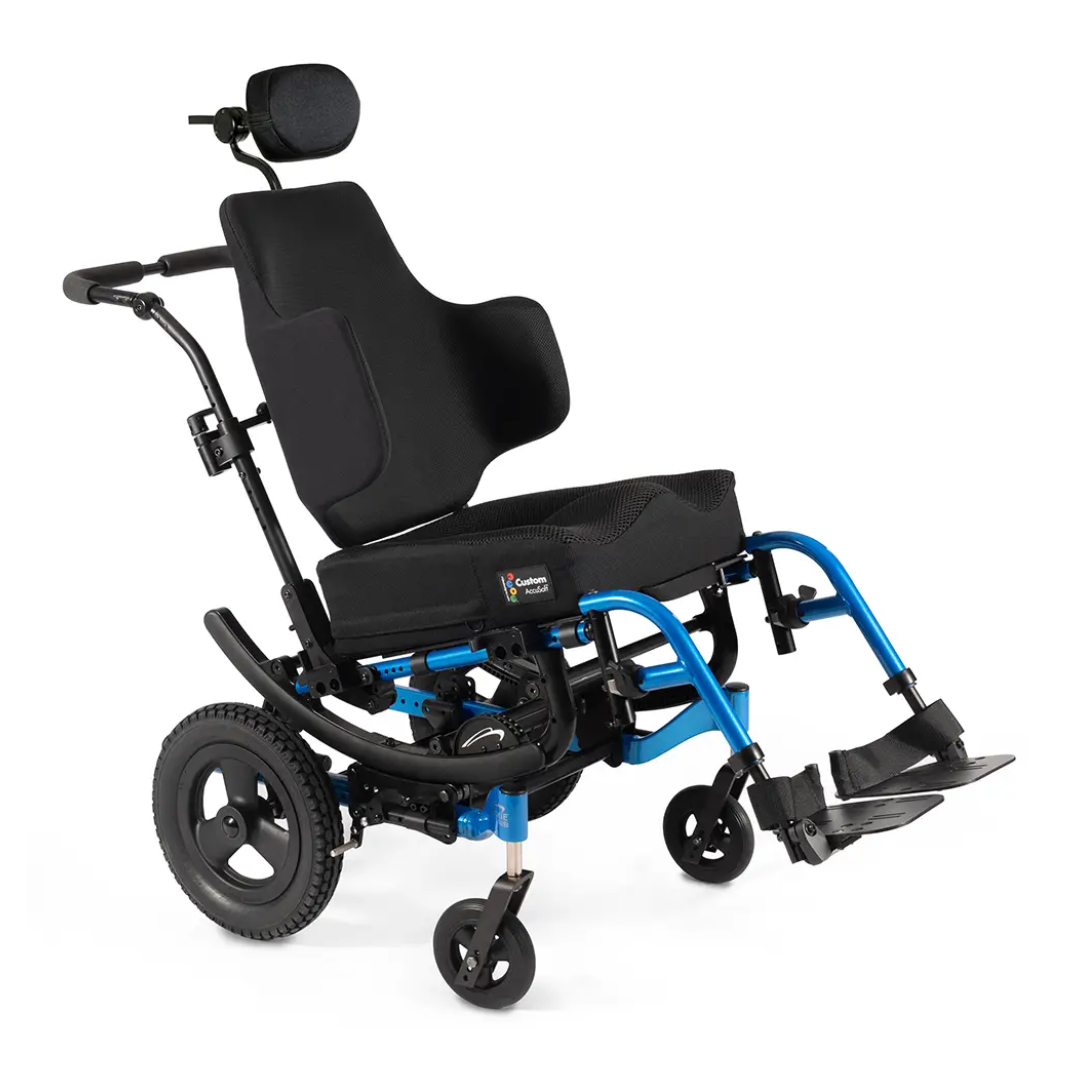

Iris Category 5 Tilt Wheelchair by Sunrise Quickie

The Quickie Iris Tilt Wheelchair is Sunrise Medical's manual tilt-in-space chair for adults who are limited to sitting and need their position changed through the day. A curved rocker lets the seat rotate around the rider's centre of gravity, so the wheelbase stays short and the caregiver tilts the chair with little effort. Each Iris is set to a 40 or 55 degree tilt range, reaching as far as 60 degrees back, and Sunrise offers an optional Power Tilt that the rider works from a switch on the armrest. Every chair is built to order, 14" to 22" wide and deep.

Key specifications All specifications
Tilt range
40 or 55 degree range, set between 5 degrees forward and 60 degrees back
Weight capacity
300 lbs (136 kg); 400 lbs (181 kg) with the Heavy Duty package
Seat sizes
14" to 22" wide and 14" to 22" deep, in 1" steps
Seat height
12.5" to 19.5" (32 to 50 cm), set by the wheel and caster sizes
Chair weight
38 lbs (17.2 kg) with footrests at 18" x 18"; 61 lbs (27.7 kg) as crash tested with seating
Vehicle use
Optional WC-19 transit kit for riding facing forward in a vehicle
Quote only

Priced by quote: your written quote confirms current pricing, options and availability.
  • Colour - Black
  • Seat width
  • Seat depth
Request a quote Call (905) 798-1853
Add to wishlist
Terms of service · Return policy · Shipping policy

What is included?

Every Iris is built to the measurements and choices on Sunrise Medical Canada's order form. The base chair has the aluminum frame in your width and depth, the tilt mechanism with dual hand triggers or a foot release, back posts, swing-in/out footrests, a choice of armrests, rear wheels, casters and push-to-lock wheel locks, and the WC-19 transit kit can be added. The seat pan, rear anti-tips, Power Tilt, the seat cushion, the back support and a headrest are separate lines on the same form, so your quote lists every part before anything is ordered.

Mobility Specialties is an ADP registered vendor. Funding may help: see who may help pay.

  • Delivery and setup Across Toronto and the GTA: we set it up, show you how it works and service it at home or in our shop. Call (905) 798-1853
  • Safe checkout VISA Visa or Mastercard online, or pay in store when you visit us.
  • Free home assessment We check the fit and the funding with you.
  • Try it in a showroom Etobicoke and Brampton
Brand
Sunrise Medical
Barcode WMA5QU015 WMA5QU015
Contact Us
Description Specifications Documents Delivery and service Warranty

Description

The Quickie Iris is an aluminum tilt-in-space wheelchair for an adult tilted by a caregiver, built to order by Sunrise Medical.

What does it do and how does it work?

  • A curved rocker rotates the seat around the rider's centre of gravity, so the wheelbase stays short and tilting takes little effort.
  • Tilt ranges are 55 degrees (-5 to 50, 0 to 55 or 5 to 60) or 40 degrees (-5 to 35, 0 to 40 or 5 to 45); the defaults are 0 to 55 and 5 to 45.
  • The caregiver uses dual triggers or a foot pedal; Power Tilt adds an armrest toggle.
  • The aluminum frame does not fold; the back folds down and the rear wheels are quick release.
  • Weight is 38 lb (17.2 kg) with footrests at 18 x 18 in, or 61 lb (27.7 kg) crash tested with seating; Heavy Duty is 69 lb (31.3 kg).

Who is it for, and who should choose something else?

  • An adult up to 300 lb (136 kg), or 400 lb (181 kg) Heavy Duty, tilted by a caregiver through the day.
  • Z-finity footrests lower the limit to 165 lb (75 kg).
  • One 45 degree range: the Quickie SR45.

Will it fit?

  • Seat width and depth 14 to 22 in (36 to 56 cm); 23 and 24 in are HD special orders, and depth adjusts within the frame.
  • Seat height 12.5 to 19.5 in (32 to 50 cm), set by wheel and caster; 12.5 in needs 12 in wheels and 4 in casters, not Heavy Duty.
  • The minimum turning radius is 28 in (71 cm); the turn-around width is 56 in (142 cm) as crash tested.
  • Measure hip width, hip to knee, and knee to heel in shoes.

Using it day to day

  • Tilt with the triggers or pedal; only the dealer sets the 0 to 5 degree forward tilt.
  • Never push the chair tilted forward, and never tilt the back past parallel to the ground.
  • Order a cushion and back support; the seat pan is not pressure relief.
  • For transit, face forward with the WC-19 kit over 51 lb (23 kg), not with reverse wheels; remove trays, poles and gear, set the seat to 10 degrees and the back to 30 or less.

What does it work with, and what are its limits?

  • The rider and anything carried must total no more than 300 lb (136 kg), or 400 lb (181 kg) HD.
  • Anti-tip tubes are optional, and the frame does not fold.
  • Power Tilt is off while charging and has a two-person manual override.
  • Warranty: frame for life of the original owner; other Sunrise parts 1 year; Power Tilt 1 year. See the Warranty tab.

How does it compare?

Frequently asked questions

Can the rider tilt it alone?

Only with Power Tilt and the armrest toggle; a caregiver tilts the standard chair.

Which tilt preset is the default?

Defaults are 0 to 55, or 5 to 45 on the short range.

Can the seat depth change later?

Yes, within the seat frame you order.

Mobility Specialties is an ADP registered vendor; see how we can help.

Specifications

Weight capacity
300 lbs (136 kg); 400 lbs (181 kg) with the Heavy Duty package; 165 lbs (75 kg) with Z-finity footrests
Product weight
38 lbs (17.2 kg) with footrests, 18" x 18" seat; 61 lbs (27.7 kg) as crash tested with seat pan, solid back and cushion
Seat width
14" to 22" (36 to 56 cm) in 1" steps; 23" and 24" by special order with the Heavy Duty package
Seat depth
14" to 22" (36 to 56 cm) in 1" steps; short, medium or long seat frame, adjustable within its range
Back height
Fixed stroller handle posts 18", 21" or 24"; height-adjustable back canes 15" to 21" or 18" to 24"; Mono back optional
Back angle
Set with tools across -30 to 5 degrees; reclining back (0 to 40 degrees) with the 40 degree tilt range only
Armrests
Dual post or single post height-adjustable, flip-back or length-adjustable locking flip-up; desk or full length pads; or none
Legrests
Swing-in/out hangers at 60, 70, 80 or 90 degrees; heavy-duty lift-off, elevating, articulating, contracture or Z-finity footrests
Tilt range
55 degree range (-5 to 50, 0 to 55 or 5 to 60 degrees) or 40 degree range (-5 to 35, 0 to 40 or 5 to 45 degrees)
Seat height
12.5" to 19.5" (32 to 50 cm) front and rear, set by rear wheel and caster size
Rear wheel size
12" or 16" mag; 20", 22" or 24" mag or 24" spoke with handrims; poly or pneumatic tires; quick-release or threaded axles
Caster size
4" (not with Heavy Duty), 5", 6" or 8"; polyurethane, semi-pneumatic or pneumatic
Brakes
Push-to-lock wheel locks; attendant foot lock optional; hub locks with 12" or 16" rear wheels
Folding
Frame does not fold; back folds down; quick-release rear wheels come off
Frame material
Aluminum
Available colours
20 standard frame colours, including Gloss Black, Matte Black, Silver Ore, Royal Blue and Red Pepper; camouflage, Stars & Stripes and Zebra finishes
Warranty
Frame for as long as the original buyer owns the chair; other Sunrise parts 1 year; Power Tilt unit and charger 1 year
Product type
Tilt-in-space manual wheelchair

Options and sizes can change some figures. Ask us to confirm yours before you order.

Documents

Delivery and service

Delivery and setup

We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.

Service and repairs

Our technicians service what we sell, at home or in our shop.

Try before you buy

Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.

Warranty

Warranty details

Sunrise Medical warrants the QUICKIE IRIS tilt wheelchair against defects in materials and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.

  • Frame and cross brace: lifetime, for as long as the original purchaser owns the chair.
  • Sunrise-made parts and components: 1 year from the first consumer purchase.
  • Optional Power Tilt unit, charger and components: 1 year; the battery is not covered.
  • Labour to repair, remove or install parts is paid by the owner.
  • Not covered: tires and tubes, upholstery, pads and push-handle grips, and damage from neglect, accident, misuse, improper repair, unapproved modification or exceeding the weight limit.
