Description
The Zippie TS, model EIZ1A, is a pediatric tilt-in-space wheelchair a caregiver tilts on a fixed pivot.
What does it do and how does it work?

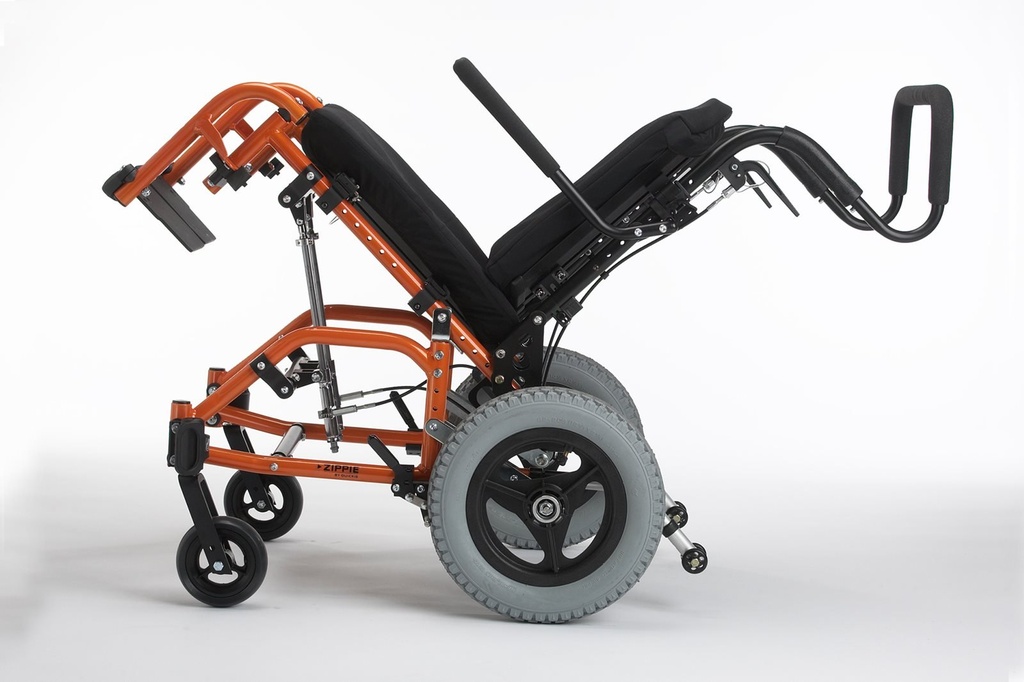

- It gives 45 degrees of traditional tilt at a fixed pivot, not rotation around the centre of gravity.
- A foot-release actuator works the tilt and keeps the cables covered; press the lock lever, set the angle and let go.
- A dealer adjusts the tilt mechanism itself.
- The aluminium frame is rigid or folding; the folding frame packs small, the rigid frame is lighter.
- The seat grows 2 in in width and 5 in in depth.
- Its intended life is 5 years.
Who is it for, and who should choose something else?
- A child whose caregiver changes tilt through the day; the child does not propel this chair.
- A family that folds and stores the chair, or wants the simpler rigid frame.
- Rotation around the centre of gravity: the Zippie IRIS. An adult: the Quickie IRIS.
Will it fit?
- Seat width 10 to 18 in, depth 13 to 20 in, front seat height 15.5 to 20 in and rear 14 to 19 in; overall width 18.25 to 24.25 in.
- Backs are fixed at 19, 22 or 25 in, or adjustable over 16-22 or 19-25 in; back angle runs -30 to 5 degrees.
- Armrests are T-post, locking flip-up, length-adjustable flip-up or single-post height adjustable; hangers come at 60, 70, 80 or 90 degrees.
- Wheels run from a 12 in mag to 16, 20, 22 or 24 in, and casters from 4 to 8 in.
- Book a free home assessment to check the doorway and the fit.
Using it day to day
- The caregiver tilts with the foot release and sets the angle with the lock lever.

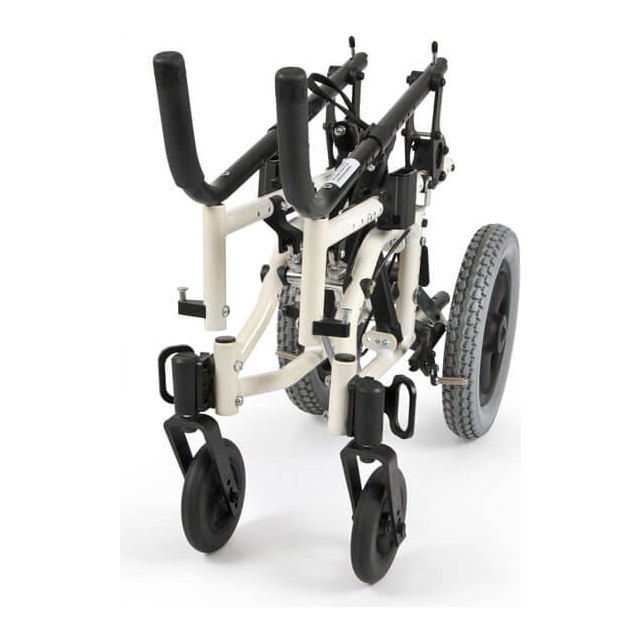

- Folding packs to 33 by 38 by 13 in; rigid ships at 31 by 24 by 24 in.
- The chair weighs 29 lb (13.2 kg) without a parts note; the average shipping weight is 50 lb.
- Transit is an option built to WC-19; without it, use a vehicle seat.
What does it work with, and what are its limits?
- Capacity is 165 lb (75 kg), rider plus items carried.
- It is a caregiver-driven tilt chair, not self-propelled.
- Coverage can vary with the funding route; we confirm the period in writing.
Which version should I choose?
- Rigid for fewer parts and lower weight, or folding for storage.
- 24 colours; cushions are separate.
- A kids backpack is included with the chair.
How does it compare?
- The Zippie IRIS rotates 40 or 55 degrees and carries 225 lb.
- The Zippie Sphynx folds and uses static tilt.
- Pediatric wheelchairs and tilt wheelchairs: the wider ranges.
Frequently asked questions
Is the TS the same tilt as the Zippie IRIS?
No. The TS tilts 45 degrees on a fixed pivot; the IRIS rotates around the centre of gravity.
Can the child ride in a vehicle?
Only when the WC-19 transit option is built on that chair. Without it, use a vehicle seat.
Who works the tilt?
A caregiver, with the foot-release actuator and the lock lever.
What does the 29 lb weight include?
The 29 lb figure has no parts breakdown; the average shipping weight is 50 lb.
Funding may help: see who may help pay. Warranty terms are in the Warranty tab.
Specifications
- Weight capacity
- 165 lb (75 kg), rider plus items carried
- Product weight
- 29 lb (13.2 kg). The published figure does not say which parts are included
- Seat width
- 10 to 18 in (25.4-45.7 cm)
- Seat depth
- 13 to 20 in (33.0-50.8 cm)
- Back height
- Fixed 19, 22 or 25 in; adjustable 16 to 22 in or 19 to 25 in
- Back angle
- -30 to 5 degrees
- Armrests
- T-post, locking flip-up, length-adjustable flip-up, or single-post height adjustable
- Legrests
- Swing-in/out hangers at 60, 70, 80 or 90 degrees, heavy-duty lift-off, a 90 degree elevating hanger, or Z-Finity
- Tilt range
- 45 degrees of traditional tilt at a fixed pivot
- Seat height
- Front 15.5 to 20 in (39.4-50.8 cm); rear 14 to 19 in (35.6-48.3 cm)
- Rear wheel size
- 12 in mag standard (no handrims); 16, 20, 22 or 24 in mag; 20, 22 or 24 in lite spoke
- Caster size
- 4, 5, 6 or 8 in; 5 in low-profile polyurethane is standard
- Overall width
- 18.25 to 24.25 in (46.4-61.6 cm)
- Folding
- Rigid frame or folding frame
- Frame material
- Aluminium
- Centre of gravity
- No adjustment
- Colours
- 24 colours
- Intended life
- 5 years
- Shipping weight
- Average 50 lb
- Warranty
- Frame and cross brace lifetime (original owner); Sunrise-made parts 1 year; tension-adjustable back 12 months
- Product type
- Pediatric tilt-in-space manual wheelchair
Options and sizes can change some figures. Ask us to confirm yours before you order.
Documents
- Brochure Zippie Wheelchair Reference Guide, 103731 Rev. P, May 2025
- User Manual Zippie TS Owner's Manual (English), MK-100208 Rev. D, February 2025
- Other Quickie and Zippie WC-19 Transit Securement Supplement, MK-100072 Rev. I
- Other Quickie and Zippie Colour Palette, MK-130297 Rev. A, May 2025
- All forms and documents
Delivery and service
Delivery and setup
We deliver and set up equipment across Toronto and the GTA, and show you how everything works. Custom and special-order products can take longer; we confirm timing with you before delivery.
Service and repairs
Our technicians service what we sell, at home or in our shop.
Try before you buy
Visit a showroom in Etobicoke or Brampton to try products first, or book a free home assessment.
Warranty
Warranty details
Sunrise Medical warrants the ZIPPIE TS tilt wheelchair against defects in materials and workmanship, for the first consumer purchase through an authorized Sunrise Medical dealer in Canada or the USA. Not transferable.
- Frame and cross brace: lifetime, for as long as the original purchaser owns the chair.
- Sunrise-made parts and components: 1 year from the first consumer purchase.
- Tension-adjustable backrest (Ballistic and 3DX Vented): 12 months; punctures, tears and burns are not covered.
- Labour to repair, remove or install parts is paid by the owner.
- Not covered: tires and tubes, upholstery, pads and push-handle grips, and damage from neglect, accident, misuse, improper repair, unapproved modification or exceeding the weight limit.
Questions about this product?
Talk to our team, try it in a showroom, or book a free home assessment. We help with sizing and funding.
