Description

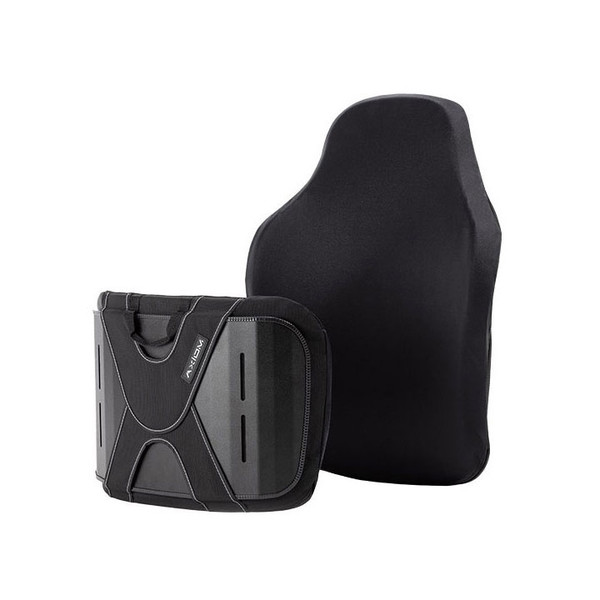

Ki Mobility Axiom Deep Lateral Back is the deepest contoured back support in the Axiom line: a lightweight aluminium shell formed to 6 in (15.2 cm) of lateral profile.
Who it suits
- The maker describes it as maximum lateral positioning support "with a more open profile for a more neutral spine position".
- It suits a rider who needs the most trunk support here; the Lateral Back and the Posterior Lateral carry less.
- A seating assessment by an occupational therapist or physiotherapist settles the contour and hardware.
Which size fits your wheelchair?
- The maker's order form lists these 26 width and height pairs, from 12 x 14 in to 22 x 22 in. Choose the width and the height on this page.
- It is not a full grid and there is no Low height here: the 12 in wide shell stops at 20 in high, and the 22 in wide shell starts at 14 in.
Order codes
The item number is AXDL plus the width and the height, so AXDL1618 is 16 in wide by 18 in high:
- 12 in wide: AXDL1214, AXDL1218, AXDL1220
- 14 in wide: AXDL1414, AXDL1416, AXDL1418, AXDL1420, AXDL1422
- 16 in wide: AXDL1614, AXDL1616, AXDL1618, AXDL1620, AXDL1622
- 18 in wide: AXDL1814, AXDL1816, AXDL1818, AXDL1820, AXDL1822
- 20 in wide: AXDL2014, AXDL2016, AXDL2018, AXDL2020, AXDL2022
- 22 in wide: AXDL2214, AXDL2218, AXDL2222
How is it built?
- The shell is formed by the maker's Fulcrum bending process, which Ki Mobility says makes it stiffer than roll forming.
- It adjusts 2 in in width, 3.3 in in height, 1.5 in in depth and 20 degrees in angle.
- Hardware is included: DEX, BTX or FXT, and LWX is not offered here. The rating follows the hardware: 300 lb (136 kg) on DEX or FXT and 400 lb (181 kg) on BTX.
- The foam is 1.3 in (3.3 cm) thick, over nylon spandex and a waterproof membrane layer.
Covers and care
- Unzip the cover, roll out the foam and zip it closed first.
- Wash the cover in hot water at 60 C, then line dry or tumble with no heat. Never bleach or dry clean it. Backs sit in our wheelchair backrest range.
Funding
Funding may help: see who may help pay.
Warranty and service
Ki Mobility warrants the shell and foam for 24 months and the covers for 6 months. Warranty service runs through us; returns follow our return policy.
Frequently asked questions
How much lateral support does the Deep Lateral give?
6 in (15.2 cm) of shaped profile, the most in the Axiom back line. The Lateral Back and Posterior Lateral sit below it.
Which hardware fits this back?
DEX, BTX or FXT. LWX is not offered on the Deep Lateral. The rating is 300 lb with DEX or FXT and 400 lb with BTX.
Does the Deep Lateral include a lumbar pad?
No. This shell is supplied without one; the maker fits a lumbar pad to the Posterior Lateral instead.
Specifications
- Weight capacity
- 300 lb (136 kg) on DEX or FXT hardware, and 400 lb (181 kg) on BTX hardware
- Sizes
- The item number is AXDL plus the width and height, for example AXDL1618 for 16 in wide by 18 in high
- Construction
- Lightweight aluminium shell formed by the maker's Fulcrum bending process, with 1.3 in (3.3 cm) of high resiliency foam
- Cover
- Removable cover: nylon spandex fabric over a waterproof elastic membrane layer, and a 6 month cover warranty
- Cover care
- Remove the foam and zip the cover closed, machine wash hot at 60 C, then line dry or tumble with no heat; never bleach, dry clean or steam it
- Adjustments
- 2 in (5.1 cm) of width adjustment from the chair width, 3.3 in (8.3 cm) of height, 1.5 in (3.8 cm) of depth and 20 degrees of angle, with dual mounting slots
- Back width
- 12 in to 22 in (30.5 to 55.9 cm), in 2 in steps
- Back height
- Mid 14 in to 18 in and Tall 20 in to 22 in; no Low height on this shell
- Contour depth
- 6 in (15.2 cm) of lateral profile, the most in the Axiom back line, with no lumbar pad
- Mounting hardware
- DEX, BTX or FXT hardware, included with the back; LWX is not available on the Deep Lateral Back
- Available colours
- Gloss and matte shell finishes, including Gloss Black, Champagne, Ruby Red, Tactical Green and White
- Warranty
- 24 months on the Axiom Back shell and foam, 6 months on the removable covers
- Product type
- Wheelchair back support with the maker's deepest lateral contour, the Ki Mobility Axiom Deep Lateral Back (DL)
- Use category
- Back support with maximum lateral positioning, as the maker describes it
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
