Complete your equipment setup
Purchase a compatible patient sling
Slings are purchase only. The team confirms lift attachment, size and suitability before supplying a sling.
Choose a model to view purchase details Size, fit and compatibility must be confirmed. View purchase optionsHospital Bed
Compare models and purchase options. Our team helps confirm the right equipment for your setup.
Choose a model to view purchase details View purchase optionsDescription

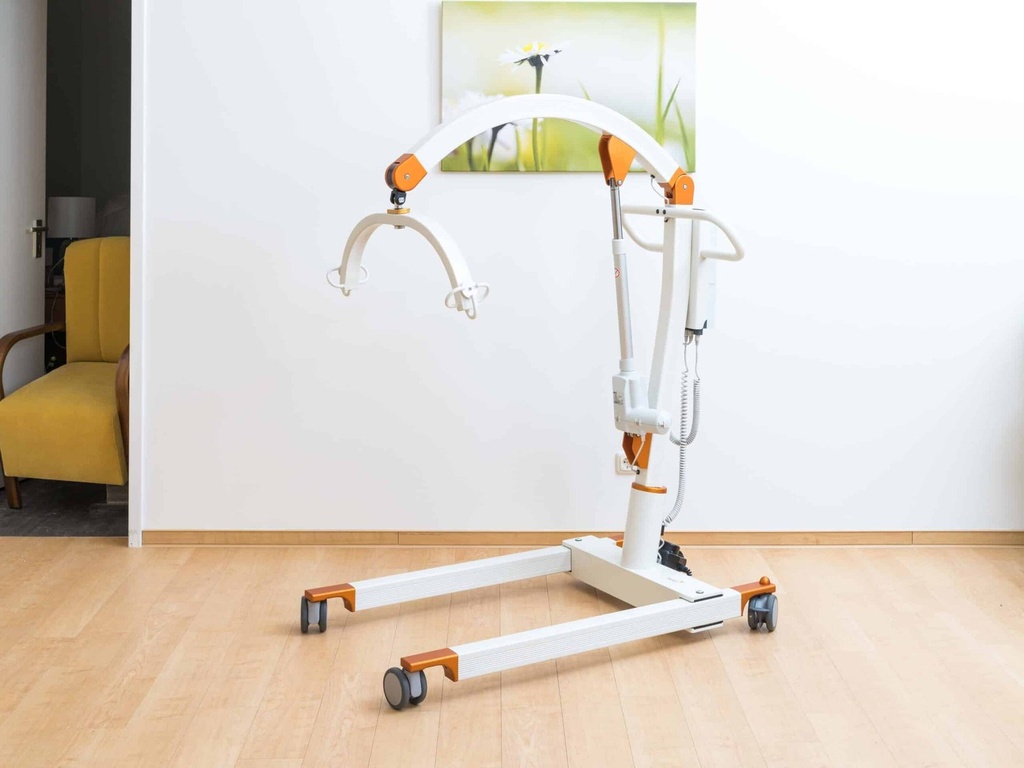

The Beka CARLO Alu Classic is an electric floor lift with a 6-point bar for loop slings. Item 924003208 is rated 407.86 lb (185 kg). Item 924003008 is rated 507 lb (230 kg).
What does it do and how does it work?
It raises, lowers and spreads the legs under power.
- The 6-point bar takes loop slings, turns through 360 degrees, and has an anti-rotation stop.
- Hanger-bar hooks travel from 7.87 in (20.0 cm) to 62.20 in (158.0 cm).
- An aluminum frame rolls on four 3.9 in (100 mm) double casters. The rear pair lock.
- The battery is a removable 24 V lead-acid pack, 2.9 Ah. The emergency stop cuts both motors.
Who is it for, and who should choose something else?
It transfers from a bed, chair, toilet or the floor when the person cannot stand.
- Choose the low-leg Classic if furniture will not clear a 4.92 in (125 mm) frame.
- Choose the Comfort EP for clip slings, or when the bar must tilt under power.
- Smooth, level indoor floors only. A short need can start with a patient lift rental.
Will it fit?
Measure the doorway, the gap under the bed and the header.
- Closed outer width is 27.56 in (700 mm). Frame height is 4.92 in (125 mm).
- Open, 924003208 is 46.46 in (1,180 mm) outside and 40.94 in (1,040 mm) inside. 924003008 is 48.4 in (1,230 mm) outside and 42.9 in (1,090 mm) inside.
- Length is 50.78 in (1,290 mm) on 924003208 and 55.1 in (1,400 mm) on 924003008. The mast reaches 85.4 in (2,170 mm).
Using it day to day
Charge for about 4 hours before the first lift. Do not transfer anyone while it is plugged in.
- Lock the rear casters, spread the legs, seat every loop, then raise a little and check them.
- The red lock lowers the bar with no power when about 44 lb (20 kg) is on the motor.
- Run for 2 minutes, then rest up to 18 minutes. A caregiver stays throughout.
What does it work with, and what are its limits?
This bar takes BEKA Hospitec loop slings only. We confirm the loop sling before you order.
- Nylon transfer, bathing and toilet slings, small through XXL. See patient lift slings.
- Do not push the bar or open the battery. Rated IPX4: do not submerge the lift.
- Osteoporosis, a spine disorder, osteogenesis imperfecta, confusion or seizures: only with the attending physician.
- A written safety check is due every year. Recharge a stored battery every 6 months.
Which version should I choose?
Order 924003008 only above 407.86 lb (185 kg). Both versions charge on the lift.
How does it compare?
See patient lifts. The low-leg CARLO Classic fits lower beds. The CARLO Comfort EP uses clip slings. The Hoyer Advance is a lighter floor lift.
Frequently asked questions
Can I charge the battery during a transfer?
No. Unplug first. On the Canadian unit, release the emergency stop or it will not charge.
What if the hand control fails mid-lift?
Use the buttons on the control unit while the battery has charge. The red lock still lowers the bar.
Does a patient scale come with the lift?
No. Scale 924003300 or kit 924003400 fits the 185 kg lift. Scale 925001208 or kit 924001800 fits the 230 kg lift.
Funding may help: see who may help pay.
Specifications
- Weight capacity
- 407.86 lb (185 kg) for 924003208; 507 lb (230 kg) for 924003008
- Product weight
- About 121 lb (55 kg) for 924003208; about 143 lb (65 kg) for 924003008
- Caster size
- 3.9 in (100 mm) double casters; rear pair lock
- Overall height
- 52.8 to 85.4 in (1,340 to 2,170 mm)
- Overall length
- 50.78 in (1,290 mm) for 924003208; 55.1 in (1,400 mm) for 924003008
- Sling attachment
- 6-point carry bar for loop slings
- Lifts from floor
- Yes, including a person on the floor
- Controls
- Cable hand control and buttons on the control unit
- Emergency lowering
- Manual red lock, plus electrical buttons on the control unit
- Battery
- Removable 24 V lead-acid, 2.9 Ah
- Water resistance
- IPX4 on the lift; IPX5 on the battery
- Minimum lift height
- 7.87 in (20.0 cm) at the hanger bar
- Maximum lift height
- 62.20 in (158.0 cm) at the hanger bar
- Base width closed
- 27.56 in (700 mm) outer
- Base width open
- 46.46 in (1,180 mm) for 924003208; 48.4 in (1,230 mm) for 924003008
- Base height
- 4.92 in (125 mm) carrier frame
- Base widening
- Powered leg spread
- Leg opening
- 40.94 in (1,040 mm) inside for 924003208; 42.9 in (1,090 mm) for 924003008
- Material
- Aluminum chassis, lifting column and components
- Compatible with
- BEKA Hospitec loop slings: nylon transfer, bathing and toilet
- Battery charger
- On-board charger, 100-240 V AC, about 4 hours
- Product type
- Electric floor lift
Options and sizes can change some figures. Ask us to confirm yours before you order.
