Description
This page is item 60600014 only, the low-leg electrical base.
Which code you are buying
- 60600014 is electrical base widening with low legs. The standard-height electrical base is item 60600009.
- The pedal-widened version, 60600011, has its own page as the Carina 350 EM, and the pedal version with low legs is 60600012.
- Compare other models on the patient lifts page or in the electric floor lifts range.
How does a transfer work on the low-leg base?

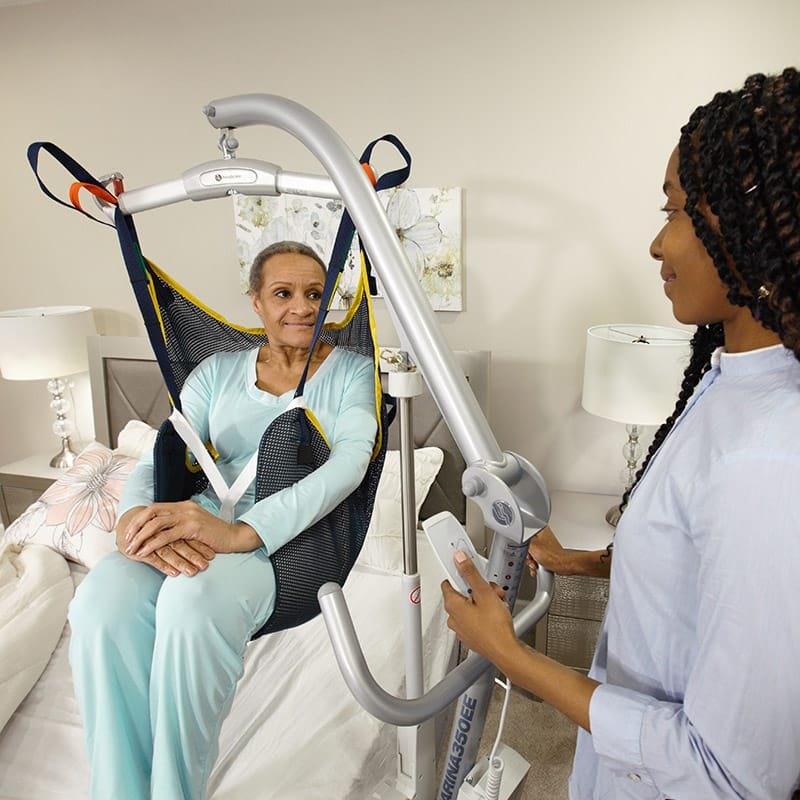

The sling bar hooks rise from 22.8 in to 66.1 in (580-1680 mm) above the floor. The fitted two-point bar has safety latches.
- One hand control drives the arm up and down and widens the legs; letting go of a button stops the motion.
- Pick a sling Handicare approves for this lift. Whichever is rated lowest, the lift, the bar or the sling, sets the limit.
Will the base go under the bed?
On this code the front casters are 1.4 in and the rear casters are 3.9 in. Base height is 4.9 in (125 mm). Measure the doorway and the gap under the bed before you order.
Outer width runs from 26.8 in closed to 42.5 in open (680-1080 mm).
How is it charged, and how does it lower in an emergency?
A built-in charger tops up the two 12 V, 2.9 Ah gel batteries. Before the lift is used for the first time, give it a charge of 4 hours or more.
- If power fails, the arm can still be lowered manually or with the electrical emergency lowering.
Frequently asked questions
Is 60600014 the standard-height Carina350EE?
No. 60600014 is the low-leg electrical base. Item 60600009 is the standard-height electrical base.
Are the front and rear casters the same size?
No. This code has 1.4 in front casters and 3.9 in rear casters. The rear ones have brakes.
Does the box include a sling?
No. The two-point bar arrives fitted, but the sling is ordered on its own, and it must be one Handicare approves.
Can it be charged in a bathroom?
No. Handicare's manual rules out charging in a wet room and using the lift in water.
Who may help pay for a low-leg lift?
Funding may help: see who may help pay. Call (905) 798-1853 with any questions.
For a short need, a floor lift can be rented. Book a free home assessment to check the doorway. Showrooms are on our showroom page. Service is on the service page.
Specifications
- Weight capacity
- 350 lb
- Product weight
- 78 lb (35.4 kg)
- Caster size
- 1.4 in front, 3.9 in rear with brakes
- Overall height
- 50.8-72.4 in (1290-1840 mm)
- Folded dimensions
- 47.9 in long and 16.8 in high (1216 x 428 mm)
- Sling attachment
- Two-point bar, 17.7 in (450 mm), safety latches
- Folding
- Folds for storage. No tools to set it up
- Controls
- Hand control HB33-6, electrical base widening
- Emergency lowering
- Manual and electrical
- Battery
- Two 12 V, 2.9 Ah sealed gel
- Lifting range
- 22.8-66.1 in (580-1680 mm)
- Base width closed
- 26.8 in (680 mm), outer
- Base width open
- 42.5 in (1080 mm), outer
- Base height
- 4.9 in (125 mm)
- Base widening
- Electrical, from the hand control
- Leg opening
- 22-37 in (560-940 mm), inner
- Compatible with
- Handicare SystemRoMedic slings
- Battery charger
- Built-in, max 400 mA
- Product type
- Foldable floor lift
Figures from the manufacturer. Options and seat sizes can change them; we confirm yours before ordering.
